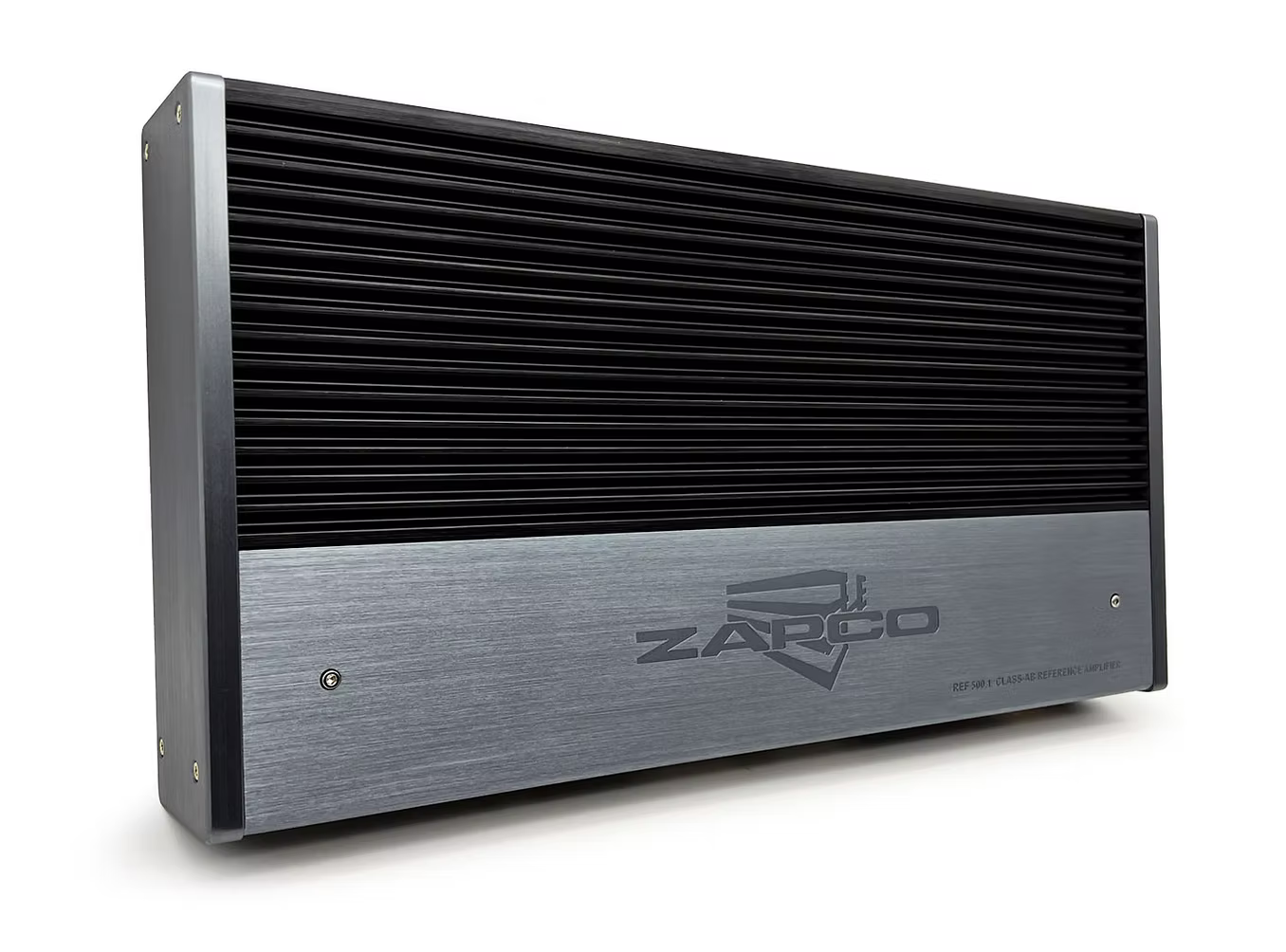

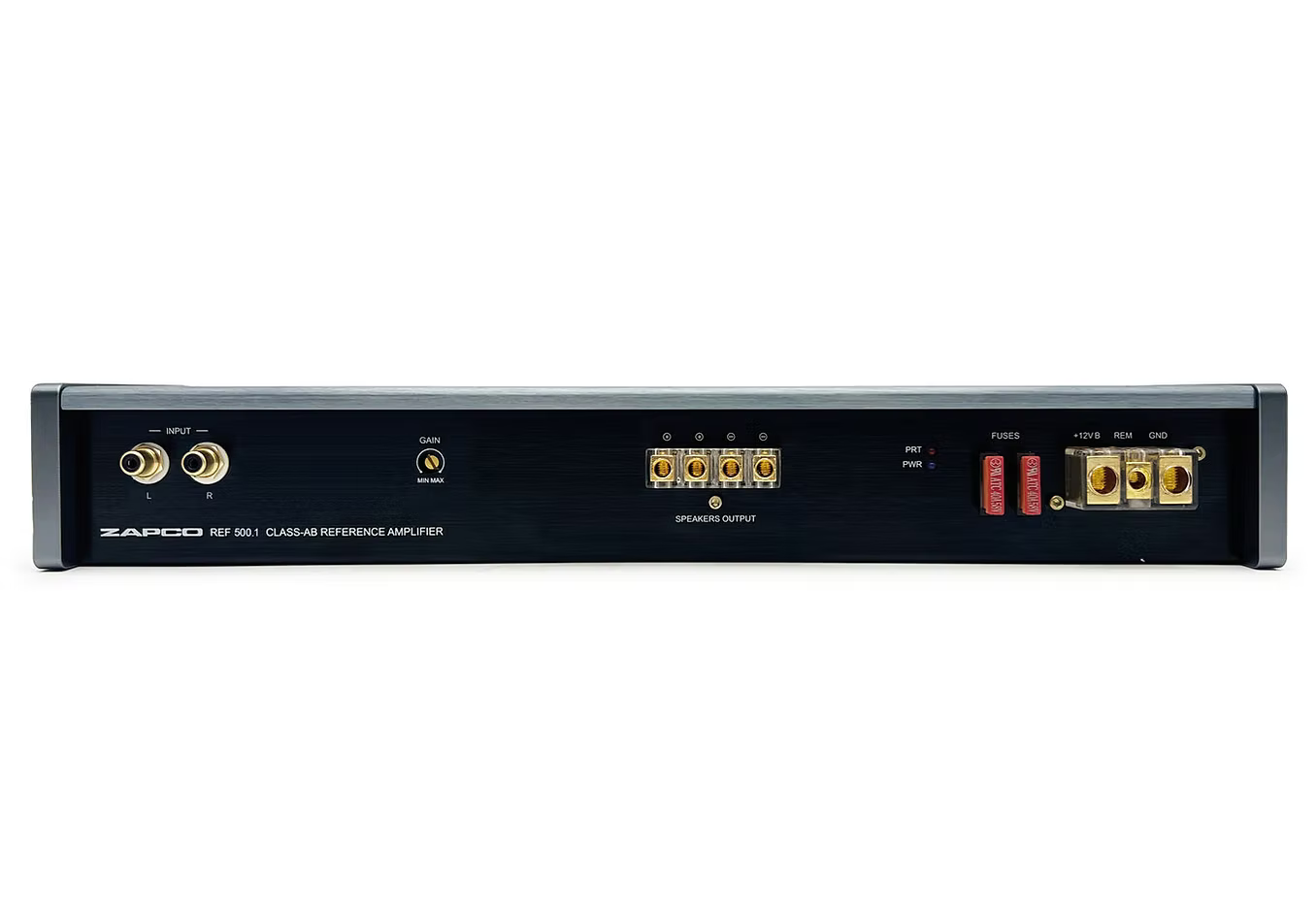

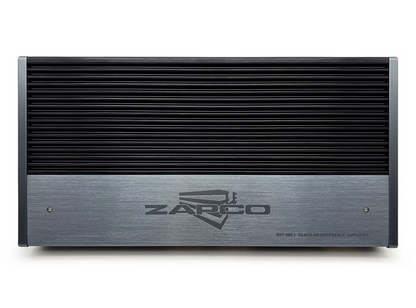

Zapco REF 500.1 550x1 Class AB Amplifier
Zapco REF 500.1 550x1 Class AB Amplifier
Couldn't load pickup availability
Free Shipping on orders over $50.
REF 500.1
Features and Functions
- 1-Channel, Class-AB, High-End Amplifier
- Signal to noise ratio of over 103dB
- High Quality Bipolar-input Dual OP
- High Quality/Transition Frequency Transistors
- High-precision 0.1% Output Resistors
- High density, Loss factor Input Capacitors
- Low internal resistance Power Capacitors
- Ultra Low On-Resistance, Fast Switching Mosfets
- High-power pure copper transformers
- Low Resistance Fuses
Technical Specifications
- Power RMS @ 4Ω: 1 x 320 watts
- Power RMS @ 2Ω: 1 x 550 watts
- THD @ Rated Power < 0.02%
- Signal to Noise Ratio > 102dB
- Frequency Response: 10Hz to 40,000Hz ±1dB
- Input Sensitivity: 0.5V to 8V
- Fuse Rating: 2 x 40A
- Overall Dimensions (mm): 210(W) x 62(H) x 416(L)
-
