DC Audio NEO 4.0 Subwoofer

$1,689.99

$1,689.99 ~~$1,949.99~~

Save 13%

Size 12" 15" 18"

Ohm D.7 D1 D1.4 D2

Proven Performance

Quantity

Secure SSL Payments

Free Shipping on orders over $50.

Description

Subwoofer Description

The Neo Elite is DC Audio’s 4” Coil Neo powered subwoofer. Why, because people asked for it and we thought it would be a fun project, that’s exactly what it turned out to be.

The Neo Elite is a subwoofer that’s happy doing SPL but is even more suited for high power ground pounder applications. If you're in the market for a subwoofer that can take a lot of power get loud and crush lows, then this could be the one for you.

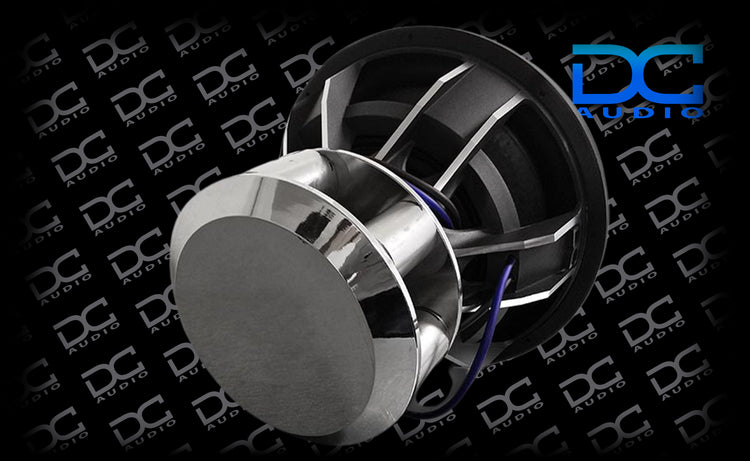

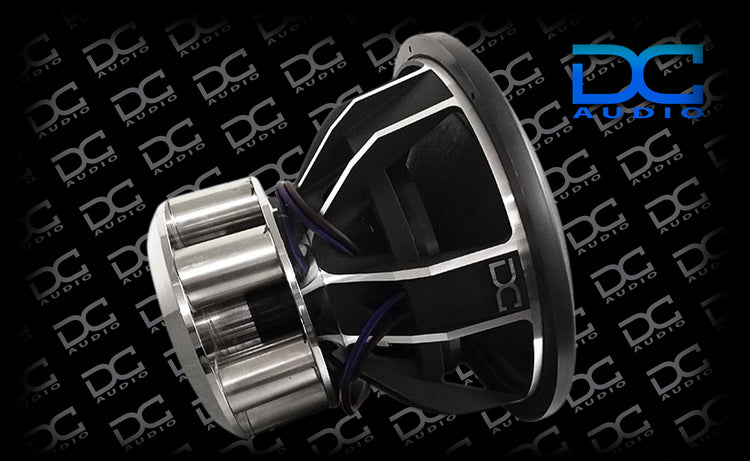

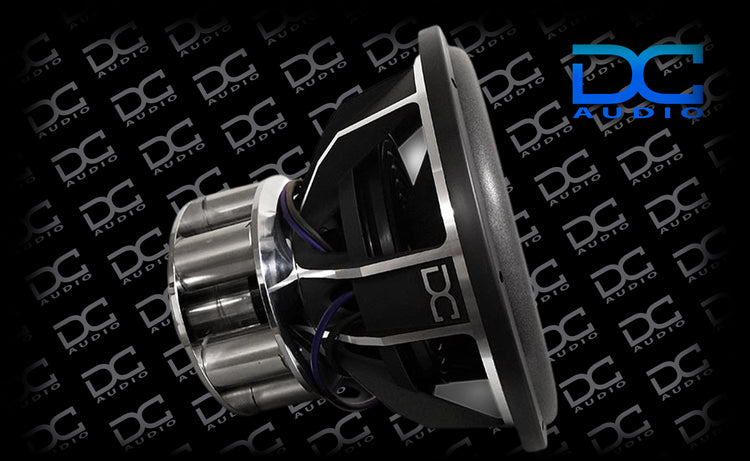

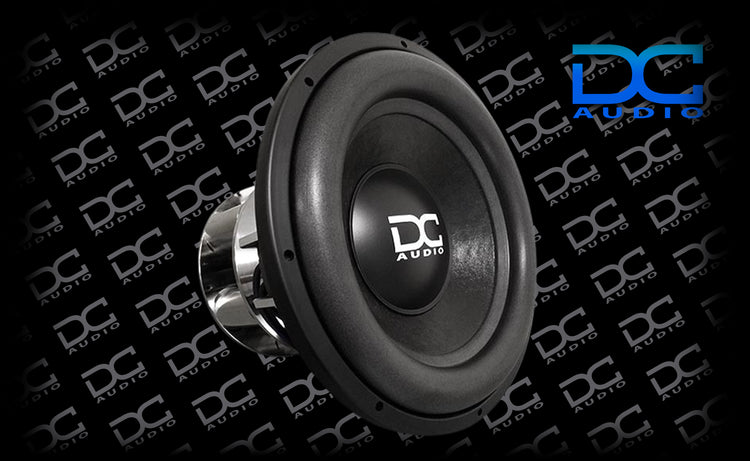

The Neo Elite comes with a Large flat wound 4” Coil, 10” Spaced Spiders, The DC Frame, 6 columns of NEO, multi tensile leads sewn to the top spider and a High-Performance cone and surround.

Key Features

• Extremely strong kraft pulp fiber reinforced cone

• Wide Long Throw foam surround

• Dome propylene dust cover with White DC logo

• 10” OD Spaced Spiders

• Extra heavy duty sewn tinsel lead wire

• Cast DC Series aluminum black frame / no invert mount

• FEA analyzed and optimized motor assembly – Fully CNC machined

• Rubber mounting gasket

• 8 AWG OFC Direct leads

•4.0” 8 Layer Hi-temp Aluminum voice coil wound on a Black Anodized Aluminum former

T/S Parameters

NEO 4.0 Subwoofer
15"
18"


Mounting Depth
12"
13.00"

Mounting Hole Diameter
14.25"
16.9"

Outside Driver Diameter
15.7"
18.5"

VC Diameter
4"
4"

Displacement
.23 ft³
.26 ft³

Power Handling RMS
4500
watts
4500
watts

Power Handling PEAK
8000
watts
8000
watts

Ohm Options
d.7/d1/d2
d.7/d1/d2

Sd
791 cm²
1159 cm²

Vas
0.00 L
67.10 L

Cms
0.00 Mm/n
0.03 Mm/n

Mms
724.0 g
807.49 g

Fs
00.00 Hz
30.36 Hz

Bl
40.55 N/A
40.55 N/A

Re
3.9 Ohm
3.9 Ohm

Le
4.7 mH
4.7 mH

Qms
0.00
8.08

Qes
0.00
0.36

Qts
0.00
0.35

Xmax
34mm
34mm

Ref SPL @1 watt
00.0db
88.8 db

Suggest Sealed Box
N/A ft³
N/A ft³

Suggested Ported Box
3.25 ft³
5.5 ft³

NEO 4.0 Subwoofer	15"	18"
Mounting Depth	12"	13.00"
Mounting Hole Diameter	14.25"	16.9"
Outside Driver Diameter	15.7"	18.5"
VC Diameter	4"	4"
Displacement	.23 ft³	.26 ft³
Power Handling RMS	4500 watts	4500 watts
Power Handling PEAK	8000 watts	8000 watts
Ohm Options	d.7/d1/d2	d.7/d1/d2
Sd	791 cm²	1159 cm²
Vas	0.00 L	67.10 L
Cms	0.00 Mm/n	0.03 Mm/n
Mms	724.0 g	807.49 g
Fs	00.00 Hz	30.36 Hz
Bl	40.55 N/A	40.55 N/A
Re	3.9 Ohm	3.9 Ohm
Le	4.7 mH	4.7 mH
Qms	0.00	8.08
Qes	0.00	0.36
Qts	0.00	0.35
Xmax	34mm	34mm
Ref SPL @1 watt	00.0db	88.8 db
Suggest Sealed Box	N/A ft³	N/A ft³
Suggested Ported Box	3.25 ft³	5.5 ft³
