DC Audio Level 5 Subwoofer

Subwoofer Description

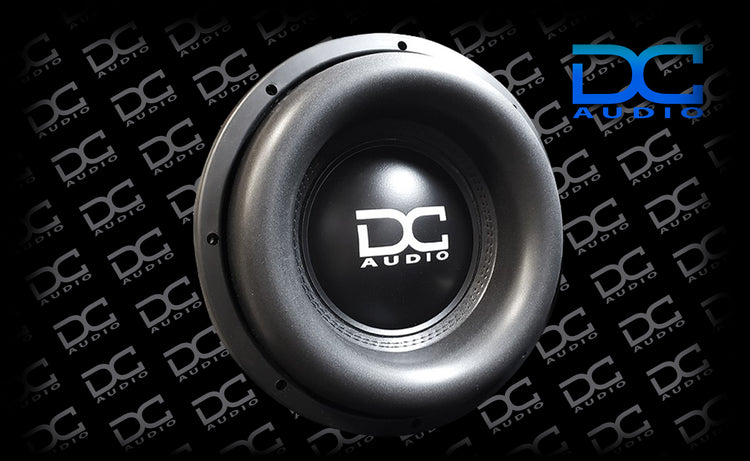

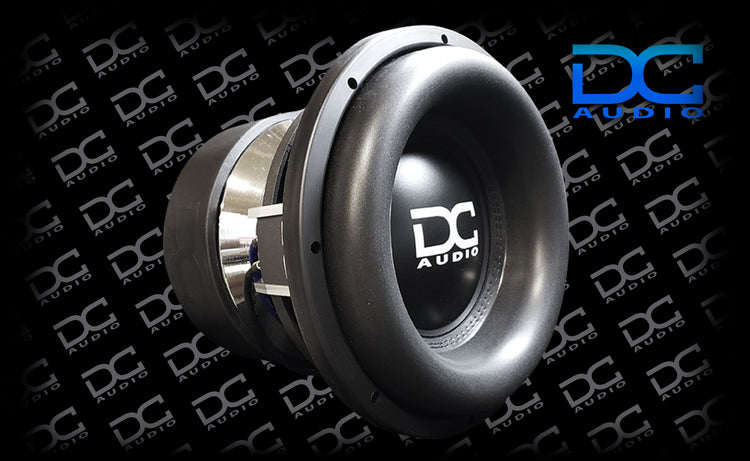

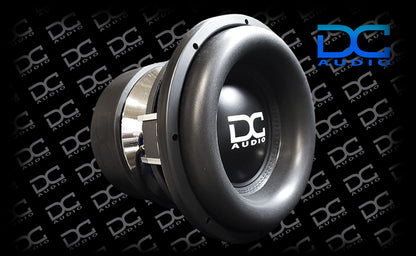

Here it is, the “M6 or revision #6 of the Lv5 subwoofer. Built for ground pounding and taking abuse in or out of the competition lanes.

When we went to the drawing board with this one we were looking to make improvements in cooling, motor force and soft parts.

The end result is a sub that works great in the SPL lanes as well as Pounding out the LOWS!!

To really step it up with this driver take a look at the Carbon Fiber options available for it.

Key Features

• Extremely strong kraft pulp fiber reinforced cone

• Wide Long Throw foam surround

• Dome propylene dust cover with White DC logo

• 10” OD Spaced Spiders

• Extra heavy duty sewn tinsel lead wireCast DC Series

• Aluminum black DC tooled frame / no invert mount

• FEA analyzed and optimized motor assembly – Fully CNC machined

• Rubber mounting gasket

• 8 Awg OFC Direct Leads

• 3.5” 8 Layer Hi-temp Aluminum voice coil wound on a Black Anodized Aluminum former

• Embossed Rubber magnet cover

• Aluminum Shortning Ring

• HAND BUILT IN THE USA

                                           T/S Parameters

  M5 Level 5 Subwoofer	12"	15"	18"
  Mounting Depth	10.5"	11.75"	12.75"
  Mounting Hole Diameter	11.15"	14.25"	16.9"
  Outside Driver Diameter	12.5"	15.7"	18.5"
  VC Diameter	3.5"	3.5"	3.5"
  Displacement	.19 ft³	.23 ft³	.26 ft³
  Power Handling RMS	3500 watts	3500 watts	3500 watts
  Power Handling PEAK	7000 watts	7000 watts	7000 watts
  Ohm Options	d.7/d1/d2	d.7/d1/d2	d.7/d1/d2
  Sd	494 cm²	791 cm²	1159 cm²
  Vas	00.00 L	00.00 L	00.00 L
  Cms	0.00 Mm/n	0.00 Mm/n	0.00 Mm/n
  Mms	442.0 g	487.2 g	534.19 g
  Fs	30.59 Hz	30.7 Hz	29.85 Hz
  Bl	00.00 N/A	00.00 N/A	00.00 N/A
  Re	0.00 Ohm	0.00 Ohm	0.00 Ohm
  Le	0.0 mH	0.0 mH	0.0 mH
  Qms	0.00	0.00	0.00
  Qes	0.00	0.00	0.00
  Qts	0.00	0.00	0.00
  Xmax	34mm	34mm	34mm
  Ref SPL @1 watt	00.0db	00.0db	00.0db
  Suggest Sealed Box	N/A ft³	N/A ft³	N/A ft³
  Suggested Ported Box	1.5 ft³	3.25 ft³	5.5 ft³
