DC Audio XL-Elite Subwoofer

$834.99

$834.99 ~~$1,129.99~~

Save 26%

Size 12" 15" 18"

Ohm D1 D2 D4

Proven Performance

Quantity

Secure SSL Payments

Free Shipping on orders over $50.

Description

Subwoofer Description

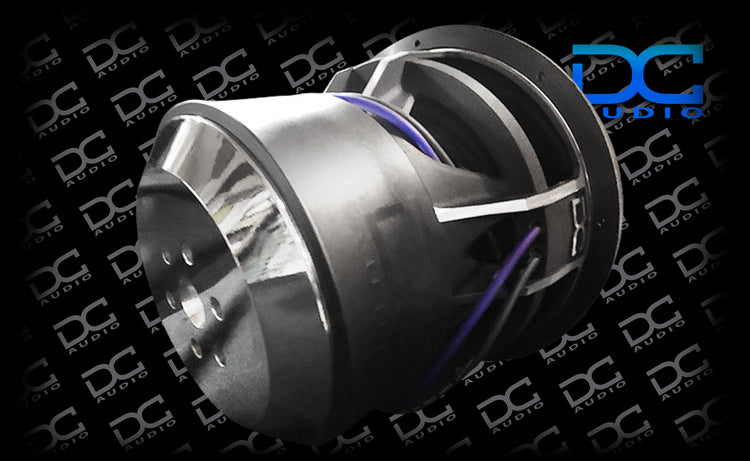

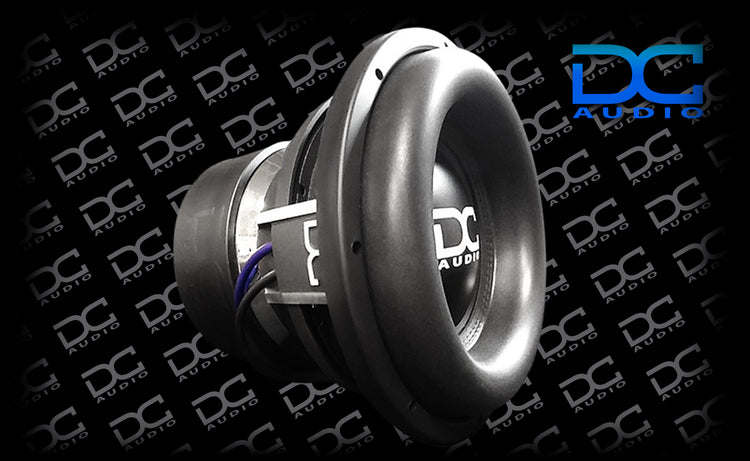

The XL ELITE is an Evolution of our #1 Selling XL Subwoofer line. We have redesigned the motor giving it a fresh new look, Added a pole vent and larger magnets, FEA optimized it and mated it with the DC Frame using 10 inch spiders.

The sub came from demand. XL style motor, 3 inch 8 layer coil, 10 inch spiders and the “famous for its performance and good looks” DC Frame in 12,15 and 18!!

Key Features

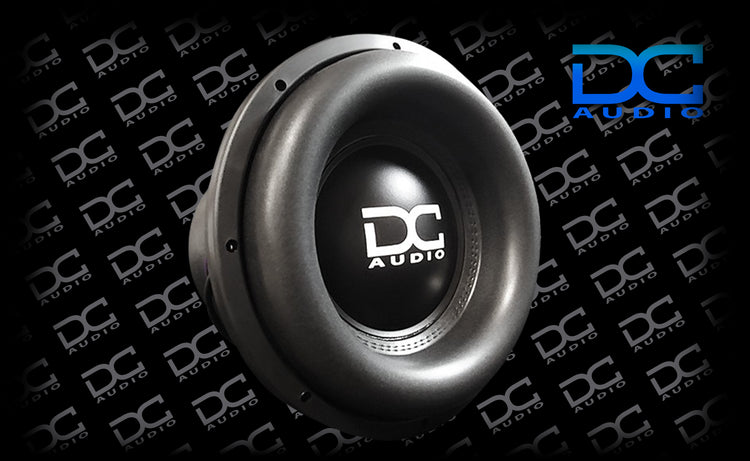

• Extremely rigid non-pressed paper cone assembly

• Multilayered polymer foam surround

• Polypropylene dust cover with DC logo

• Quad 10"OD Spiders

• Dual Extra heavy duty interweaved tinsel lead wire

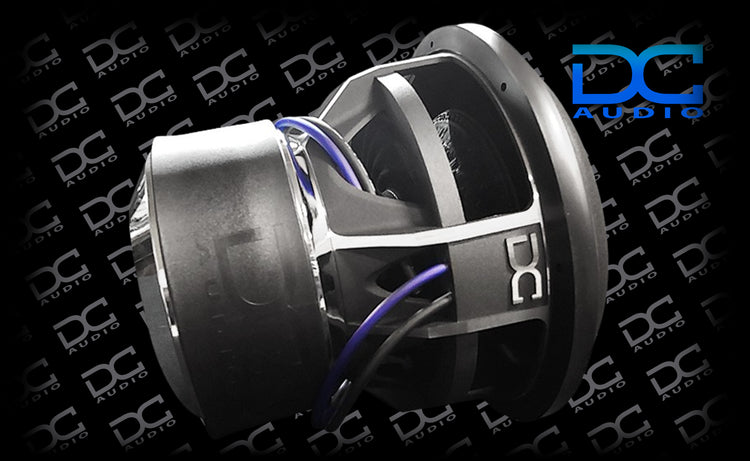

• Cast Heavy Duty DC Aluminum black & Grind frame / no invert mount

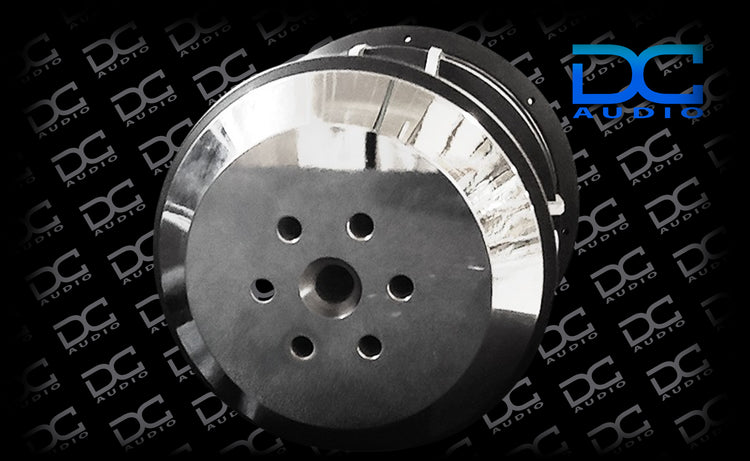

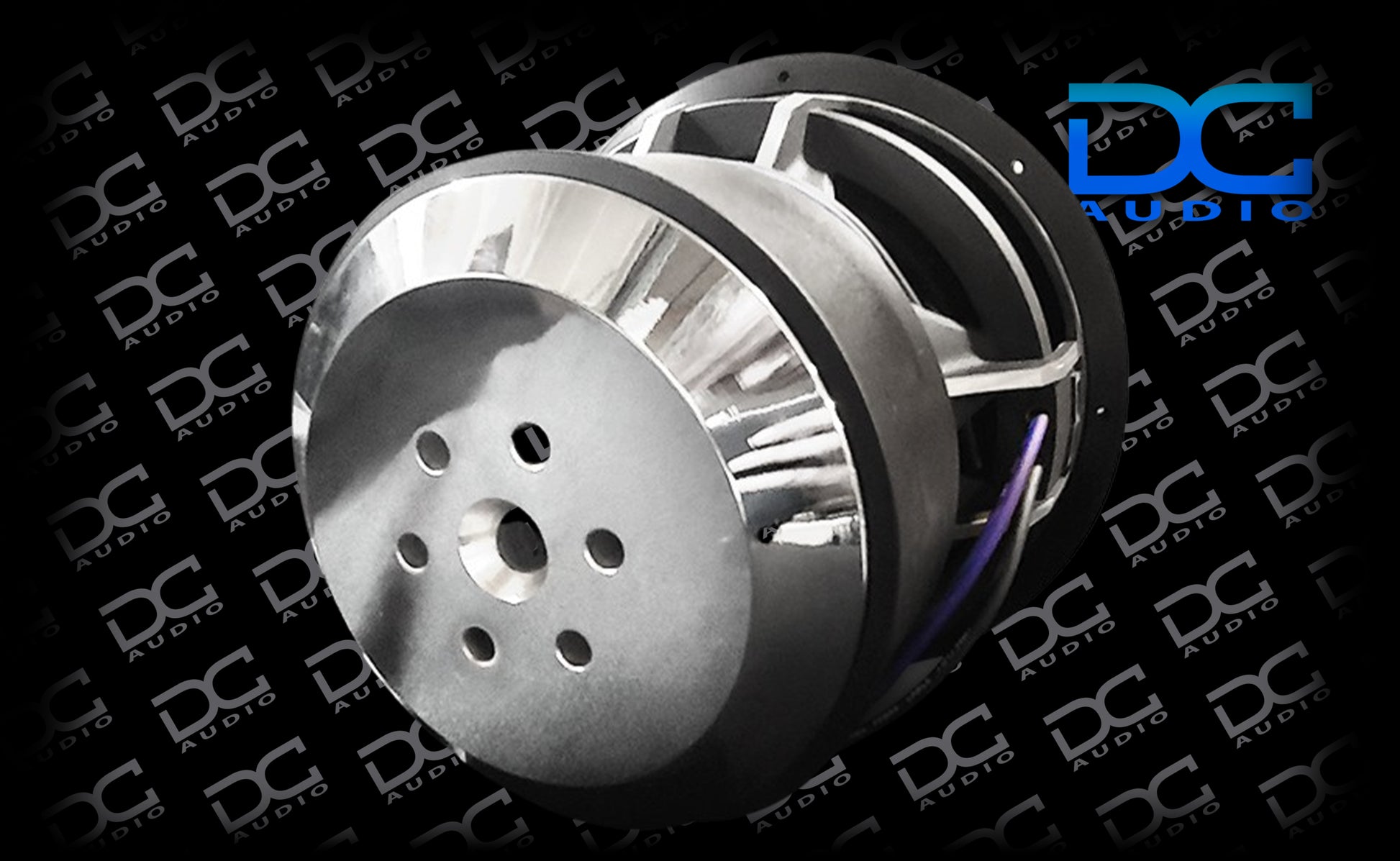

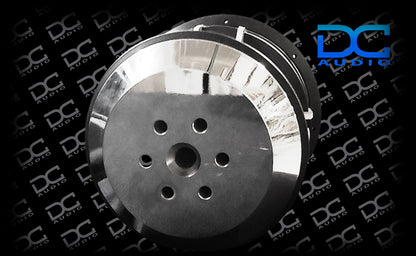

• FEA analyzed and optimized motor assembly – Fully CNC machined

• Rubber mounting gasket

• 8 Awg OFC Direct Leads

• Dual 0.7, 1.0, 1.4 or 2 ohm 3" 8 Layer Hi-temp Aluminum Coil

• Rubber magnet cover

T/S Parameters



M4 XL-Elite Subwoofer
12"
15"
18"


Mounting Depth
9.75"
11"
12"

Mounting Hole Diameter
11.15"
14.25"
16.9"

Outside Driver Diameter
12.5"
15.7"
18.5"

VC Diameter
3.0"
3.0"
3.0"

Displacement
.19 ft³
.23 ft³
.26 ft³

Power Handling RMS
2200
watts
2200
watts
2200
watts

Power Handling PEAK
4400
watts
4400
watts
4400
watts

Ohm Options
d1/d2/d4
d1/d2/d4
d1/d2/d4

Sd
494 cm²
791 cm²
1159 cm²

Vas
22.36 L
00.00 L
129.16 L

Cms
0.07 Mm/n
0.06 Mm/n
0.06 Mm/n

Mms
332.5 g
367.4 g
534.19 g

Fs
31.63 Hz
30.1 Hz
27.85 Hz

Bl
24.16 N/A
23.73 N/A
26.49 N/A

Re
4.16 Ohm
1.8 Ohm
4.66 Ohm

Le
5.5 mH
0.0 mH
4.4 mH

Qms
6.20
6.31
8.27

Qes
0.47
0.37
0.62

Qts
0.43
0.35
0.57

Xmax
34mm
34mm
34mm

Ref SPL @1 watt
0.00 db
90.3db
88.25db

Suggest Sealed Box
1.0 ft³
2.0 ft³
3.5 ft³

Suggested Ported Box
1.5 ft³
3.25 ft³
5.5 ft³

M4 XL-Elite Subwoofer	12"	15"	18"
Mounting Depth	9.75"	11"	12"
Mounting Hole Diameter	11.15"	14.25"	16.9"
Outside Driver Diameter	12.5"	15.7"	18.5"
VC Diameter	3.0"	3.0"	3.0"
Displacement	.19 ft³	.23 ft³	.26 ft³
Power Handling RMS	2200 watts	2200 watts	2200 watts
Power Handling PEAK	4400 watts	4400 watts	4400 watts
Ohm Options	d1/d2/d4	d1/d2/d4	d1/d2/d4
Sd	494 cm²	791 cm²	1159 cm²
Vas	22.36 L	00.00 L	129.16 L
Cms	0.07 Mm/n	0.06 Mm/n	0.06 Mm/n
Mms	332.5 g	367.4 g	534.19 g
Fs	31.63 Hz	30.1 Hz	27.85 Hz
Bl	24.16 N/A	23.73 N/A	26.49 N/A
Re	4.16 Ohm	1.8 Ohm	4.66 Ohm
Le	5.5 mH	0.0 mH	4.4 mH
Qms	6.20	6.31	8.27
Qes	0.47	0.37	0.62
Qts	0.43	0.35	0.57
Xmax	34mm	34mm	34mm
Ref SPL @1 watt	0.00 db	90.3db	88.25db
Suggest Sealed Box	1.0 ft³	2.0 ft³	3.5 ft³
Suggested Ported Box	1.5 ft³	3.25 ft³	5.5 ft³
