Hades Line of Lithium Power Bank Batteries
Hades Line of Lithium Power Bank Batteries
Couldn't load pickup availability
Free Shipping on orders over $50.

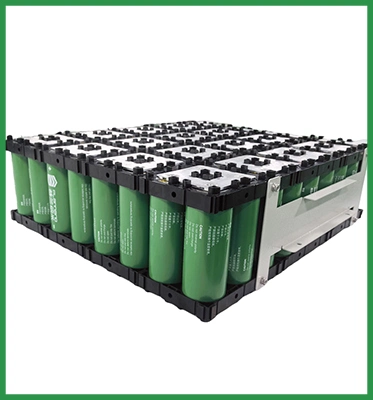

The Hades line of Lithium Batteries are made from Grade A Planano LTO cells. Planano cells are know for there extream amount of enery output, charge and discharge rates as well as being a reliable cell to last you long peroids of time. This battery is used from 14.4 - 16.2 Charging voltages, DO NOT EXCEED 16.2vdc at any time with these cells.
We offer Power Banks from up to 4000 watts of rated amplifier power to 30,000 watts of amplifier power provided you have the correct alternator power backing it up. The benifits to lithium are HUGE POWER with the least amount of weight and footprint.
from 24ah banks to 120ah banks, we got you covered. These are what we suggest for most running stock levels of charging voltages. anything under 14.4 the ratring will decrease.
We hand buid these batteries one at a time ensuring the best cells and performance
| Amp Hours | Operating Voltage | Alternator Size | Charge Voltage | Max Wattage |
| 24ah | 14.4-16.2 | 150-200amp | 14.4 | 4000 |
| 24ah | 14.4-16.2 | 300-400amp | 15.0 | 6000 |
| 24ah | 14.4-16.2 | 400 amp | 16.2 | 7000 |
| 48ah | 14.4-16.2 | 150 amp | 14.4 | 6000 |
| 48ah | 14.4-16.2 | 200 amp | 14.4 | 8000 |
| 48ah | 14.4-16.2 | 350 amp | 15.0-16.2 | 12,000 |
| 48ah | 14.4-16.2 | 600-800 amp | 15.0-16.2 | 16,000 |
| 72ah | 14.4-16.2 | 150 amp | 14.4 | 10,000 |
| 72ah | 14.4-16.2 | 200 amp | 14.4 | 12,000 |
| 72ah | 14.4-16.2 | 350 amp | 15.0-16.2 | 18,000 |
| 72ah | 14.4-16.2 | 600-900 amp | 15.0-16.2 | 24,000 |
| 120ah | 14.4-16.2 | 600-900amp | 15.0-16.2 | 30,000 |
Cell Information
| Nominal Capacity | 24Ah |
| Nominal Voltage | 2.3V |
| Charge cut-off voltage | 2.7V |
| Cycles @25°C @1C | 20000 Cycles |
| Terminal type | m12 1.75 |
| Max Constant Charging Current | 10C |
| Max Constant Discharging Current | 15C |
| Max Charging Current | 20C |
| Max Discharging Current | 30C |
| Work temperature | -40°C ~ 60°C |
| Internal Impedance | ≤20mΩ |
| Dimensions | 64 * 64 * 180 mm |
| Weight | 30 Ounce |
-
