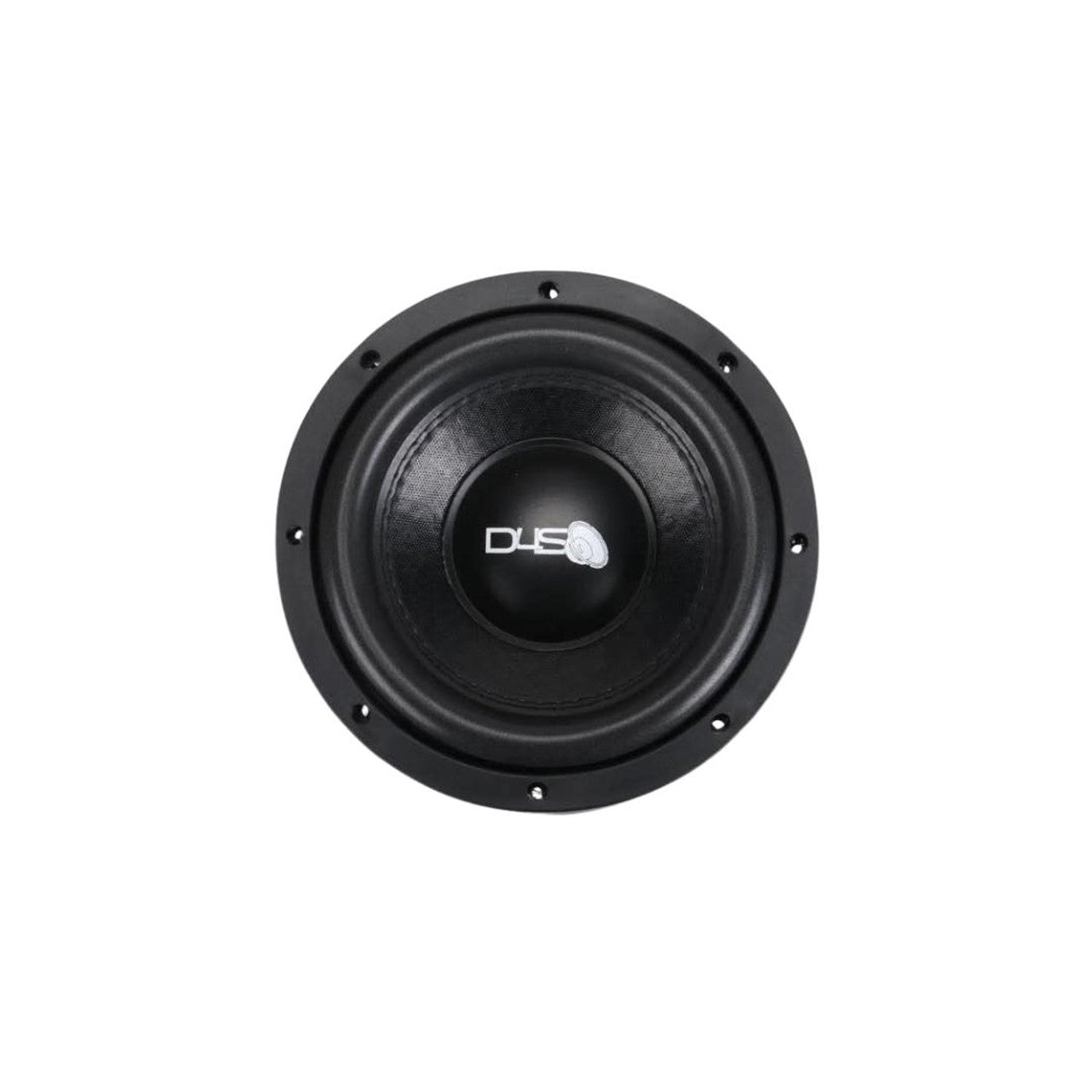

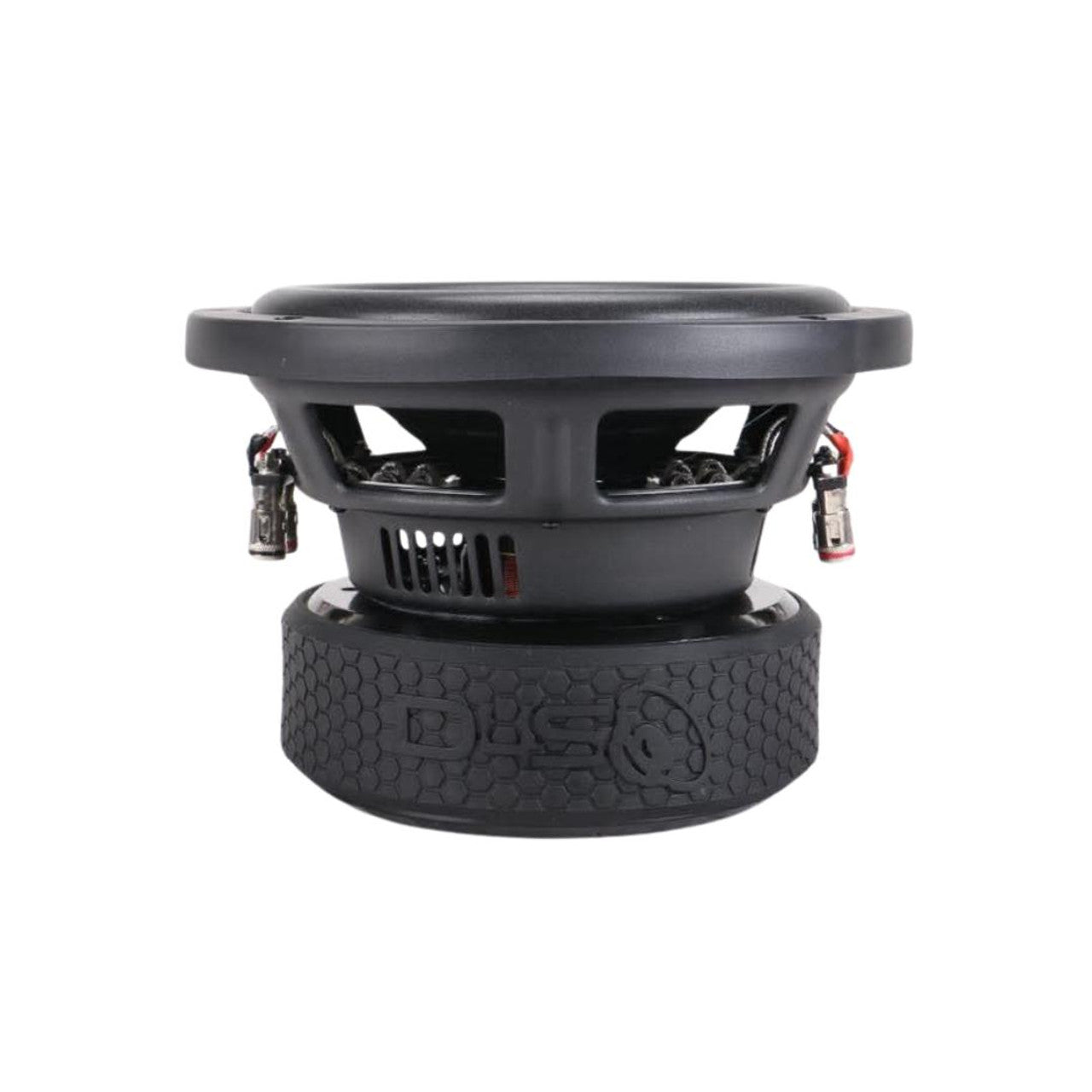

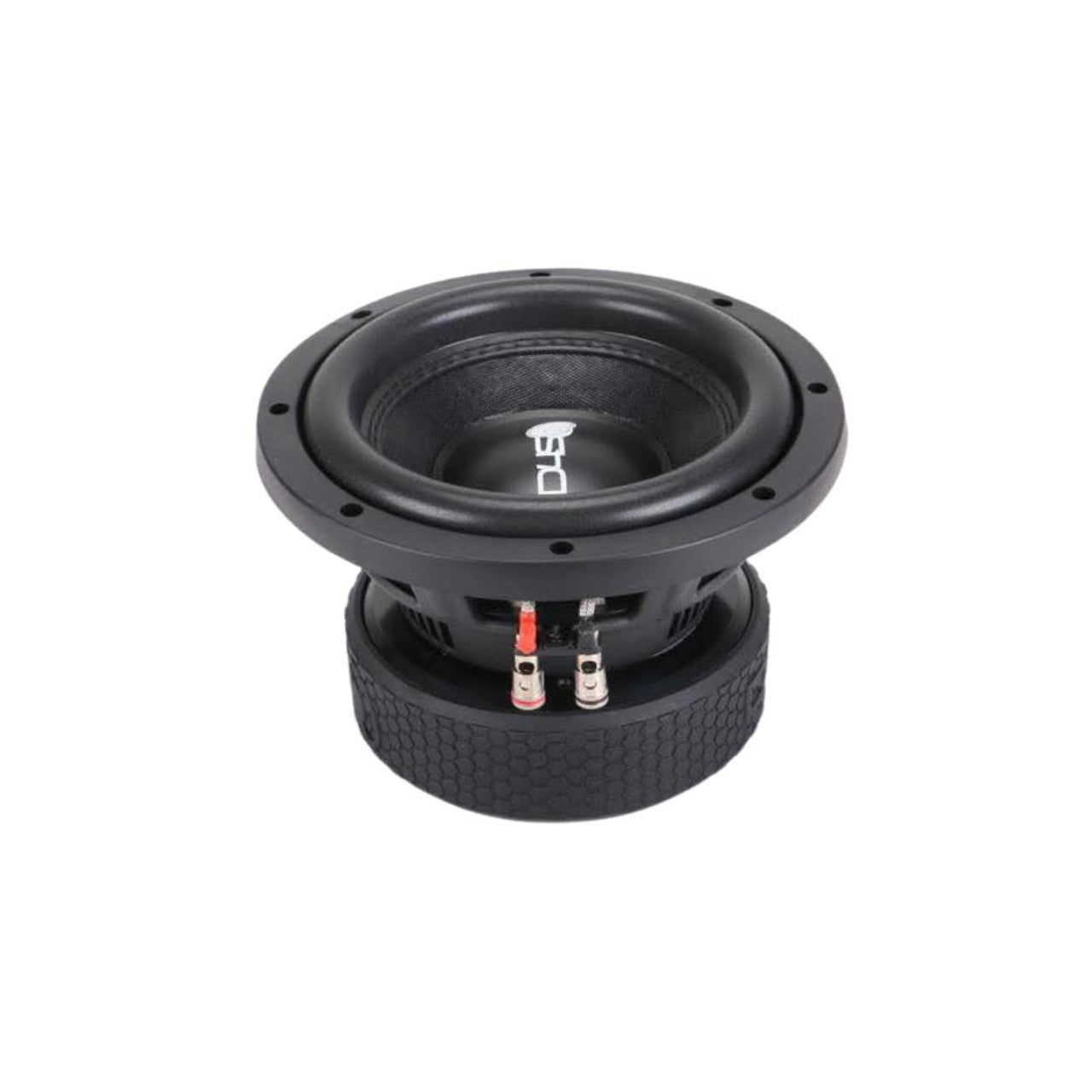

DOWN4SOUND SB 8" SUBWOOFER - DVC | 500W RMS

Unleash the power of precise bass performance with the DOWN4SOUND SB 8” Subwoofer, crafted for car audio enthusiasts who value clean and impactful sound. Featuring  500W RMS power handling, this subwoofer is optimized for versatile setups and exceptional sound quality in a compact package. Engineered for durability and long-lasting performance, the SB-8  is the perfect choice for any car audio build.

QUICK NOTES:

• RMS Handling: 500W RMS
• Coil Size: 2.5 Inch
• Cutout Diameter: 7.20 inches / 183 mm
• Outer Diameter: 8.50 inches / 216 mm
• Mounting Depth: 4.98 inches / 126.5 mm
• Motor Height: 2.36 inches / 60 mm
• Net Weight: 30 lbs / 13.6 kg
• Gross Weight: 33.1 lbs / 15 kg
• Highly optimized suspension for accurate sound reproduction
• Compact design ideal for tight installations

Technical Specifications:

• Revc (DC Resistance): 3.8 Ohm
• Resonance Frequency (Fs): 37.05 Hz
• BL Product: 14.17 T·m
• Total Moving Mass (Mms): 125.0 g
• Suspension Compliance (Cms): 139.65 μm/N
• Effective Piston Area (Sd): 210.1 cm²
• Equivalent Volume (Vas): 9.016 L
• Sensitivity (SPL): 80.3 dB
• Qms (Mechanical Q): 3.098
• Qes (Electrical Q): 0.582
• Qts (Total Q): 0.490
• Outside Diameter: 8.50 in (216 mm)
• Displacement: 0.07 cu ft

Recommended Enclosures:

• Ported Enclosure Size: 0.65 cu ft (net)
• Port Area: 9 sq in
• Port Tuning: 35 Hz
• Sealed Enclosure: Not Recommended
