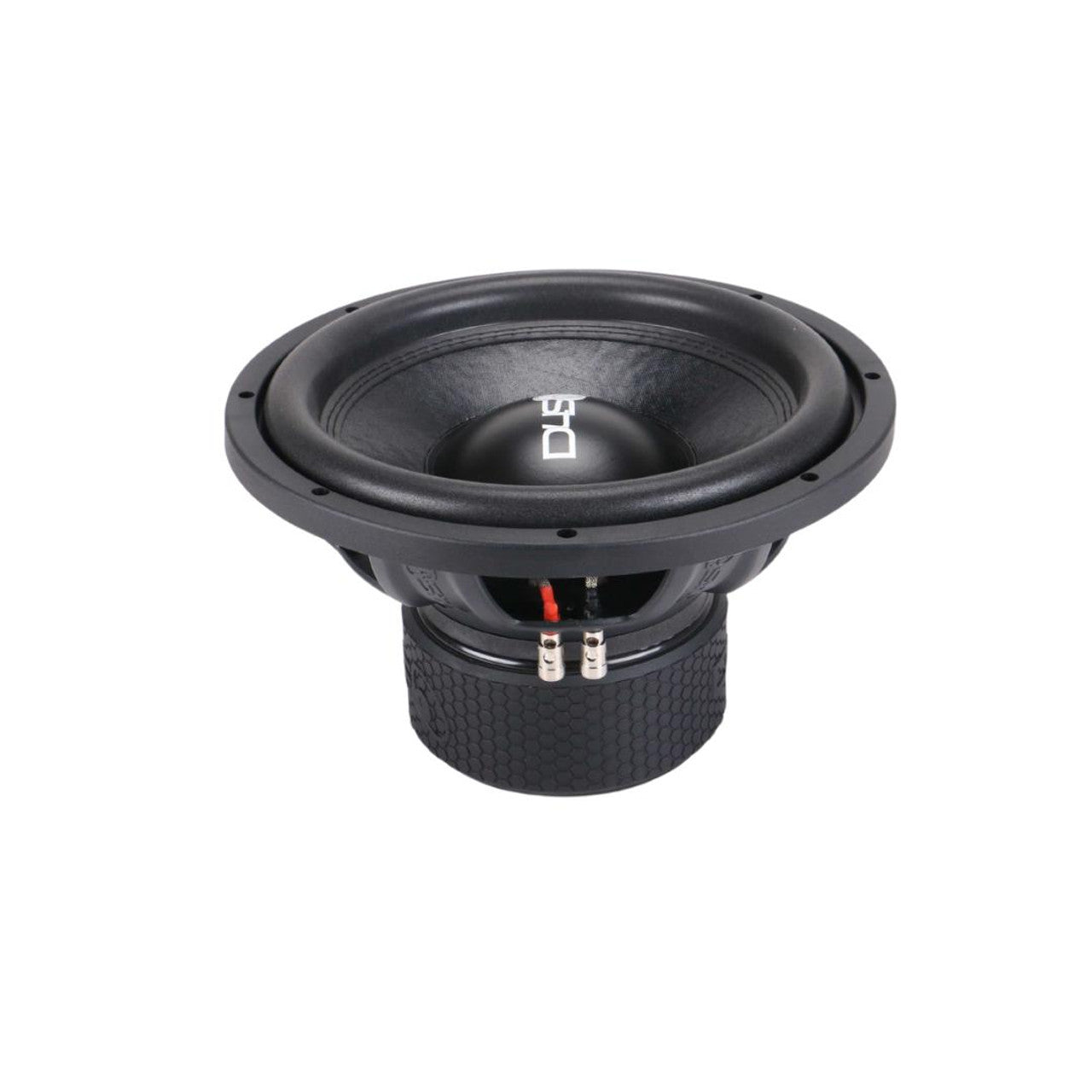

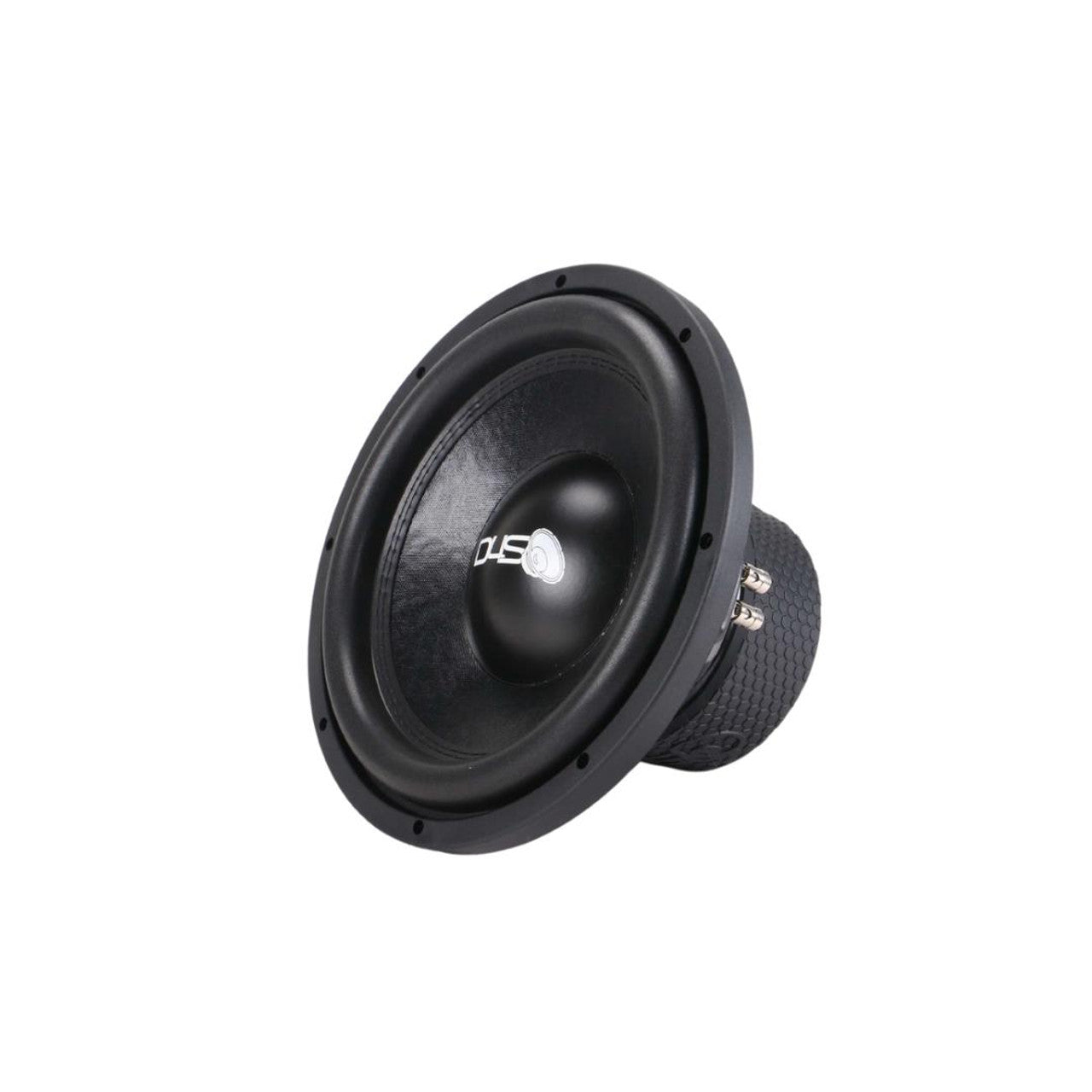

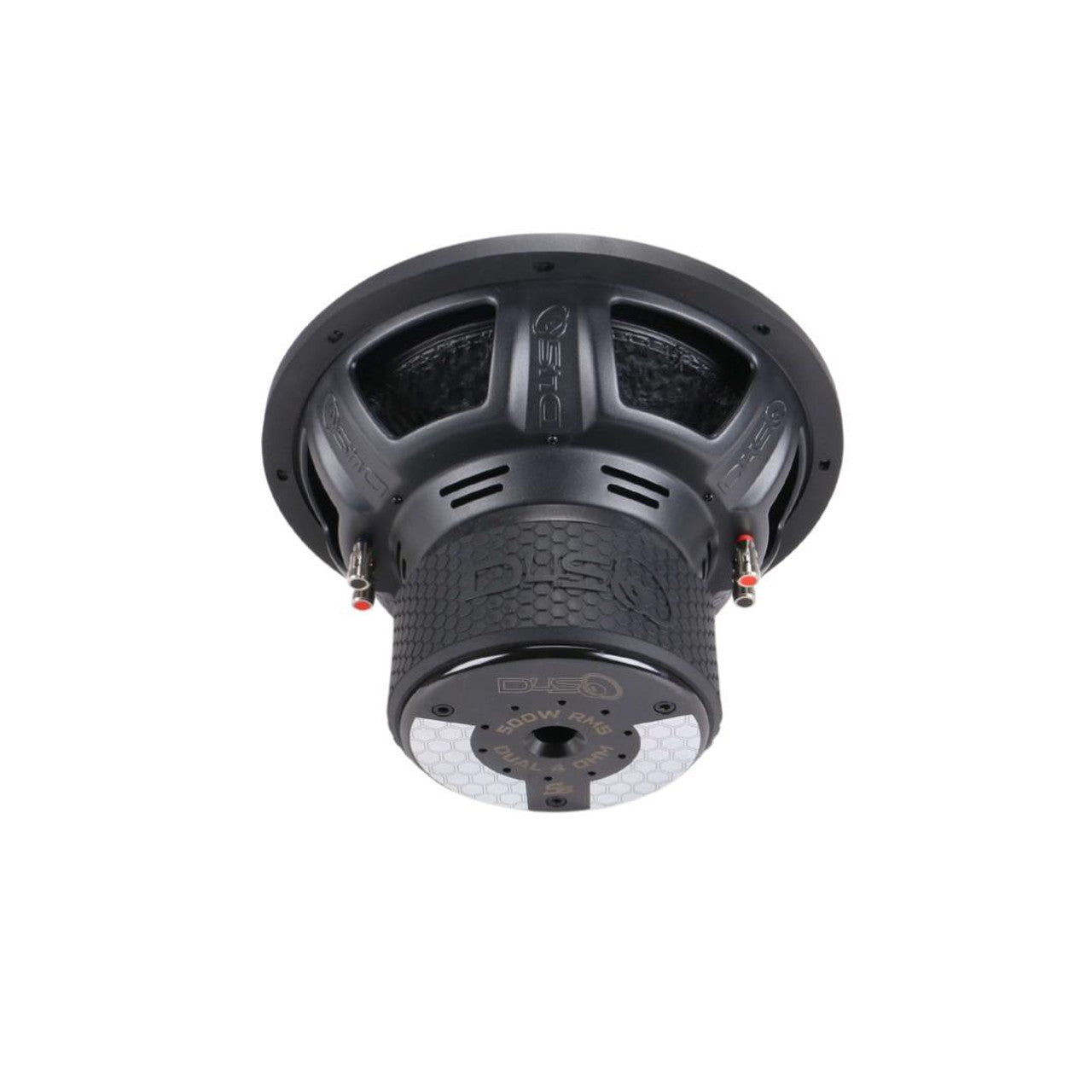

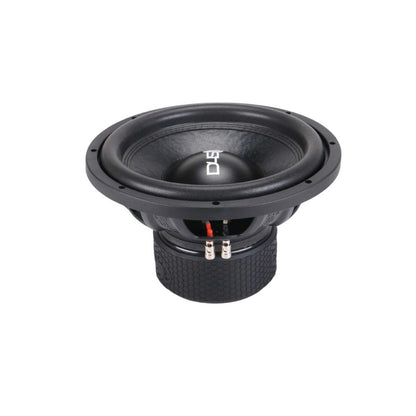

DOWN4SOUND SB 12" SUBWOOFER - DVC | 500W RMS

Experience the perfect blend of power and precision with the DOWN4SOUND SB 12” Subwoofer, designed for enthusiasts who crave deep, clean bass. Featuring 500W RMS power handling, this subwoofer is optimized for versatile setups and delivers exceptional performance. Its durable construction ensures long-lasting reliability, making it a must-have for car audio enthusiasts.

QUICK NOTES:

• RMS Handling: 500W RMS
• Coil Size: 2.5 Inch
• Cutout Diameter: 10.87 inches / 276 mm
• Outer Diameter: 12.44 inches / 316 mm
• Mounting Depth: 6.81 inches / 173 mm
• Motor Height: 3.54 inches / 90 mm
• Net Weight: 44.1 lbs / 20 kg
• Gross Weight: 47.4 lbs / 21.5 kg
• Highly optimized suspension for precise sound reproduction
• Versatile design suitable for various setups

Technical Specifications:

• Revc (DC Resistance): 2.13 Ohm
• Resonance Frequency (Fs): 29.90 Hz
• BL Product: 20.32 T·m
• Total Moving Mass (Mms): 200.0 g
• Suspension Compliance (Cms): 131.19 μm/N
• Effective Piston Area (Sd): 510.1 cm²
• Equivalent Volume (Vas): 48.59 L
• Sensitivity (SPL): 85.2 dB
• Qms (Mechanical Q): 3.624
• Qes (Electrical Q): 0.602
• Qts (Total Q): 0.516

• Ported EnclosureSize: 1.75 cu. ft. net
• Port Area: 26 sq. in.
• Port Tuning: 35 Hz
• Sealed Enclosure
• Not Recommended
• Outside Diameter: 12.44 in (316 mm)
• Displacement: 0.15 cu ft
