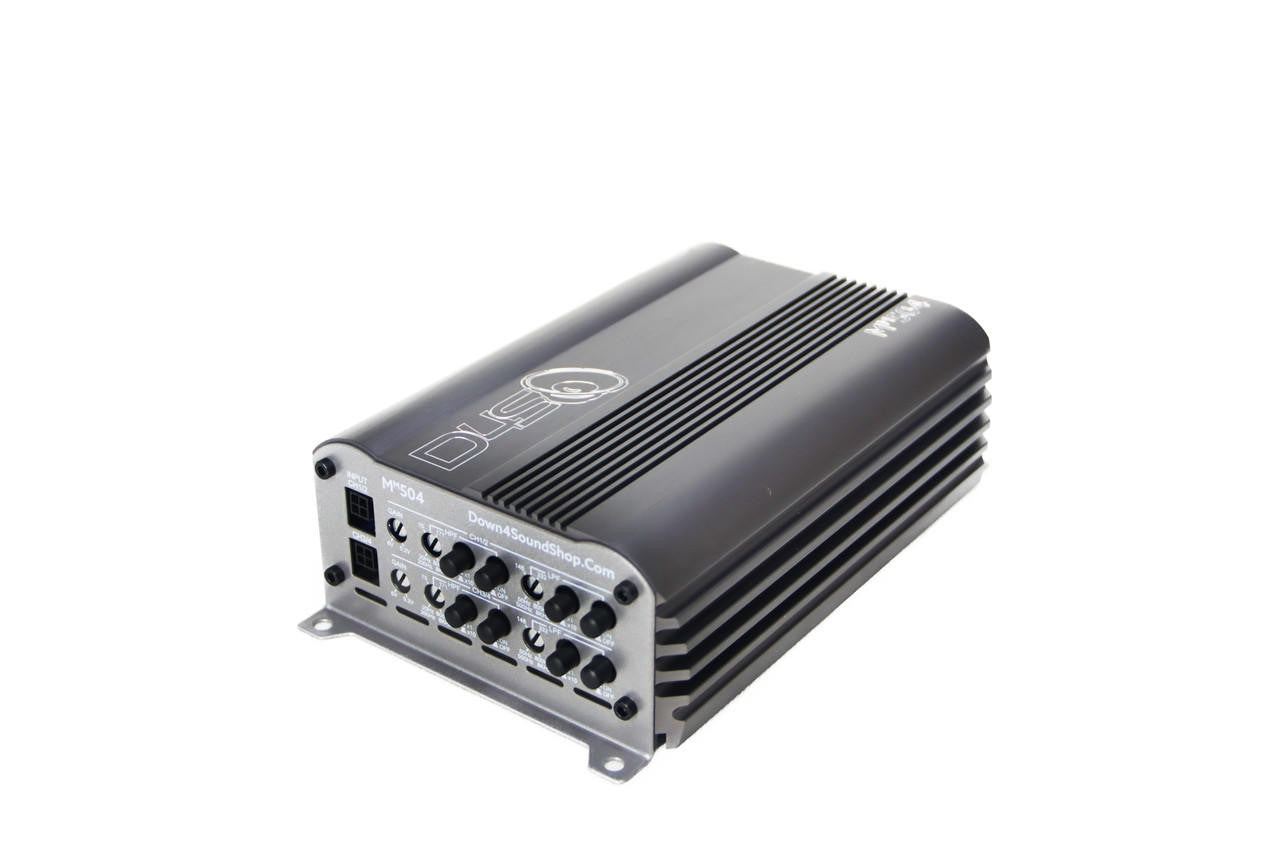

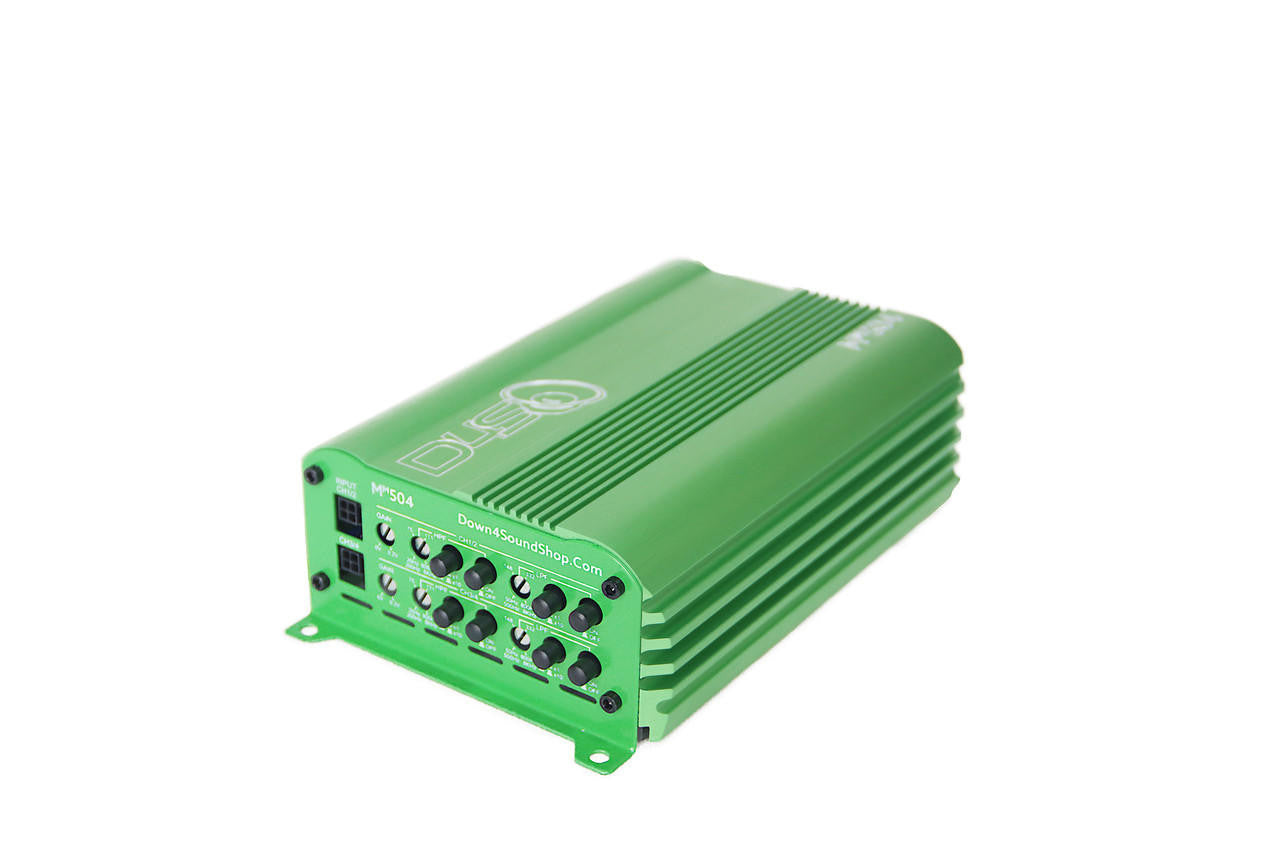

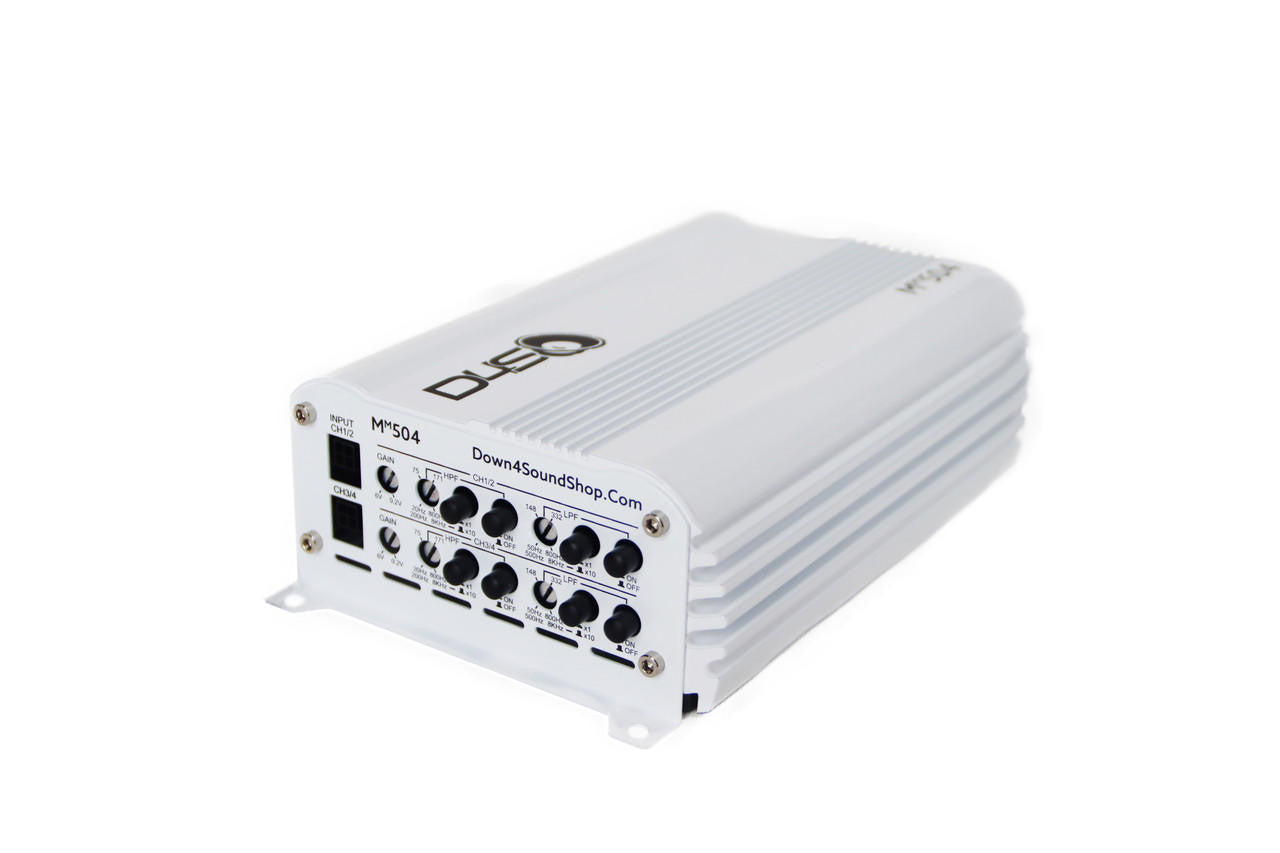

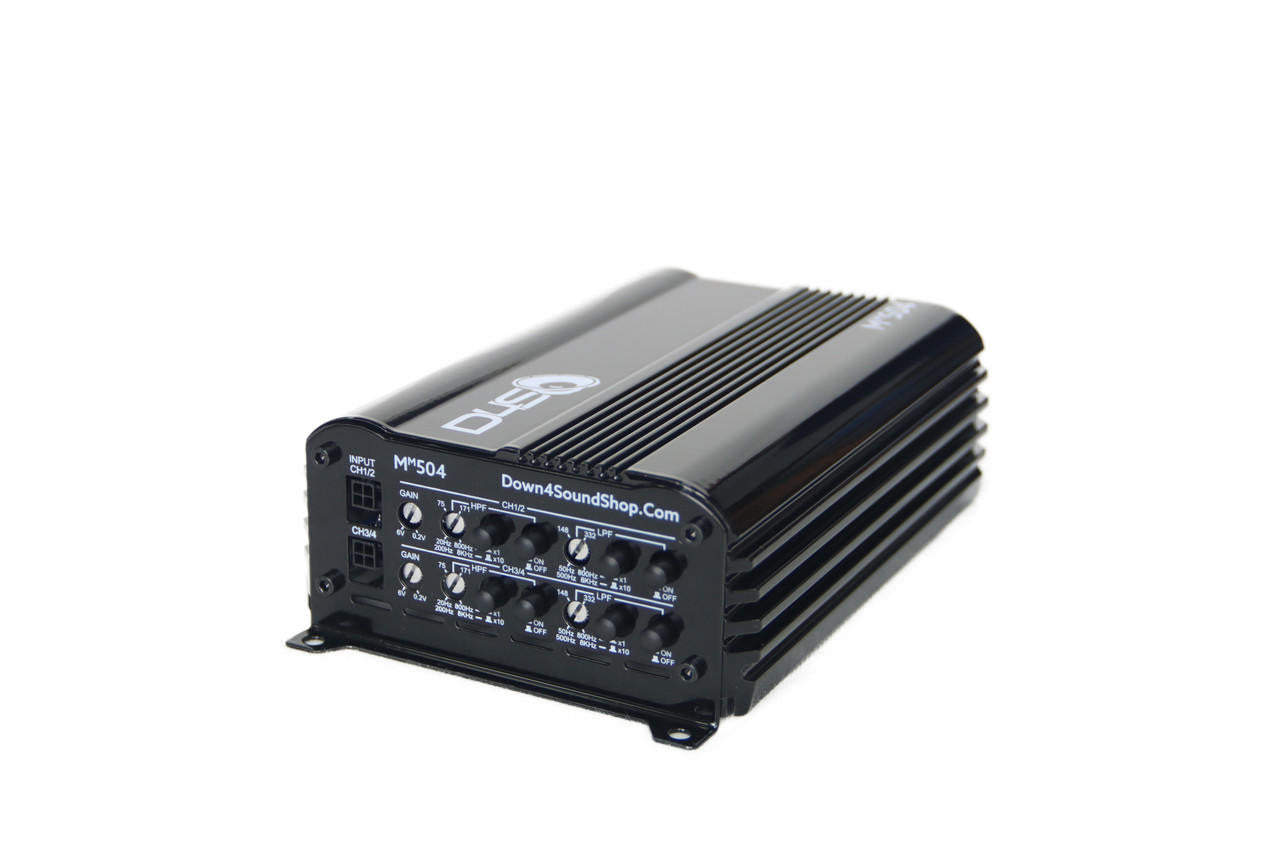

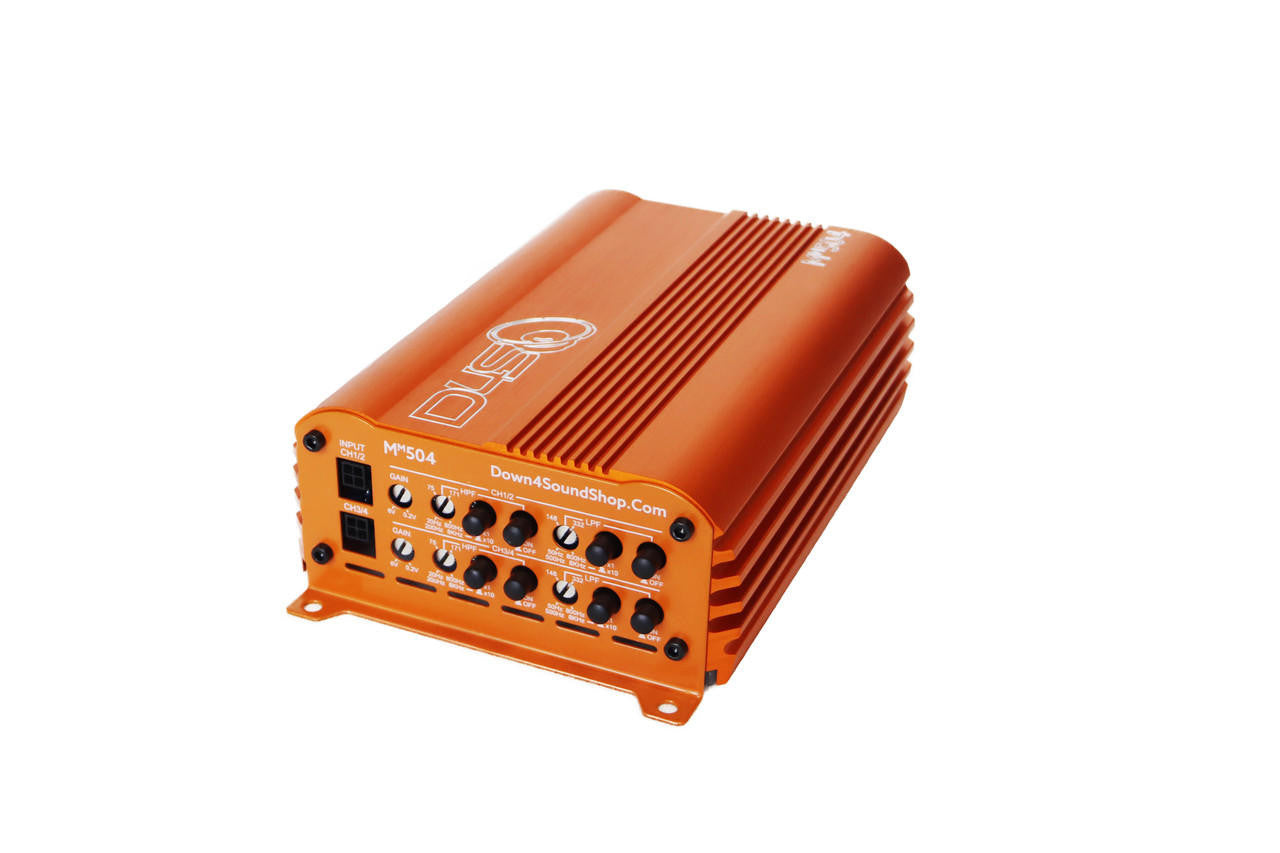

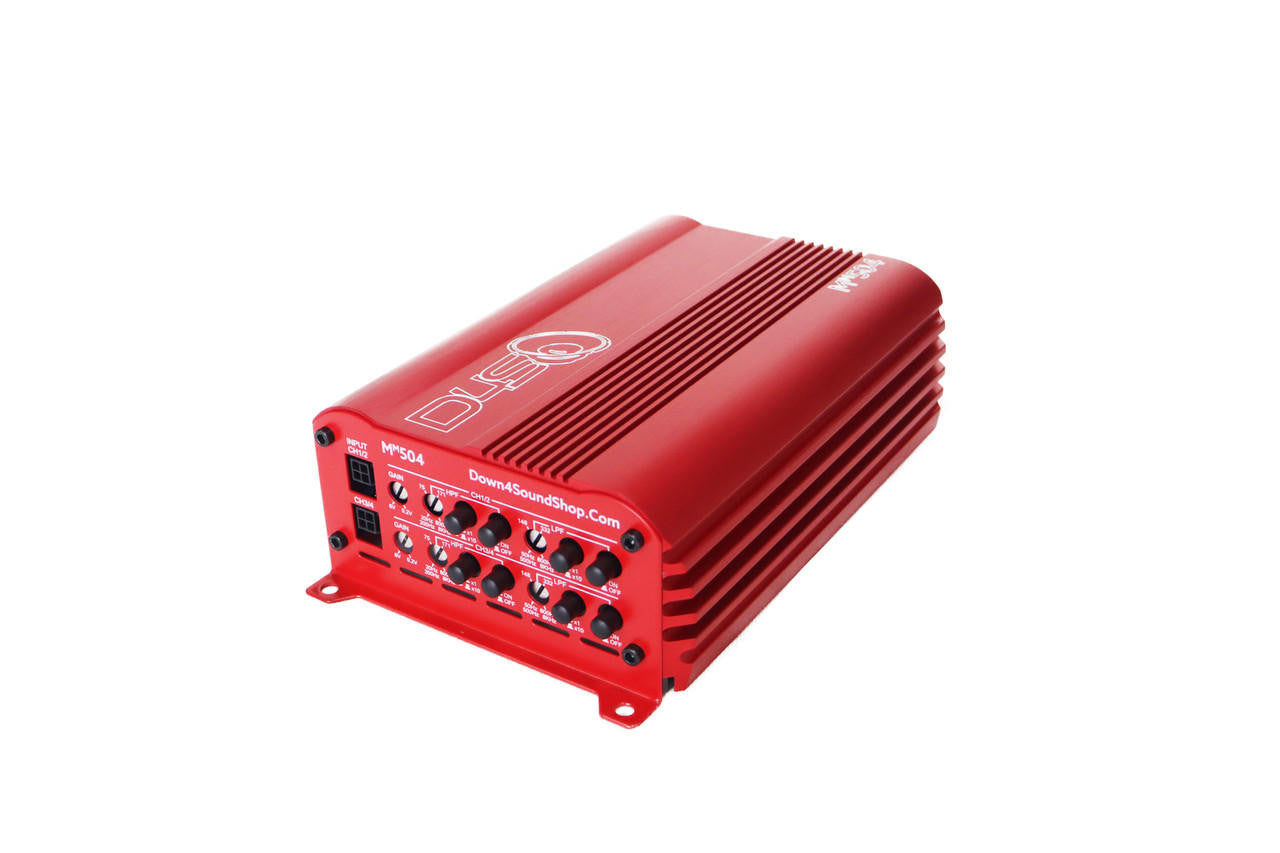

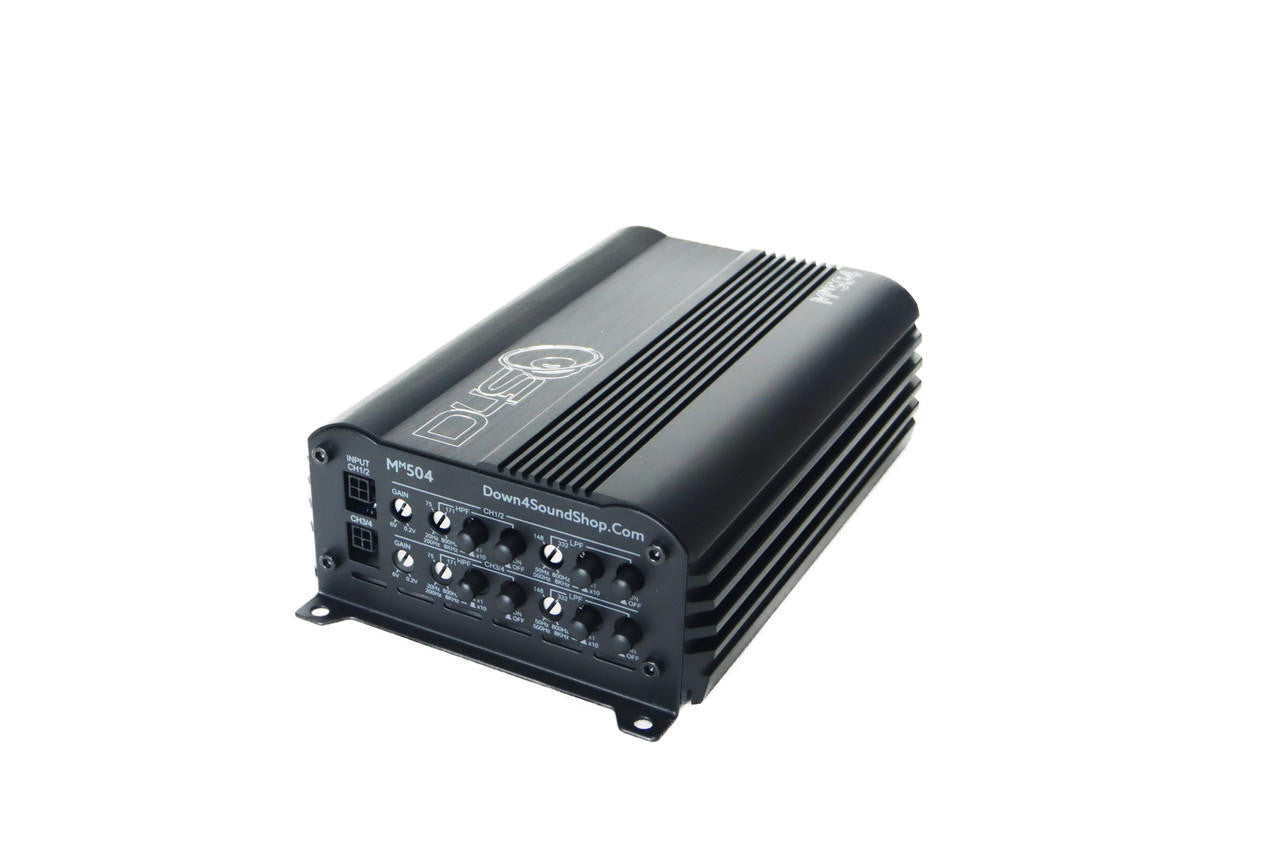

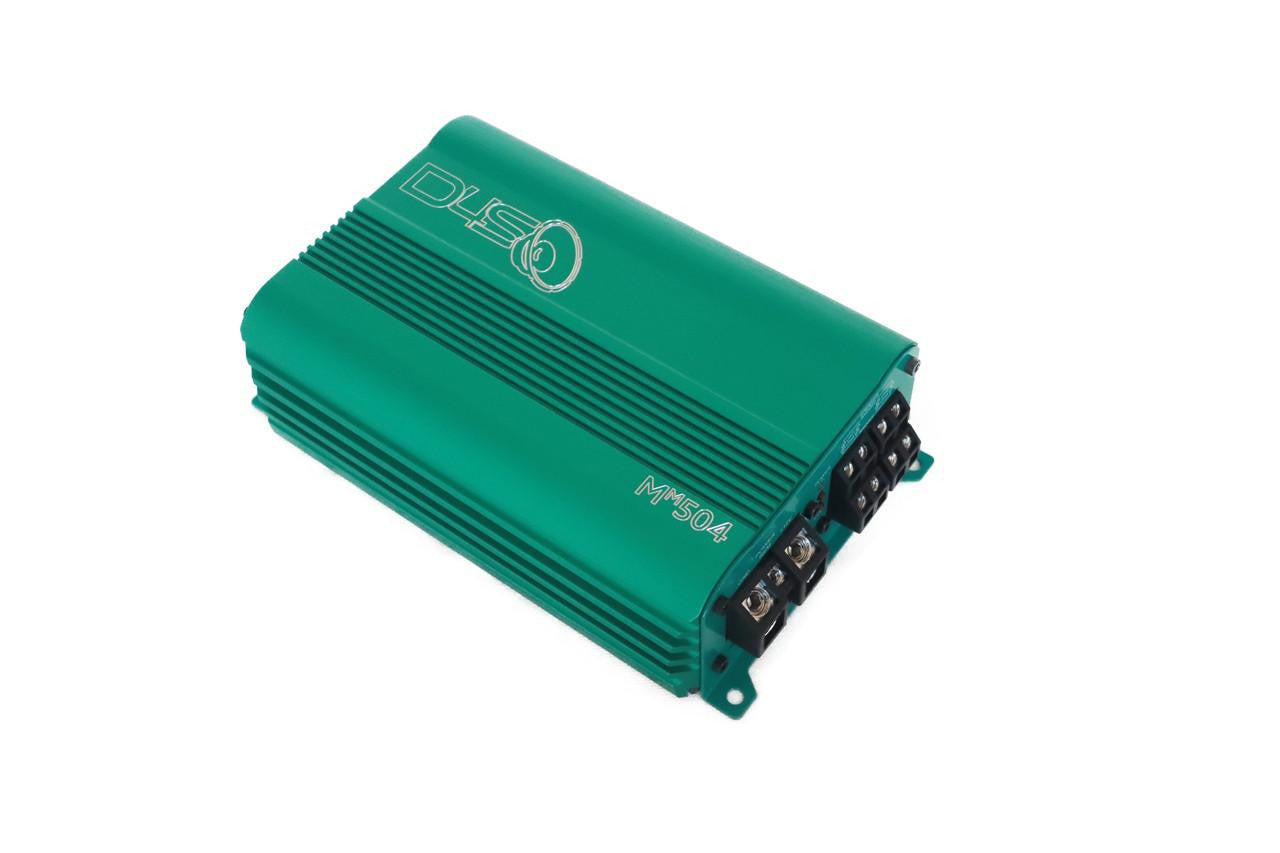

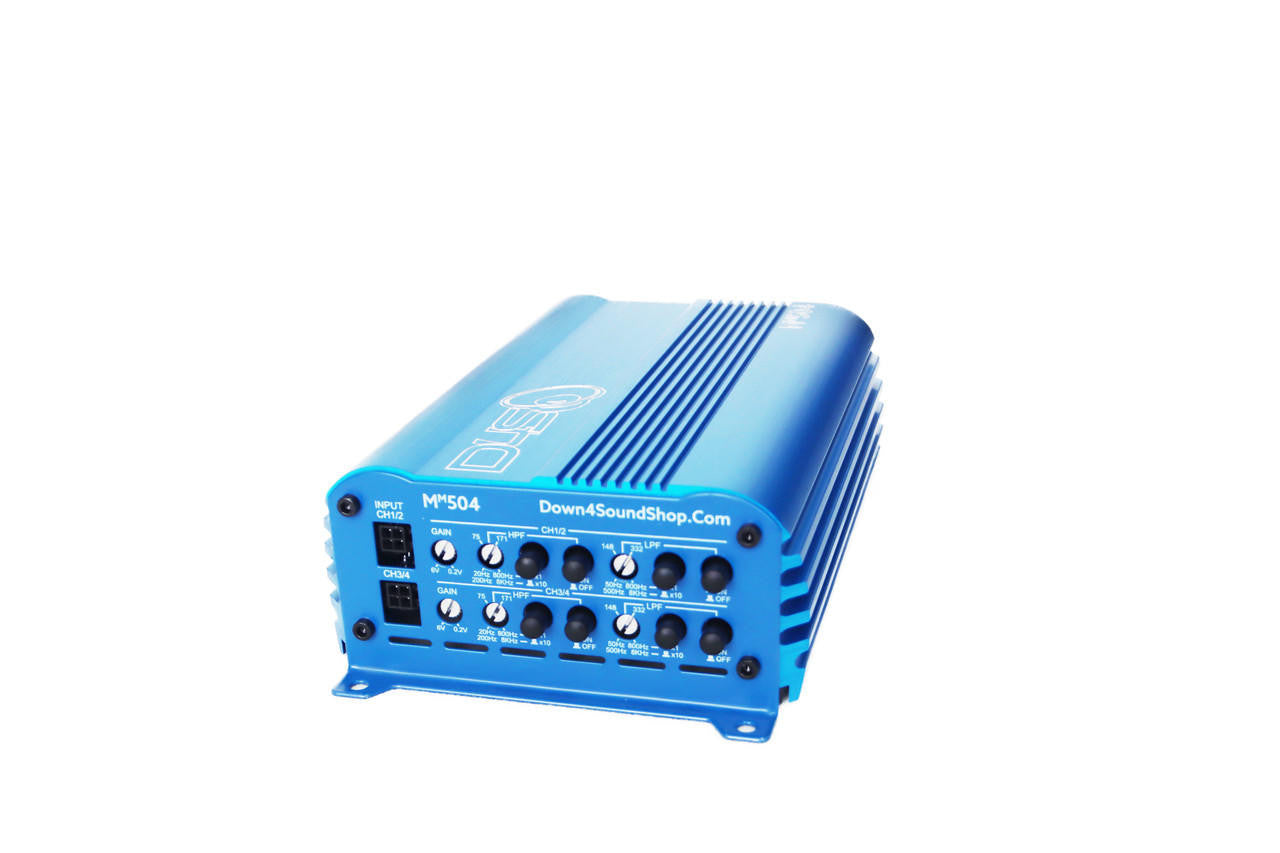

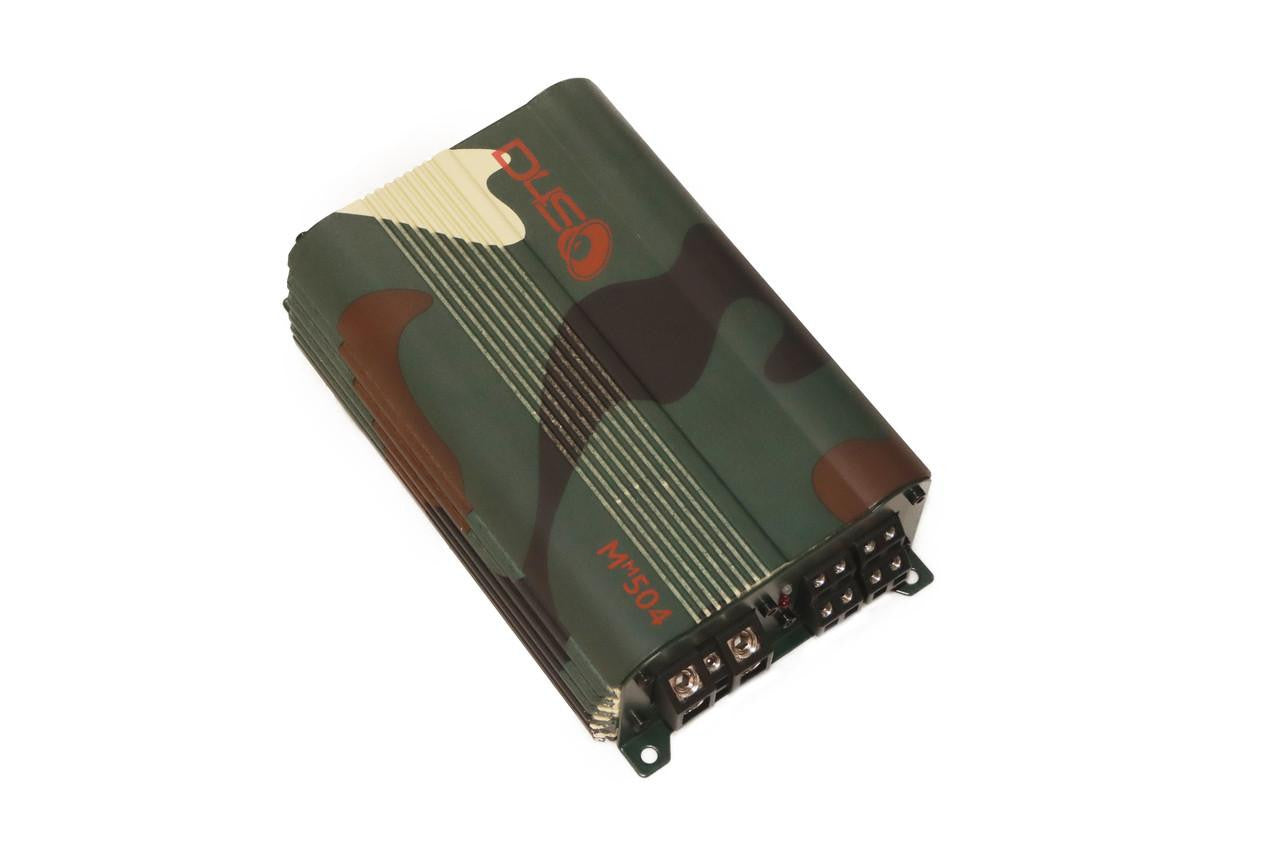

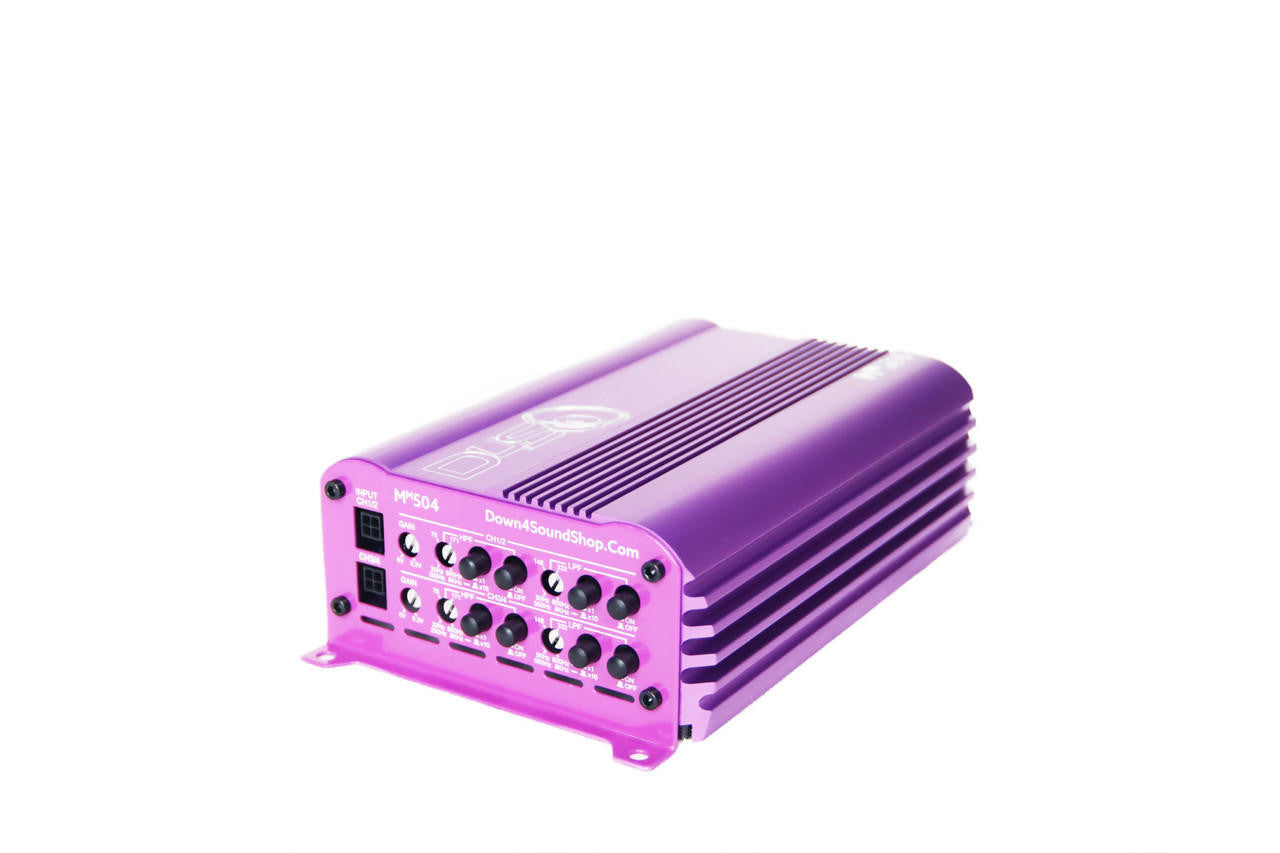

80x4 (MINI MAXX) MM504

Key Features:

• Full Range Class D 4-Channel Amplifier delivering high-quality sound
• Stable performance in 2-ohm stereo or 4-ohm bridged configurations, adaptable for diverse audio setups.
• High-speed MOSFET power supply for consistent and reliable power delivery.
• Variable high pass and low pass filters for detailed sound customization.
• Crossover multiply x10 feature enabling extensive audio tuning possibilities.
• 4-WAY PROTECTION CIRCUITS (Thermal, High & Low Voltage, Speaker Short, and DC) for increased safety and durability.

Technical Specifications:

Rated Power Output:

• RMS Power, 4 Ohms: 50W x 4
• RMS Power, 2 Ohms: 80W x 4
• RMS Power, 4 Ohms Bridged: 160W x 2

Frequency Response: 10Hz - 23.7KHz
High Pass Filter: 20Hz - 800Hz
High Pass Filter Multiply: x1, x10 (200Hz - 8KHz)
Low Pass Filter: 50Hz - 800Hz
Low Pass Filter Multiply: x1, x10 (500Hz - 8KHz)
Input Sensitivity: 6V - 0.2V
Signal to Noise Ratio: >88dB
T.H.D @ 4 Ohms: Less than 0.1%
Working Voltage: 9V - 15.5V
Fuse Rating: 25A

Dimensions:

• Length: 6.69 inches (170mm)
• Width x Height: 4.87 x 2.13 inches (123.9mm x 54.3mm)
