3000x1 (MINI MAXX) MM3000KFD

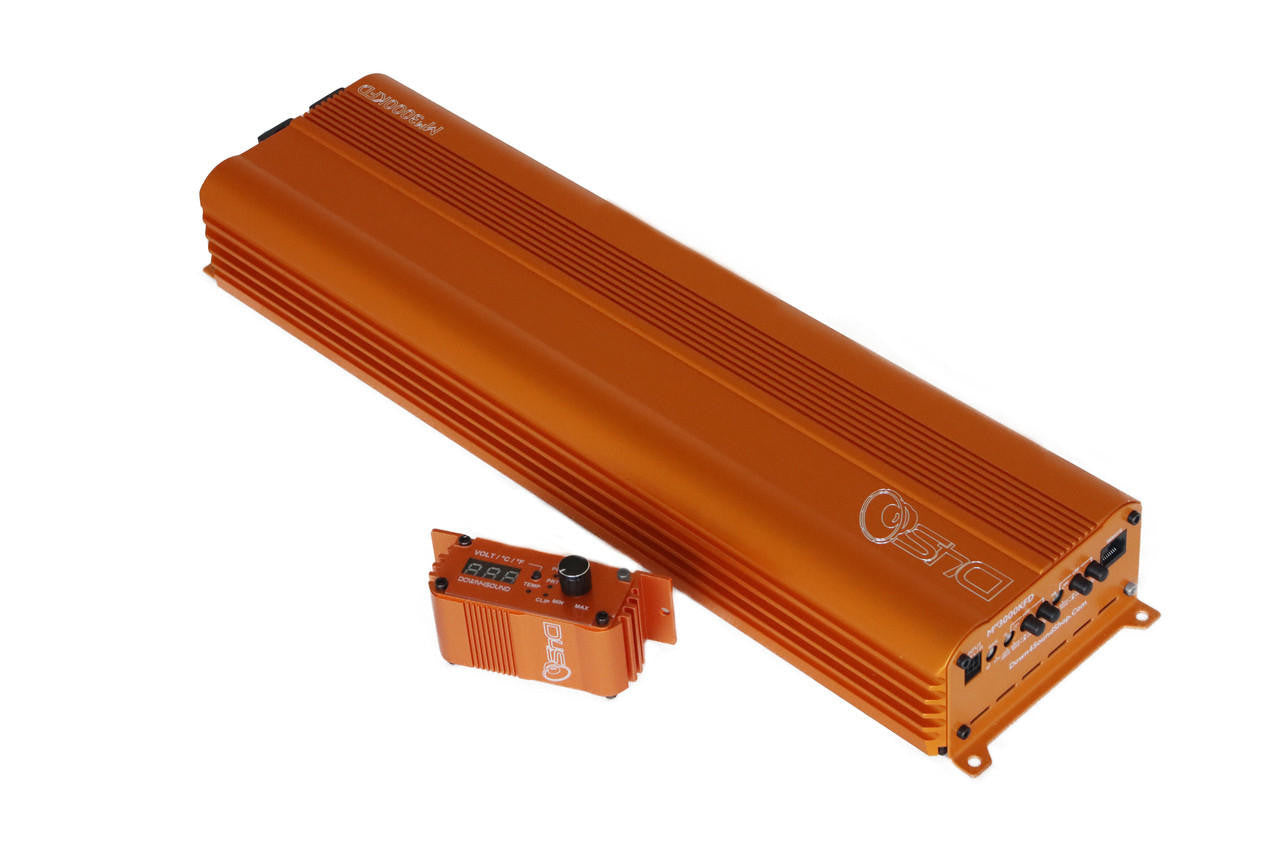

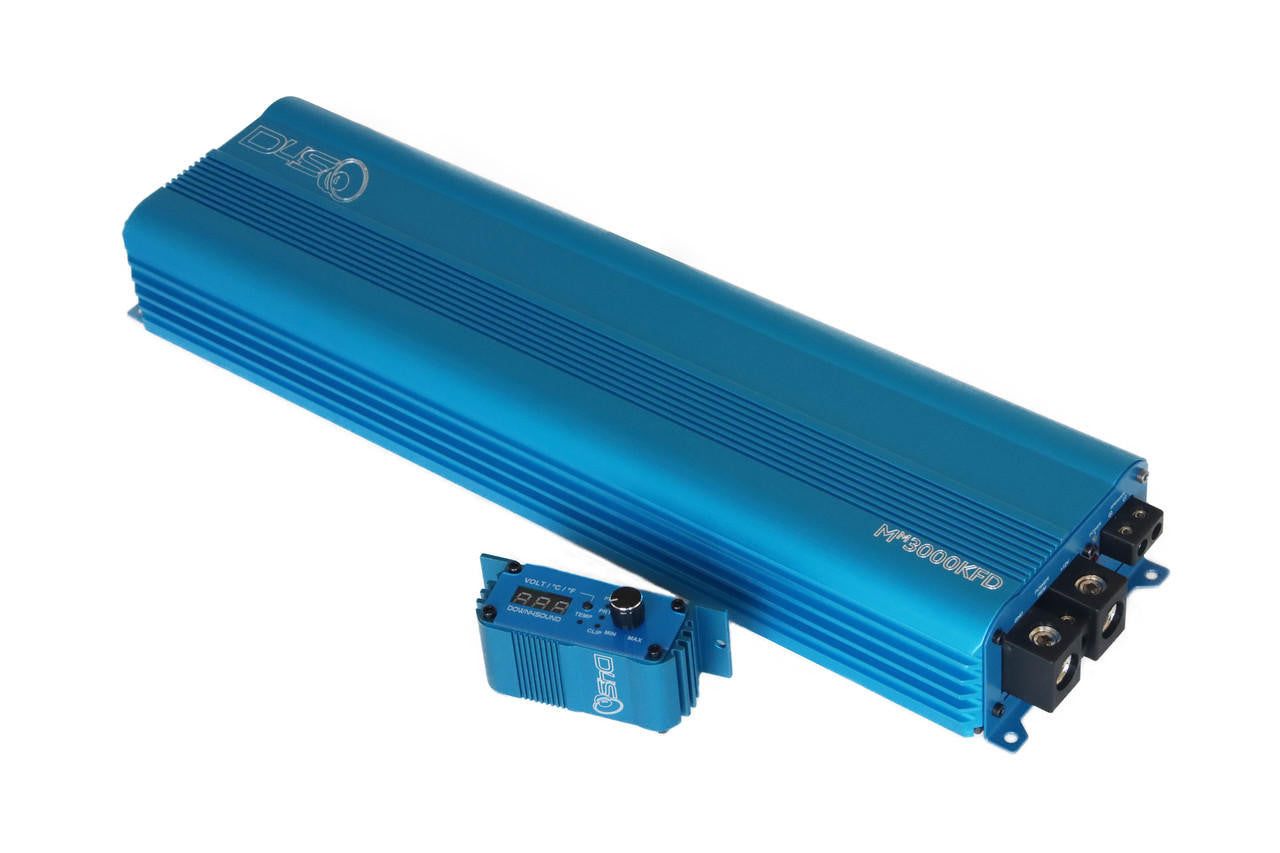

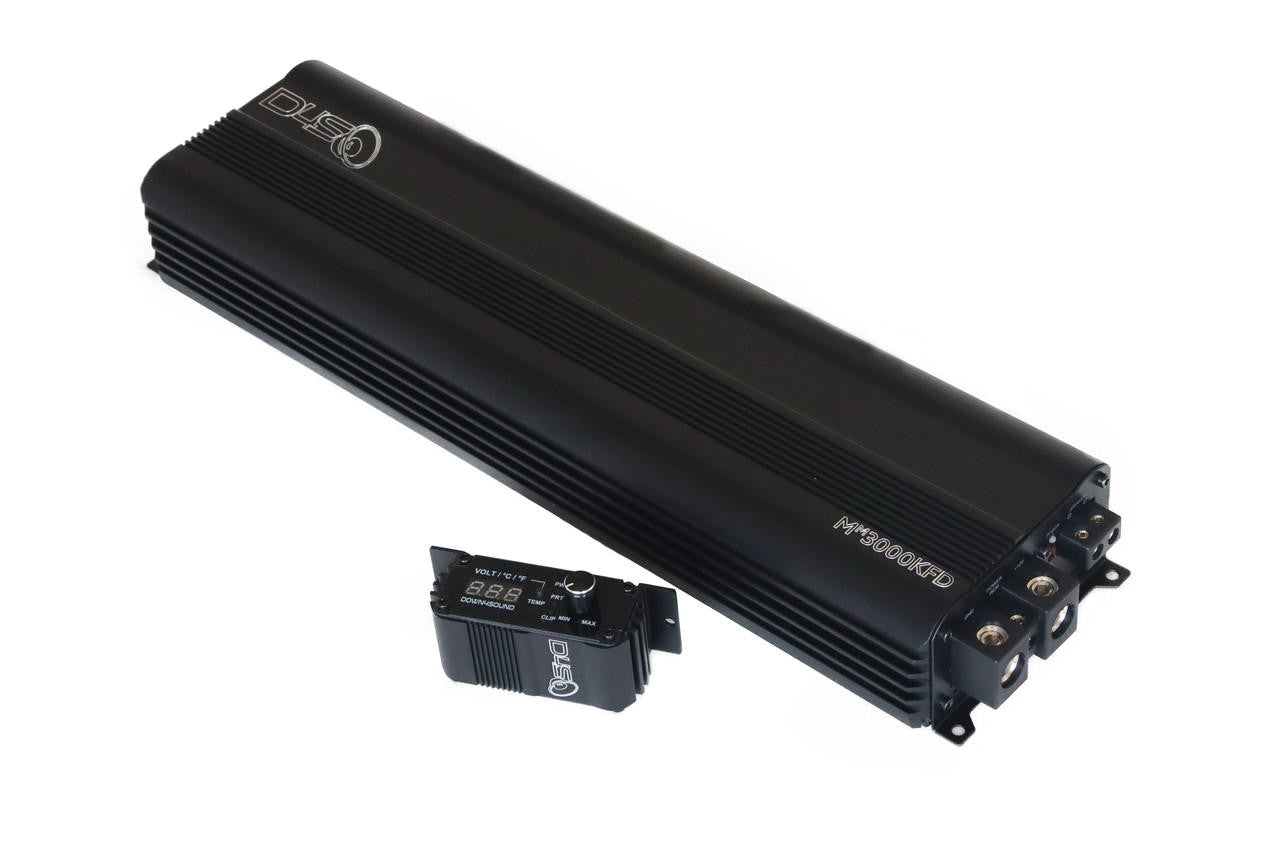

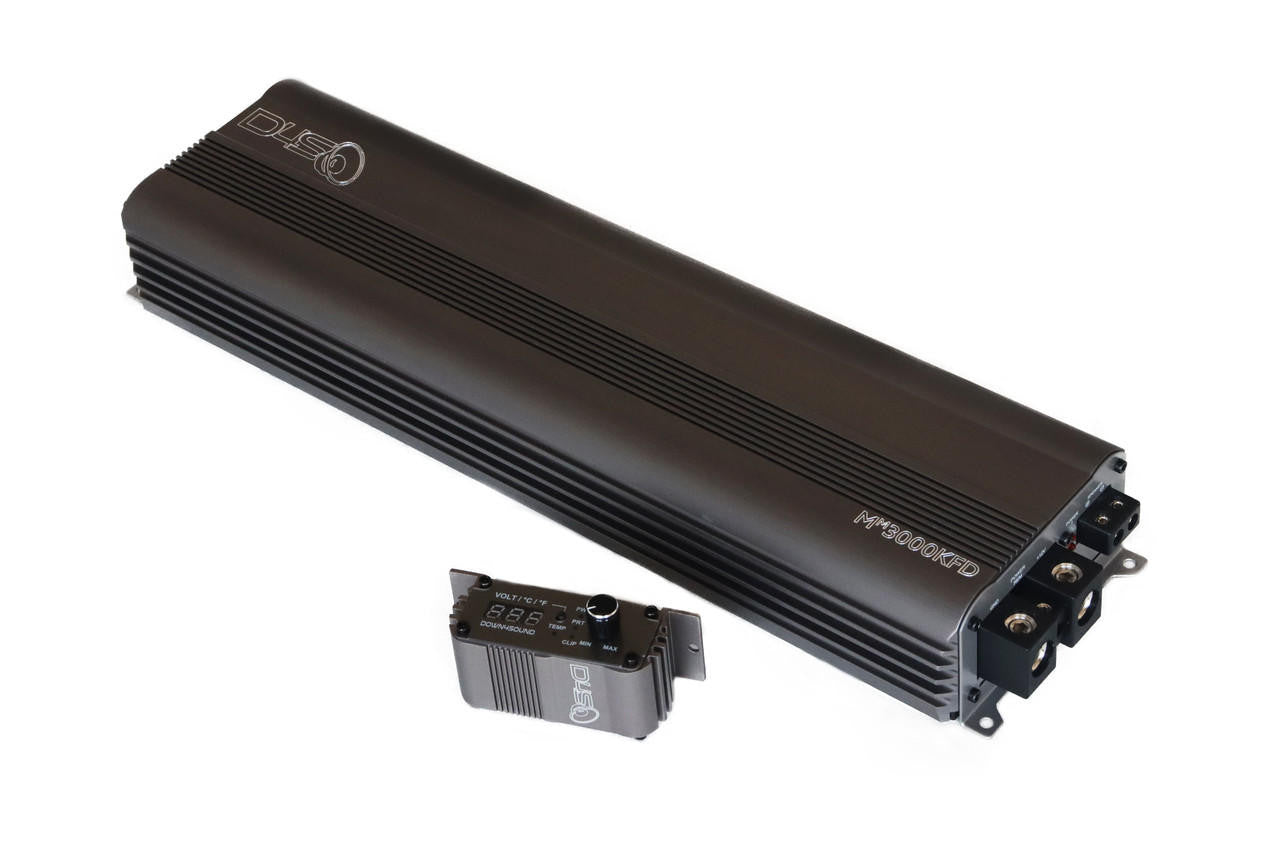

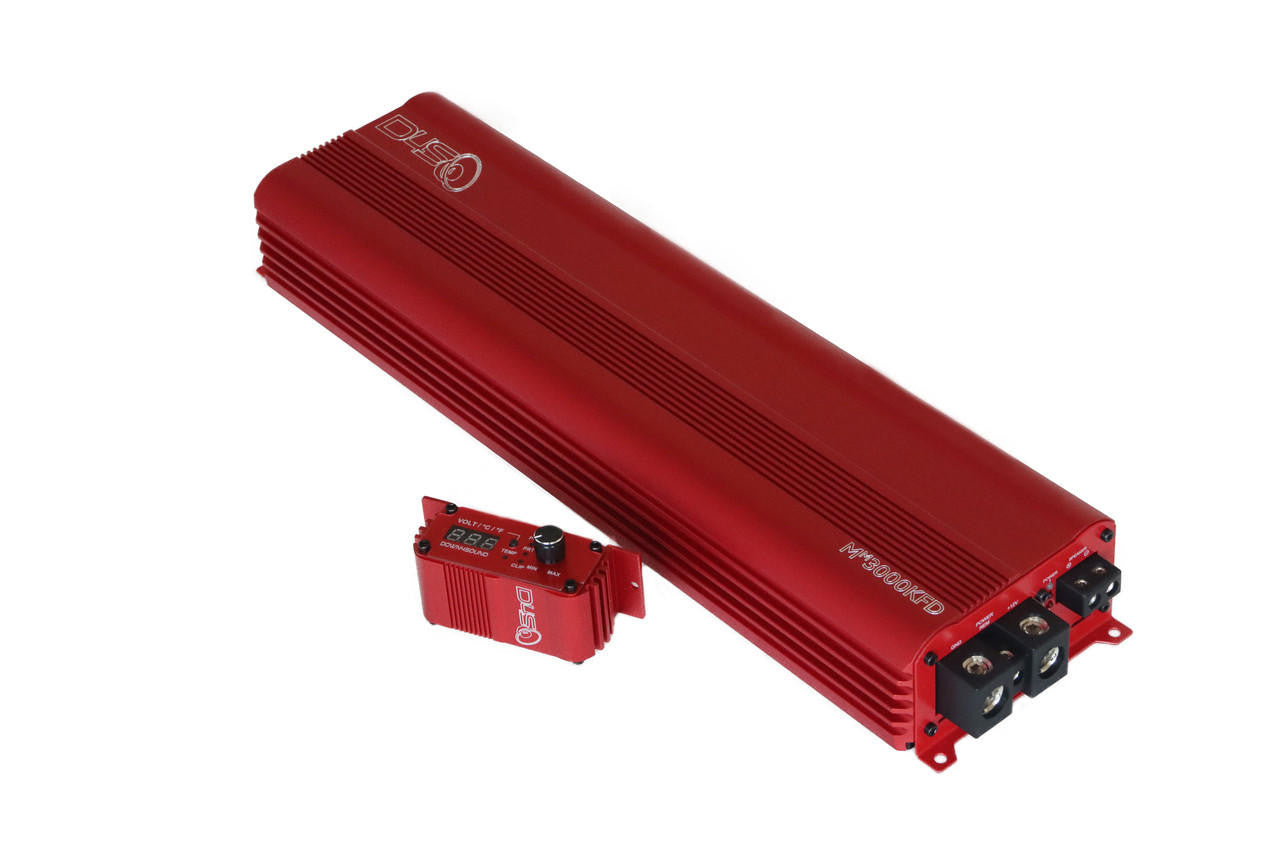

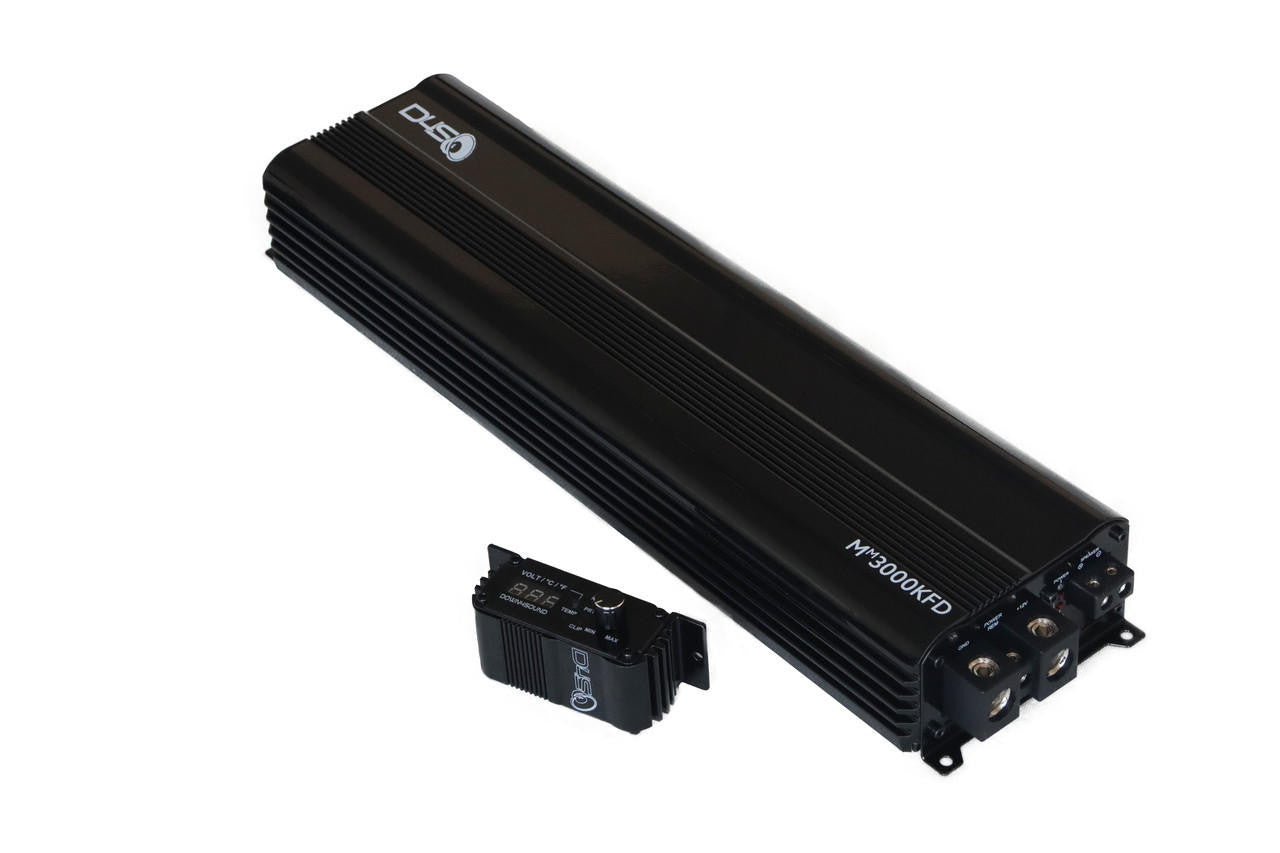

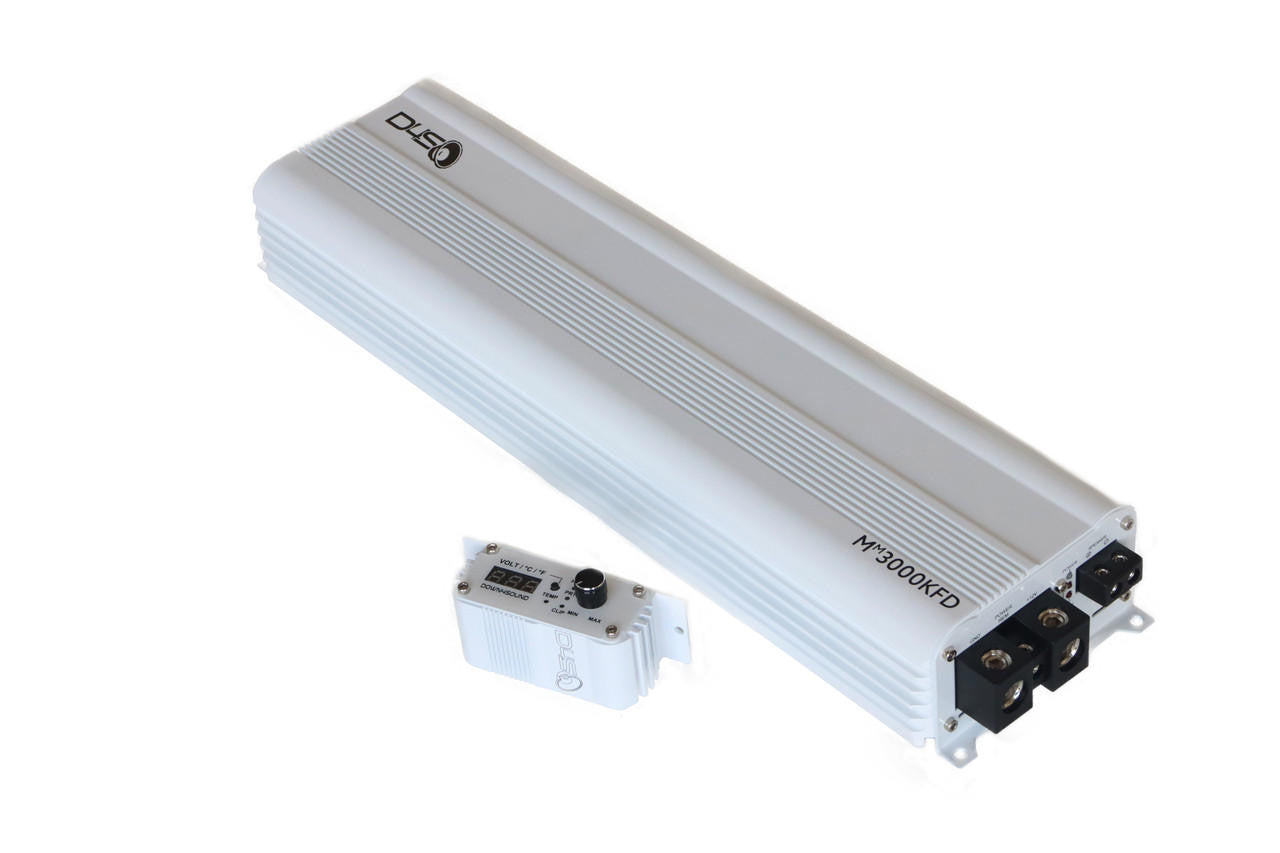

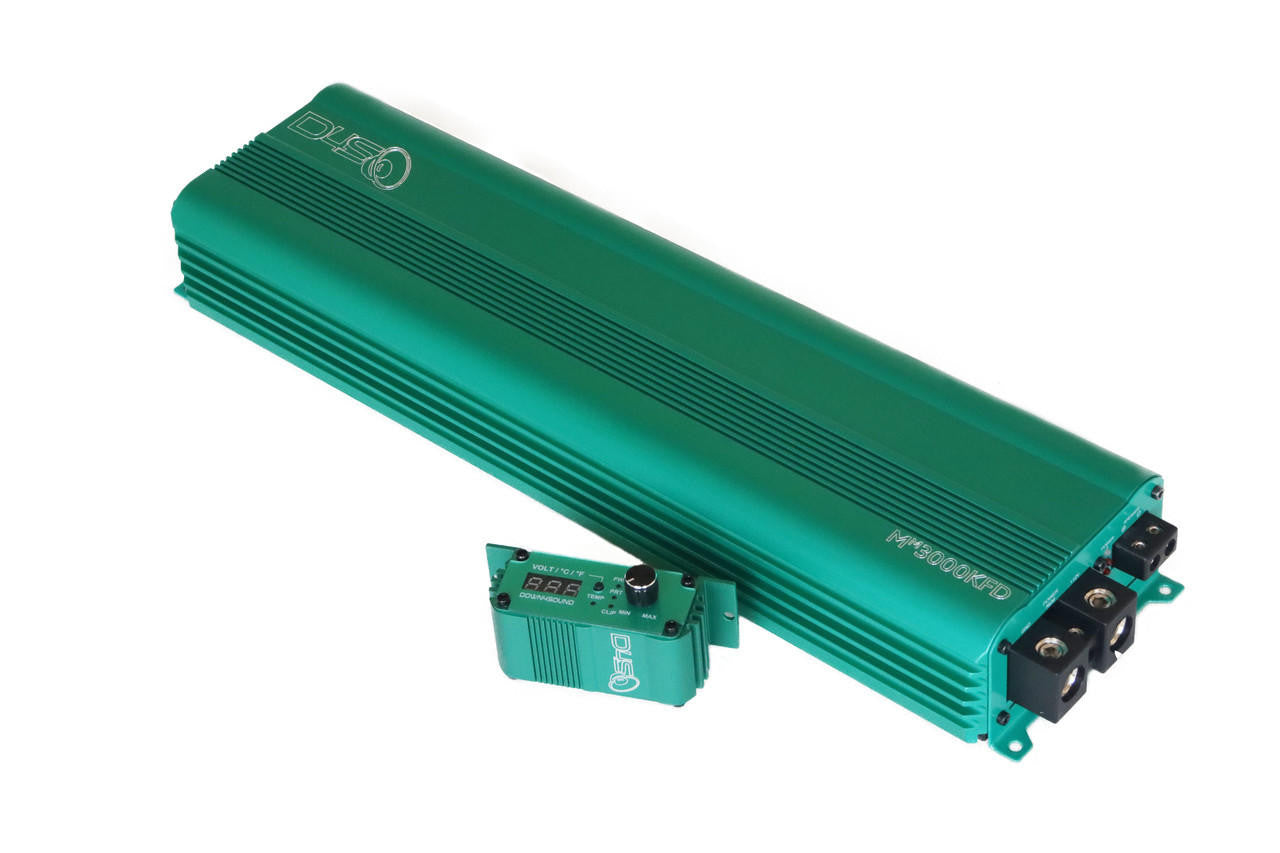

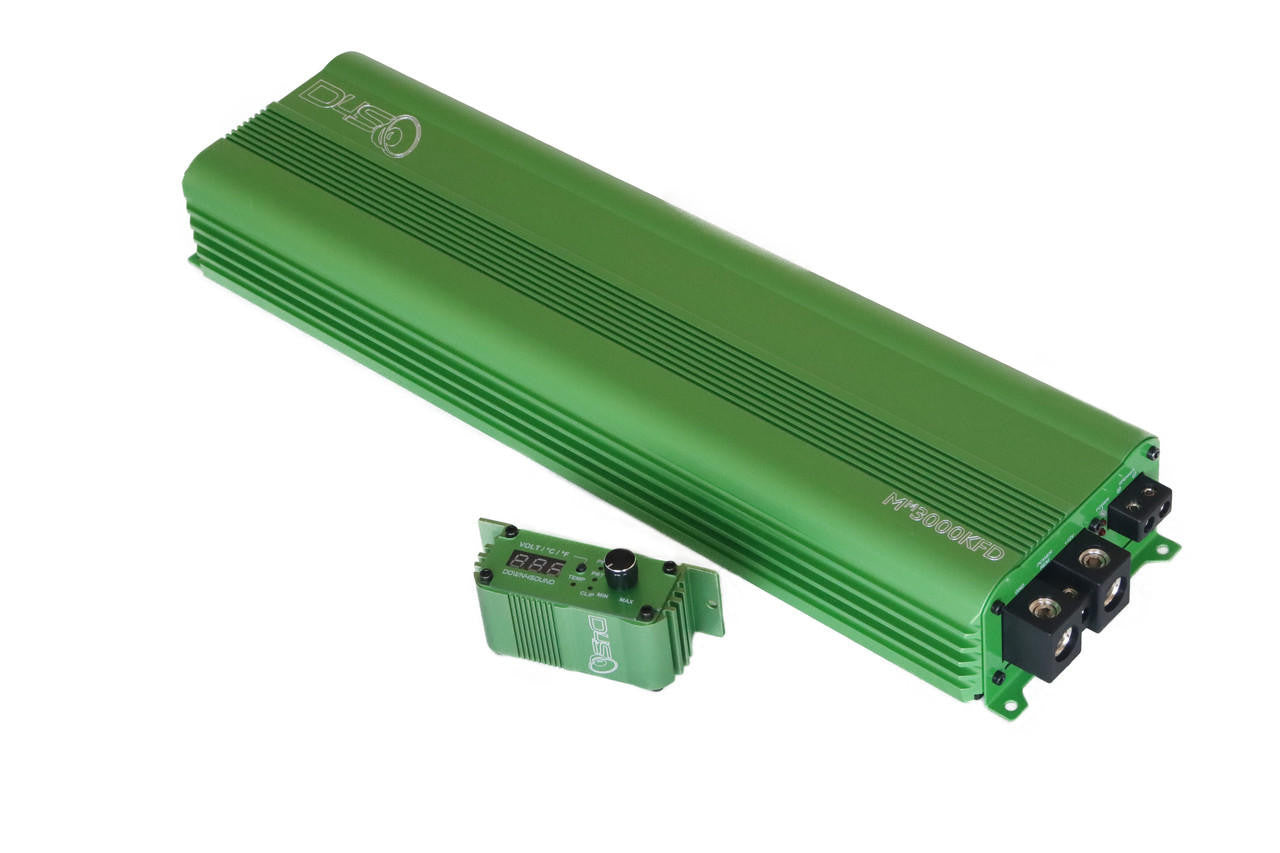

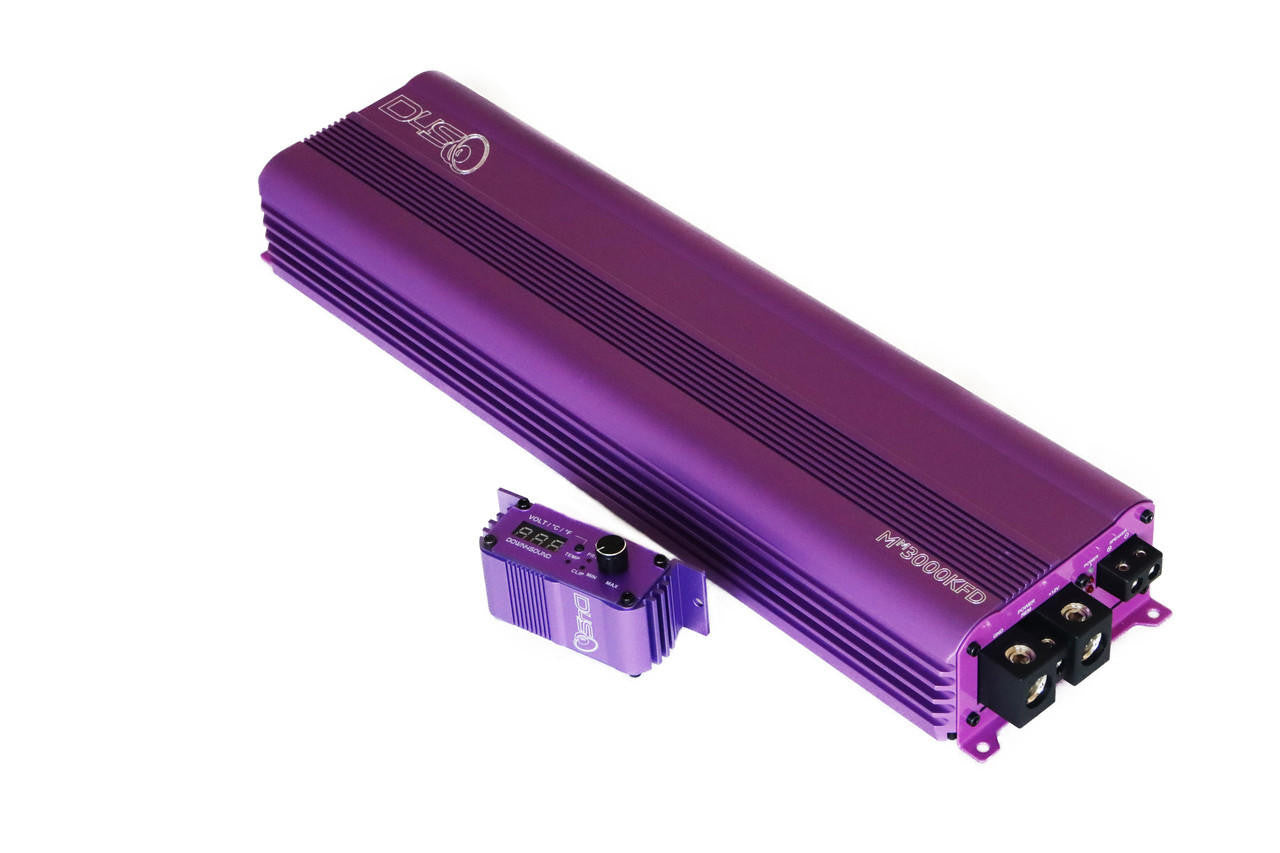

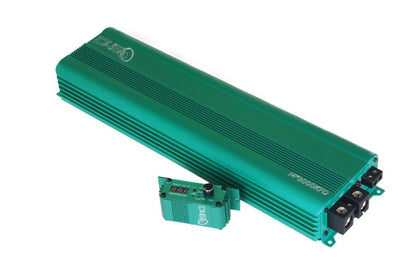

he Down4Sound MM3000KFD (MINI MAXX) is a 3000W RMS Mini Full Range Amplifier designed for ultimate audio performance across all frequencies. With a compact size , this amplifier delivers exceptional power and clarity while adding a sleek, professional look to your car audio setup.

Key Features:

Full Range Digital Amplifier: Powers subwoofers, mids, and highs seamlessly for clean, distortion-free sound.
High-Speed MOSFET Power Supply: Ensures consistent and efficient power delivery.
Variable High Pass Filter: Adjustable from 20Hz to 800Hz for precise control.
Variable Low Pass Filter: Adjustable from 50Hz to 800Hz for perfect bass tuning.
Crossover Multiplier x10: Expands filter ranges for broader tuning flexibility (up to 8KHz).
Bandpass Filter Capability: Customize your sound for a perfectly balanced system.
4-Way Protection Circuits: Protects against thermal issues, high/low voltage, speaker shorts, and DC offset.
Clip Light Indicators: Located on the amplifier and remote bass knob for real-time alerts to prevent distortion and protect your speakers.
Remote Bass Knob: High-quality aluminum design with voltmeter, amplifier temperature display, and clipping indicator for real-time feedback.
Heavy-Duty Terminals:
- 0 Gauge Power/Ground Inputs: Supports maximum current for powerful and stable operation.
- Up to 8 Gauge Speaker Terminals: Accommodates larger wires for reliable and secure speaker connections.
High Purity Copper PCB: Delivers consistent, high-quality audio signals.

Specifications:

RMS Power Output:
- 3000W x 1 @ 1 Ohm
- 1888W x 1 @ 2 Ohms
- 1234W x 1 @ 4 Ohms
Frequency Response: 10Hz - 26.4KHz
High Pass Filter: 20Hz - 800Hz (Multiplier x1, x10: 200Hz - 8KHz)
Low Pass Filter: 50Hz - 800Hz (Multiplier x1, x10: 500Hz - 8KHz)
Input Sensitivity: 6V - 0.2V
Signal-to-Noise Ratio: 89dB
Total Harmonic Distortion: Less than 0.1%
Operating Voltage: 9V - 15.5V
Fuse Rating: 250A
Dimensions: 16.93" L x 4.88" W x 2.25" H

Built for Reliability:

The Down4Sound MM3000KFD features a robust Korean design engineered for consistent high-quality audio performance and long-lasting durability.

Why Choose the MM3000KFD?

Immense Power: 3000W RMS output for premium sound performance.
Precision Tuning: Adjustable filters, crossover multipliers, and bandpass capability provide endless customization.
Real-Time Feedback: Clip light indicators on the amp and bass knob protect your system and ensure distortion-free sound.
Robust Terminals: Supports 0 gauge power/ground inputs and up to 8 gauge speaker terminals for enhanced connectivity.

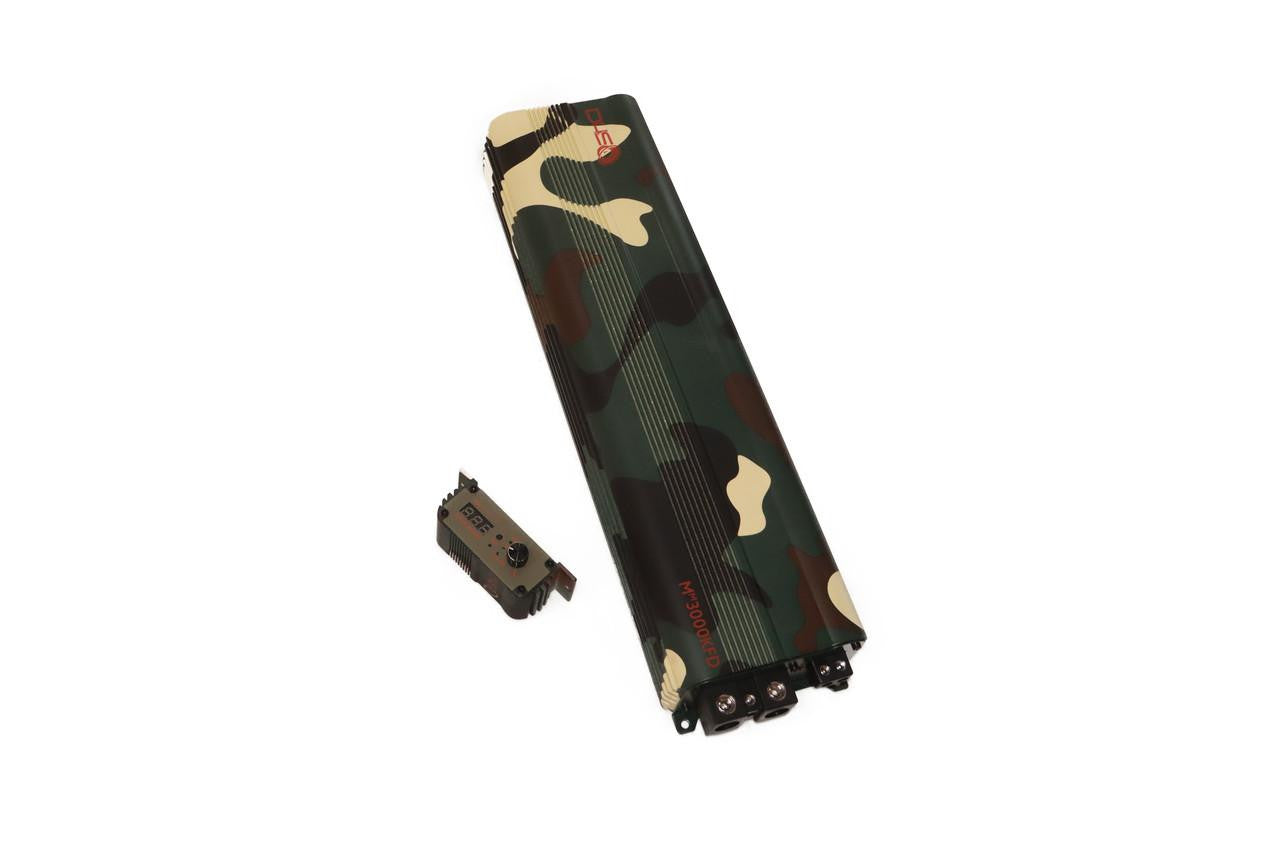

Sleek Design: CAMO finish complements any car audio setup.
Comprehensive Protection: 4-way circuits safeguard against common audio system risks.
