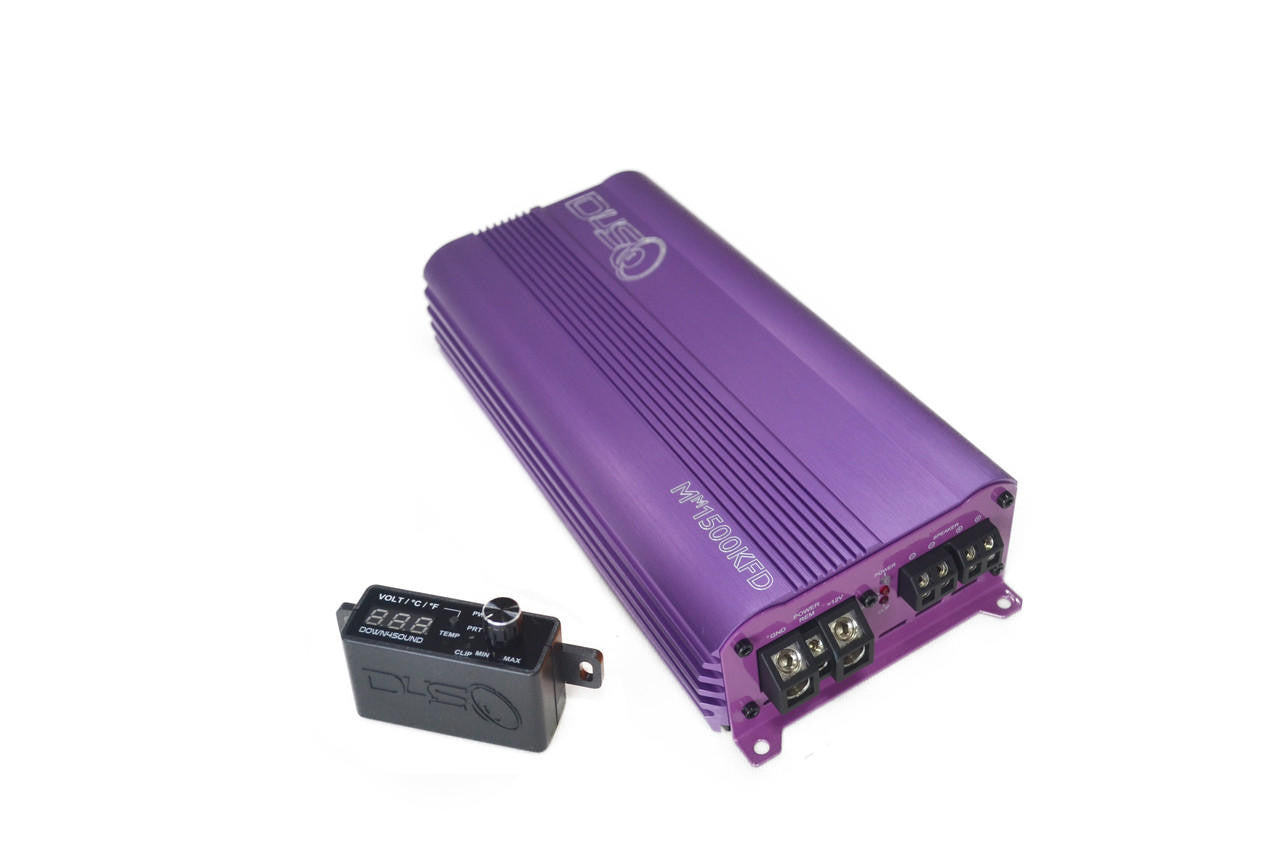

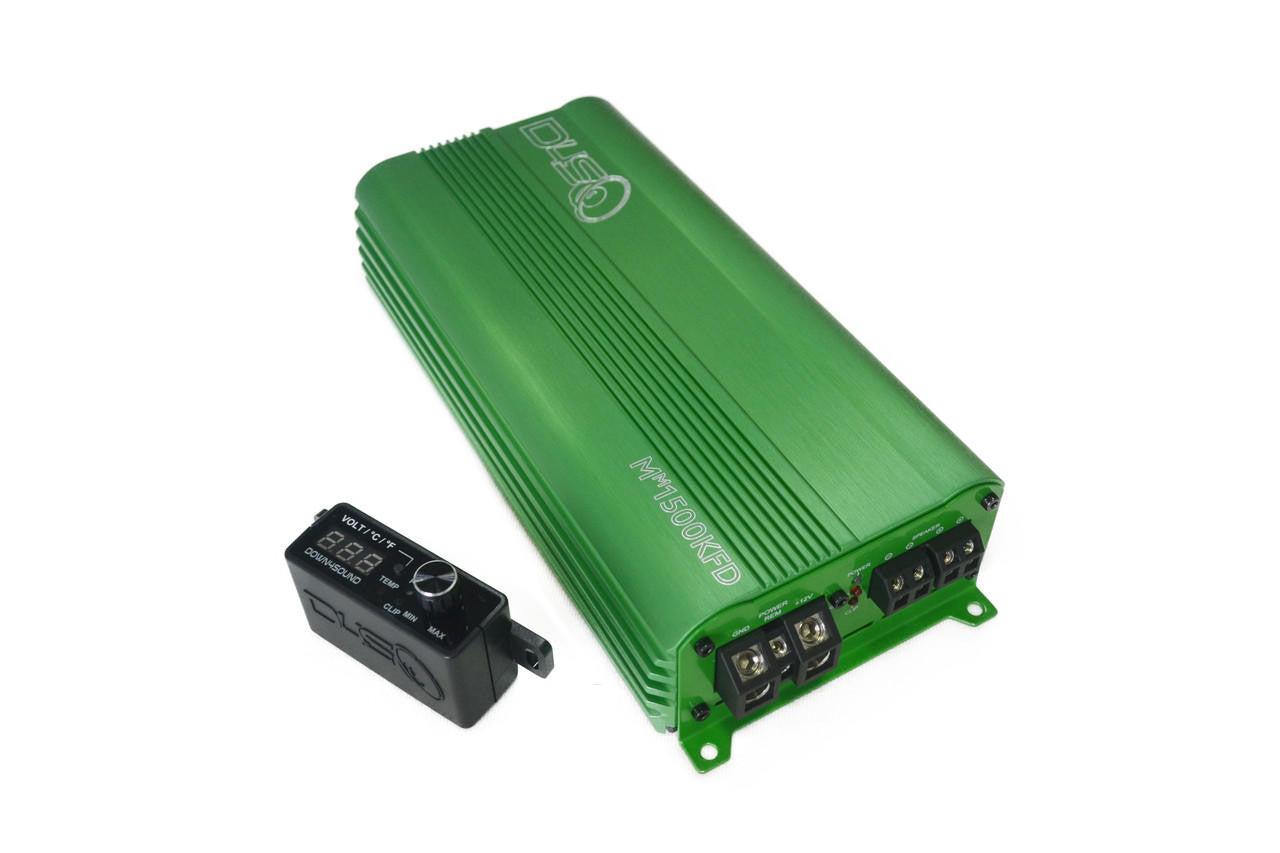

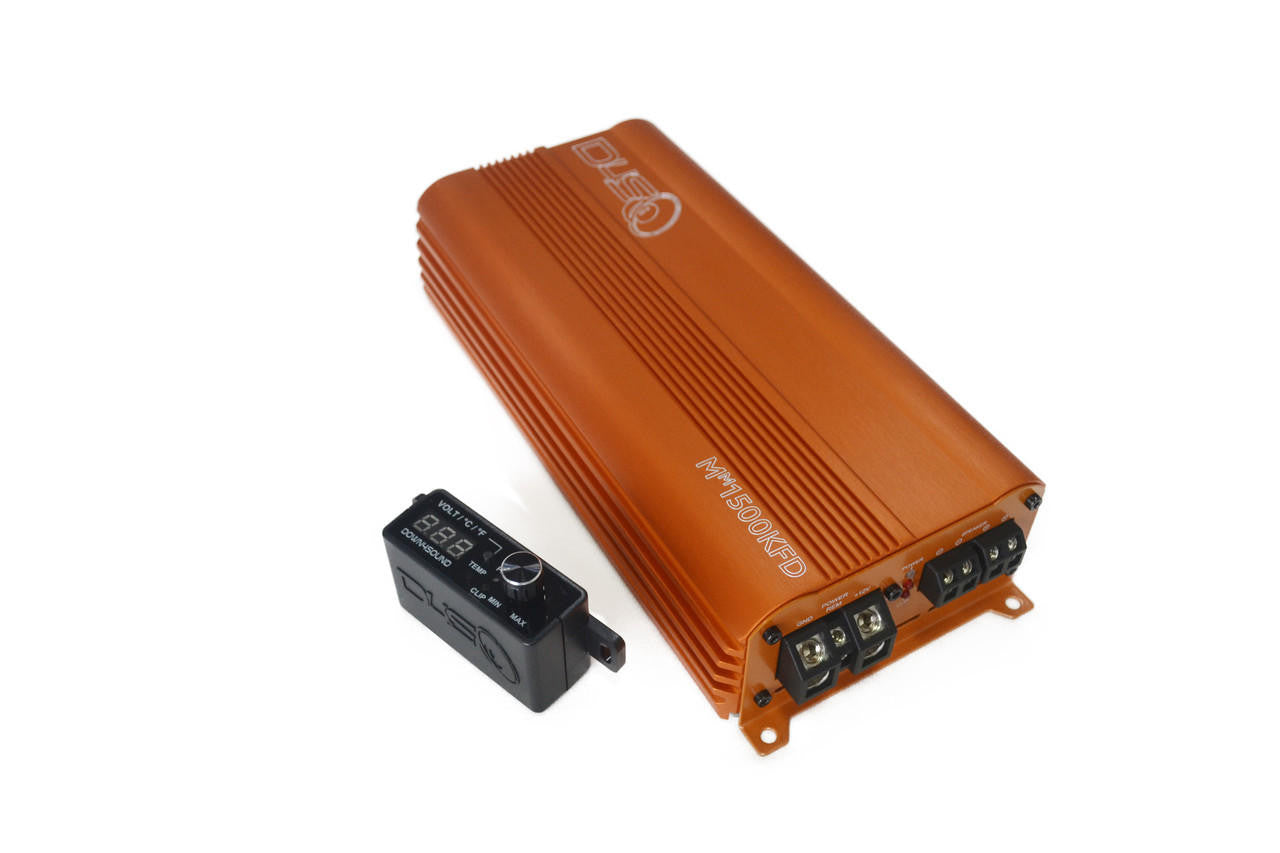

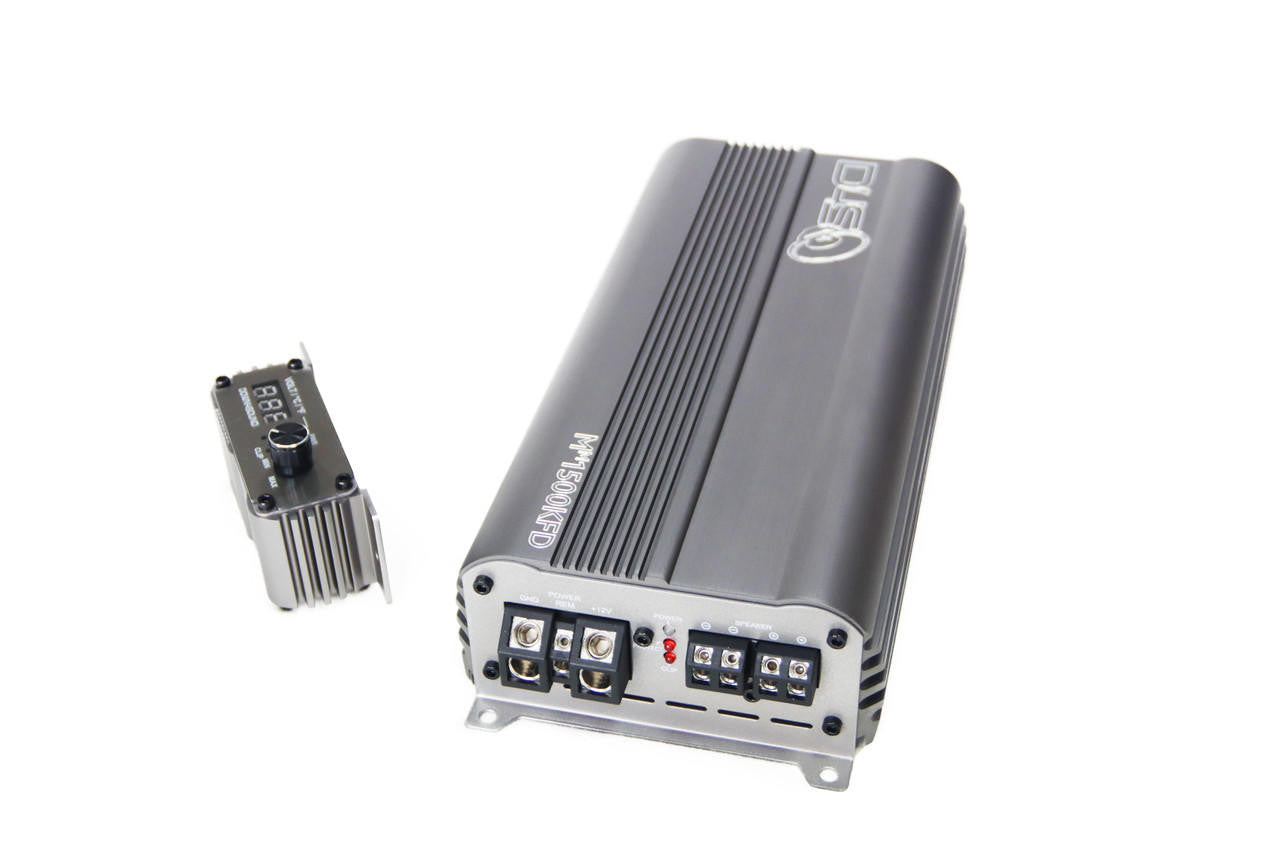

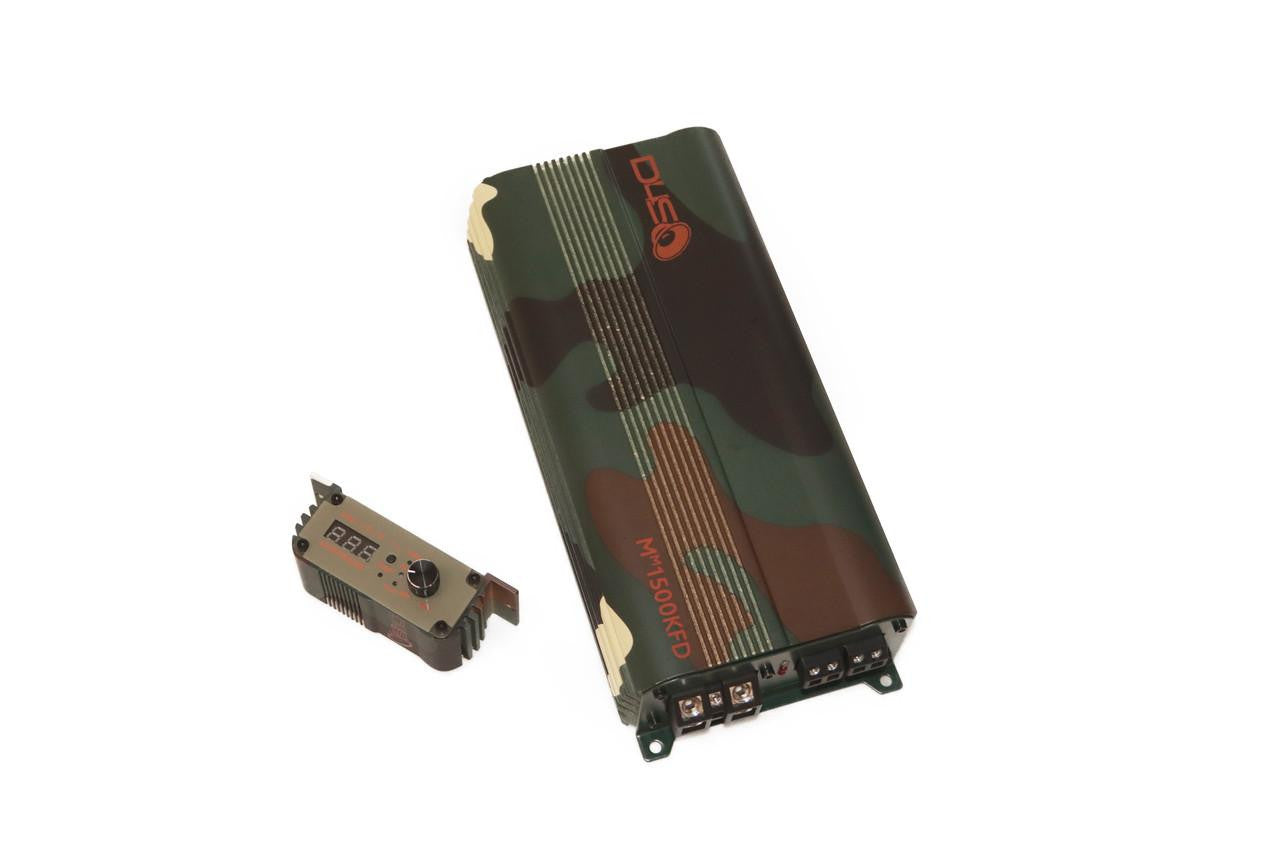

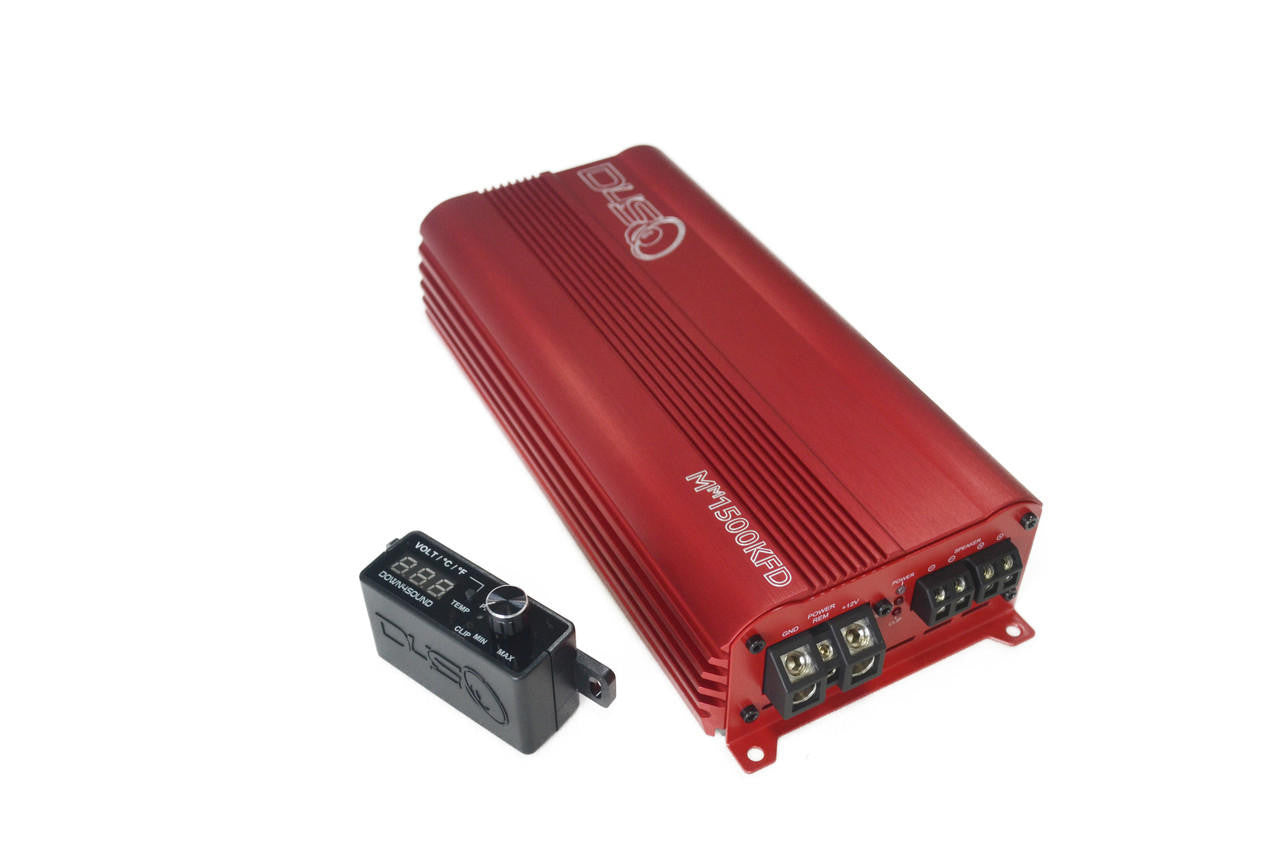

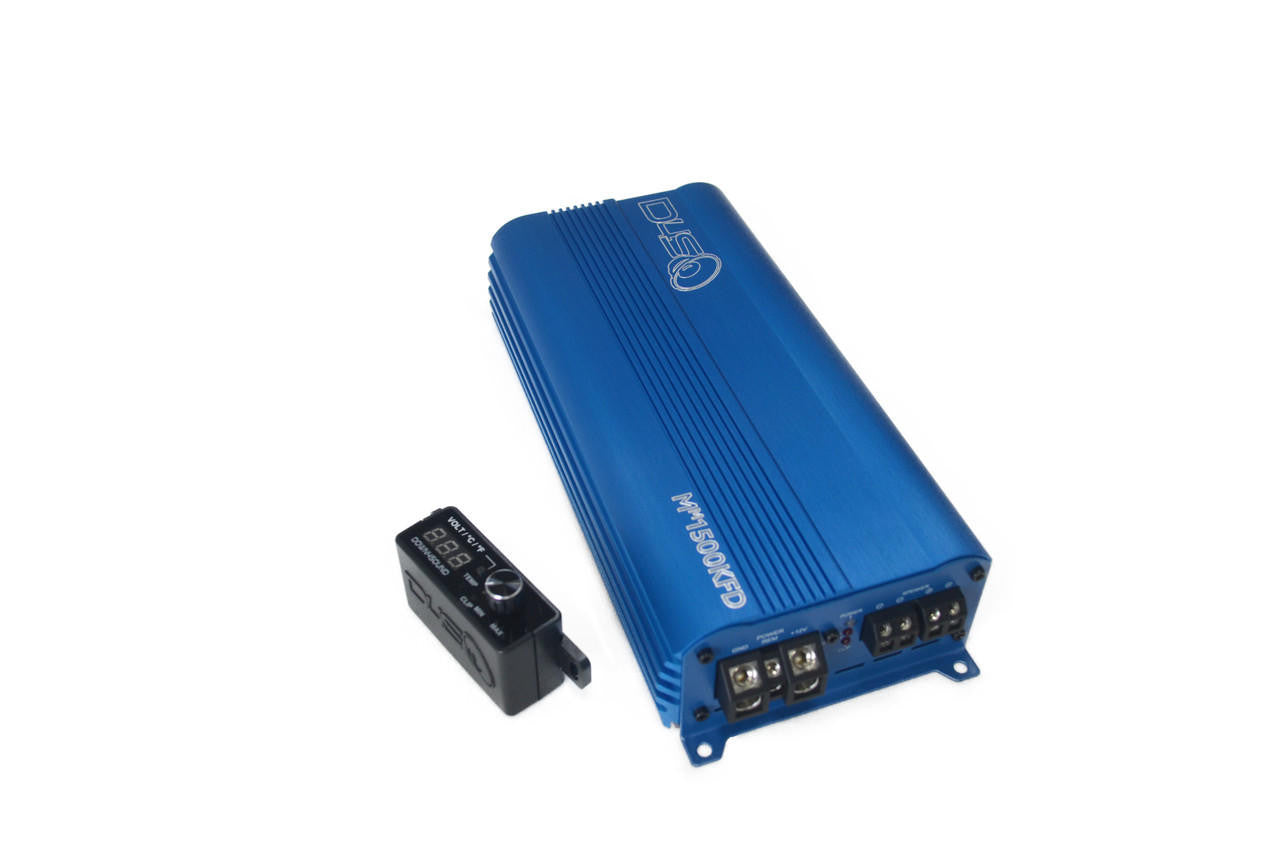

1500x1 (MINI MAXX) MM1500KFD

The Down4Sound MM1500KFD (MINI MAXX) is a 1500W RMS Mini Full Range Amplifier crafted to deliver unmatched sound quality across all frequencies. Compact and powerful, this amplifier is perfect for any car audio setup,

Key Features:

• Full Range Design: Powers subwoofers, mids, and highs seamlessly, ensuring clear, distortion-free sound.
• RMS Power Ratings:
  • 500W x 1 @ 4 Ohm
  • 1000W x 1 @ 2 Ohm
  • 1500W x 1 @ 1 Ohm (14.4V, 1% THD, 1KHz)
• Frequency Response: 10Hz – 23.6KHz
• Signal-to-Noise Ratio: 90dB
• Damping Factor: 150
• Input Sensitivity: Adjustable from 6V to 0.2V

Advanced Tuning Options:

• High Pass Filter: Adjustable from 20Hz to 800Hz, with multiply options (x1, x10 for 200Hz to 8KHz).
• Low Pass Filter: Adjustable from 50Hz to 800Hz, with multiply options (x1, x10 for 500Hz to 8KHz).
• Bandpass Capable: Optimize your system for clear mids, highs, and bass.

User-Friendly Features:

• Clip Light Indicators:
  • Located on both the amplifier and the remote bass knob, providing real-time feedback to prevent distortion.

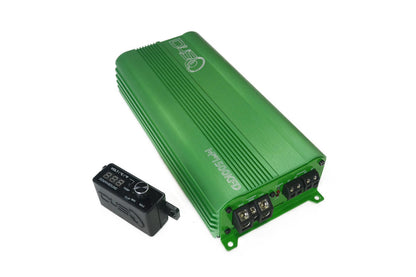

• Remote Control: Displays voltage and temperature, with thermal and clipping alerts for added convenience and safety.
• Wide Voltage Range: Operates from 9V to 15.5V, ensuring compatibility with most car systems.

Specifications:

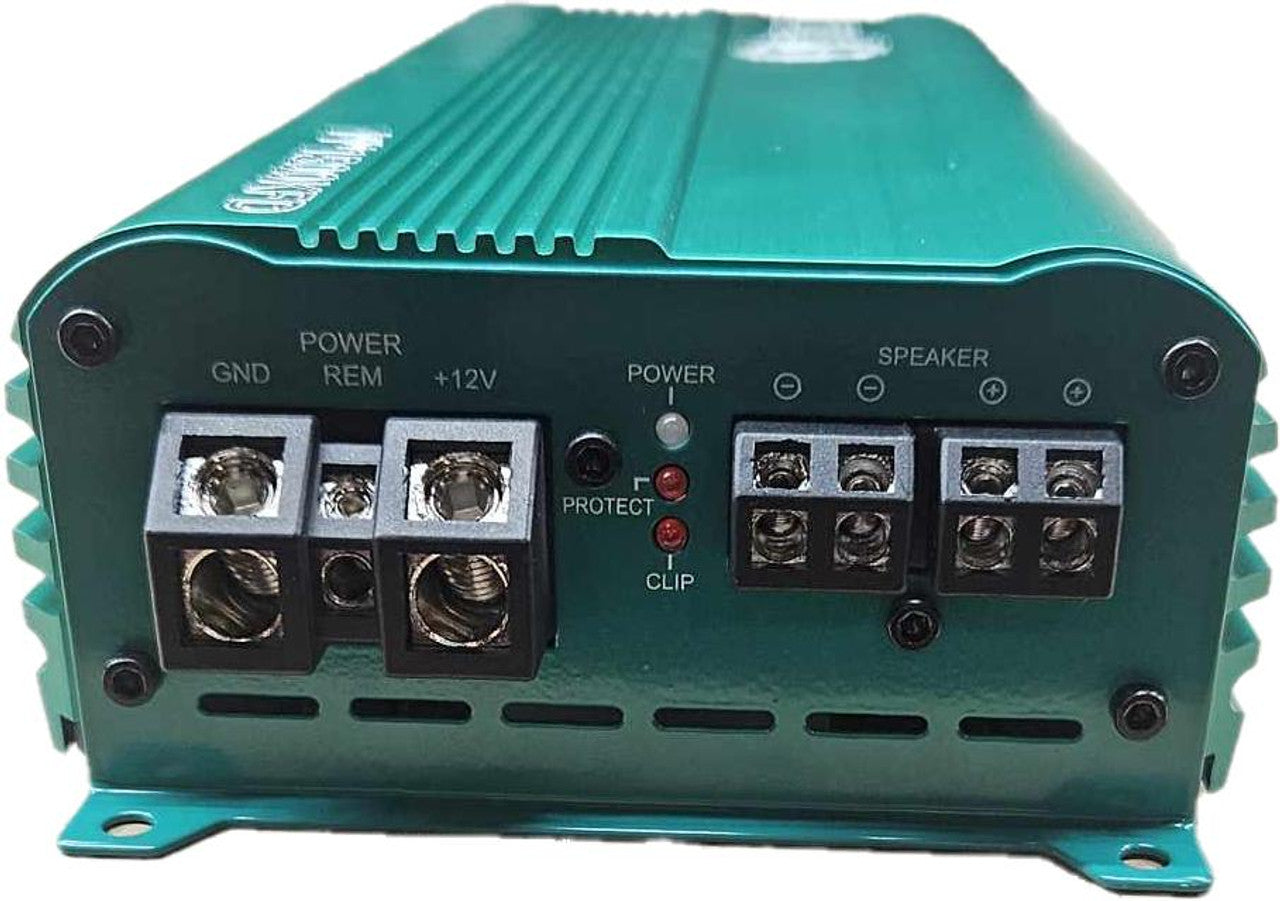

• Power & Ground Terminals: 4 GA
• Speaker Terminals: 14 GA
• Dimensions: 9.44" x 4.87" x 2.13" (240mm x 123.9mm x 54.3mm)

Why Choose the MM1500KFD?

• Compact and Powerful: Perfect for installations where space is limited.
• Full Range Capability: Handles all frequencies with precision for a dynamic audio experience.

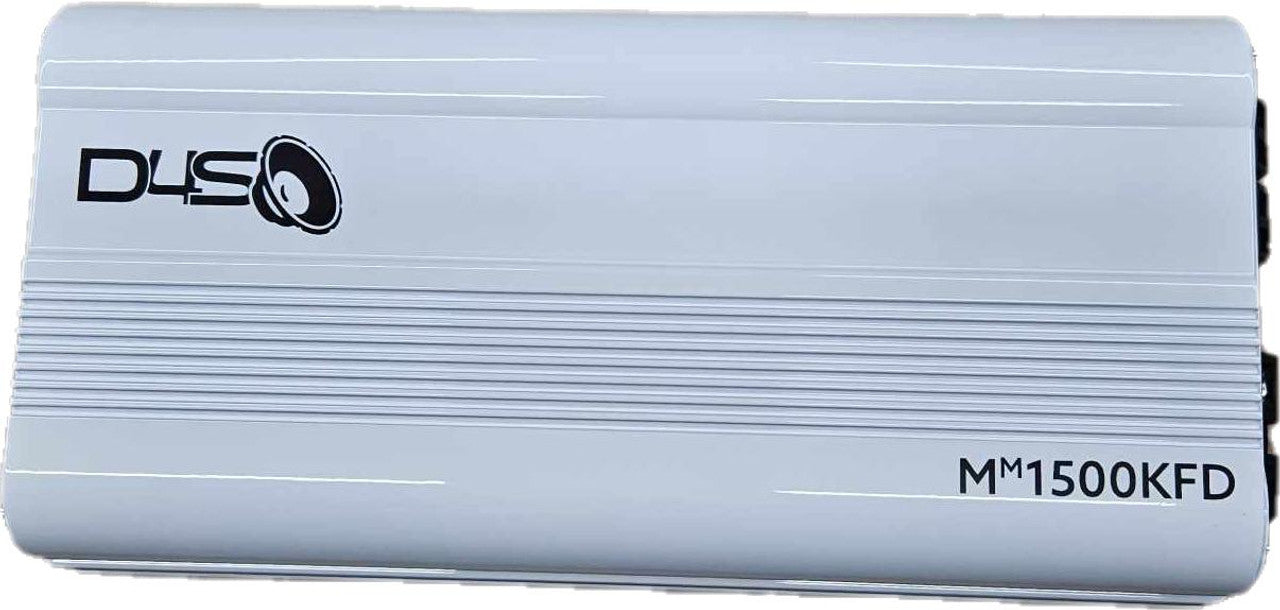

• Gloss White Finish: Adds a sleek, clean, and modern look to your car audio system.
• Real-Time Clipping Feedback: Protects your speakers with visual alerts on both the amp and bass knob.
