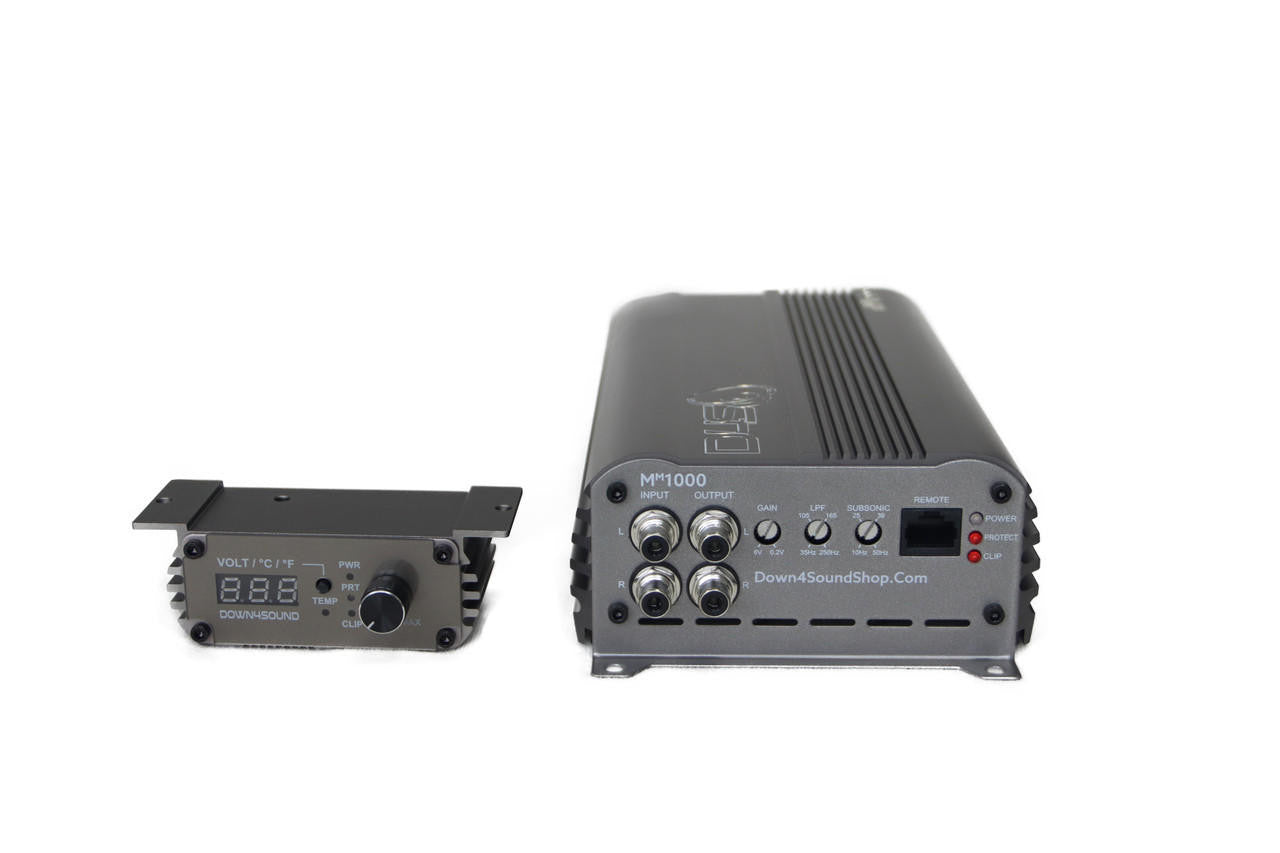

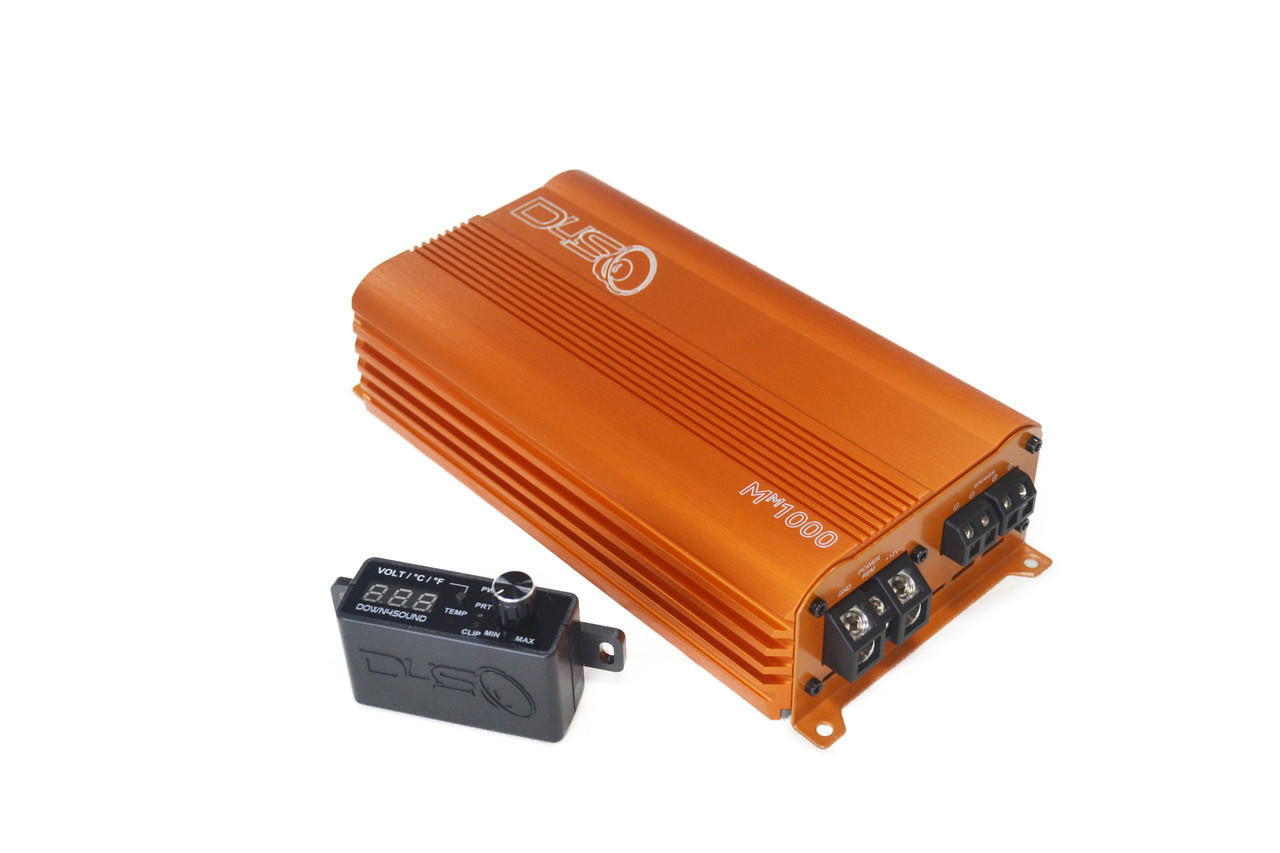

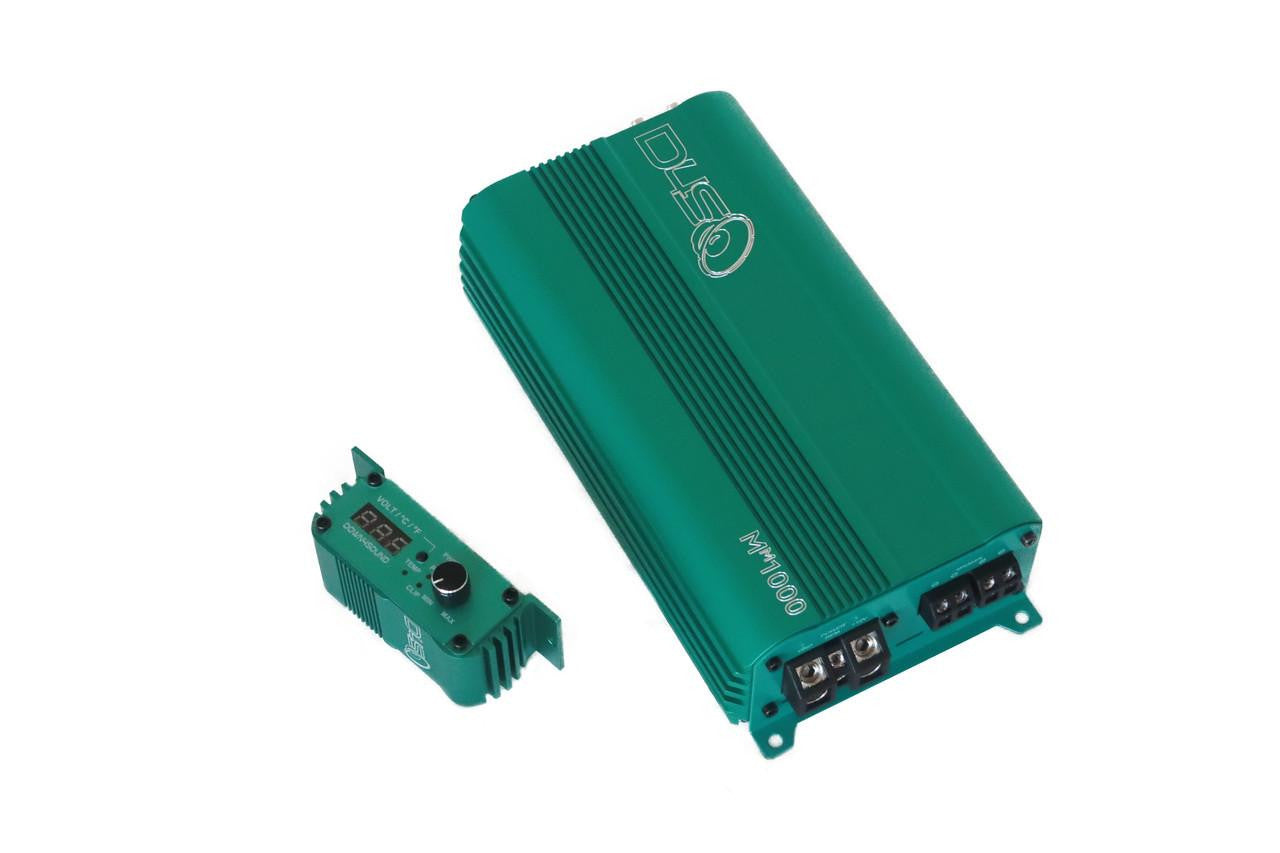

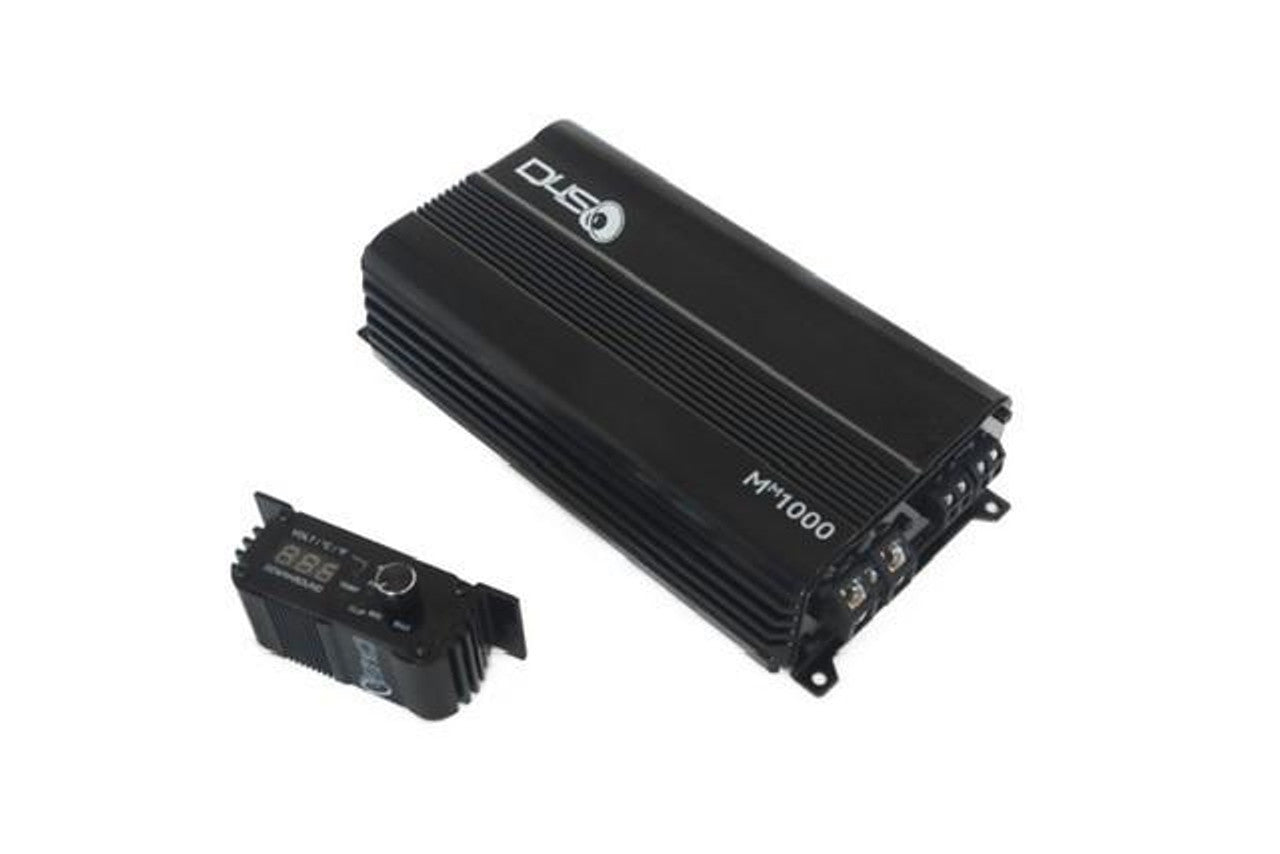

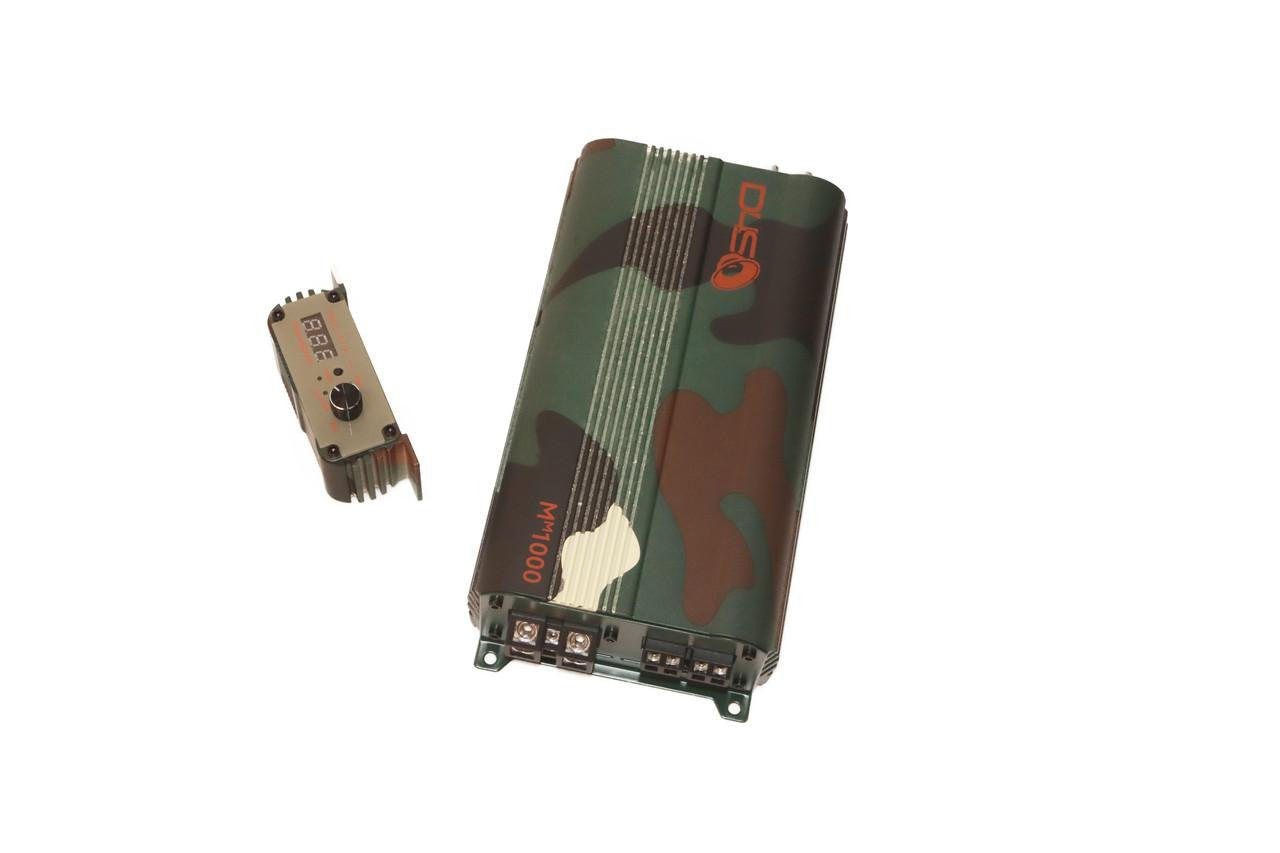

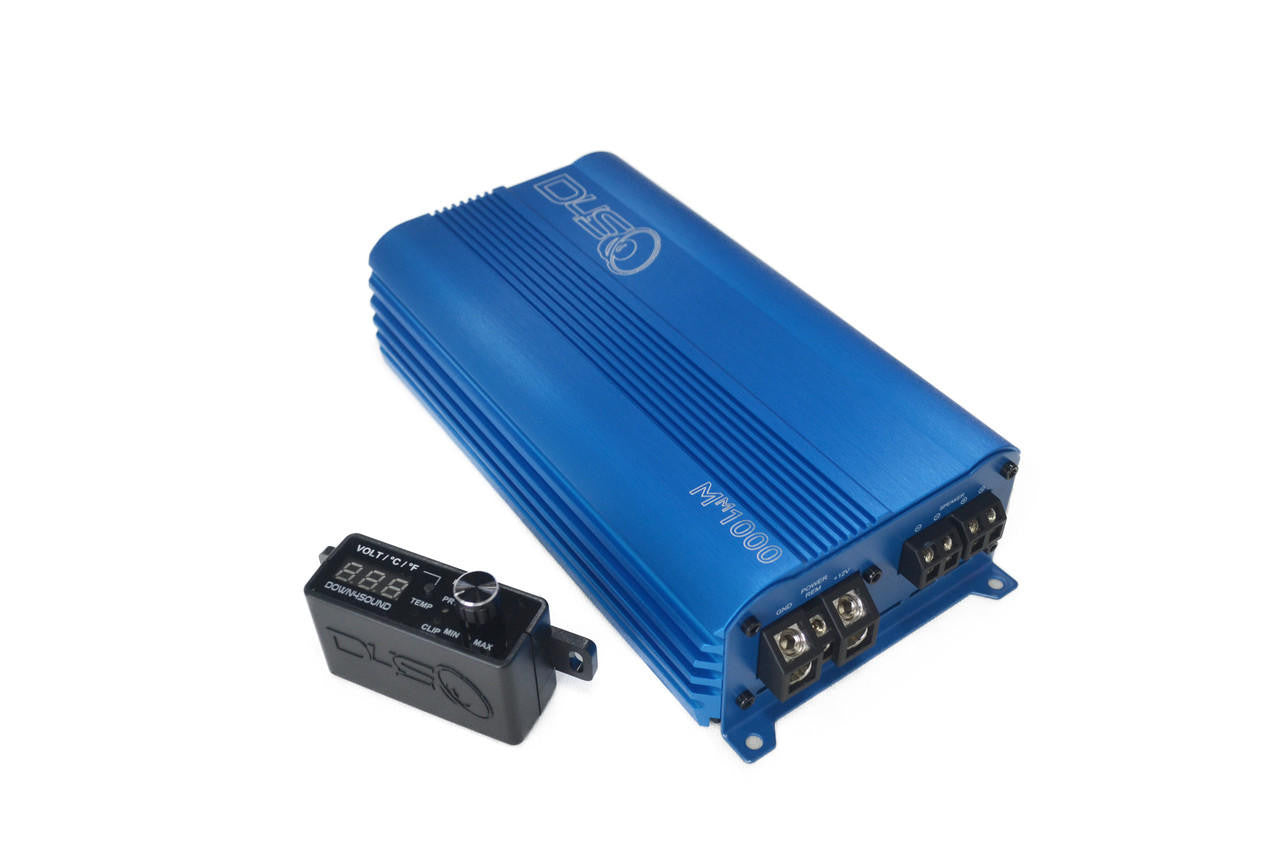

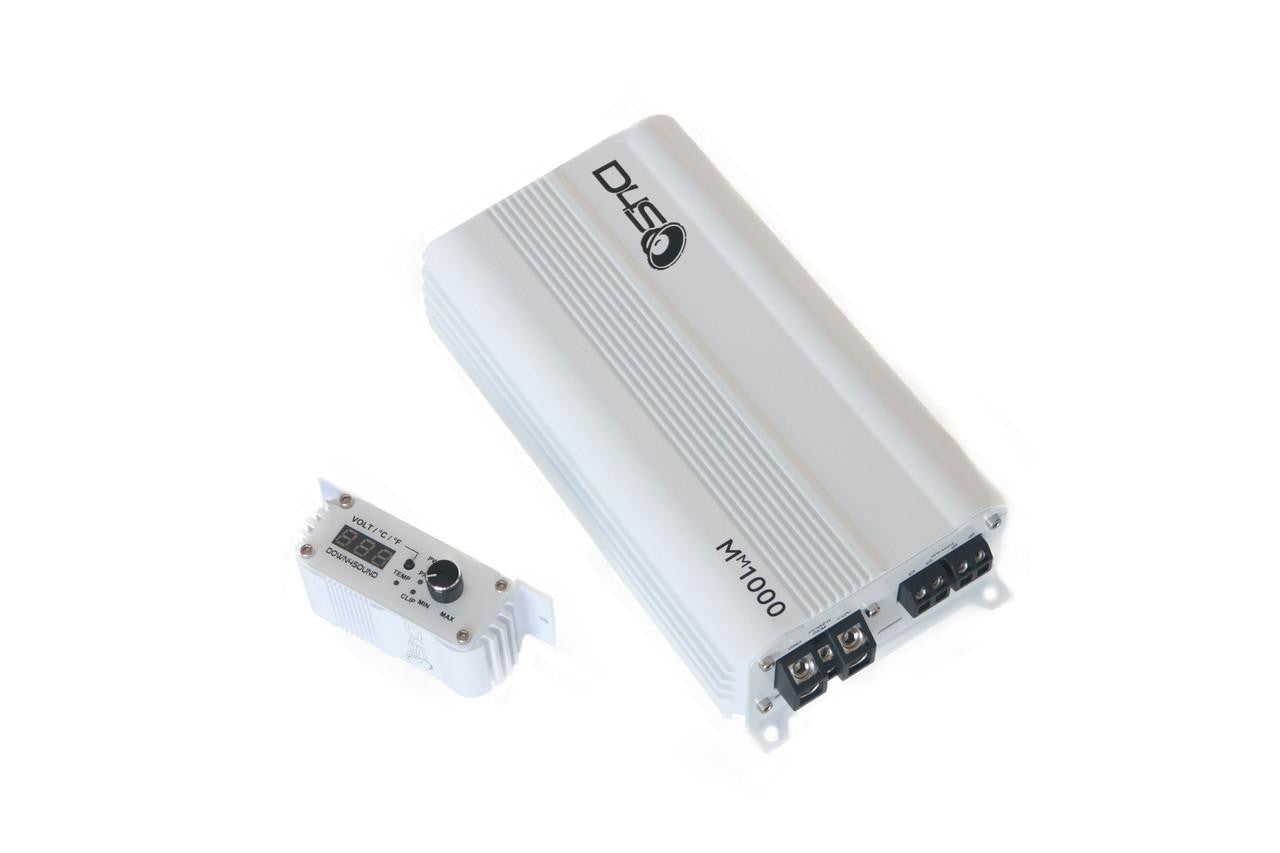

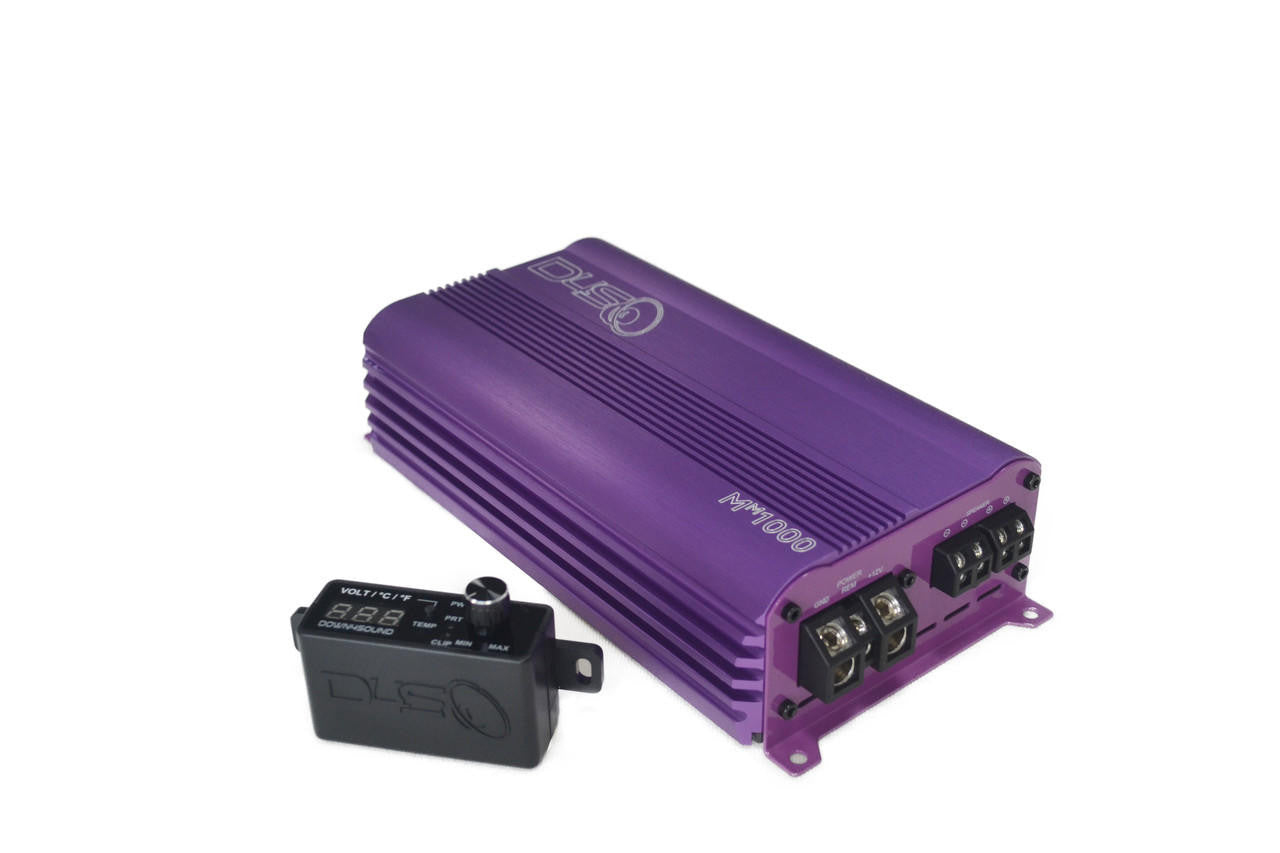

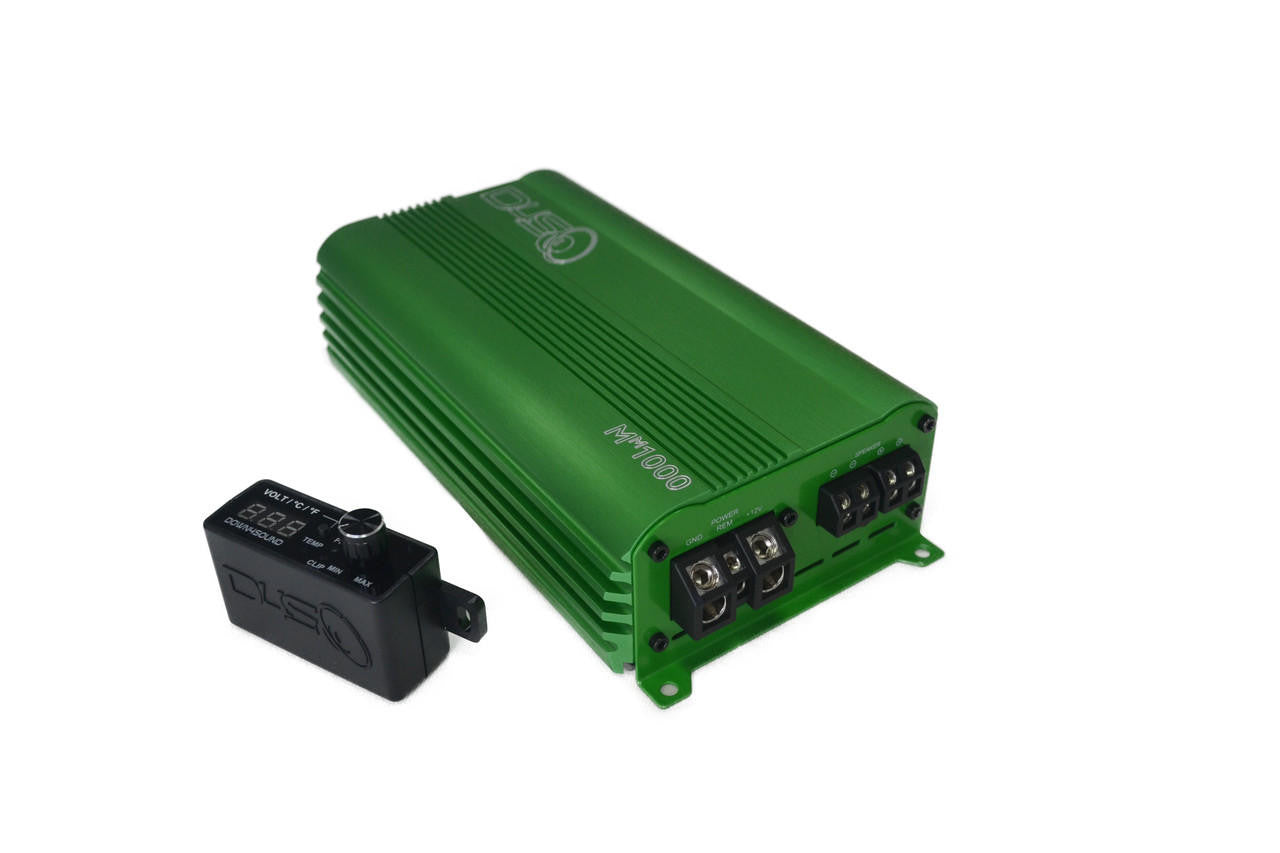

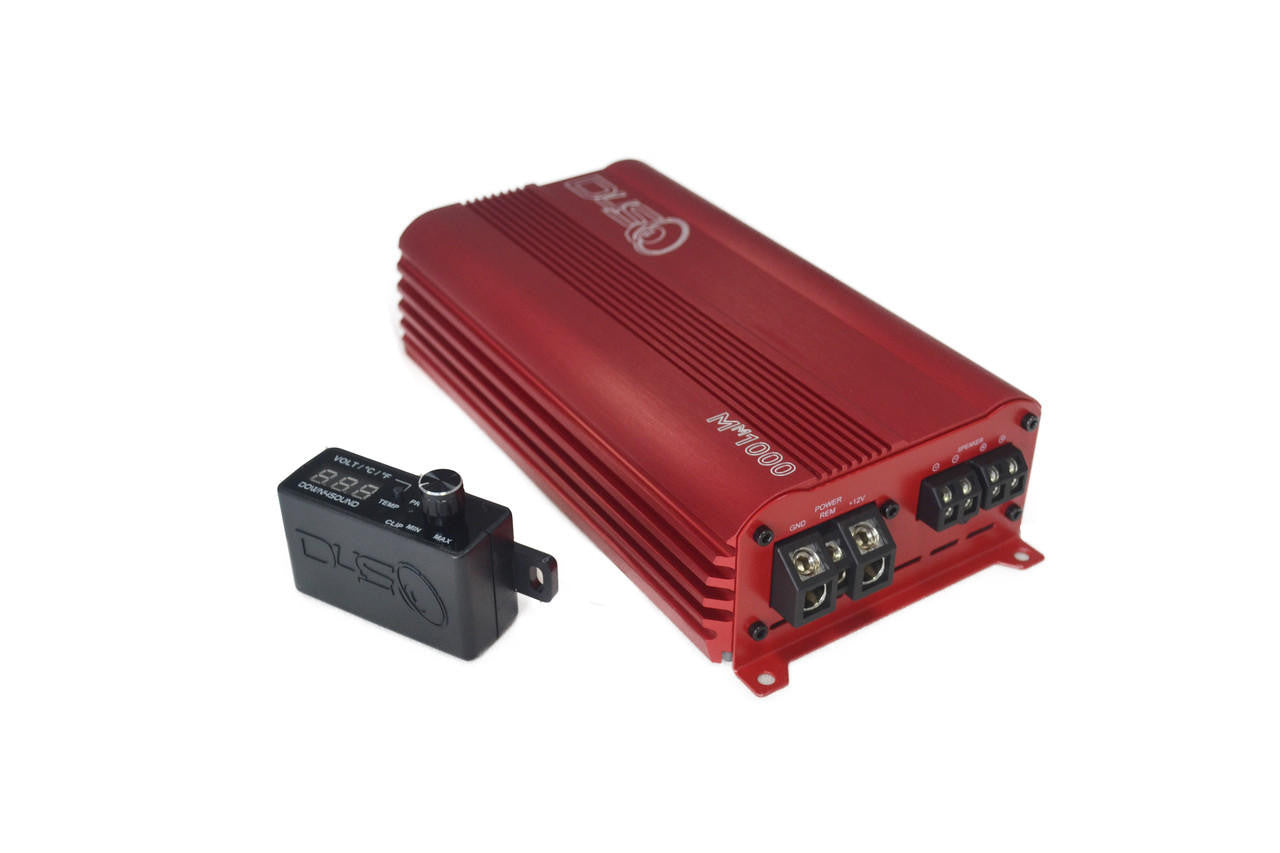

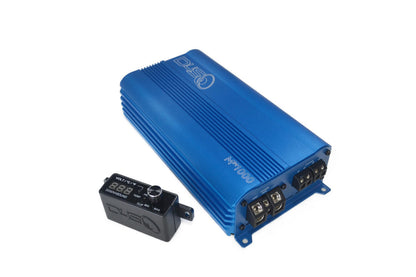

1000x1 (MINI MAXX) MM1000

A 1000W RMS Mini Car Audio Amplifier that’s a compact powerhouse of performance. Despite its small size, this amplifier is engineered to deliver deep and resonant bass, making it a perfect fit for almost any vehicle.

Snazzy Bass Control:

The MM1000 comes with a remote bass knob, giving you the power to adjust bass levels on the go. This feature-rich knob includes a voltmeter, amplifier temperature monitor, and clipping indicator, keeping you in sync with your system's performance.

Technical Specifications:

Power Ratings:

• 1 ohm: 1000W x 1
• 2 ohms: 850W x 1
• 4 ohms: 550W x 1

Frequency Response: 10Hz - 264Hz
Low Pass Filter: 35Hz - 250Hz
Subsonic Filter: 10Hz - 50Hz
Input Sensitivity: 6V - 0.2V
Signal to Noise Ratio: >95dB
Total Harmonic Distortion (T.H.D): <0.1%
Operating Voltage: 9V - 15.5V
Fuse Rating: 100A
Speaker Wire Input: Up to 12 gauge
Power and Ground Input: 4 gauge

Dimensions:

• Length: 8.26 inches (210mm)
• Width x Height: 4.87 x 2.13 inches (124mm x 54mm)

Advanced Features:

• DIGITAL MONOBLOCK AMPLIFIER: Optimized for bass and stable at a 1-ohm mono load.
• HIGH-SPEED MOSFET POWER SUPPLY: Ensures consistent power delivery.
• VARIABLE LOW PASS FILTER: Customize your bass to suit your preferences.
• VARIABLE SUBSONIC FILTER: Protects your speakers from harmful frequencies.
• 4-WAY PROTECTION CIRCUITS: Includes thermal, high & low voltage, speaker short, and DC protection.
• HIGH PURITY COPPER PRINTED CIRCUIT BOARD: Enhances signal flow and output.
