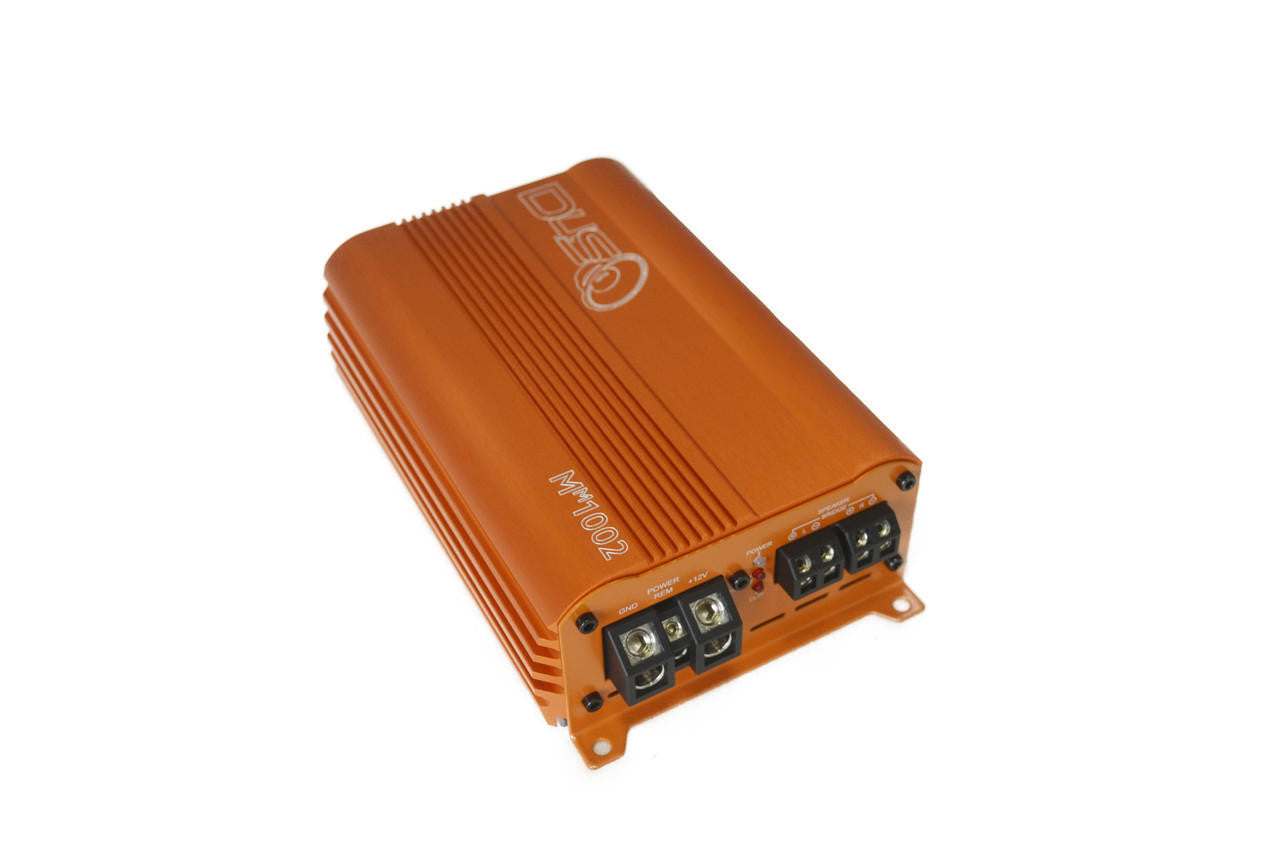

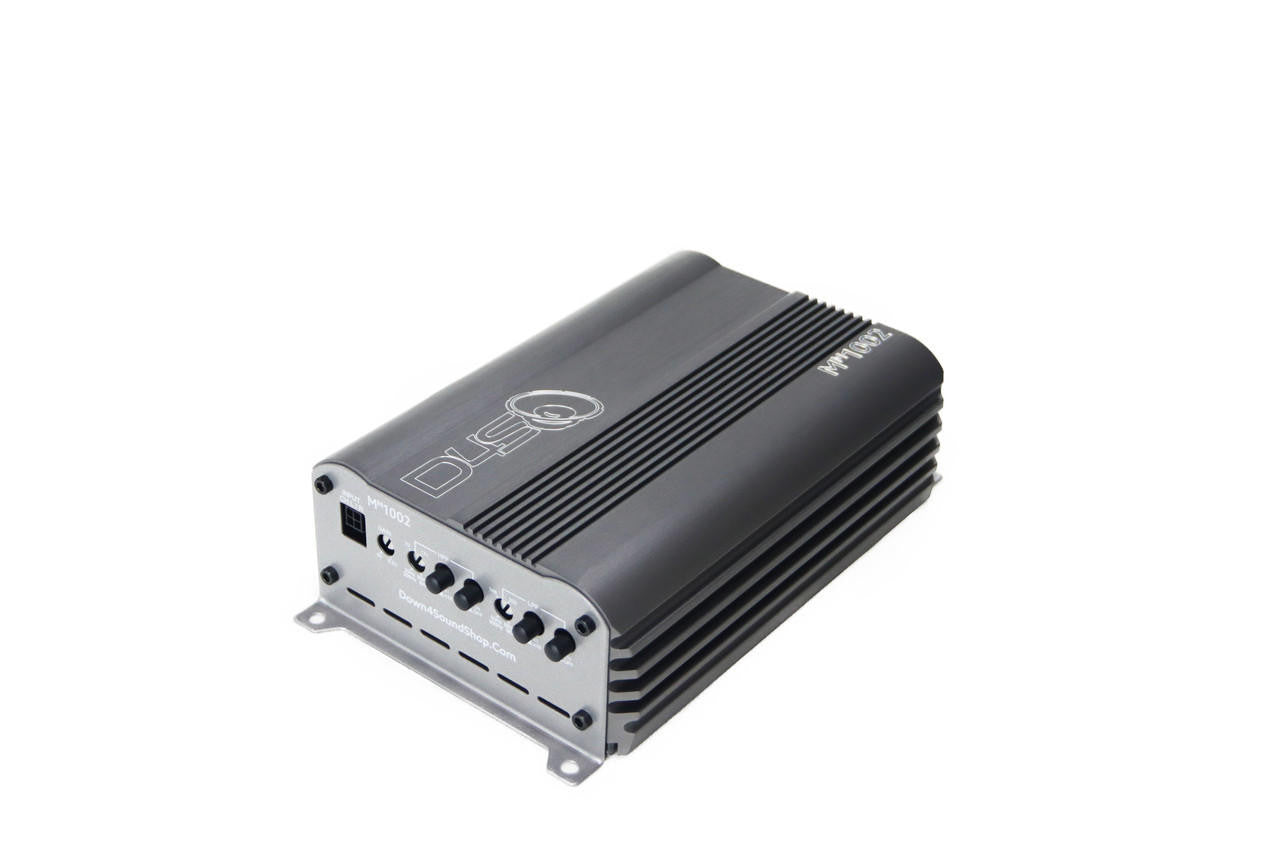

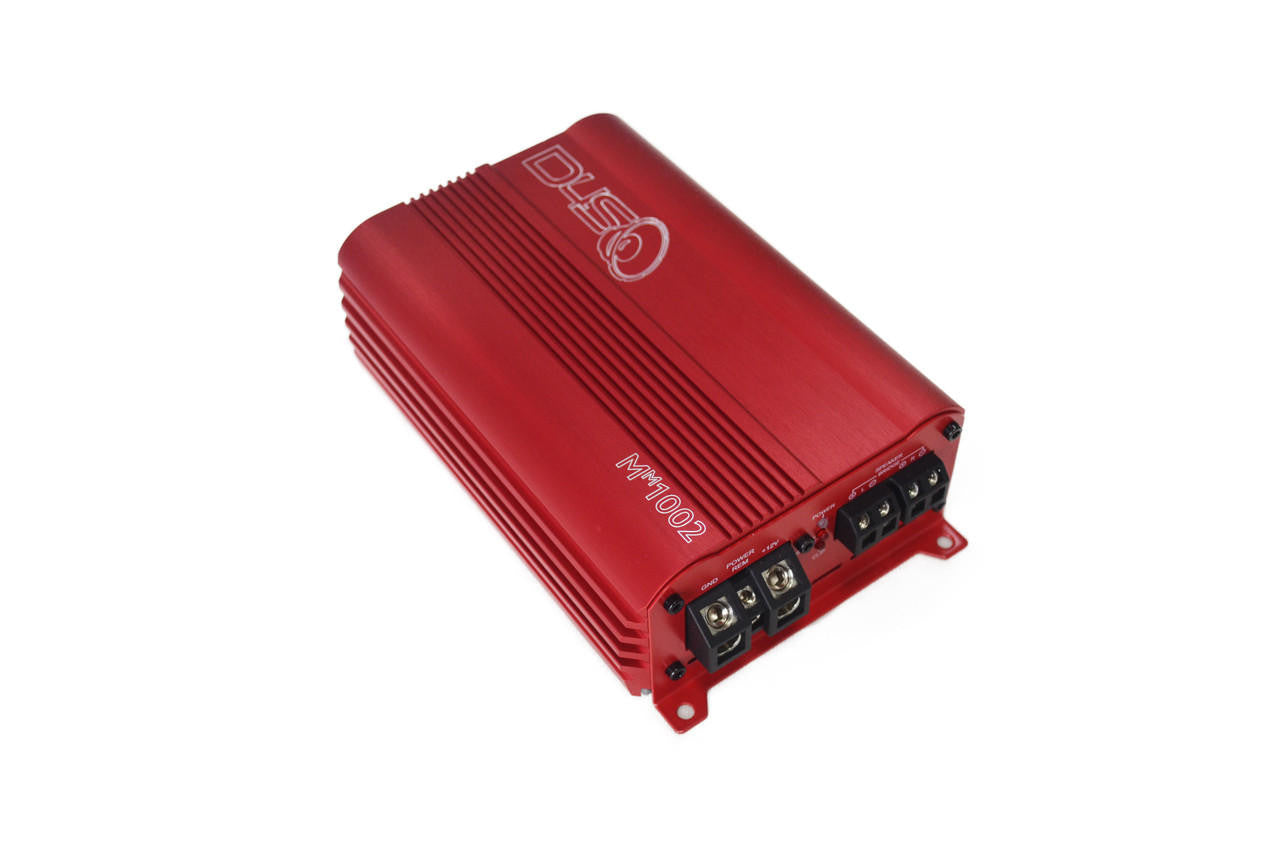

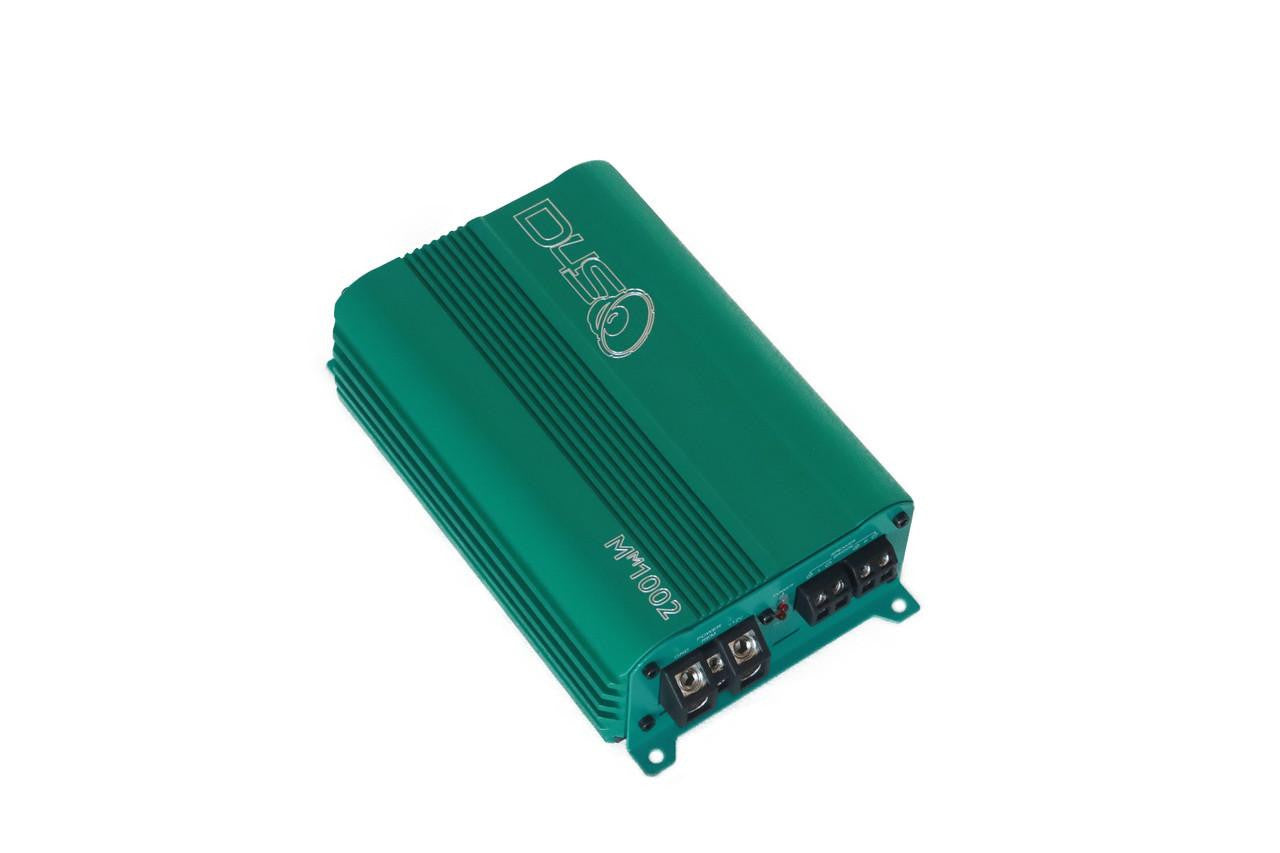

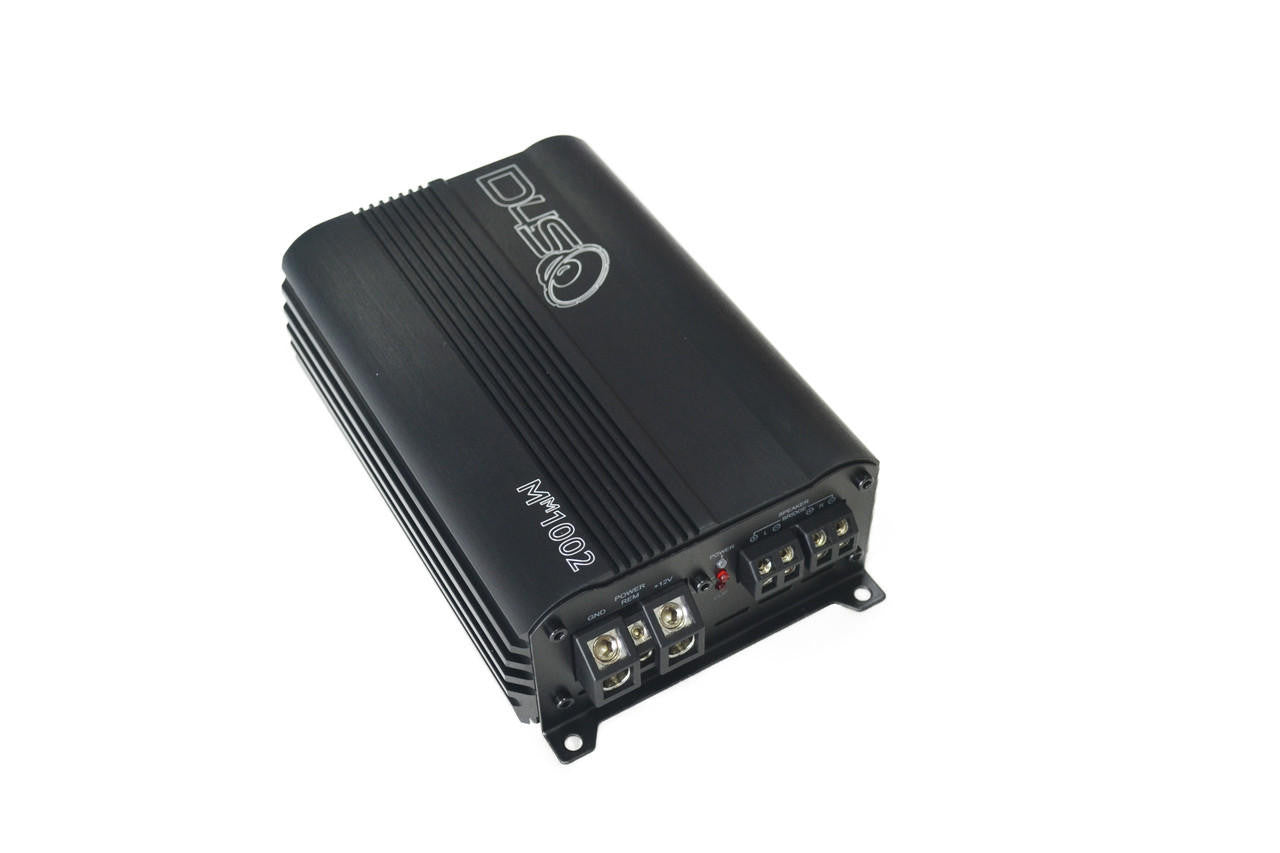

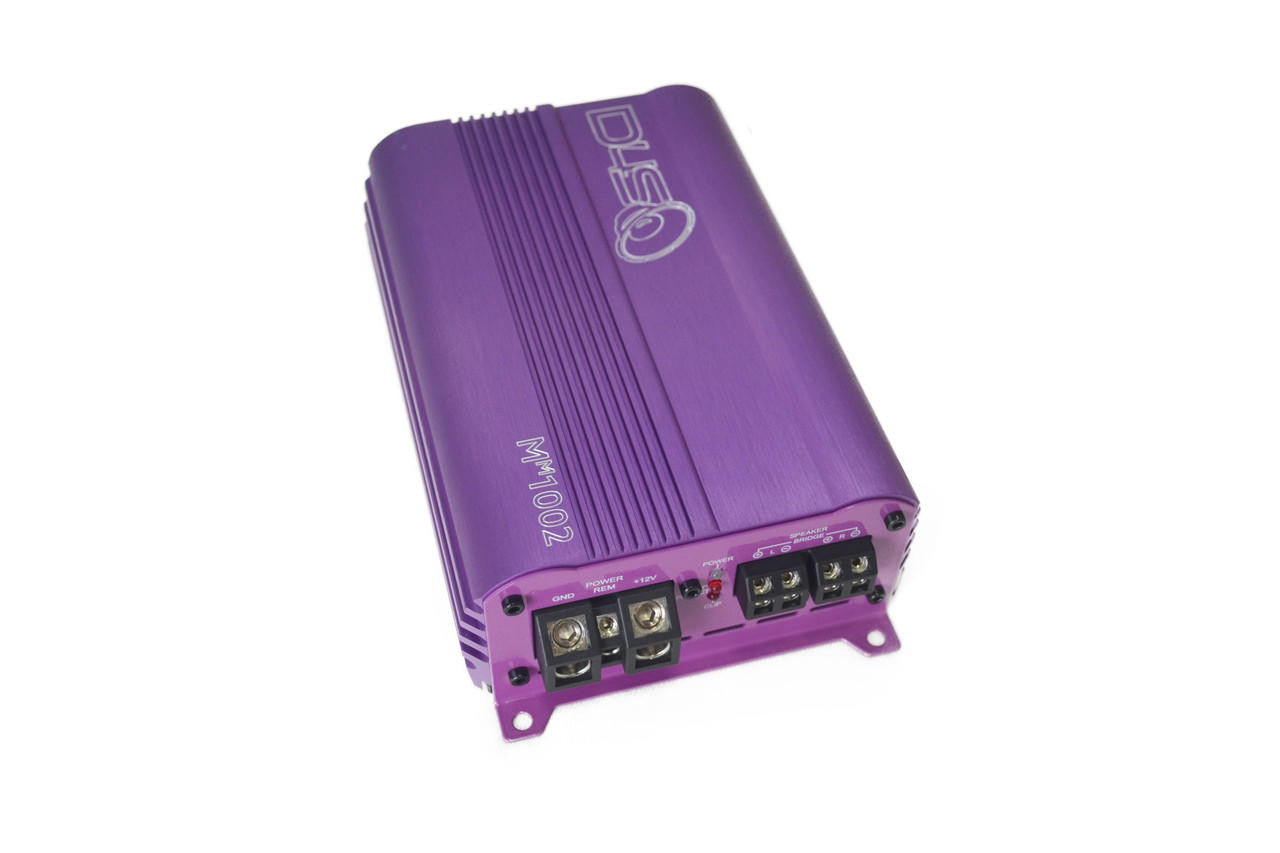

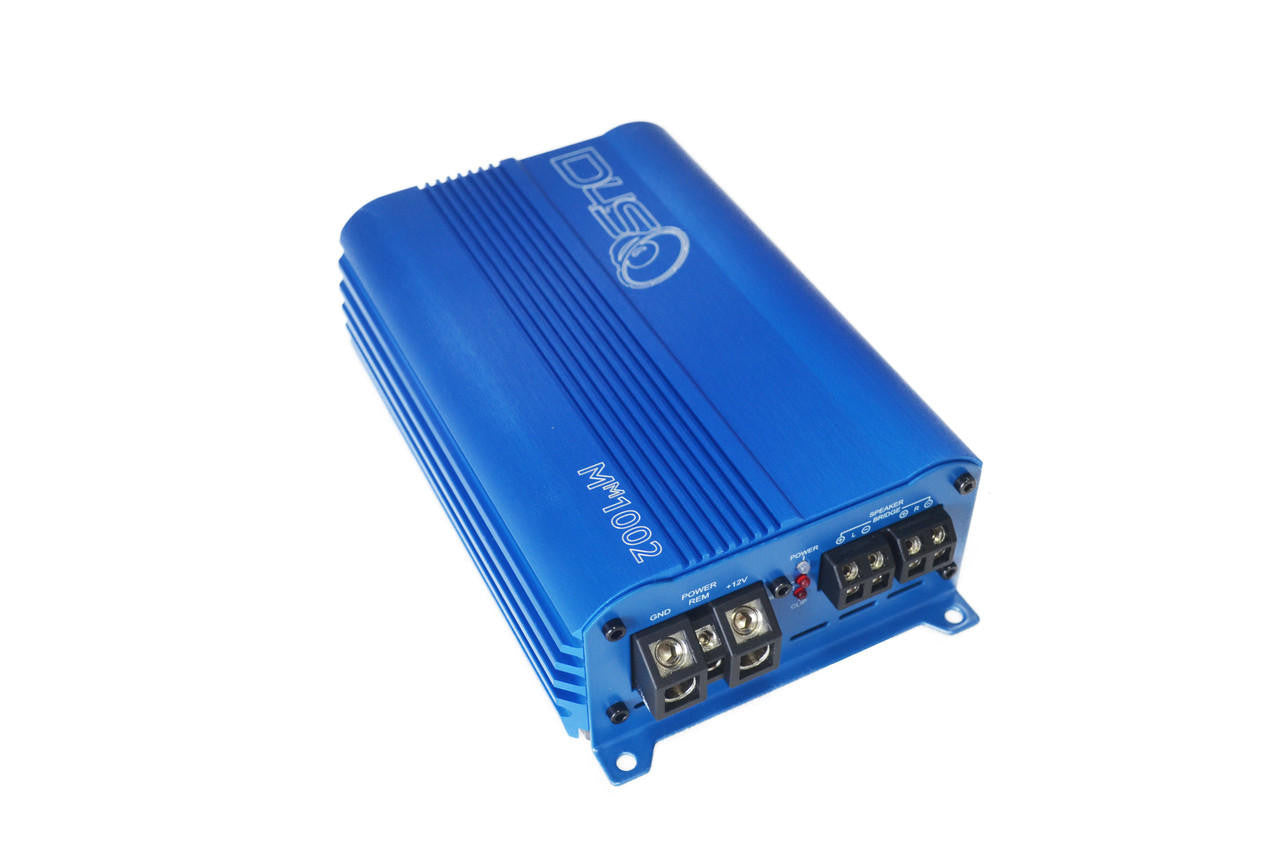

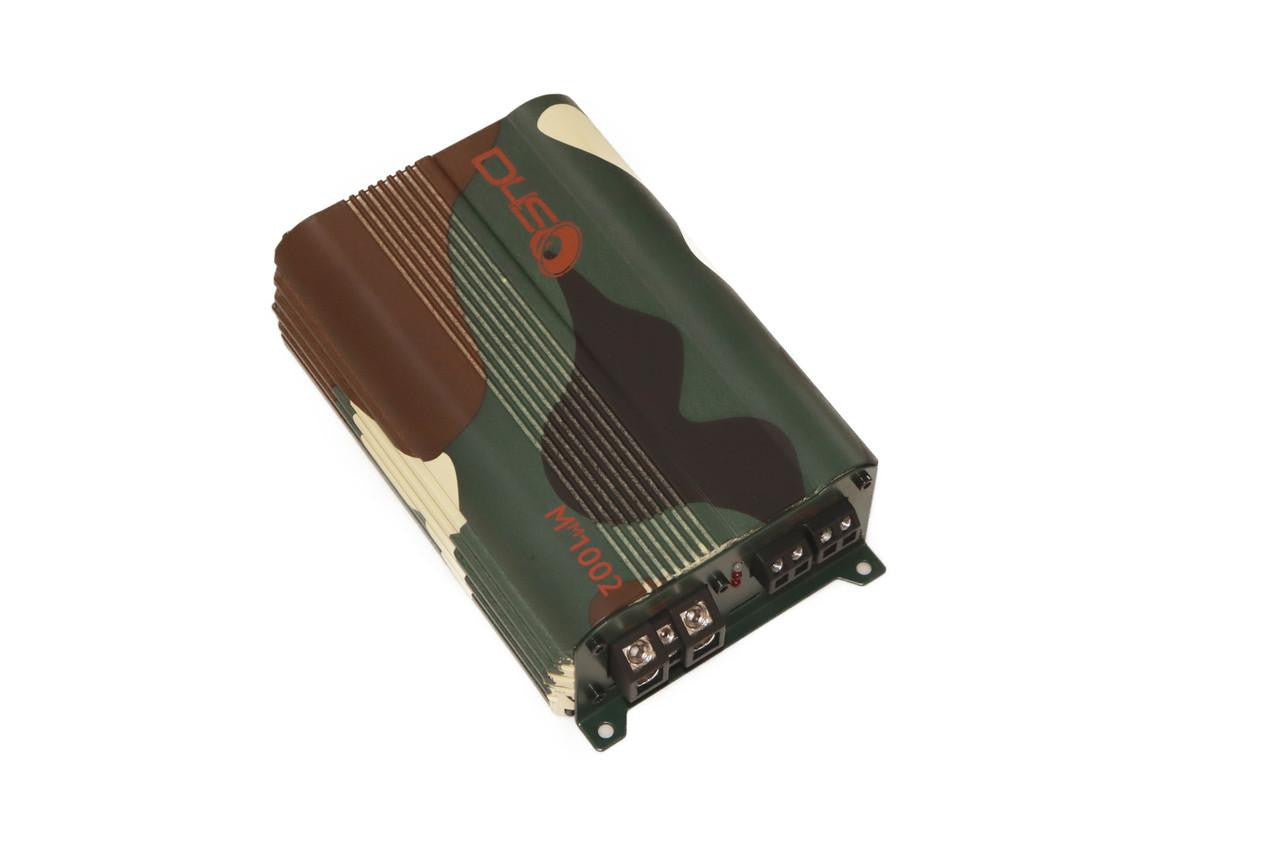

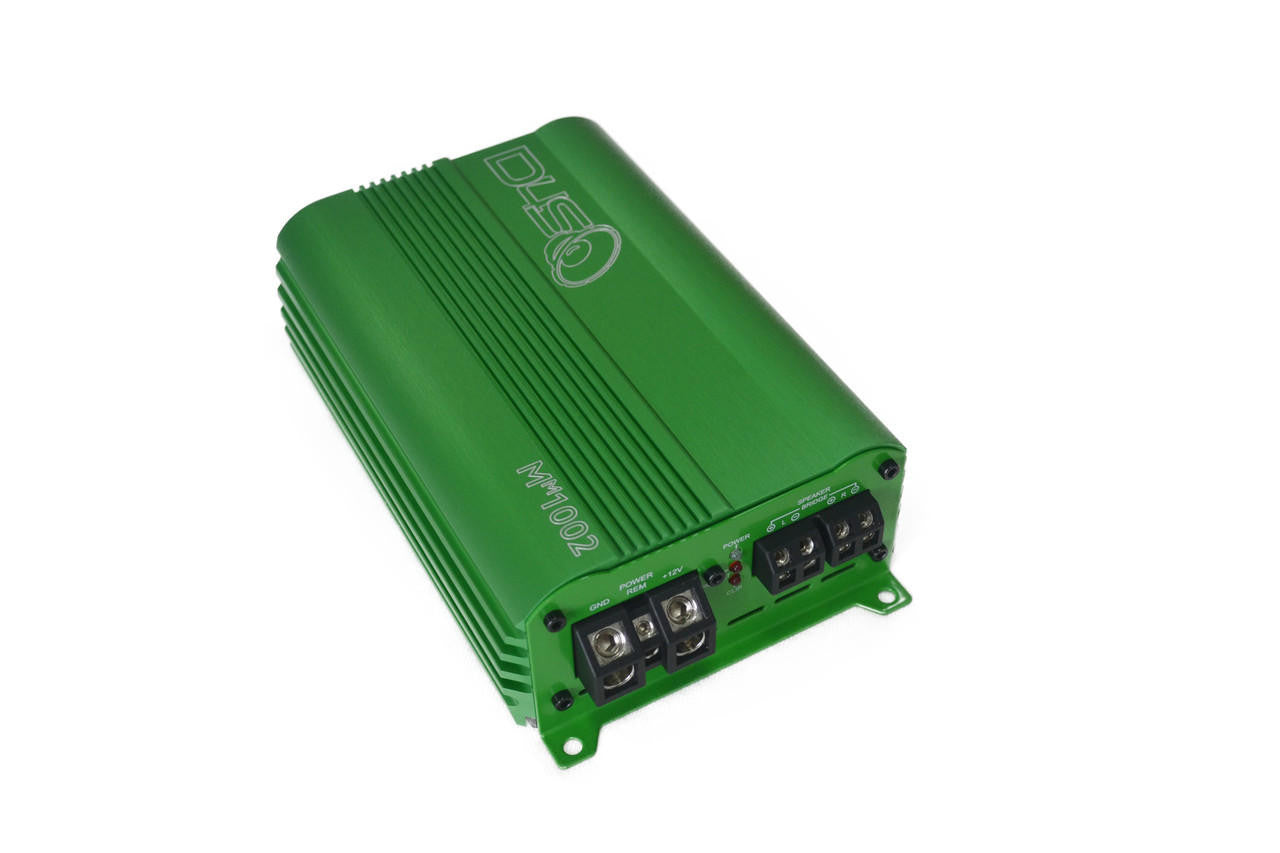

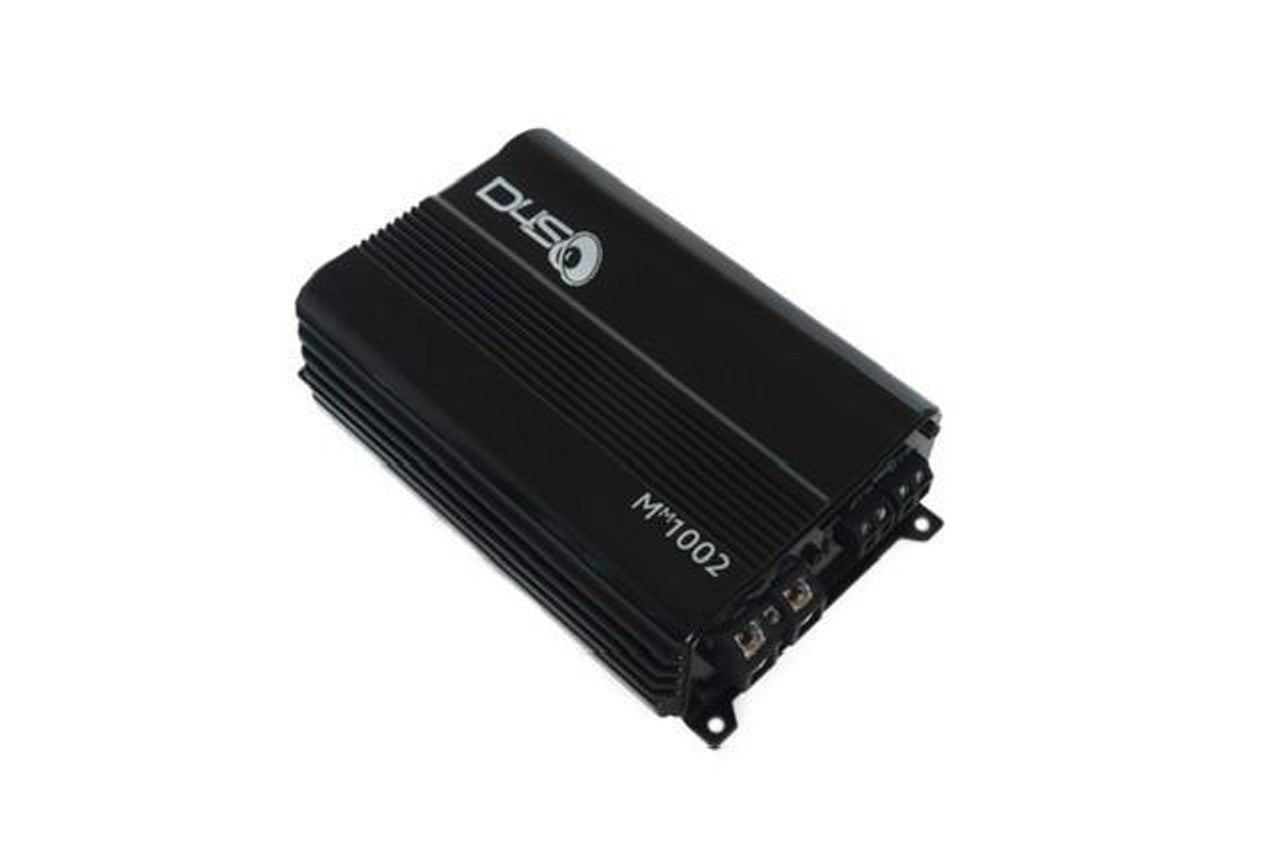

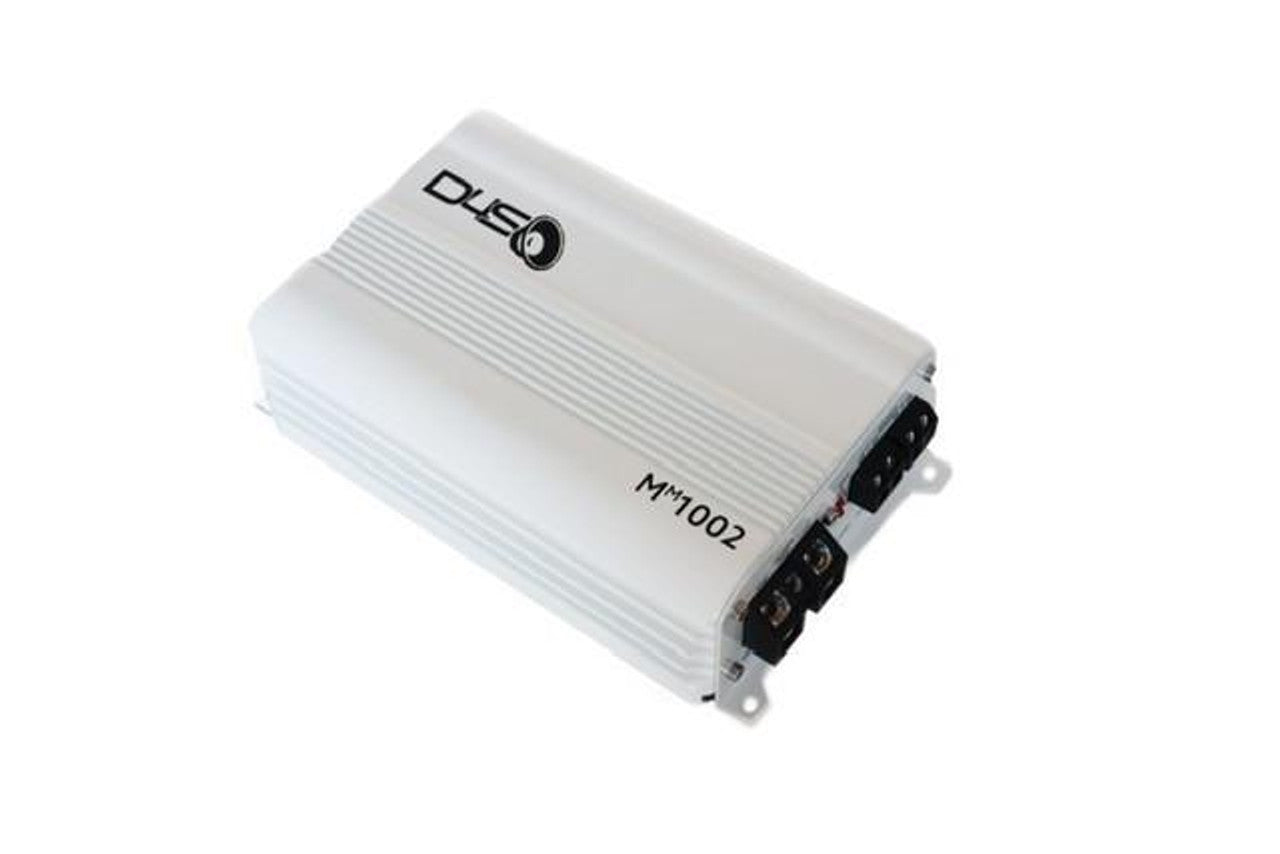

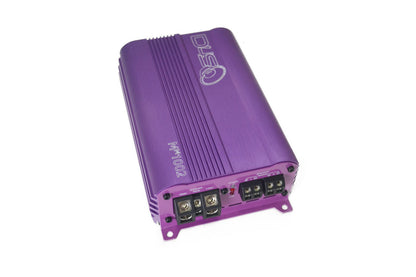

160x2 (MINI MAXX) MM1002

Designed with band-passable crossovers X1 & X10, this dynamic amplifier allows you to run mids and highs on one channel and bass on the other, or bi-amplify the 2 channels differently for a customizable listening experience.

**Technical Specifications:**

• 4ohm rms power : 100W x 2ch
• 2ohm rms power : 160W x 2ch
• 4ohm rms bridged power : 350W x 1ch
• Tested at 14,4V & 1% THD.
• Frequency response : 10Hz –23.97KHz
• Signal to noise : 91dB
• Damping factor : 100
• Input sensitivity : 6V –0.2V
• High Pass Filter : 20Hz –800Hz
• HighPass multiply : x1, x10 ( 200Hz –8Khz )
• Low Pass Filter : 50Hz –800Hz
• Low PassMultiply : x1, x10 ( 500Hz –8Khz )
• Bandpass capable
• Clipping Indicator
• Working voltage : 9 to 15.5Volts.
• Dimensions : 170mm L x 123.9mm W x 54.3mm H
• (6.69 x 4.87 x 2.13 inches )

• 4 GA Power & Ground Terminal
• 14GA Speaker wire Terminal
