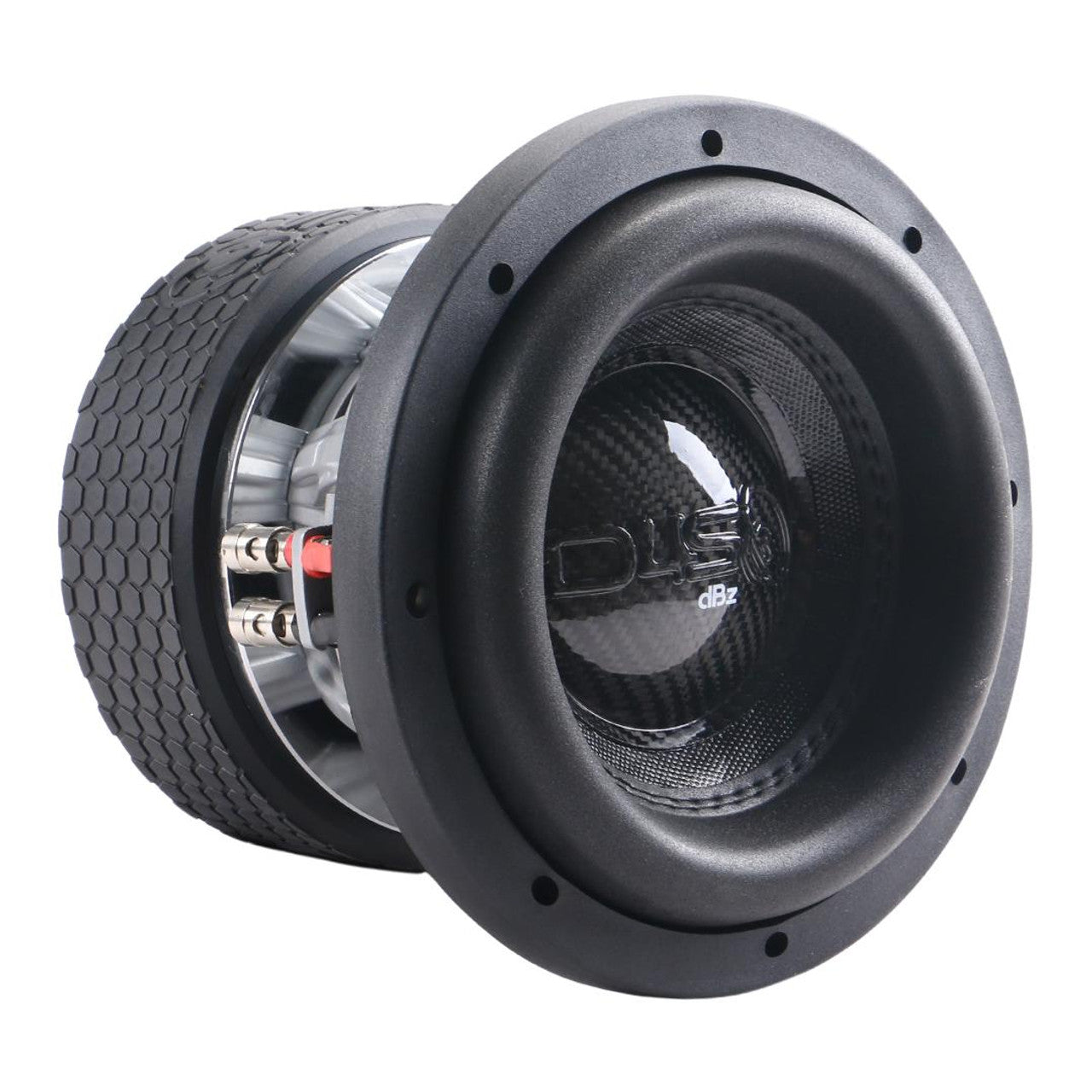

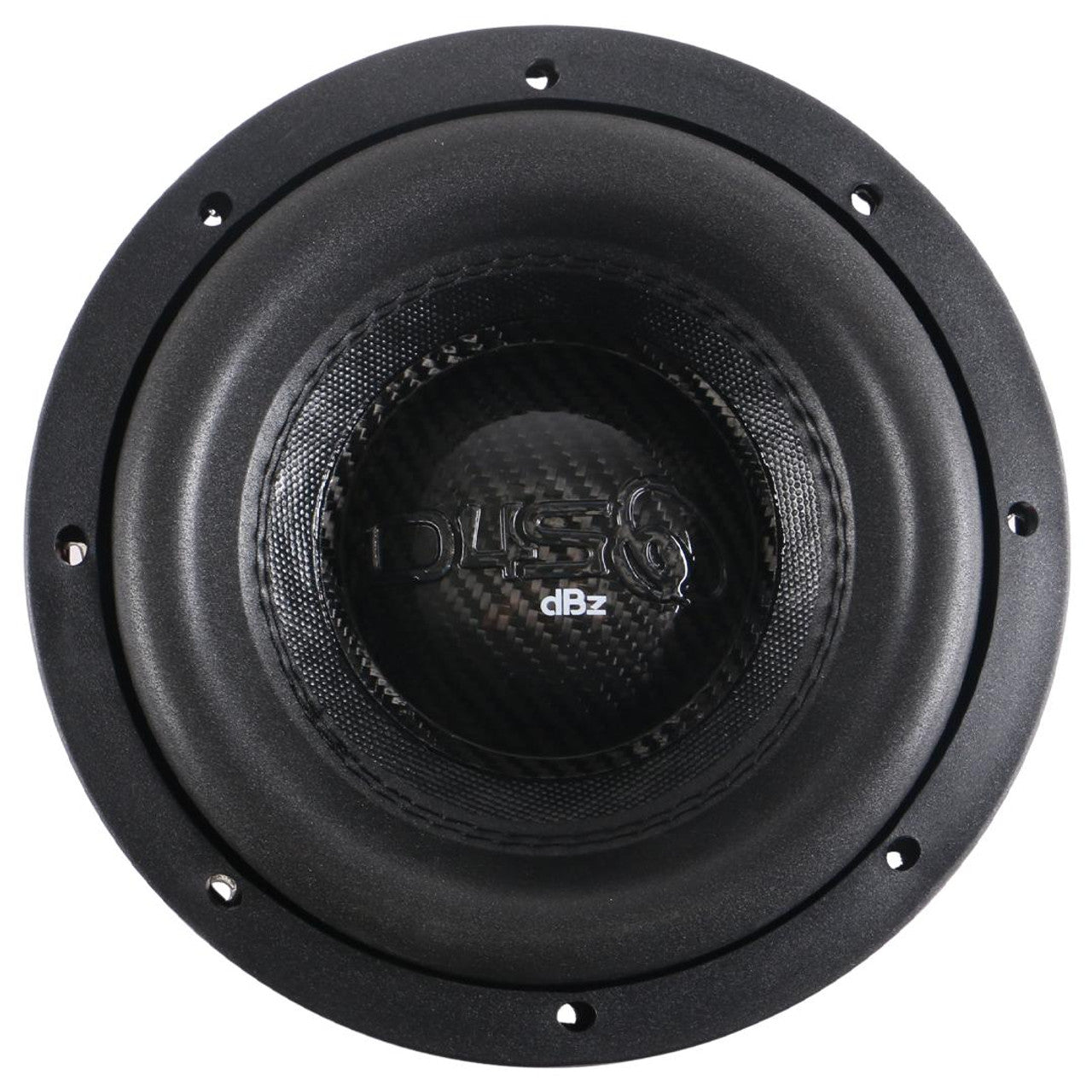

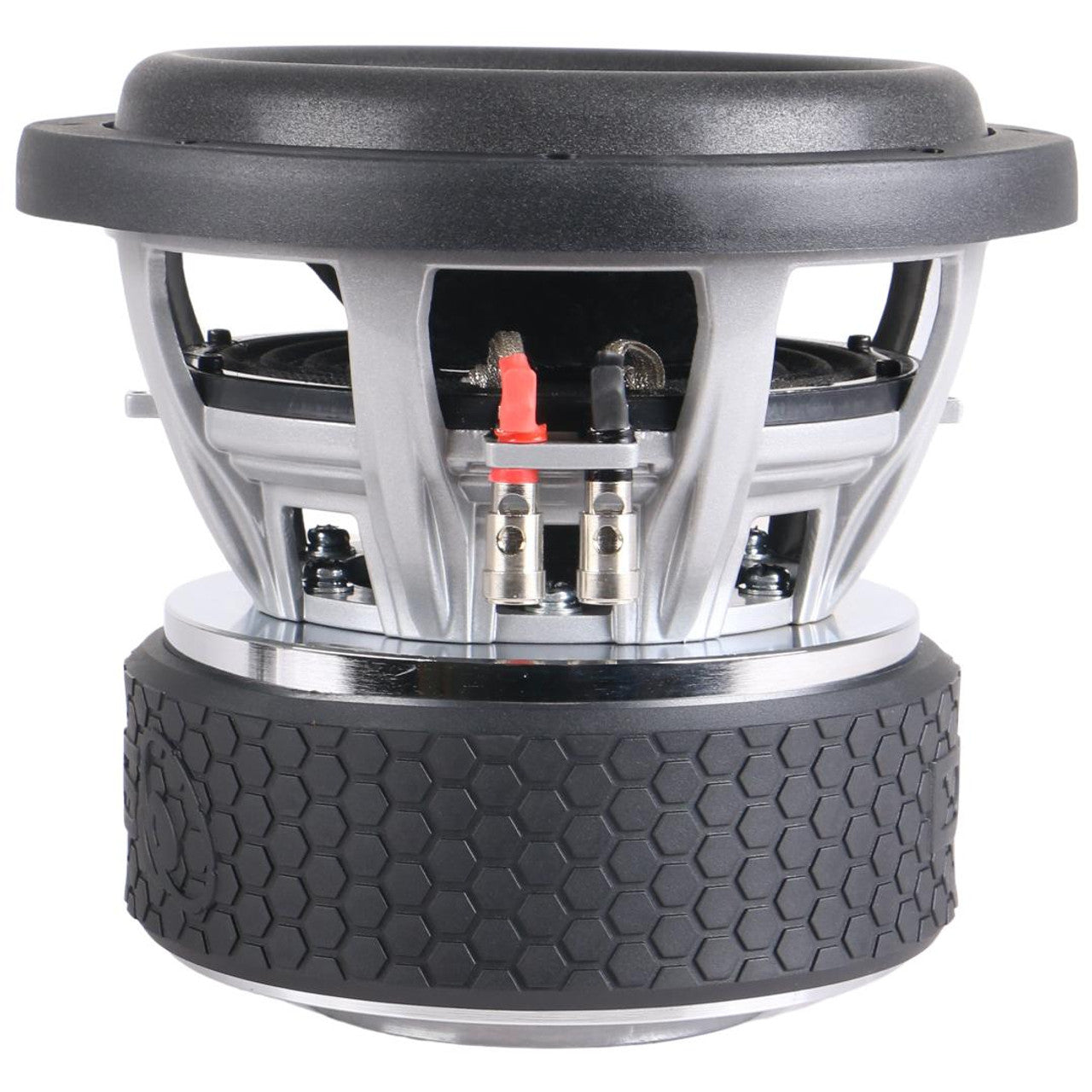

DOWN4SOUND DBz 8" SUBWOOFER - 2 or 4 OHM DVC | 700W RMS

Meet the DOWN4SOUND DBz 8" Subwoofer – the ultimate budget banger delivering exceptional performance and value. With a robust 700W RMS power, this subwoofer is perfect for car audio enthusiasts looking for big sound without the big price tag. the DBz 8" provides versatile wiring options and powerful bass. The real premium carbon fiber dustcap adds a sleek, stylish touch while ensuring maximum durability and performance.

QUICK NOTES:

• RMS OUTPUT: 700W RMS
• COIL SIZE: 2.5 INCH
• CUTOUT: 7.36 inches (187 mm)
• MOUNTING DEPTH: 6.61 inches (168 mm)
• NET WEIGHT: 23.6 lbs (10.7 kg)
• GROSS WEIGHT: 26.9 lbs (12.2 kg)
• XMAX : 21 mm (one-way)

Precision Engineering: Engineered with an optimized motor strength (BL Product: 21.109 T·m) and an effective piston area (Sd) of 210.105 cm² for powerful sound output at an affordable price.

Technical Specifications:

• Revc (DC Resistance): 2.000 Ohm
• Resonance Frequency (Fo): 45.650 Hz
• Total Moving Mass (Mms): 224.405 g
• Suspension Compliance (Cms): 54.380 μm/N
• Equivalent Volume (Vas): 3.222 L
• Sensitivity (SPL): 79.0 dB
• Qms (Mechanical Q): 1.770
• Qes (Electrical Q): 0.577
• Qts (Total Q): 0.435
• Voice Coil Inductance (Le): Not specified
• Mechanical Resistance (Rms): 0.771
• Sealed Enclosure: .3 cubic foot
• Ported Enclosure:  1 cubic feet

ENCLOSURE SPECIFICATIONS
DBZ 8

• Sealed Enclosure: 0.3 - 0.4 cu ft
• Ported Enclosure: 0.75 - 1.0 cu ft
• Recommended Tuning: 32 Hz
• Recommended Port Area: 12 - 16 sq in
• Displacement: 0.13 cu ft
• Depth: 7.36" (187 mm)
• Outside Diameter: 8.71" (221 mm)
• Cutout: 7.32" (186 mm)
