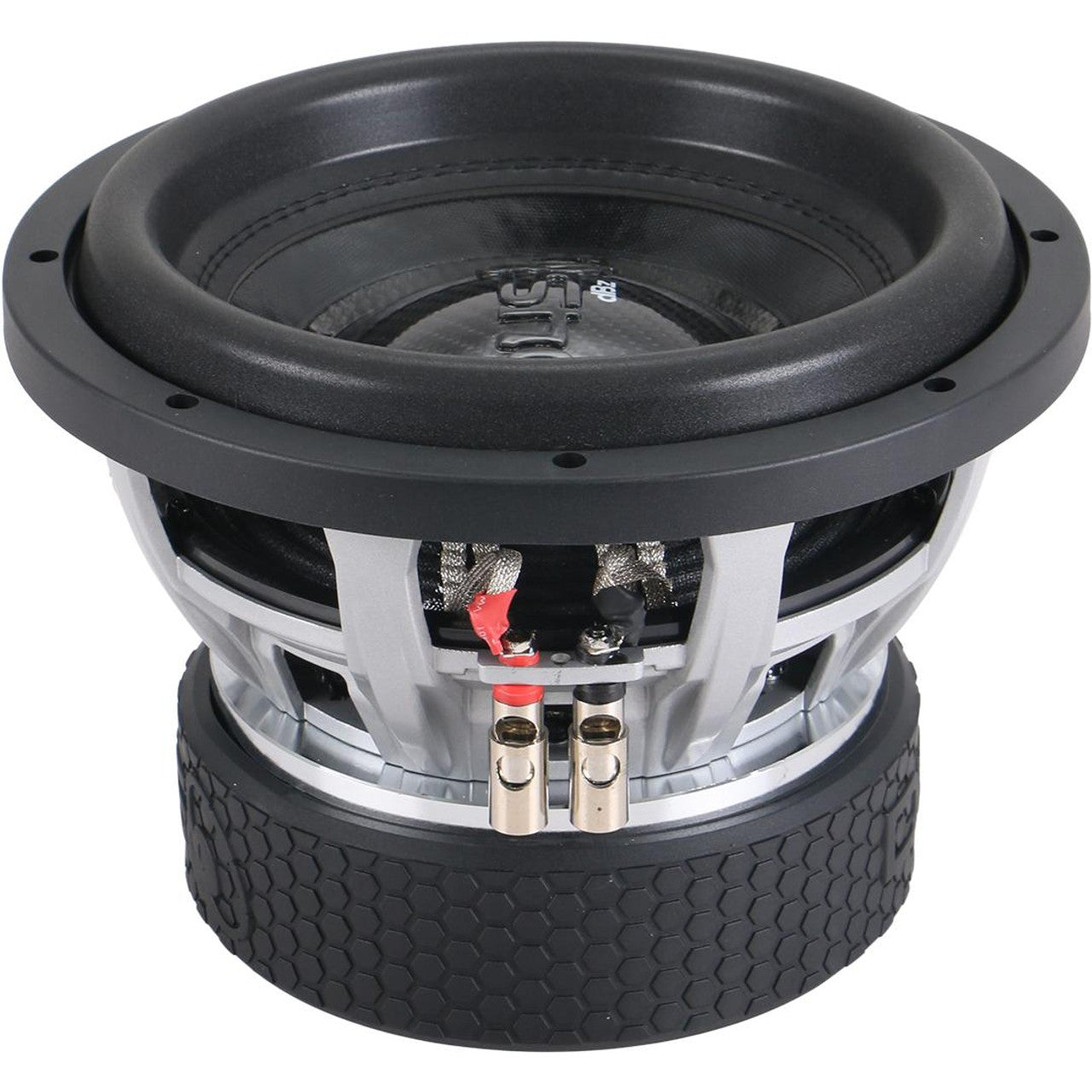

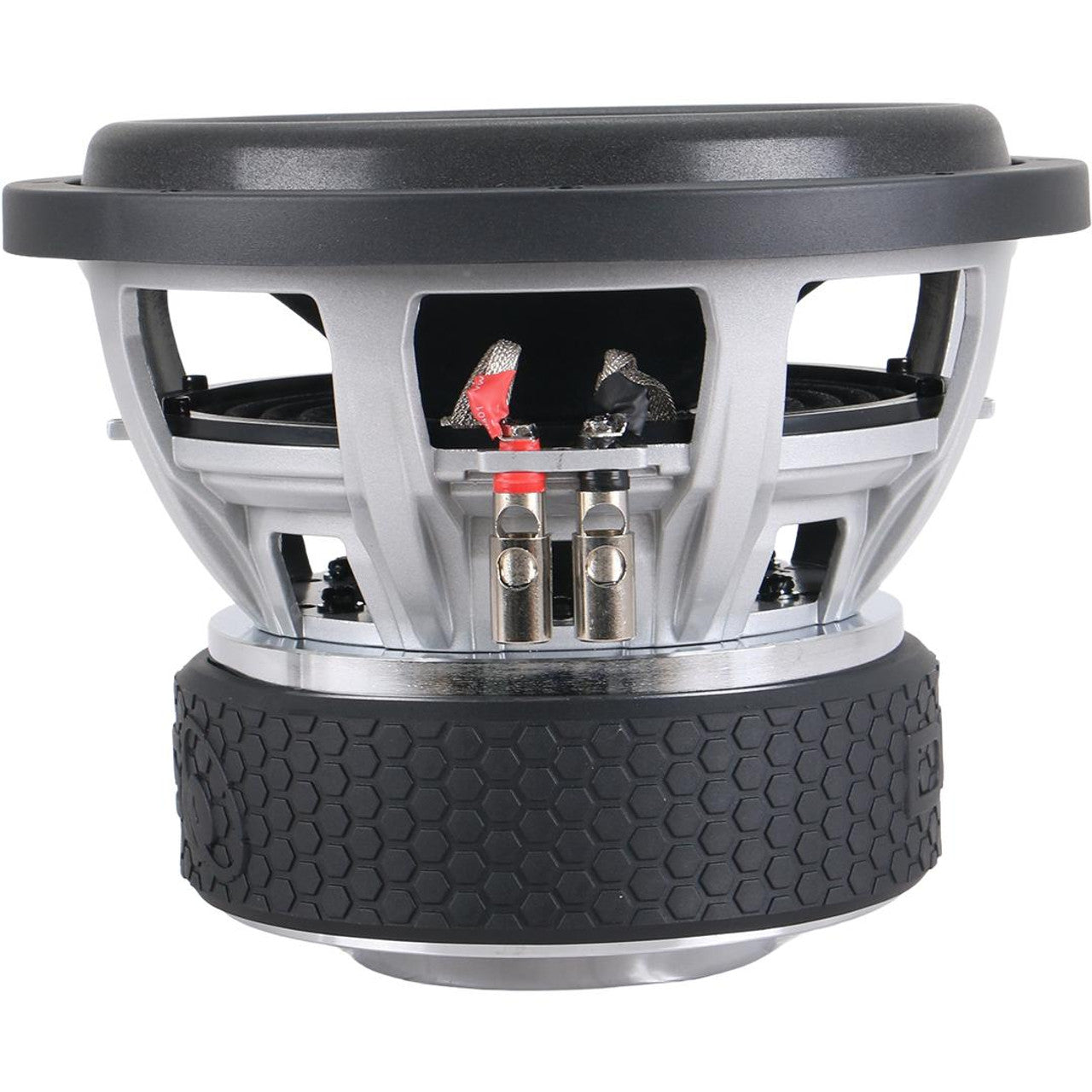

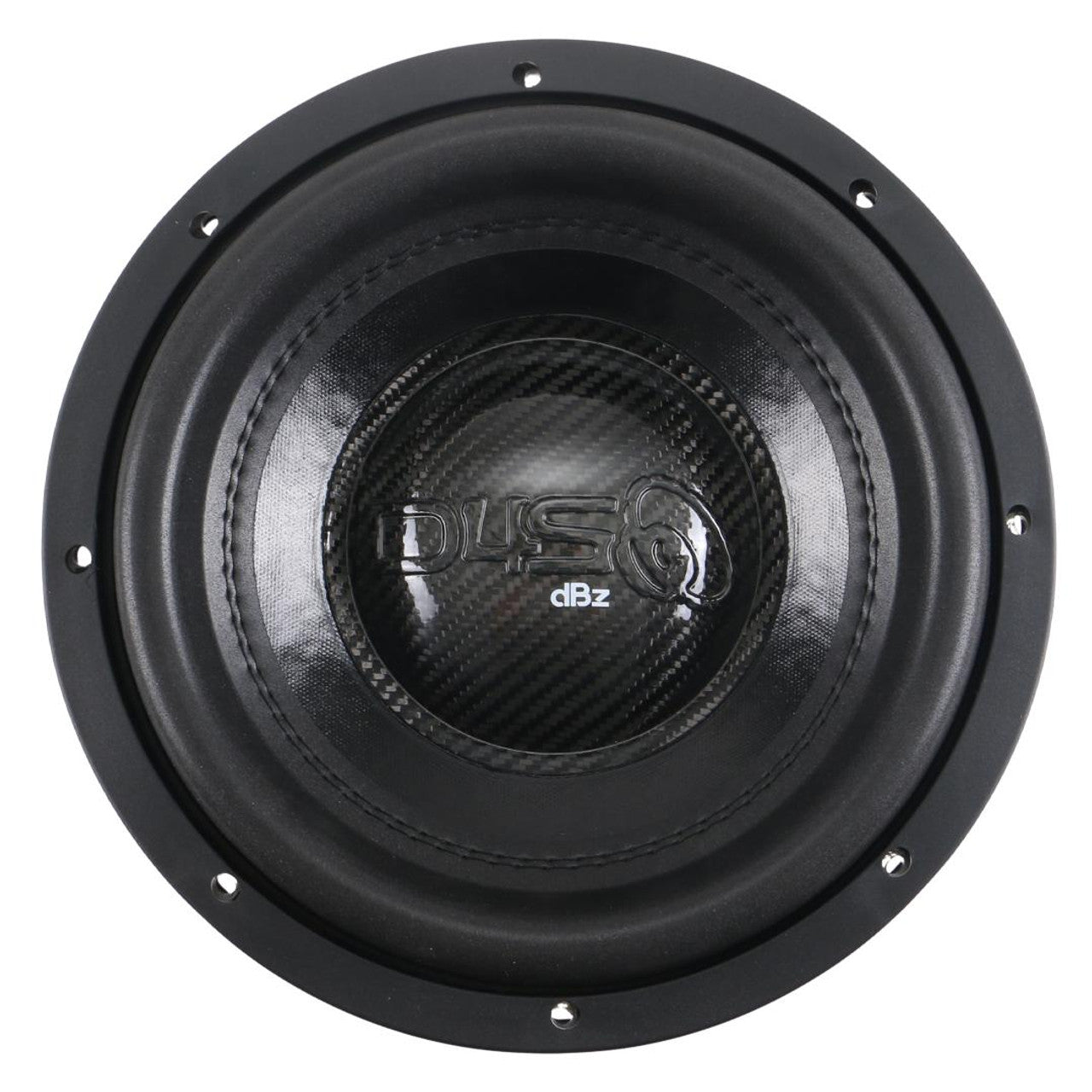

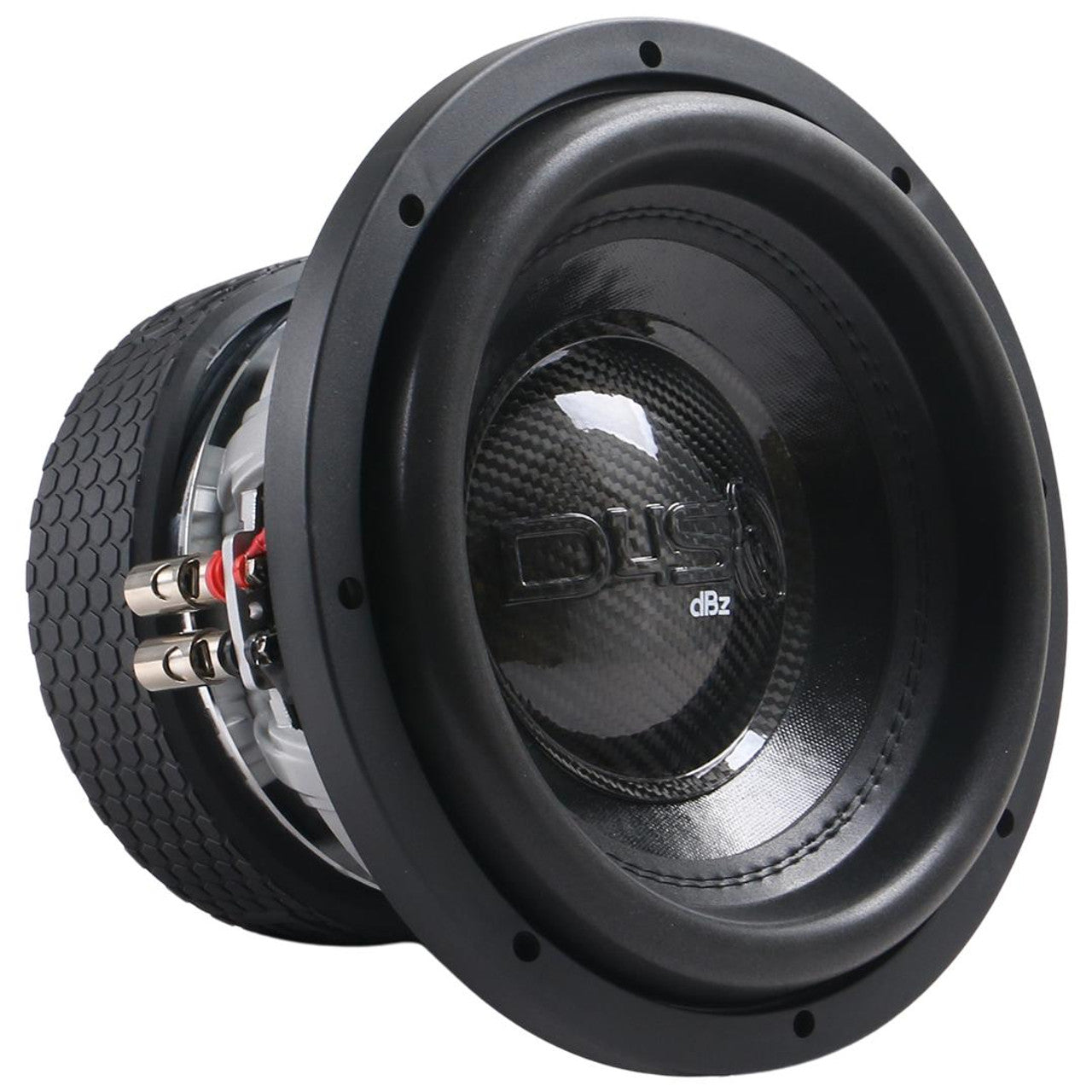

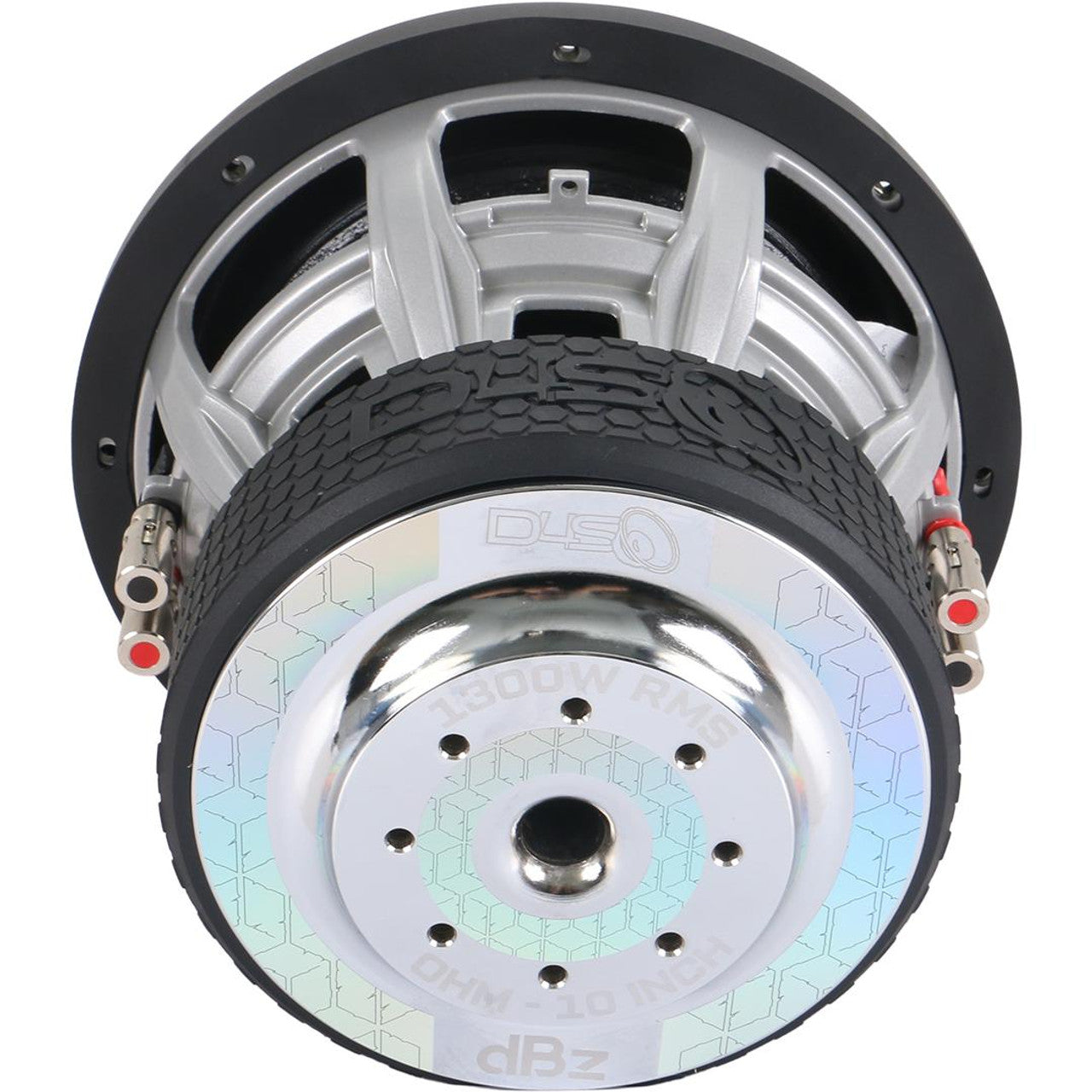

DOWN4SOUND DBz 10" SUBWOOFER - 2 or 4 OHM DVC | 1300W RMS

Meet the DOWN4SOUND DBz 10" Subwoofer – the ultimate budget banger delivering exceptional performance and value. With a massive 1300W RMS power, this subwoofer is perfect for car audio enthusiasts looking for big sound without the big price tag. Featuring a dual voice coil configuration, the DBz 10" provides versatile wiring options and powerful bass. The real premium carbon fiber dustcap adds a sleek, stylish touch while ensuring maximum durability and performance.

QUICK NOTES:

• RMS OUTPUT: 1300W RMS
• COIL SIZE: 2.75 INCH
• CUTOUT: 9.45 inches (240 mm)
• MOUNTING DEPTH: 7.36 inches (187 mm)
• NET WEIGHT: 31.7 lbs (14.4 kg)
• GROSS WEIGHT: 35.3 lbs (16 kg)
• XMAX : 28 mm (one-way)
• MOTOR SIZE: 6.69 in - 170 mm | 3.35 inches (Radius)

Precision Engineering: Engineered with an optimized motor strength (BL Product: 27.077 T·m) and an effective piston area (Sd) of 56.305 cm² for powerful sound output at an affordable price.

Technical Specifications:

• Revc (DC Resistance): 2.960 Ohm
• Resonance Frequency (Fo): 40.881 Hz
• Total Moving Mass (Mms): 322.255 g
• Suspension Compliance (Cms): 46.472 μm/N
• Equivalent Volume (Vas): 8.642 L
• Sensitivity (SPL): 83.0 dB
• Qms (Mechanical Q): 2.303
• Qes (Electrical Q): 0.455
• Qts (Total Q): 0.380
• Voice Coil Inductance (Le): Not specified
• Mechanical Resistance (Rms): 0.782
• Sealed Enclosure: .5 cubic foot
• Ported Enclosure: 1.0 cubic feet
• Outside Diameter: 10.79 in (274mm)
• Displacement: 0.09 cu ft
