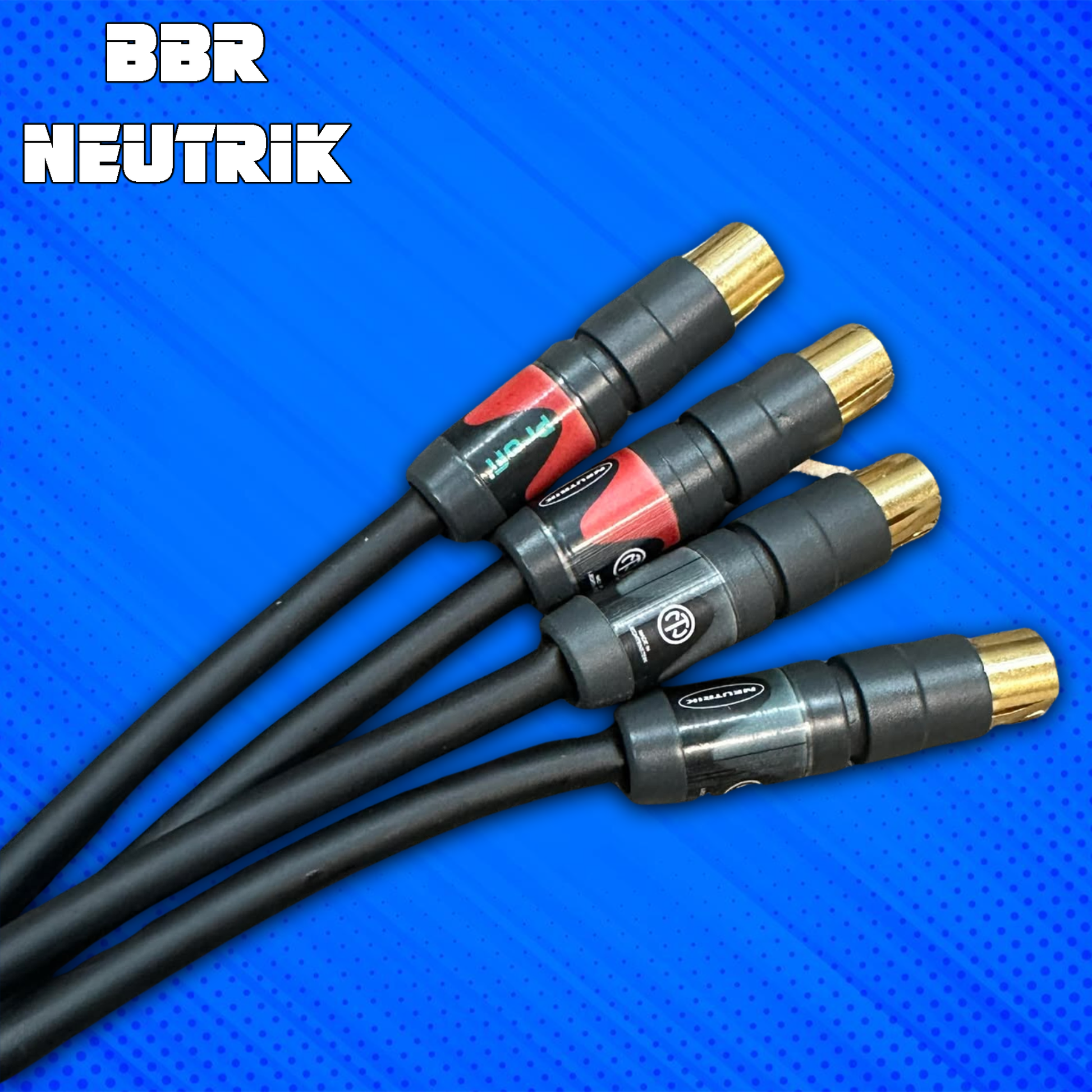

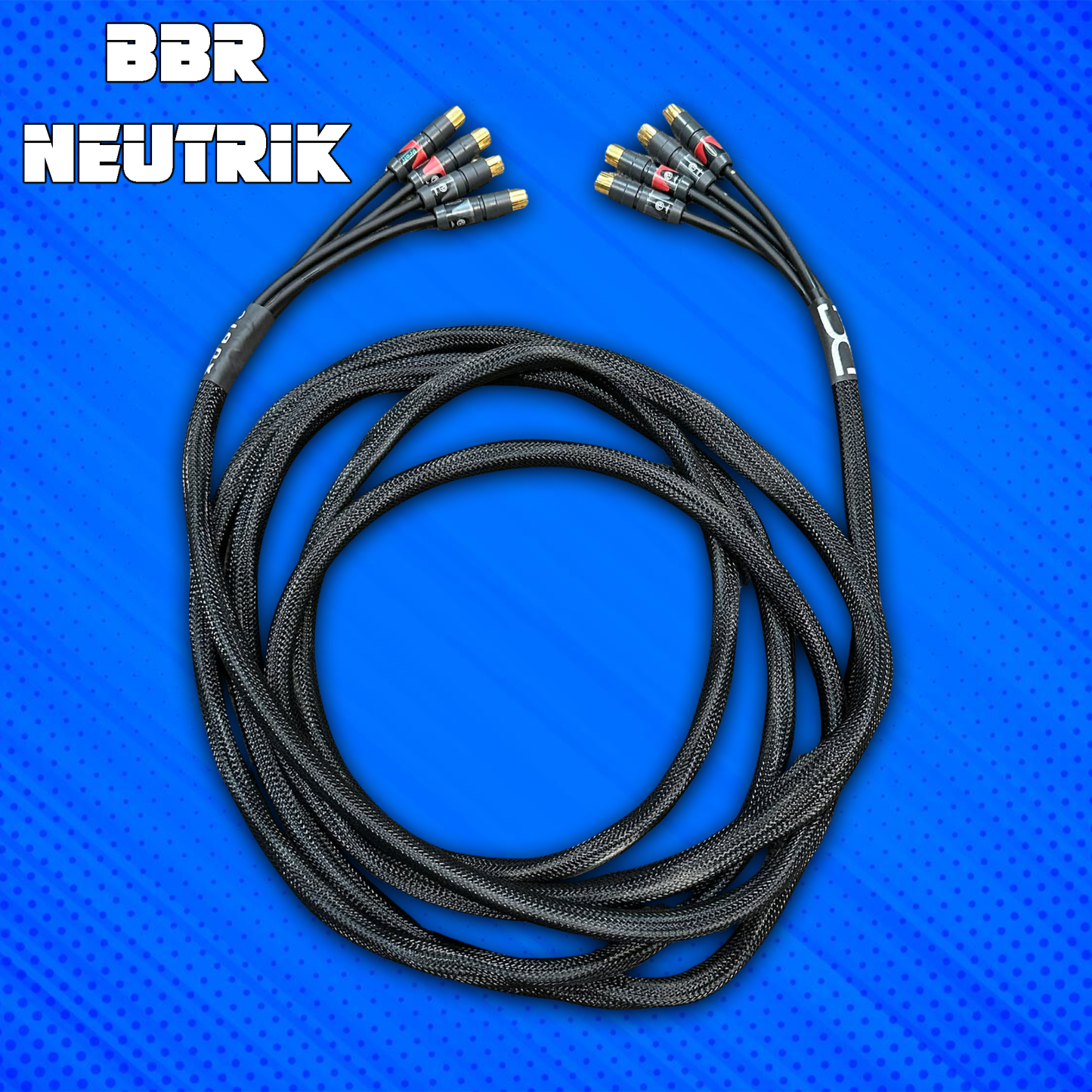

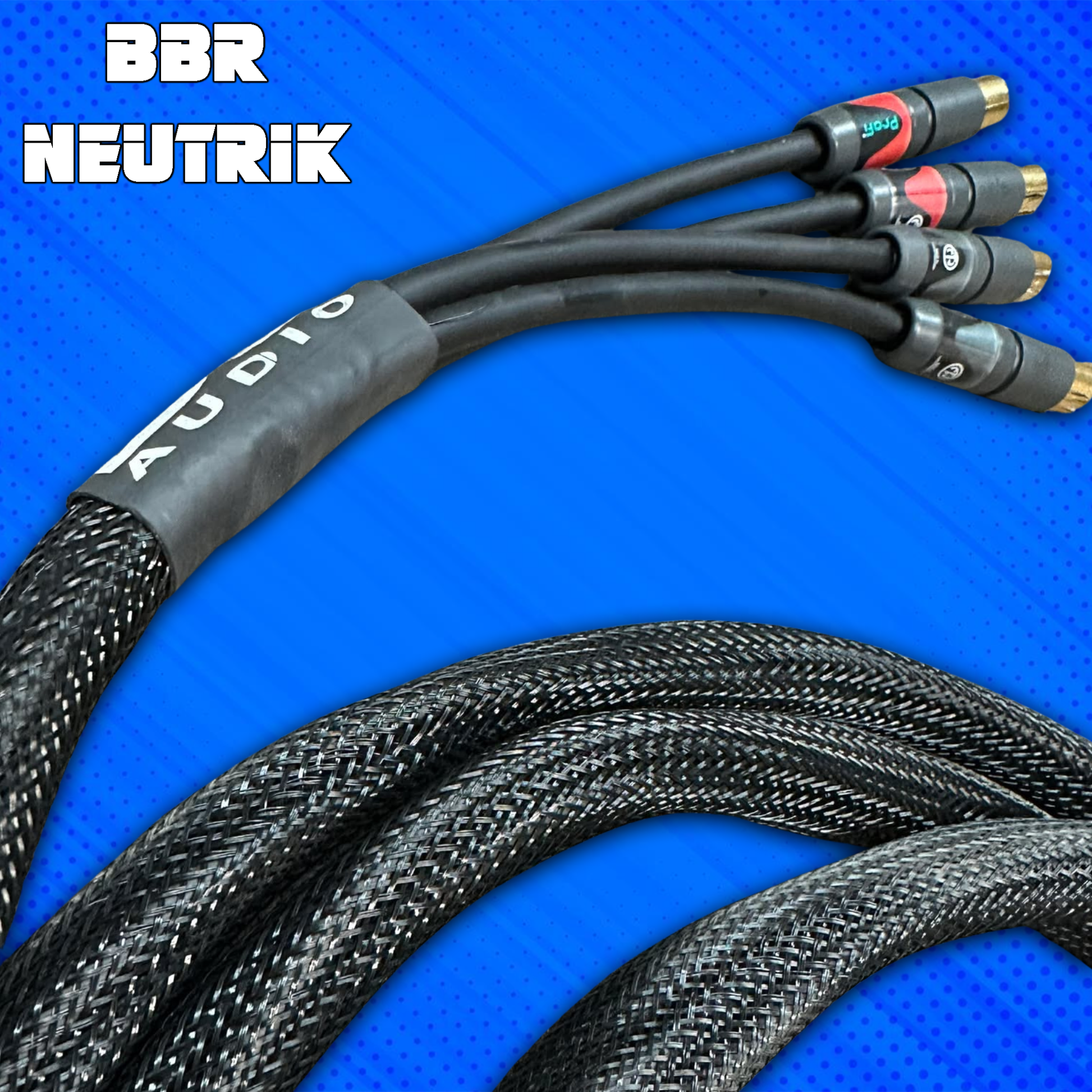

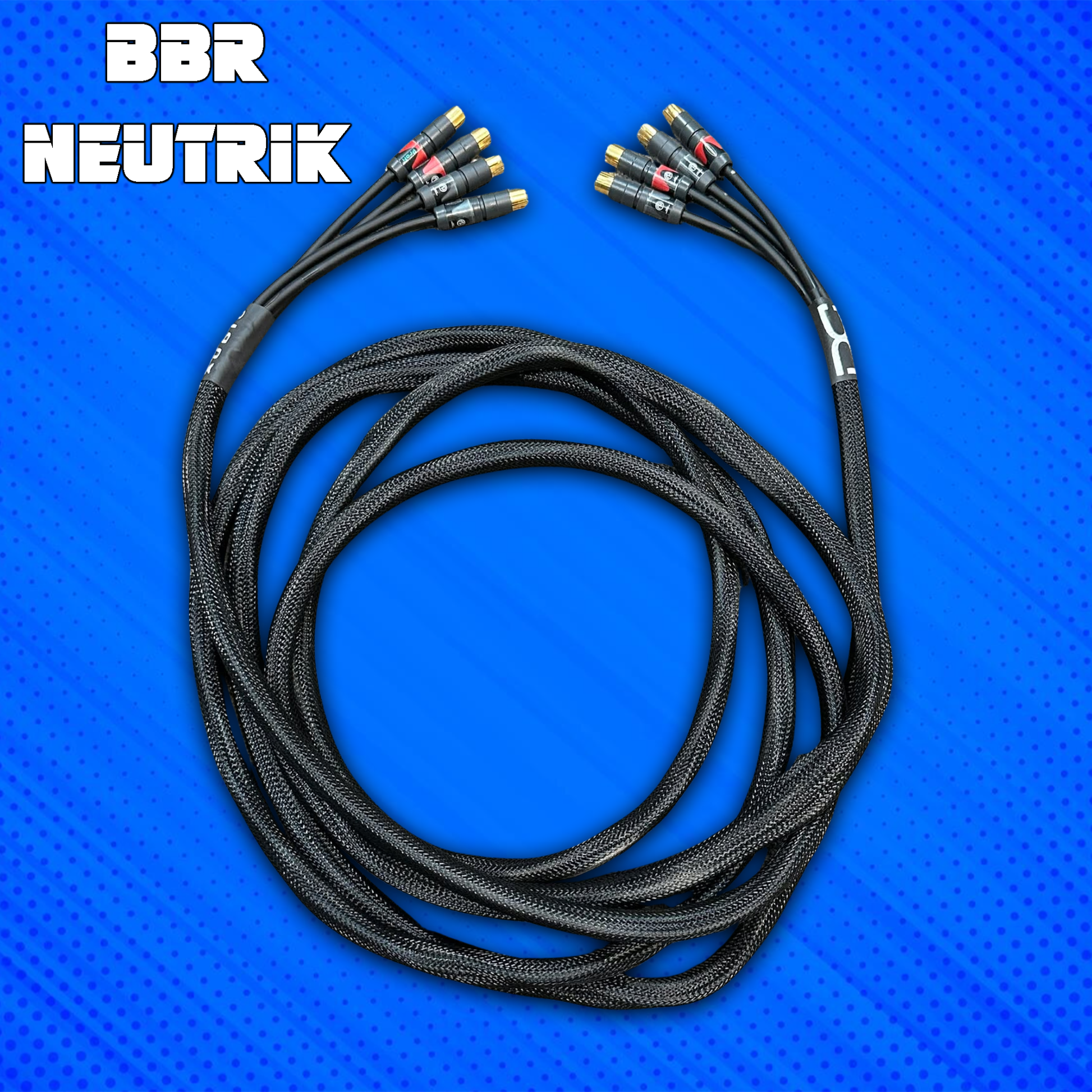

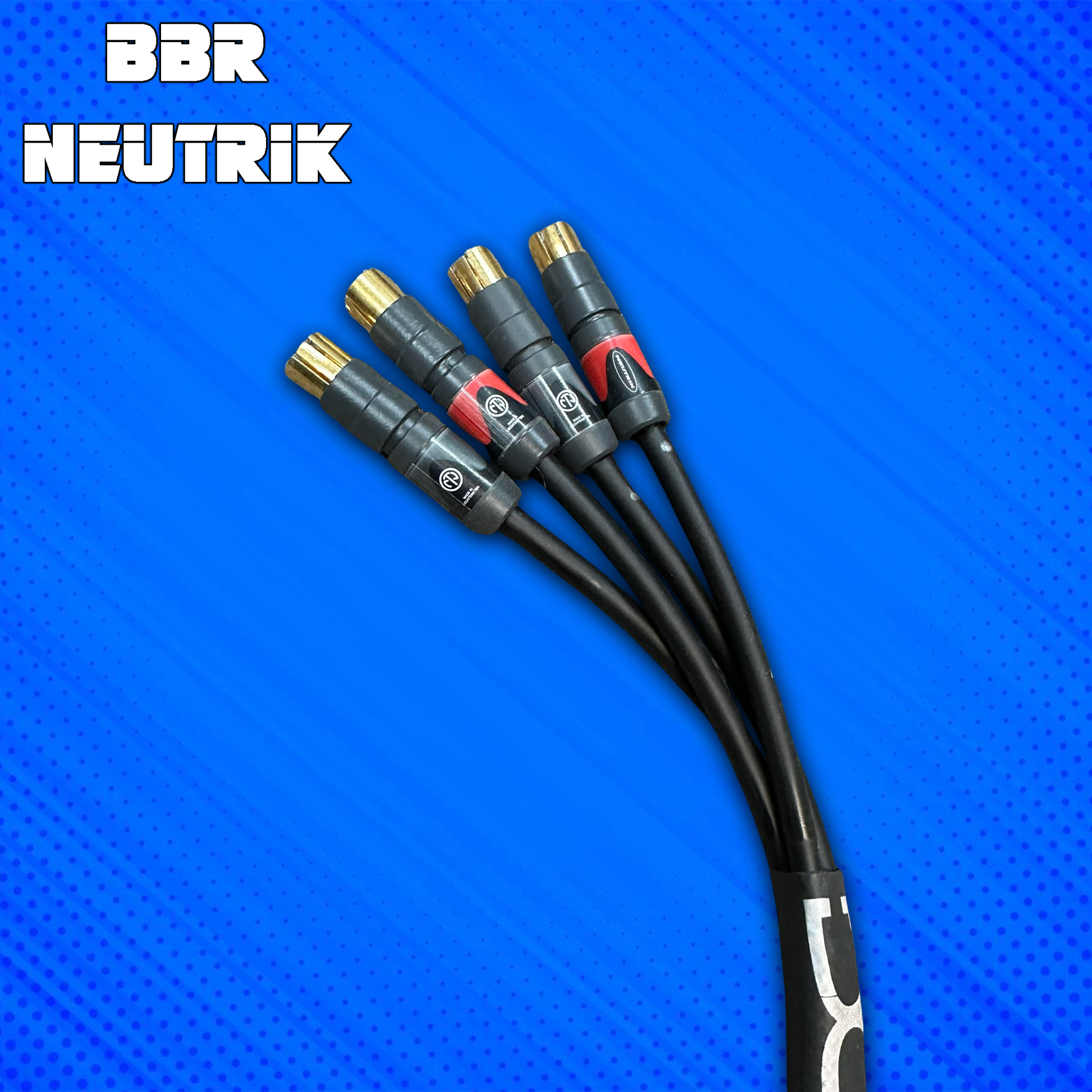

BBR Neutrik Single Channel RCA CABLE. Hand Made in the USA

Including strain reliefs for cable

• Makes ground before signal contact and breaks signal before ground
• No more disturbing noise and broken speaker cones
• Precisely machined to our demanding quality standards
• Neutrik unique chuck type strain relief
• Gold plated contacts
• Sleek barrel with soft touch surface and coloured shrink sleeve
• Improved ground solder lug

• Product
  Title	NF2C-B/2
  Connection Type	Profi
  Gender	male

  Electrical
  Capacitance between contacts	≤ 7 pF
  Contact resistance	>10G mΩ
  Dielectric strength	1,5 kVdc
  Insulation resistance	> 5 GΩ
  Rated current per contact	depends on mating connector / A
  Rated voltage	< 50 V

  Mechanical
  Cable O.D.	3.0 - 7.3 mm
  Lifetime	> 2000 mating cycles
  Wiresize	1,5 mm²
  Wiresize	16 AWG
  Wiring	Solder contacts

  Material
  Contact plating	5 µm Au over 5 µm Ni
  Contacts	Brass (CuZn39Pb3)
  Insert	PBTP 20 % GR
  Shell	Brass (CuZn39Pb3)
  Strain relief	Polyacetal (POM)

  Environmental
  Flammability	UL 94 HB
  Standard compliance	IEC 601-14
  Protection class	IP 40
  Solderability	Complies with IEC 68-2-20
  Temperature range	-30 °C to +80 °C
