Ares Line of Lithium Power Bank Batteries
Ares Line of Lithium Power Bank Batteries
Couldn't load pickup availability
Free Shipping on orders over $50.
Description
Description

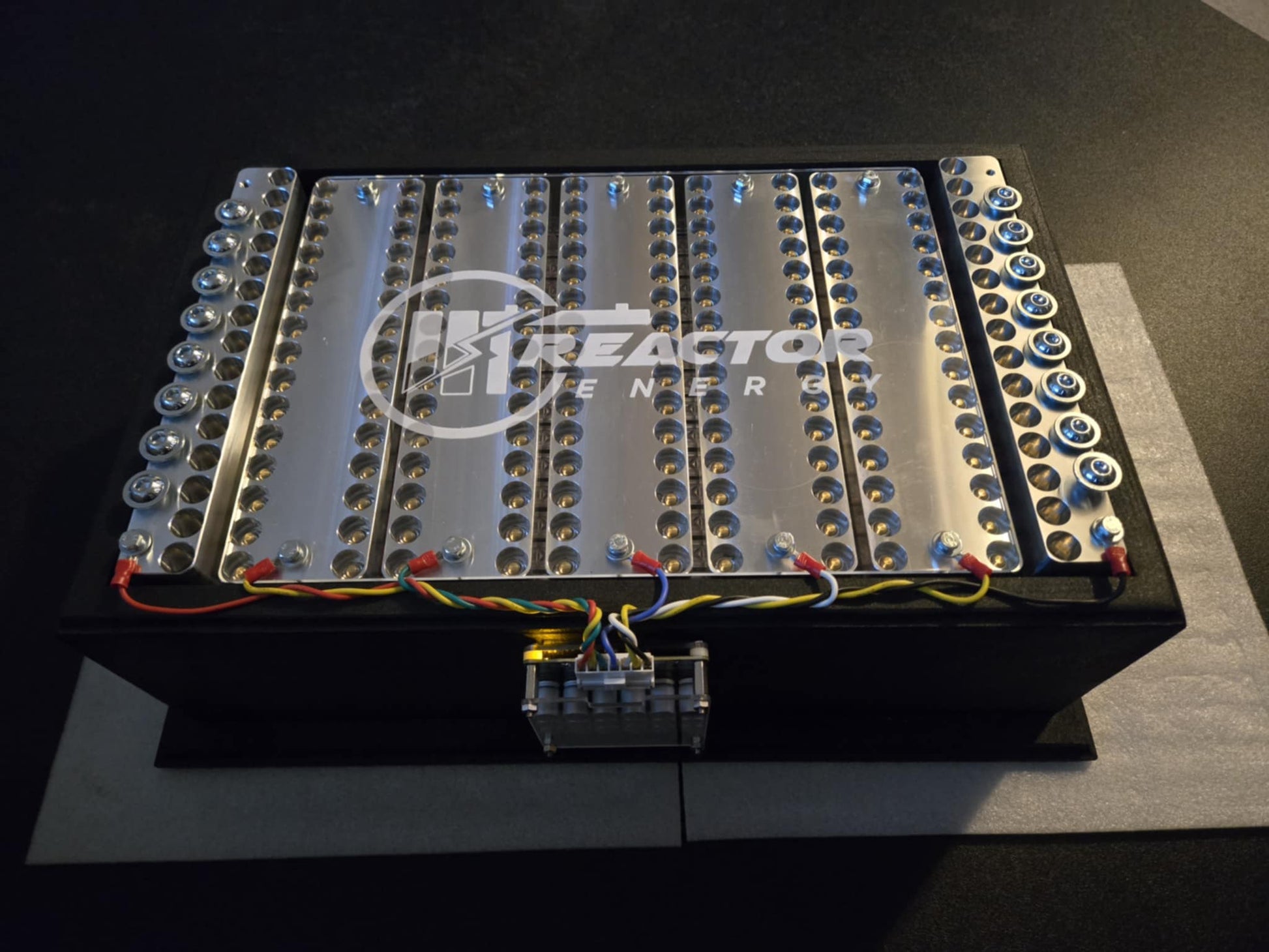

The Ares line of Lithium Batteries are made from Grade A Scib LTO cells. Scib cells are know for there extream amount of enery output, charge and discharge rates as well as being a reliable cell to last you long peroids of time. This battery is used from 14.8 - 16.2 Charging voltages, DO NOT EXCEED 16.2vdc at any time with these cells.
We offer Power Banks from up to 10,000 watts of rated amplifier power to 40,000 watts of amplifier power provided you have the correct alternator power backing it up. The benifits to lithium are HUGE POWER with the least amount of weight and footprint.
from 24ah banks to 100ah banks, we got you covered. These are what we suggest for most running boosted levels of charging voltages. anything under 14.8 the rating will decrease.
We hand buid these batteries one at a time ensuring the best cells and performance.
87ah and larger will ship freight and will require a 300 dollar surcharge to ship to the nearest to you freight pick up location.
| Amp Hours | Operating Voltage | Alternator Size | Charge Voltage | Max Wattage |

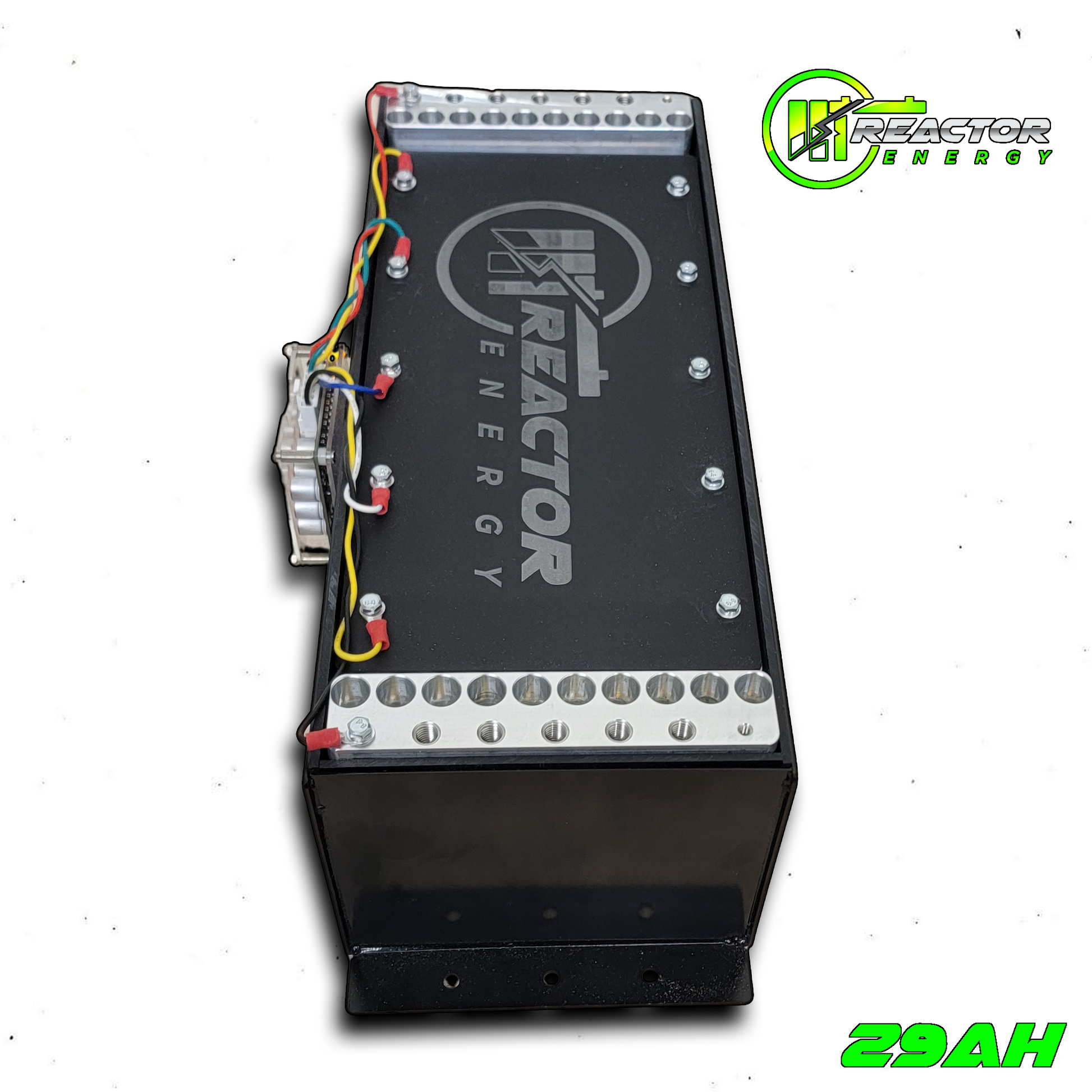

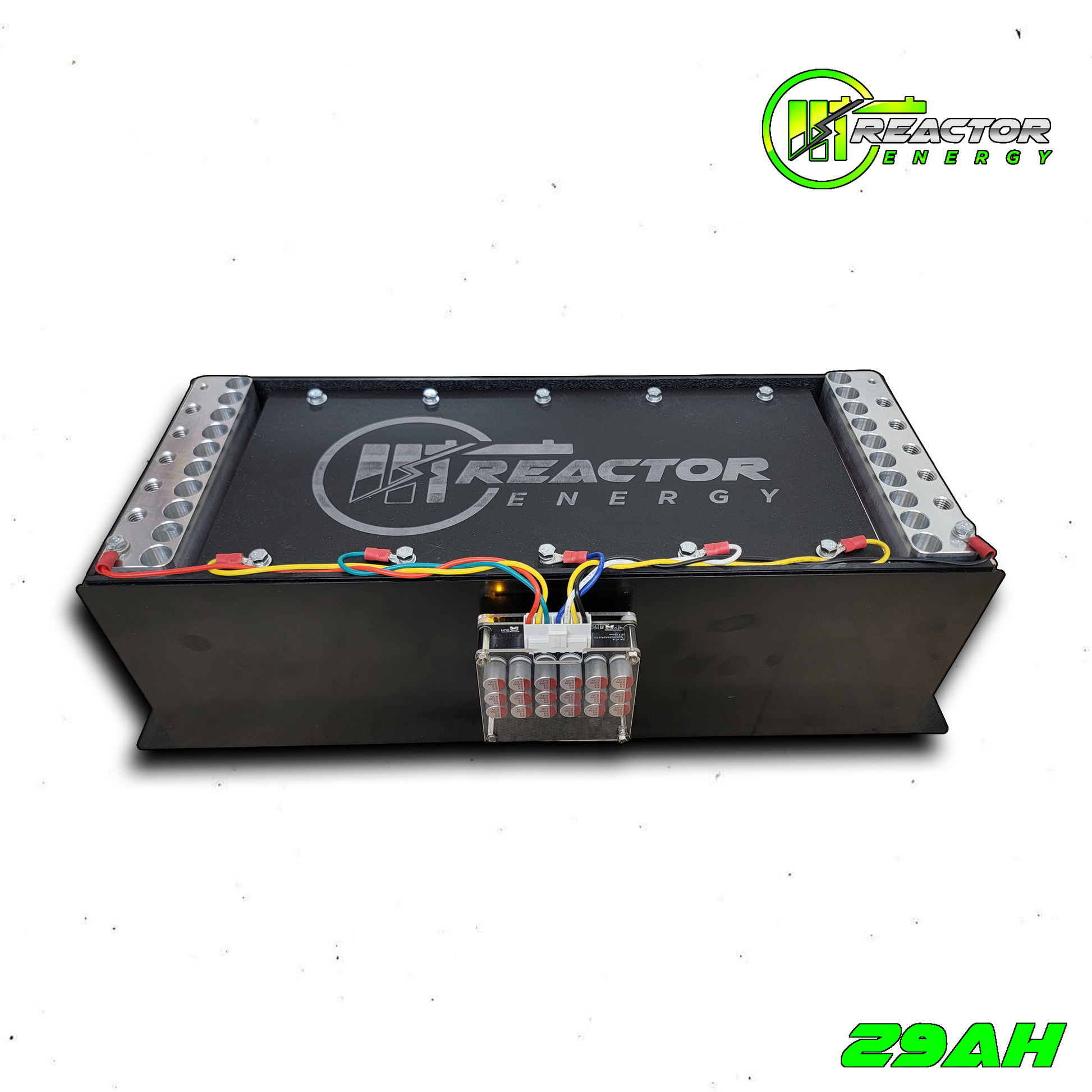

| 29ah | 14.8-16.4 | 320 amp | 15.5 | 10,000 |
| 29ah | 14.8-16.4 | 600 amp | 16.2 | 15,000 |

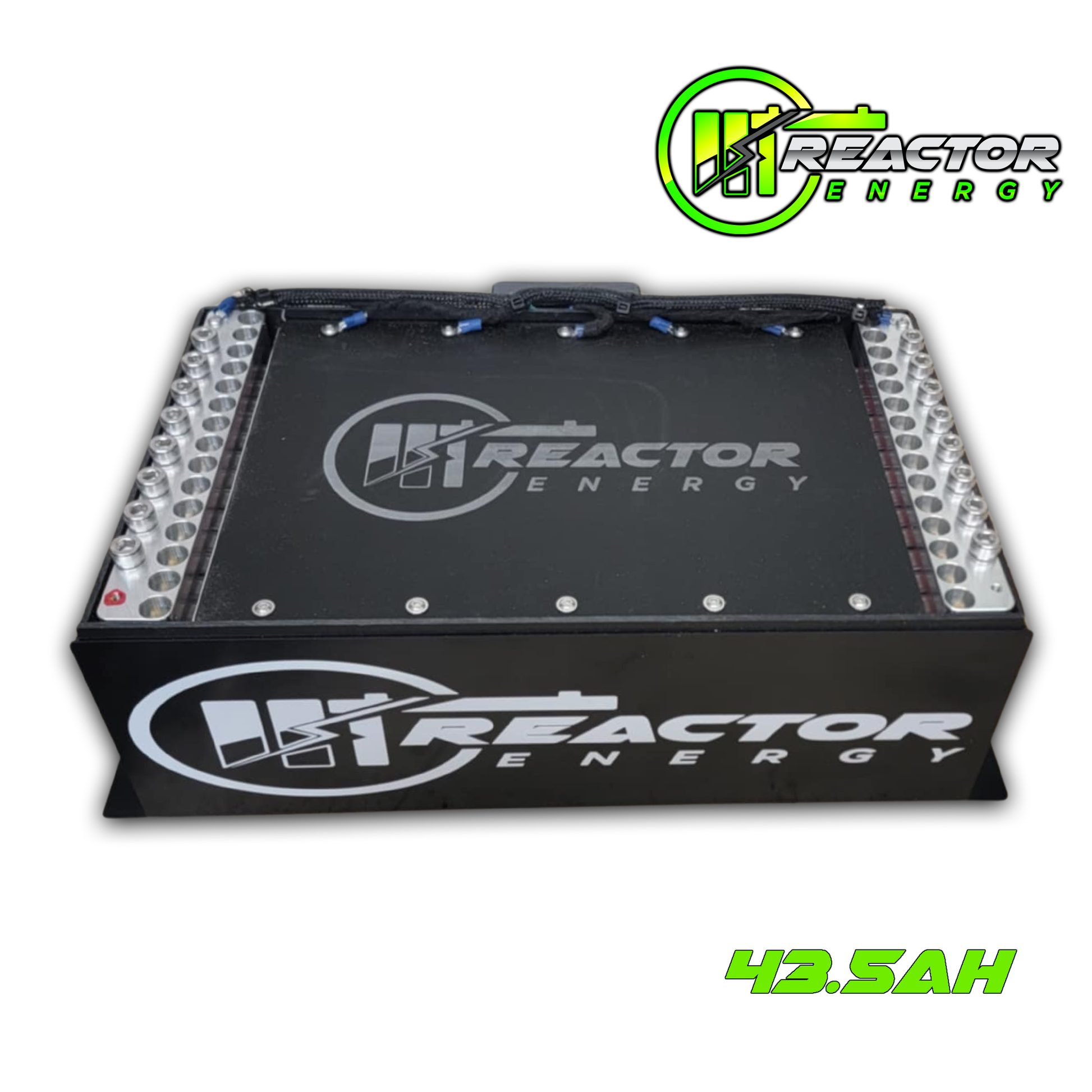

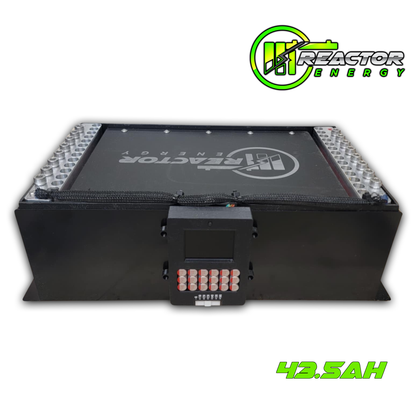

| 43.5ah | 14.8-16.4 | 300 amp | 16.2 | 18,000 |
| 43.5ah | 14.8-16.4 | 600 amp | 16.2 | 24,000 |

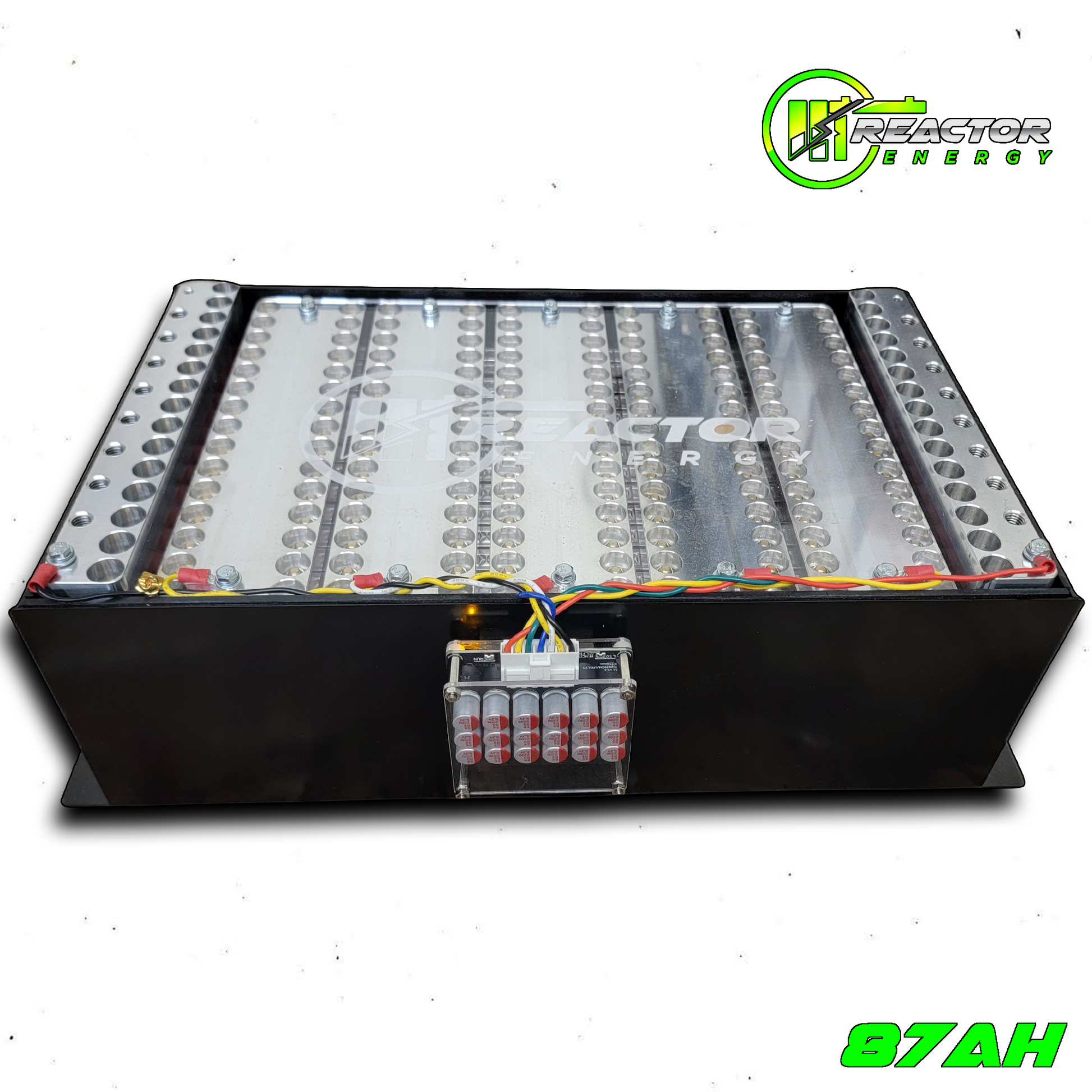

| 87ah | 14.8-16.4 | 900amp | 16.2 | 38,000 |
| 130ah | 14.8-16.4 | 900amp | 16.2 | 60,000 |
| 174ah | 14.8-16.4 | 900amp | 16.2 | 80,000 |
Dimensions
| Wideth | Length | Height | |
| Amp Hours | |||
| 29ah | 9.5" | 12.75" | 5.75" |

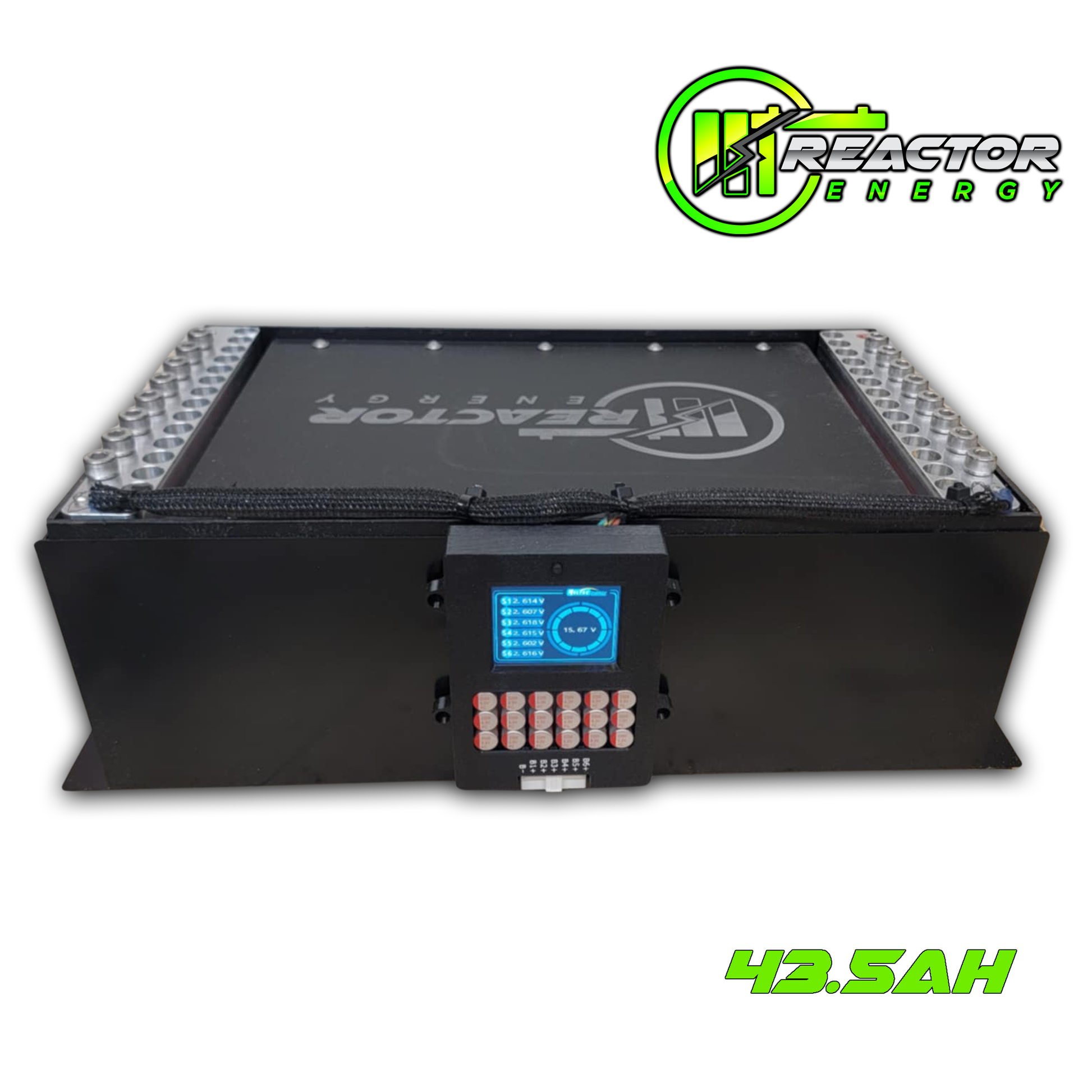

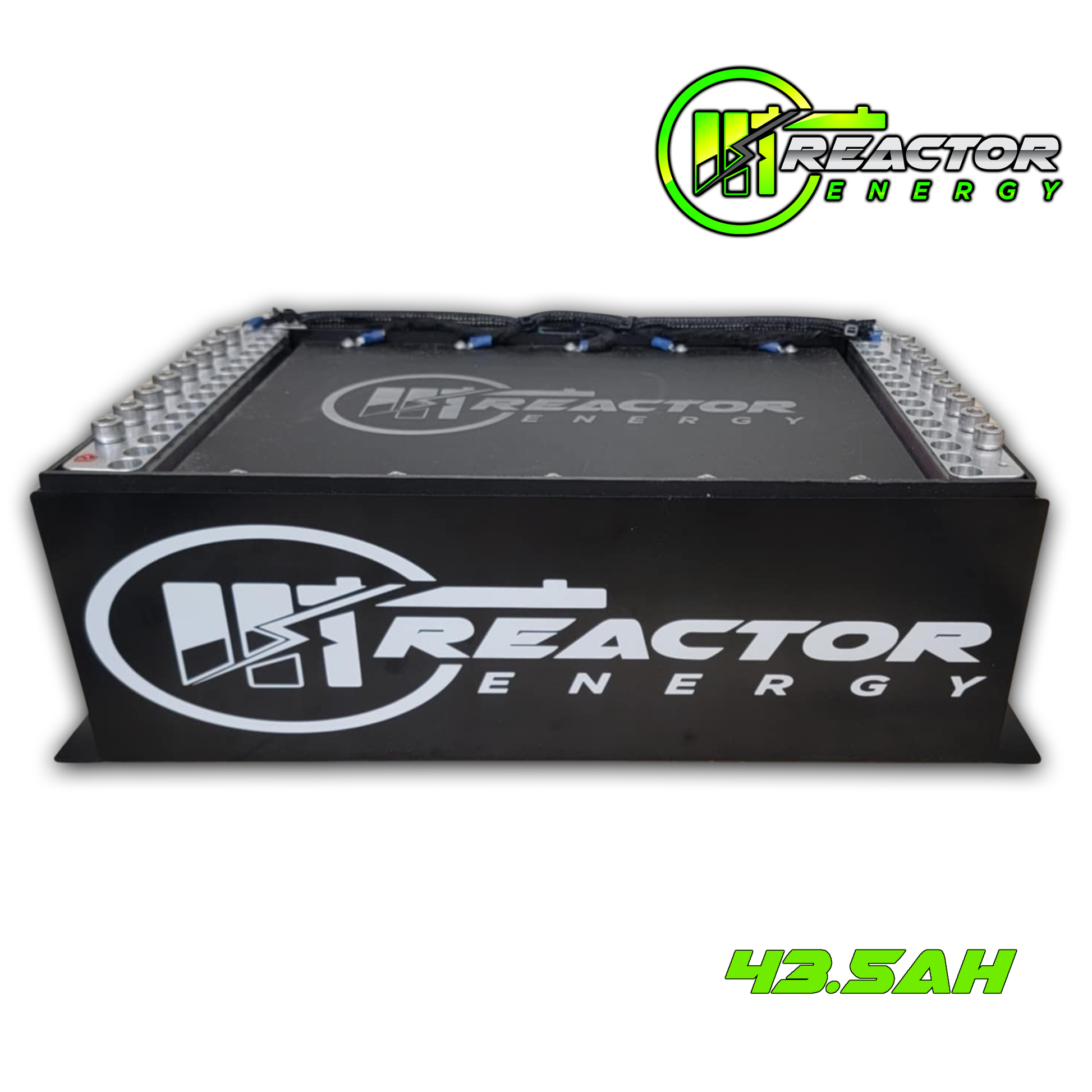

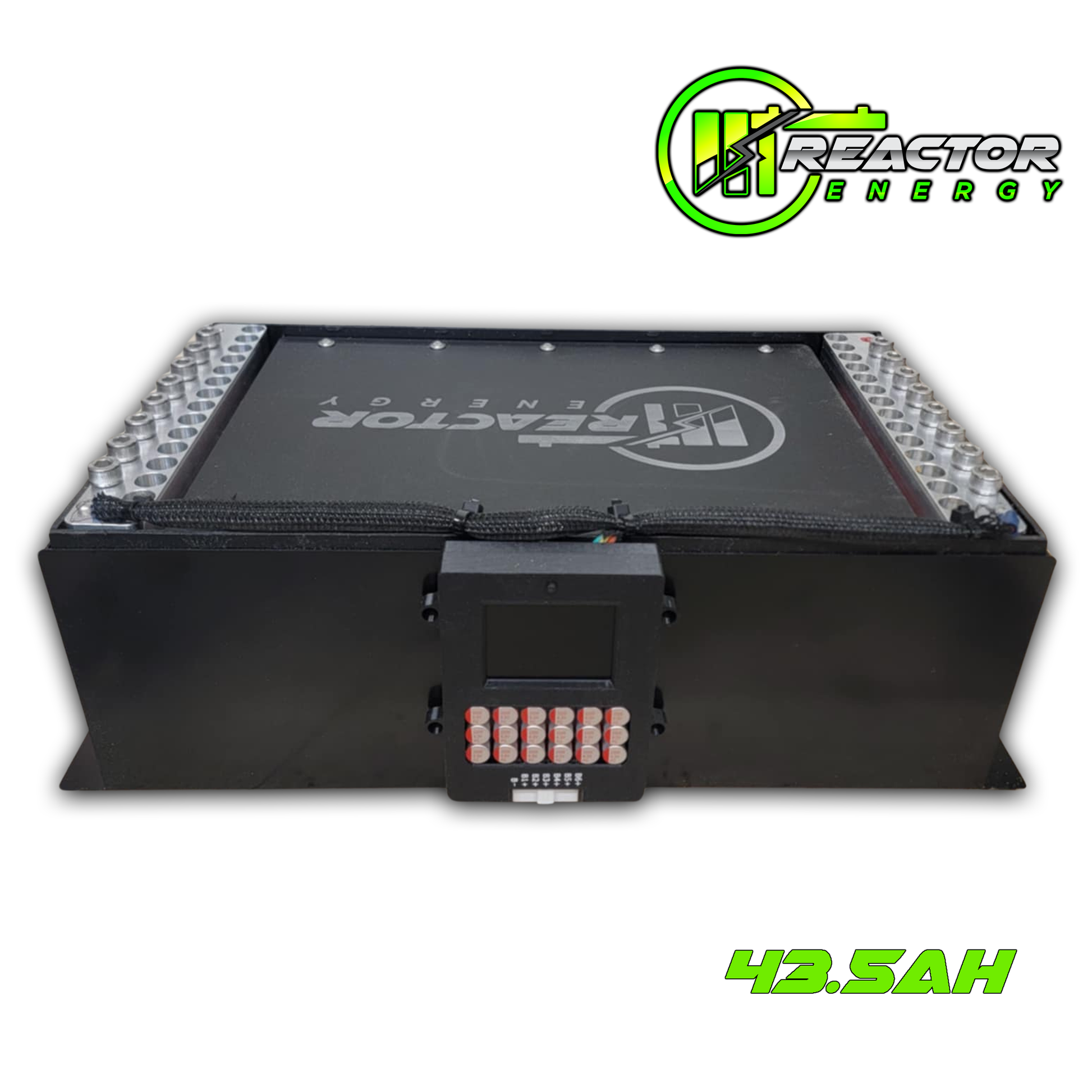

| 43.5ah | 19.0" | 11.75" | 5.75" |

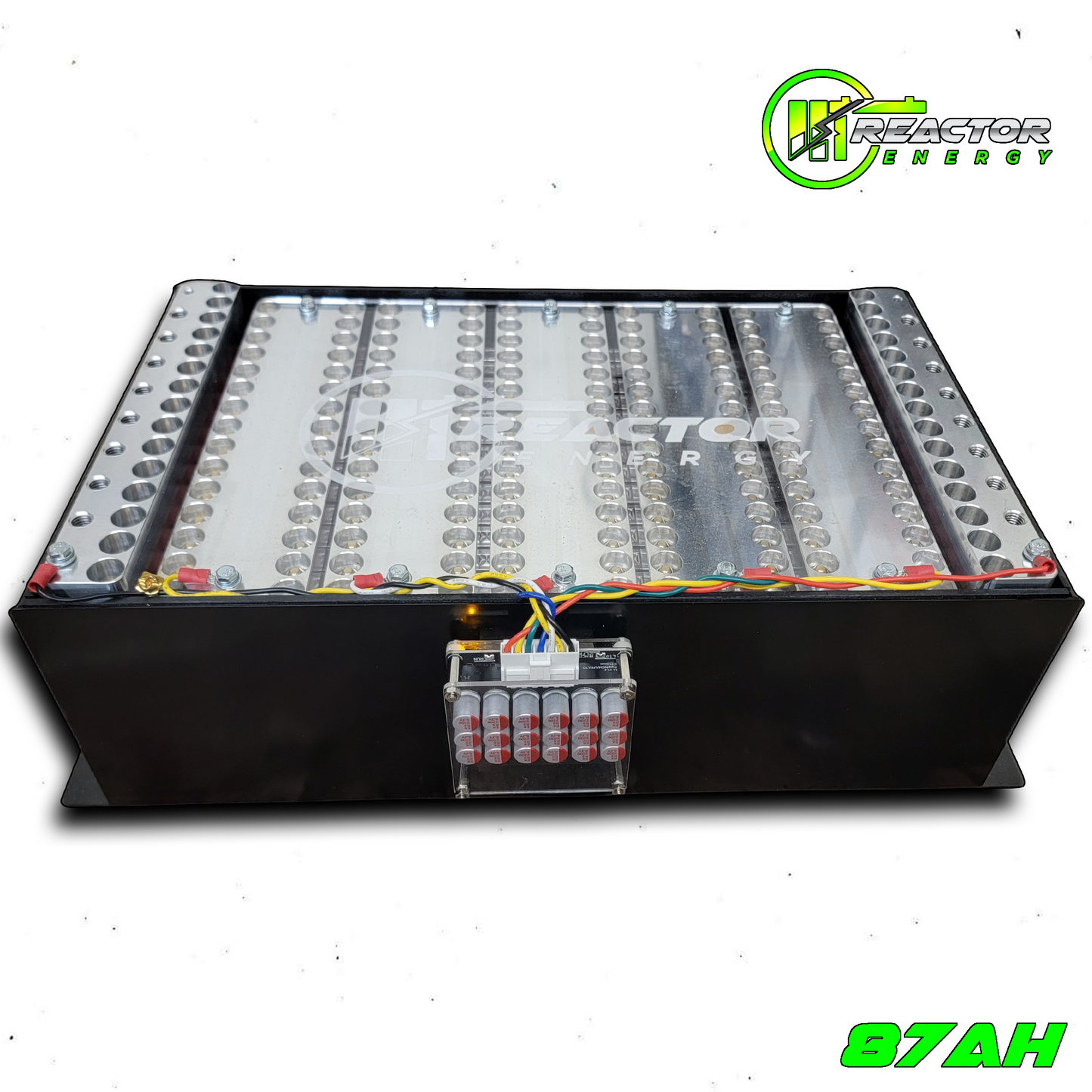

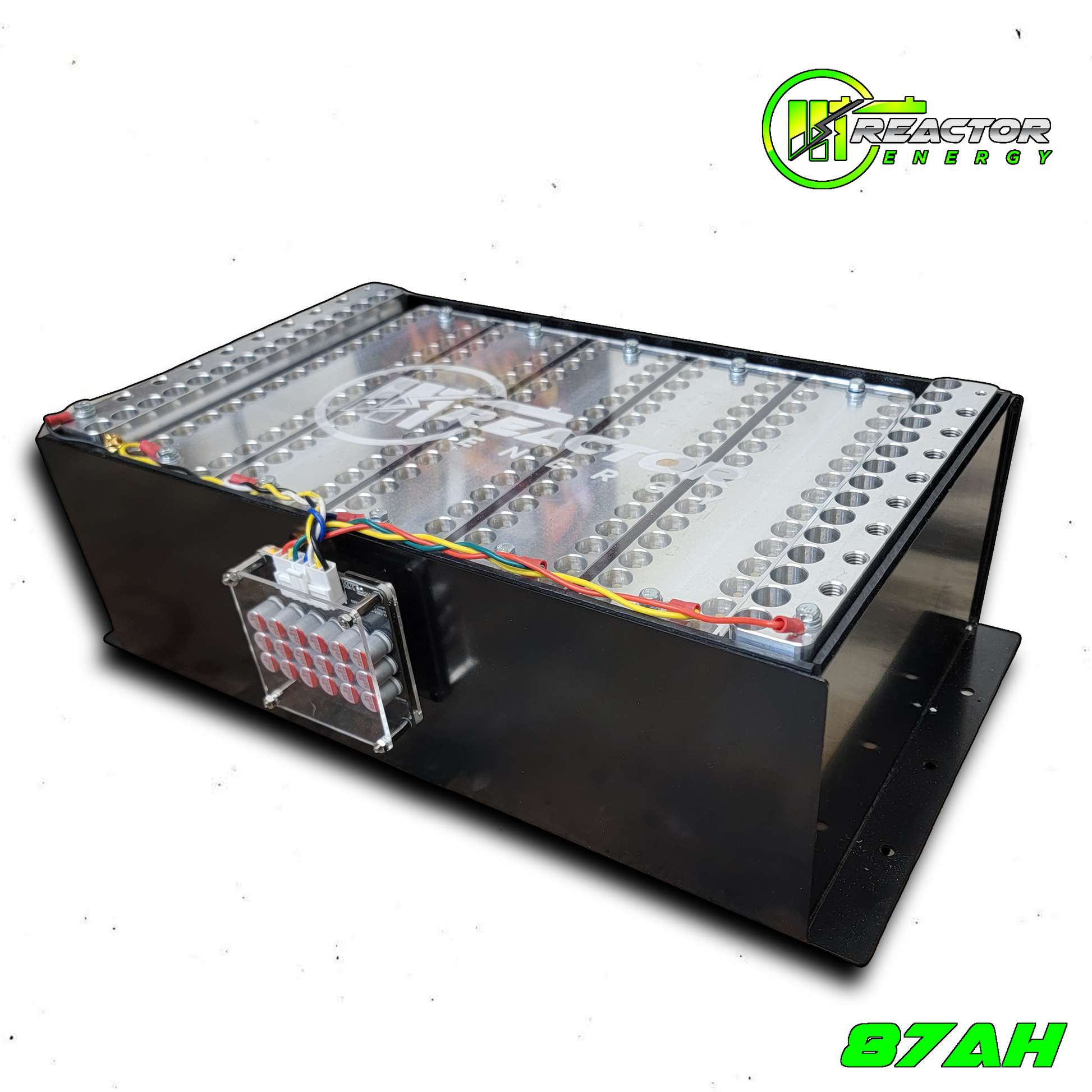

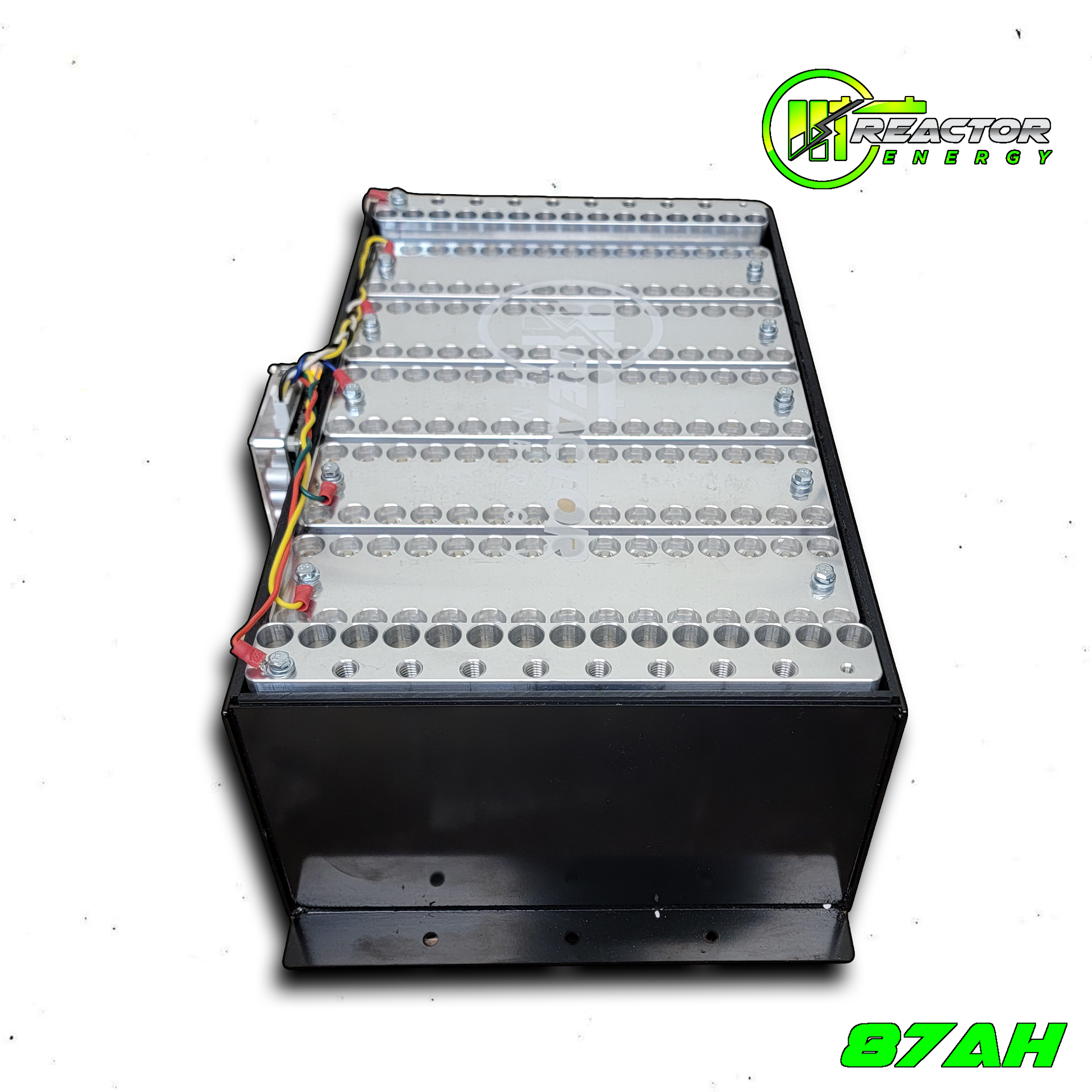

| 87ah | 19.0" | 20.0" | 5.75" |
| 130ah | 19.0" | 28.5" | 5.75" |
| 174ah | 19.0" | 38.0" | 5.75" |
Cell Information
| Nominal Capacity | 2.9 / 10Ah |
| Nominal Voltage | 2.4V |
| Charge cut-off voltage | 2.7V |
| Output Power 2.9ah | 520W*SOC 50%, 10sec, 25℃/ |
| Output Power 10ah | 1800W*SOC 50%, 10sec, 25℃） |
| Input Power 2.9ah | 410W*SOC 50%, 10sec, 25℃） |
| Input Power 10ah | 1500W*SOC 50%, 10sec, 25℃） |
| Energy density (volume) 2.9ah | 85Wh/L |
| Energy density (volume) 10ah | 92Wh/L |
| Energy density (mass) 2.9ah | 46Wh/kg |
| Energy density (mass) 10ah | 47Wh/kg |
| Dimentions 2.9ah/10am per cell | W63 × D14 × H97 mm/W116 × D22 × H106 mm |
| Weight | 150g / 510g |
