90 Degree Round Bagger Airflow Tech Bagger Port's with center section

Airflow Tech has developed a Port Perfect for The Bagger Audio Nation

3D Printed with ASA (Acrylonitrile Styrene Acrylate)  known for its durability, weather resistance, and UV resistance, making it suitable for outdoor and high-stress applications. It's similar to ABS but with improved heat resistance and durability. ASA also resists yellowing and brittleness, retaining its properties even under prolonged exposure to UV rays. Port is set at a 90 Degree angle to fit most aftermarket audio bags.  walls are 5mm thick. Ports may need to be cut or molded into your bags.

All sales are final, Check all dimentions before placing your order

Proudly made by arkecre8tions.

We suggest that after all testing and tuning is done the port can be glued, braced, bodyworked and painted to match your bag lines and paint scheme.

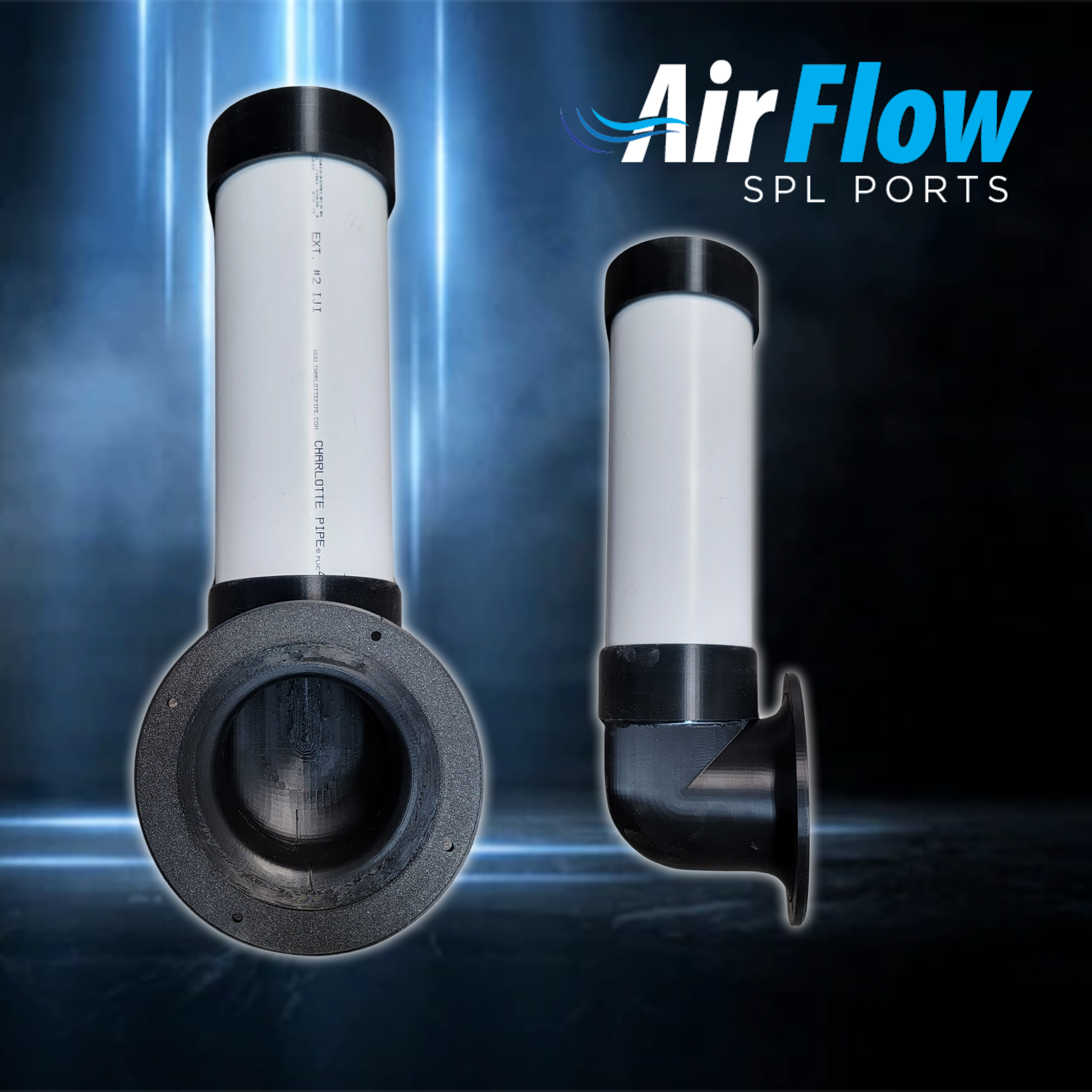

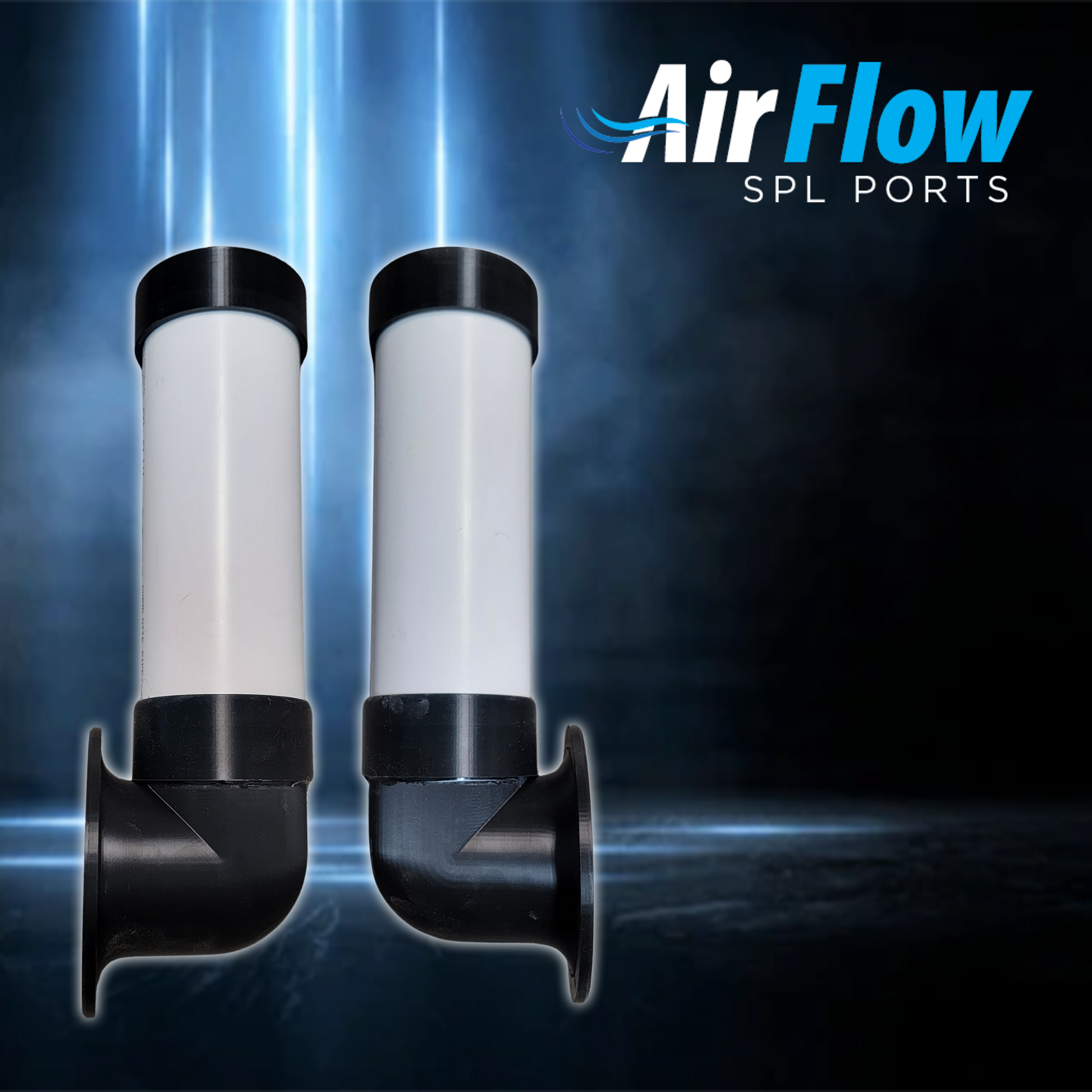

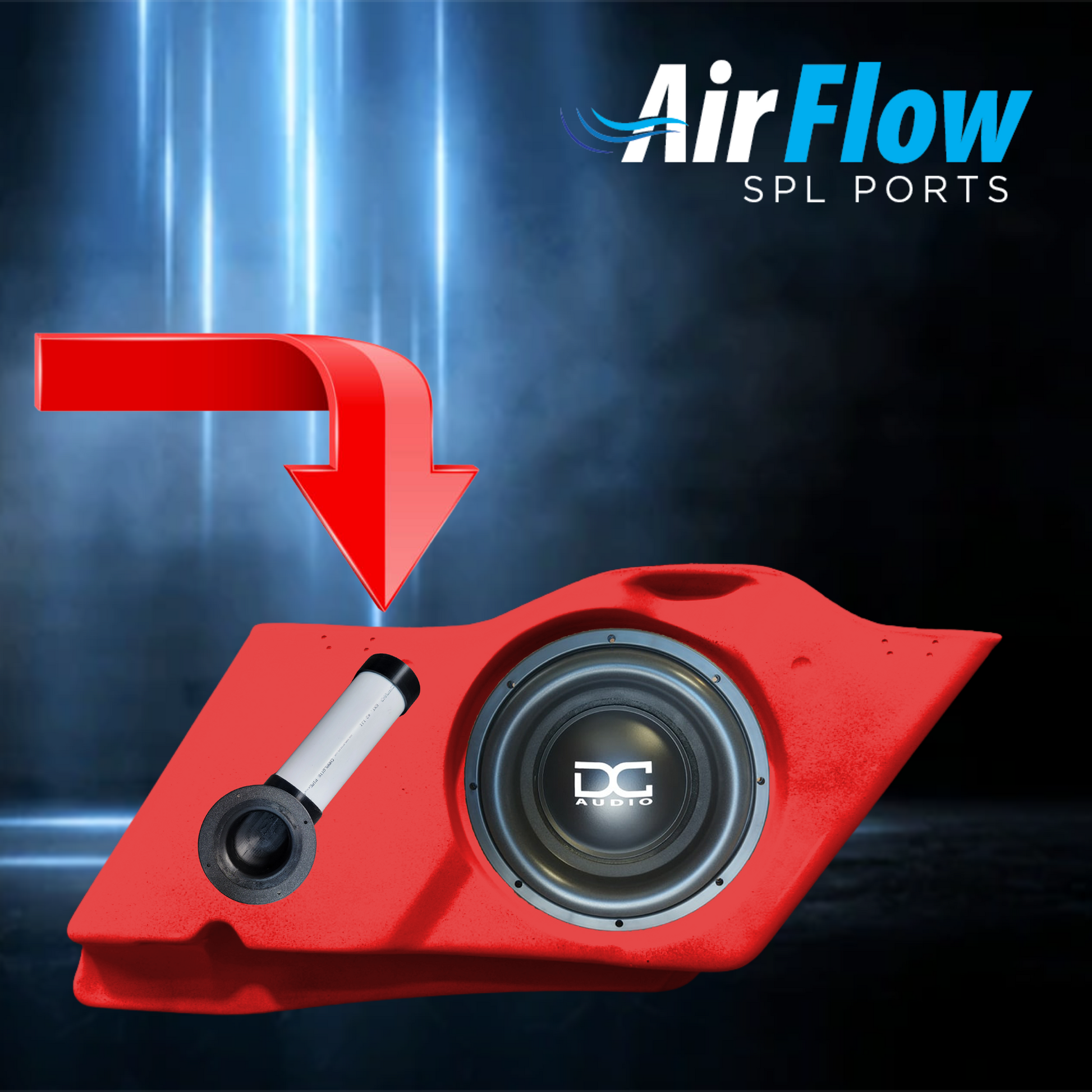

Port in set at a 90 Degree angle and its designed to fit inside bag

Depth from flange to bell collar or furthest point is 5.5 inches

3"   Flange 5.70 OD (4.8" Cutout) Port length ID 3.15"

       10" long Center section

Depth from flange to bell collar or furthest point is 5 inches

4"   Flange 7.25 OD (5.8" Cutout)

       10" long Center section

Depth from flange to bell collar or furthest point is 5.5 inches

Whats included in the kit-

1. (2) Exterior Bell Mouths (90 degree)
2. (2) Center section you cut to needed length (10 inch piece included)
3. (2) Interior Bell Mouth (roundover)
