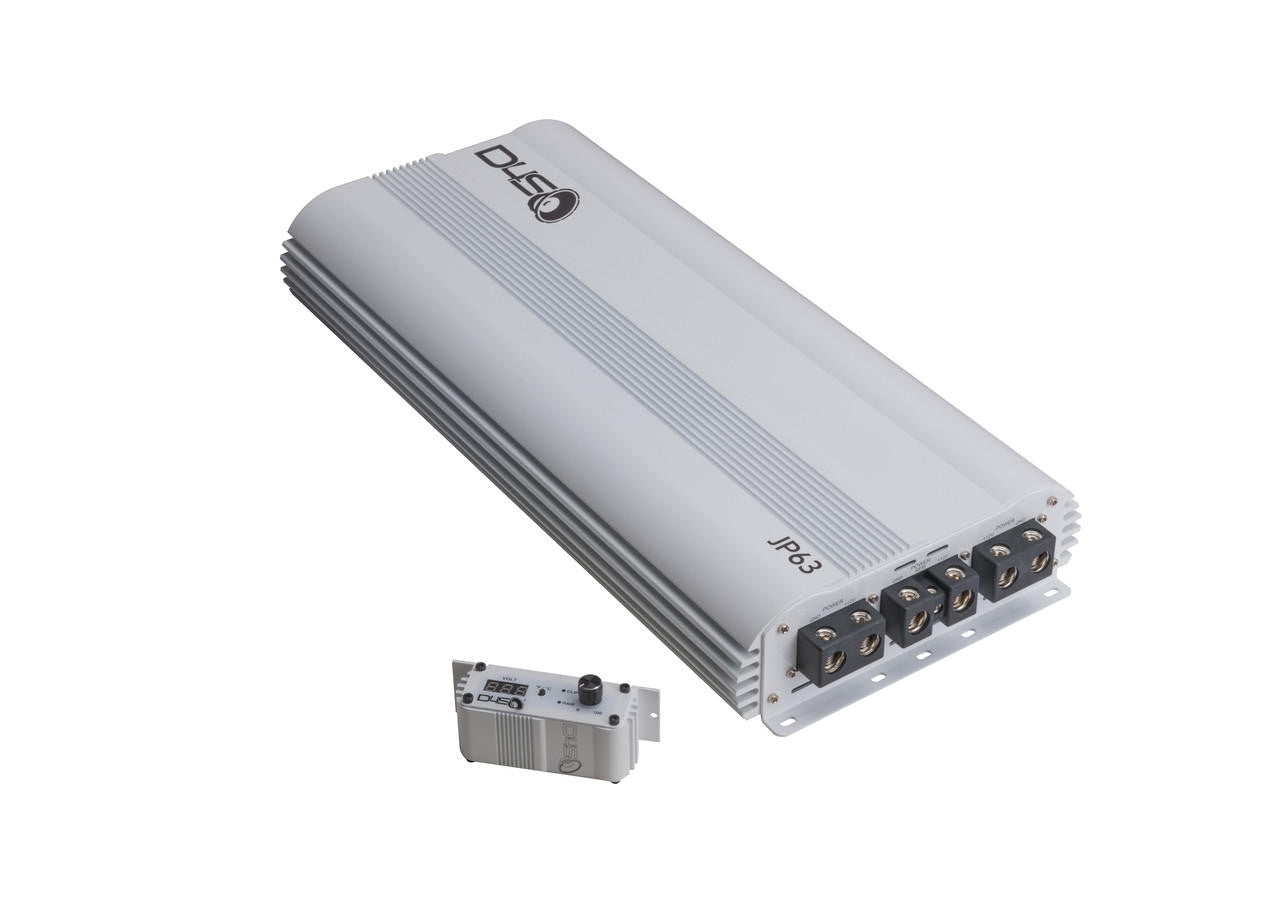

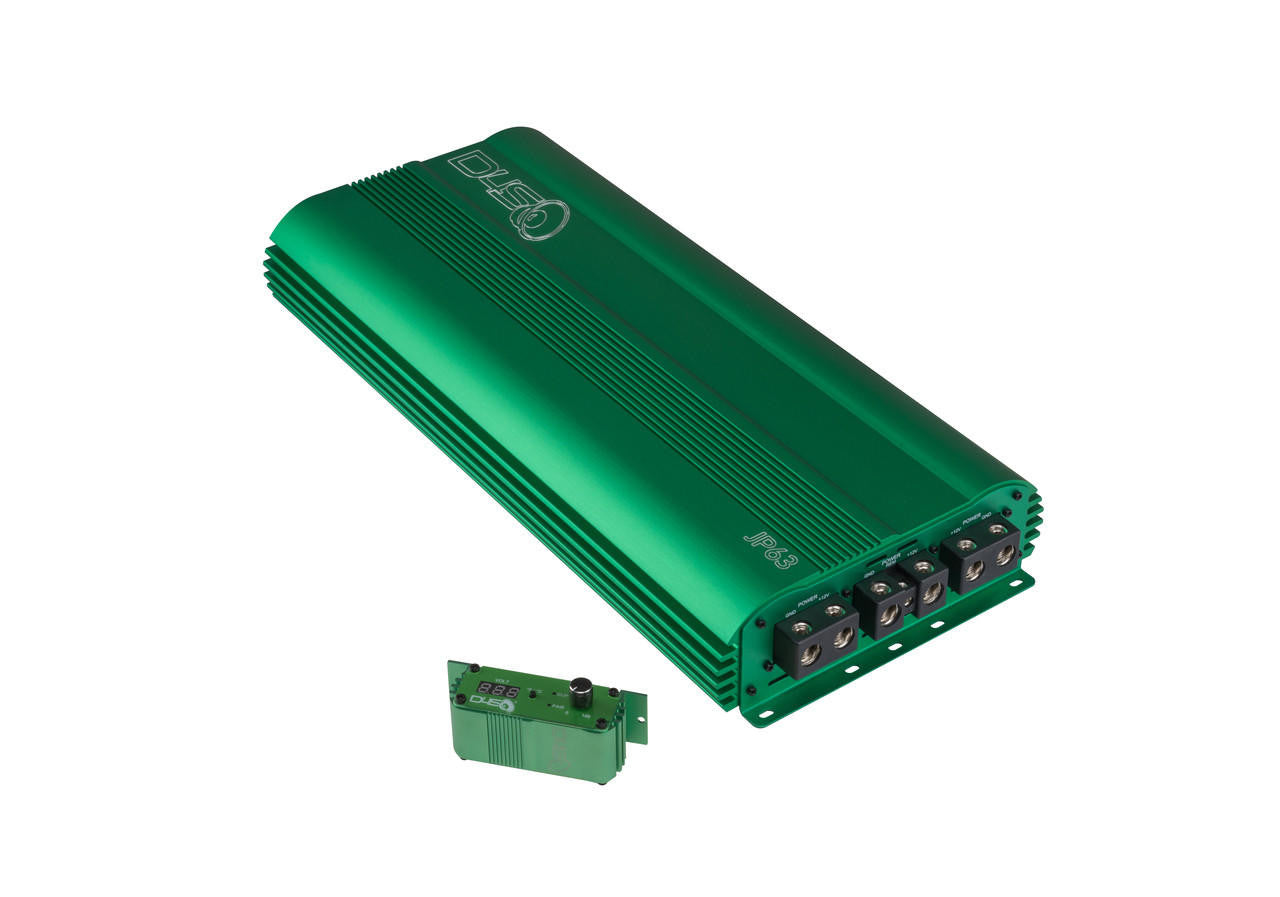

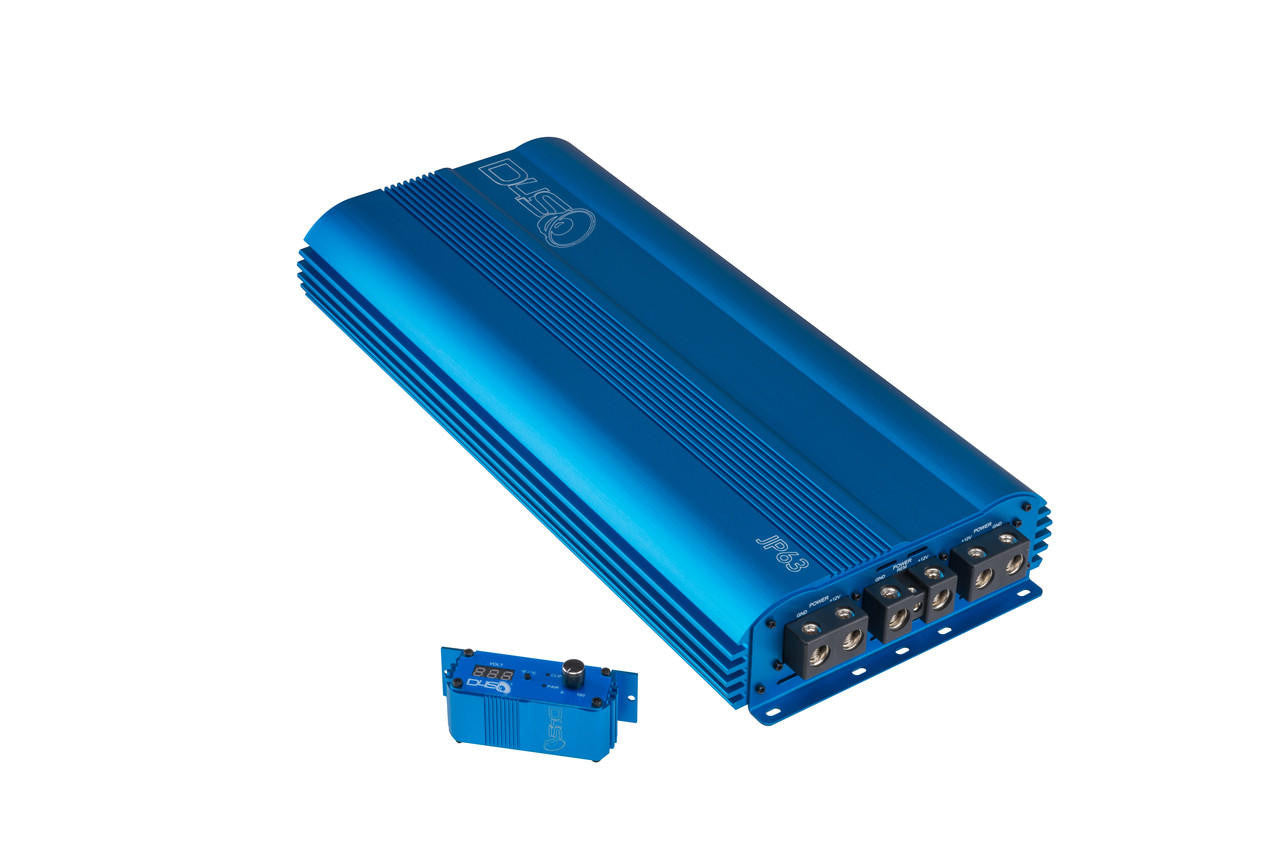

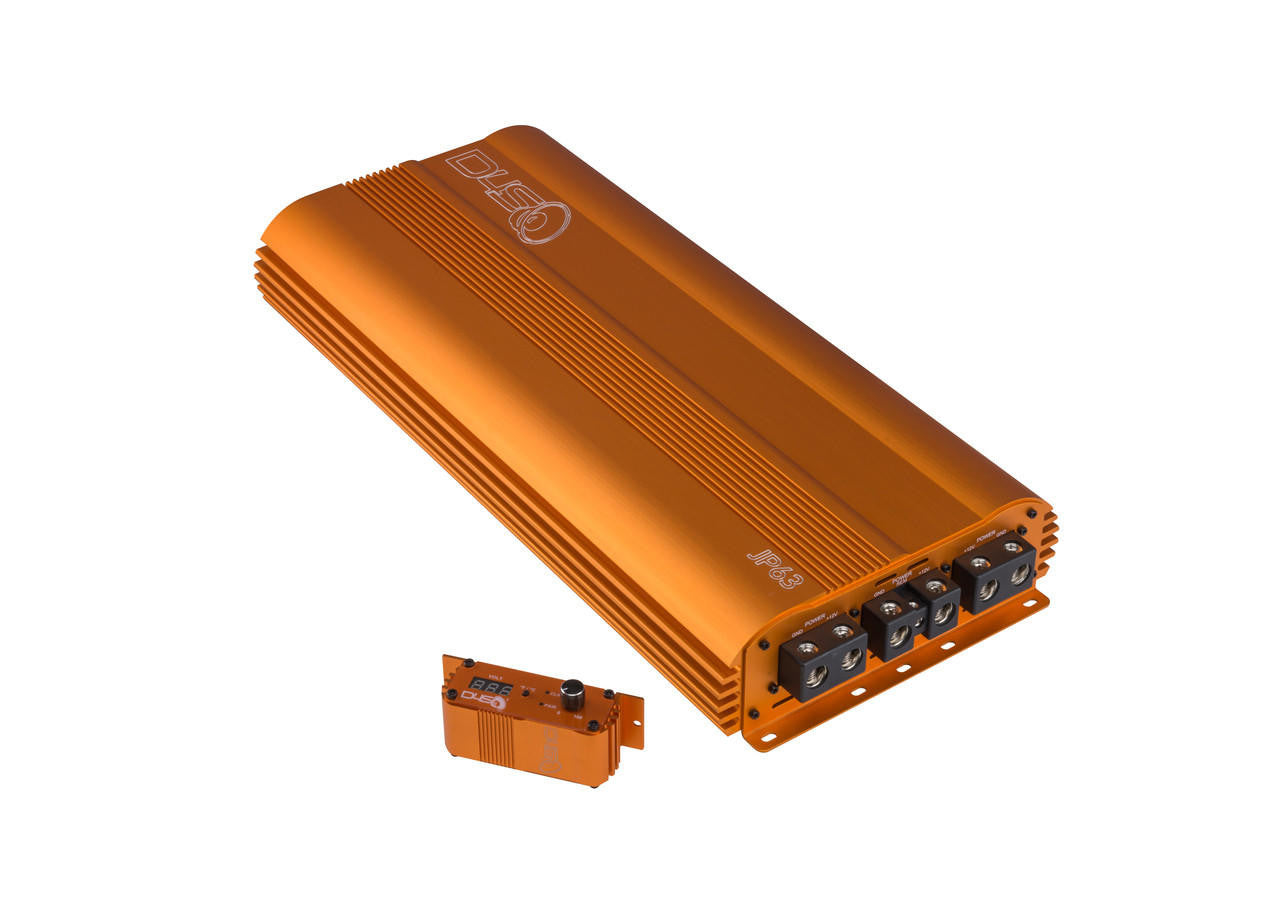

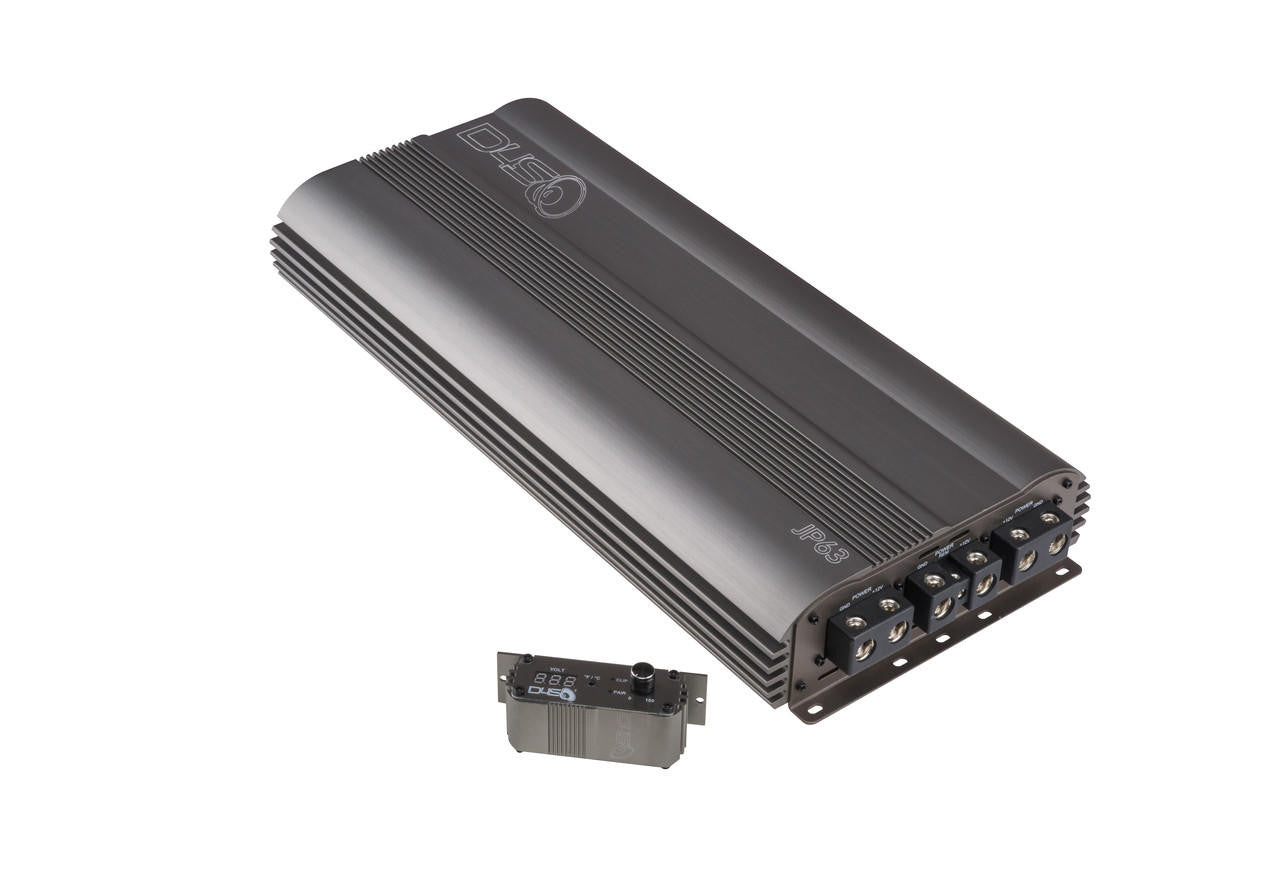

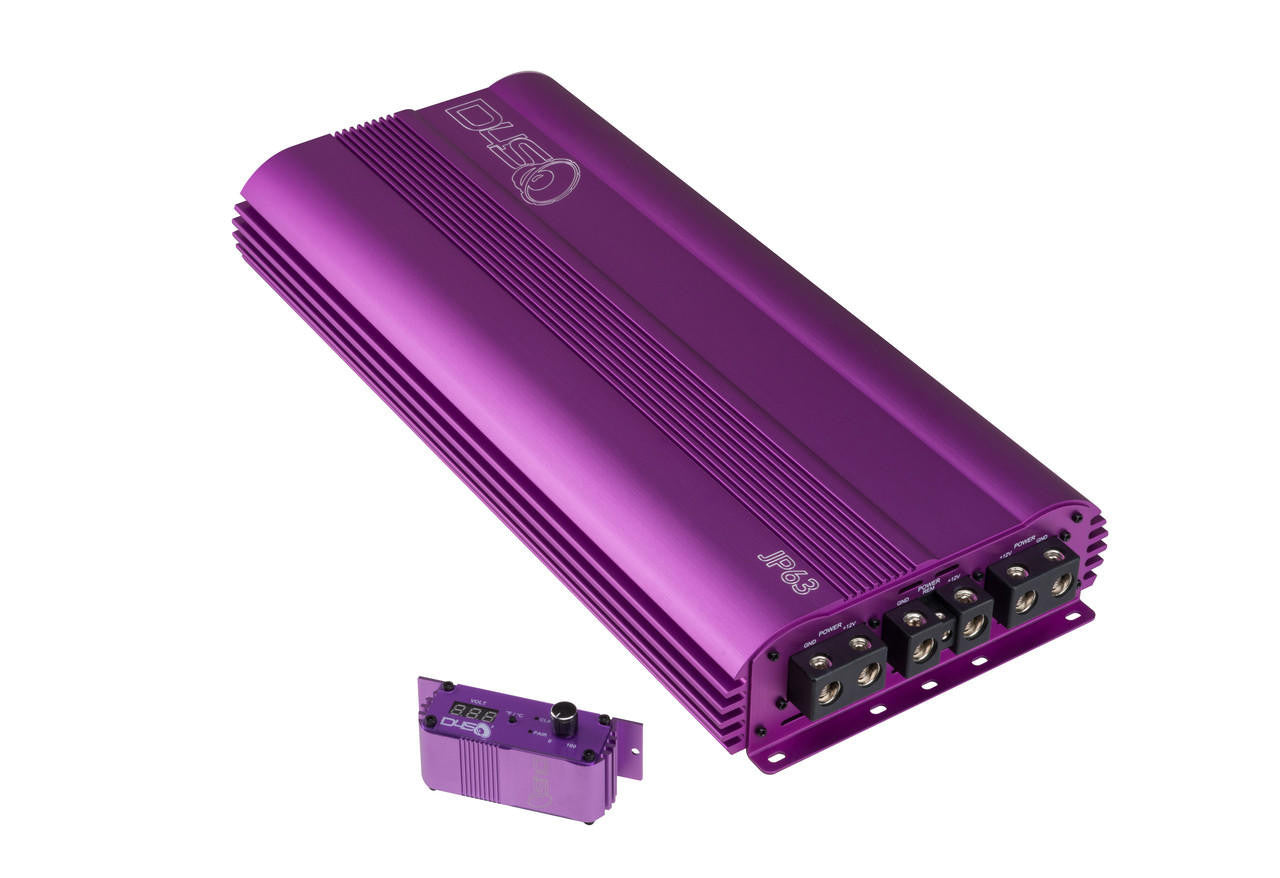

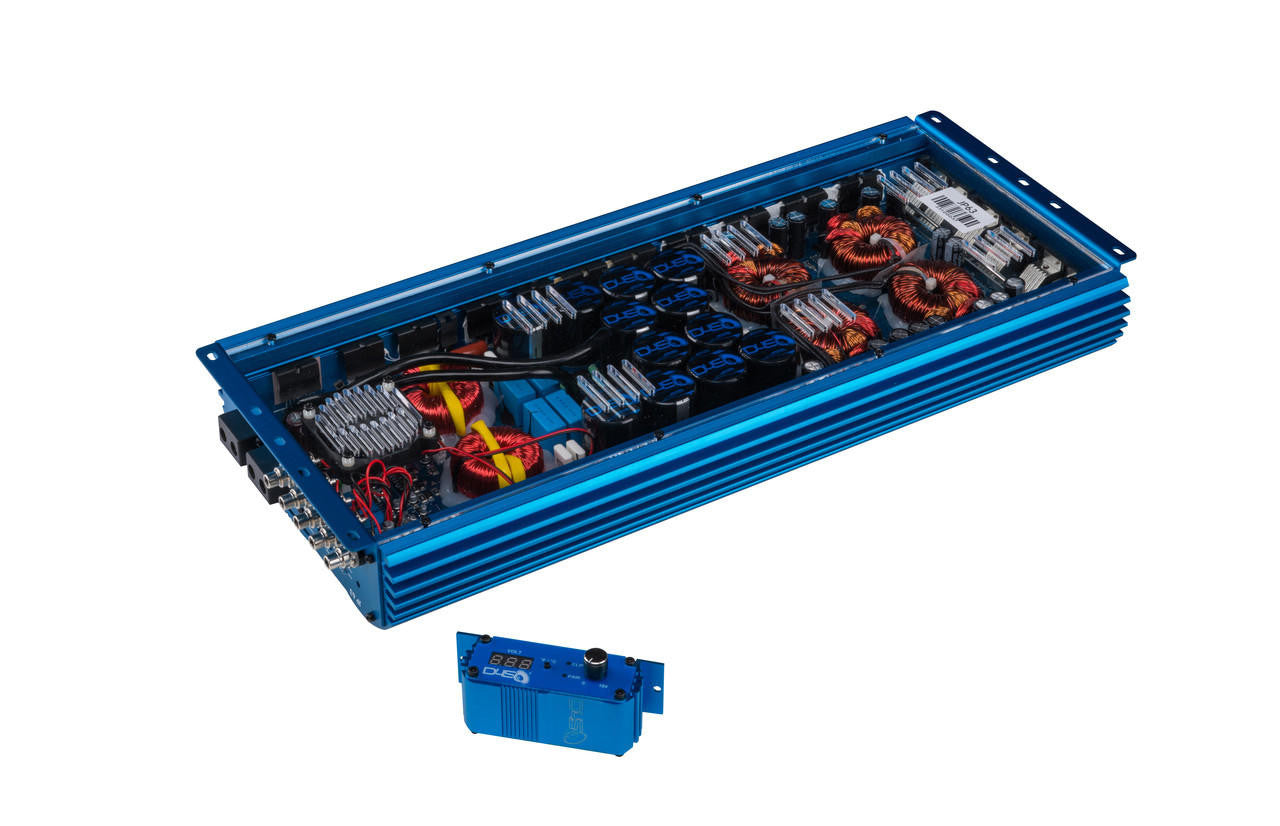

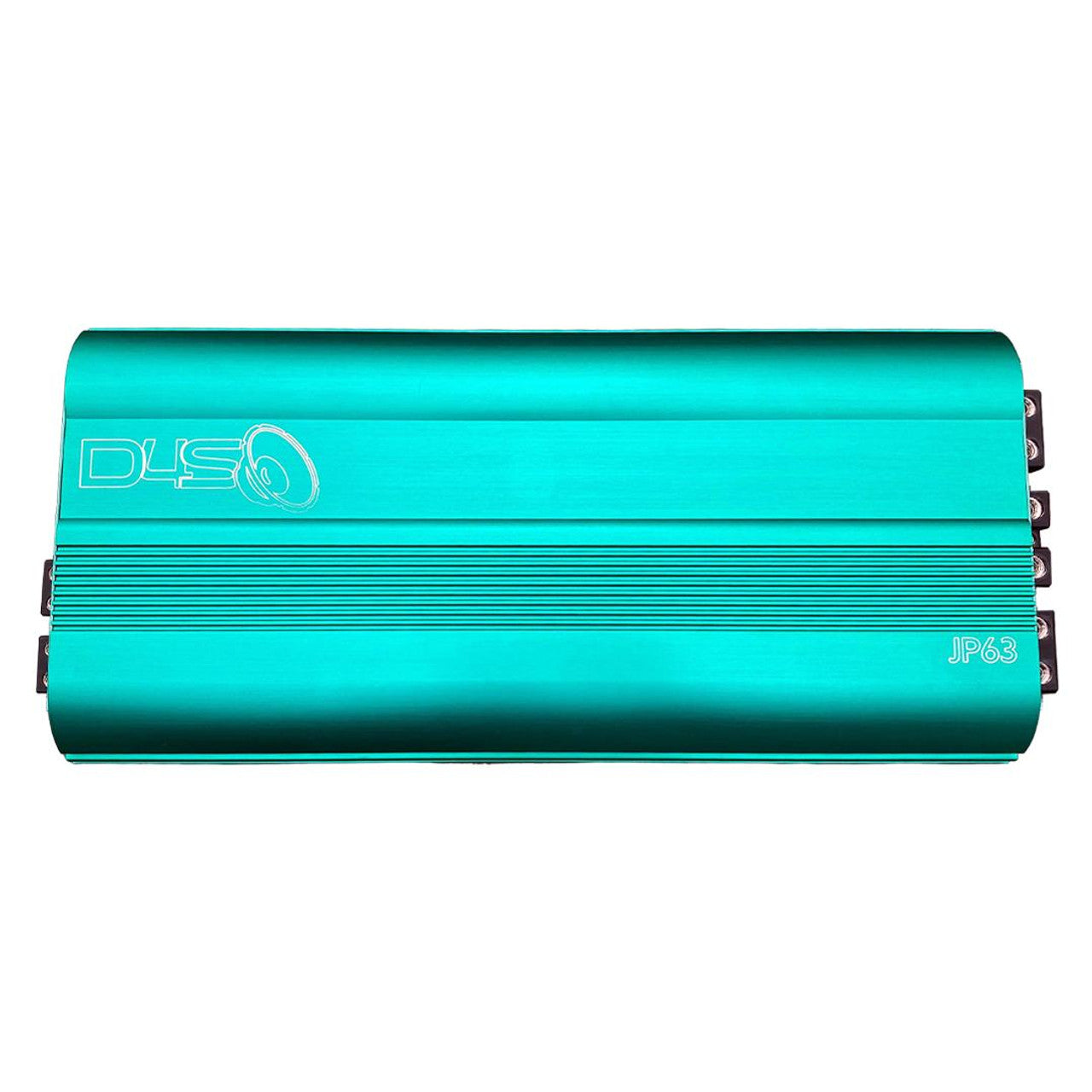

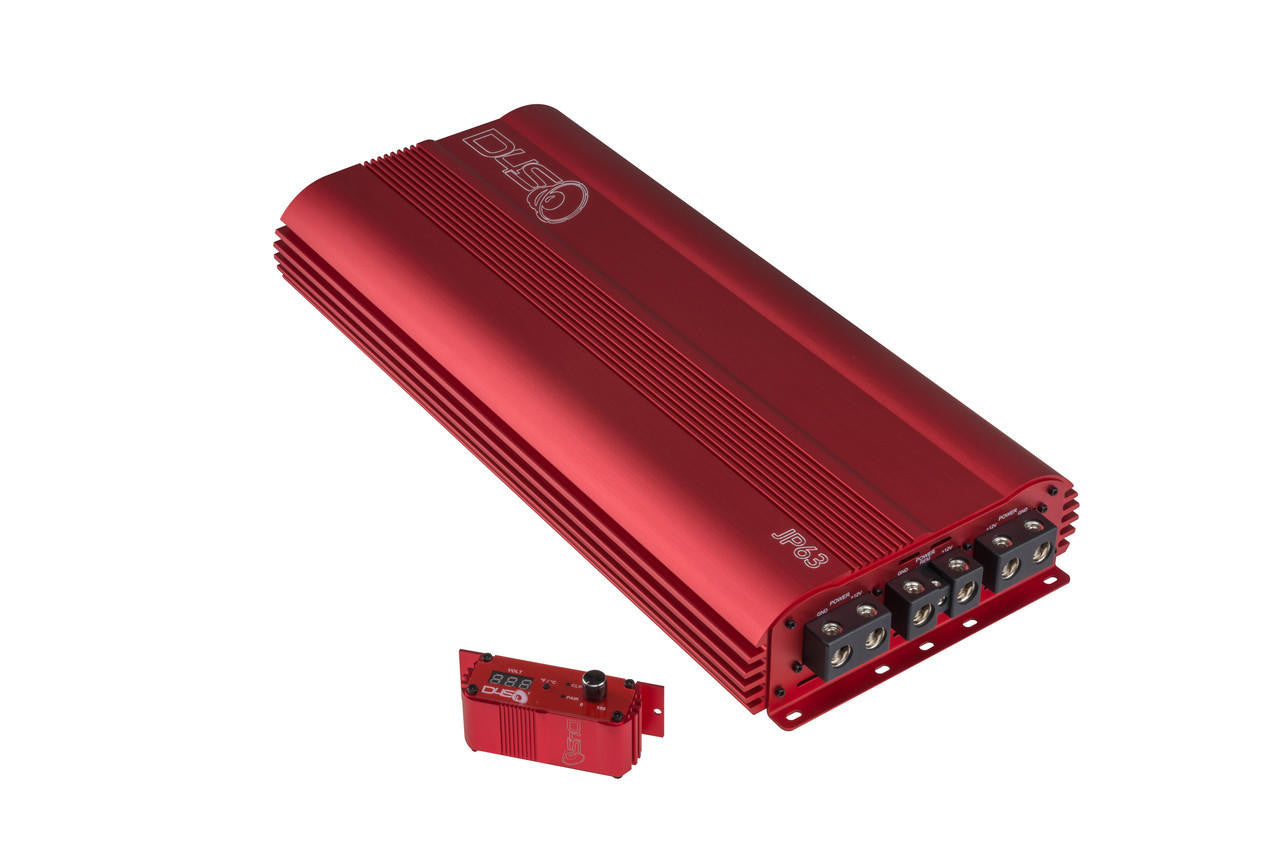

6300x1 (6300W RMS) 1CH AMPLIFIER JP63

Introducing the Down4Sound JP63 , a monoblock amplifier that goes beyond the ordinary with a jaw-dropping 6300W RMS. This isn't just another 6000W amp; it's a bass powerhouse engineered for those who demand nothing less than earth-shattering, thunderous bass from their subwoofers.

Cutting-Edge Features for Unmatched Performance

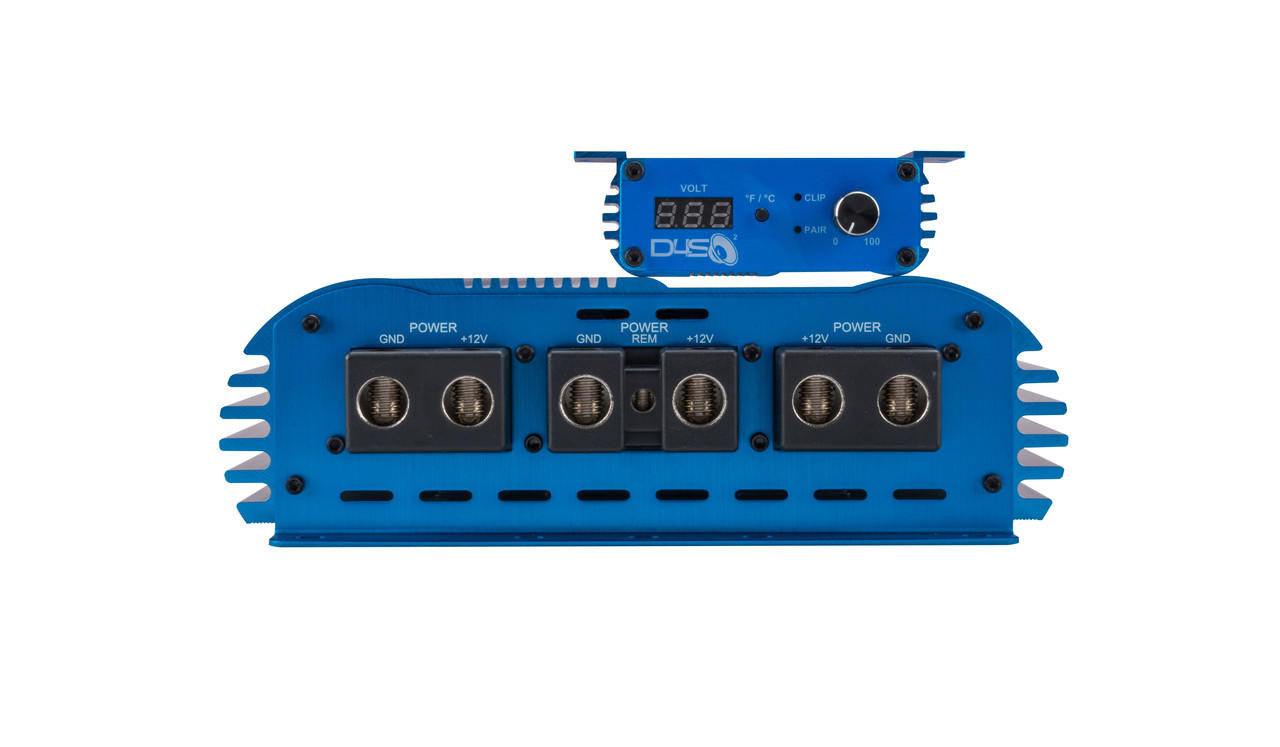

• Triple Power and Ground Inputs: To ensure unparalleled power stability, we've upgraded to three power and ground inputs.
• Top-Grade RCA Connectors: Comes with true Tiffany RCA connectors for the highest level of signal quality.
• Continuous Cooling Fan: The internal fan activates the moment you power up, keeping your amp cool even during the most intense sessions.

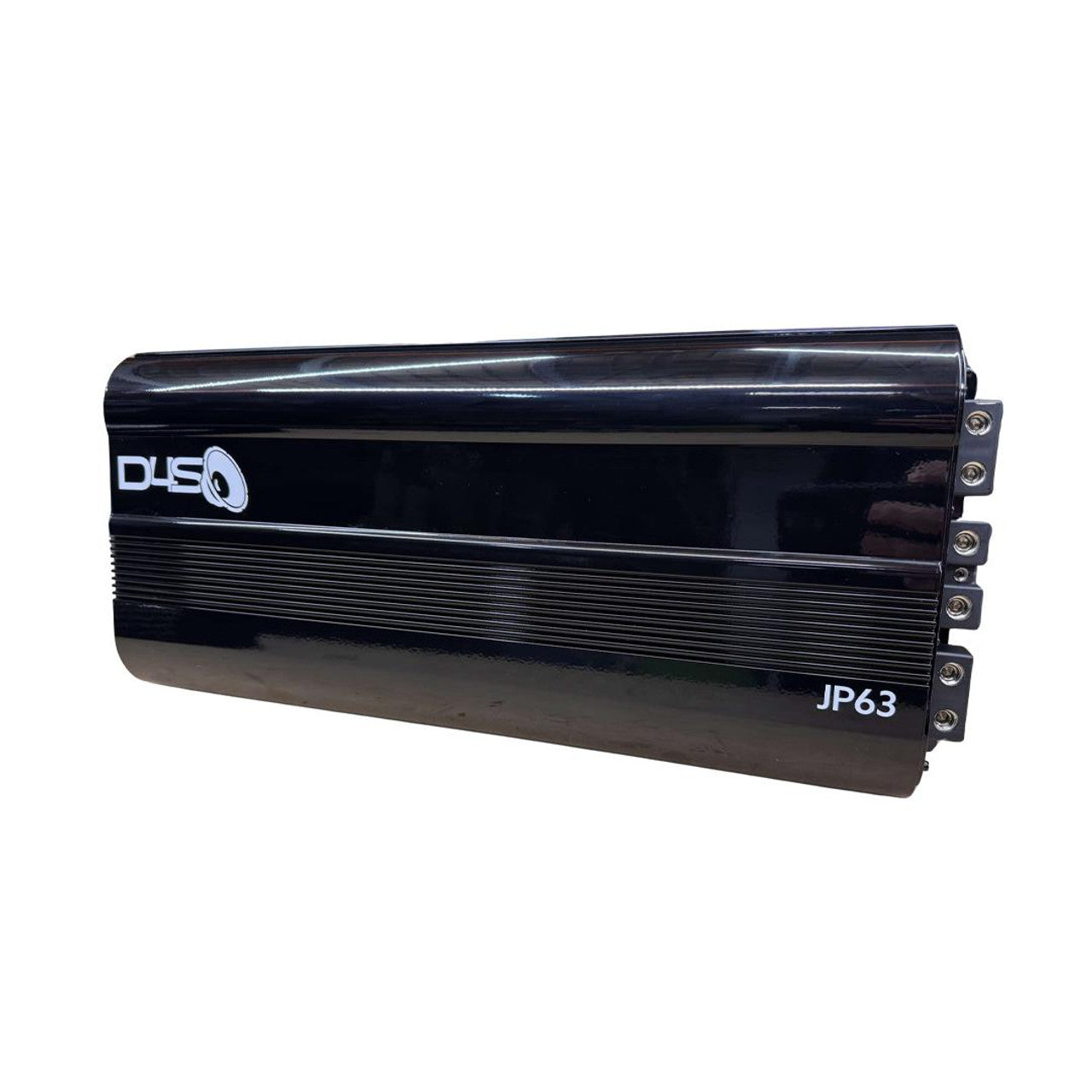

• Color: Black

Mandatory Electrical Upgrade for Warranty

To fully harness this amplifier's extraordinary power, a comprehensive electrical upgrade is non-negotiable. Failure to do so will void the warranty. You must have:

• The Big 3
• Upgraded Alternator
• Reserve Battery(s)

Power Ratings (Tested at 14.4V)

• 1-ohm: 6300W RMS
• 2-ohm: 4300W RMS
• 4-ohm: 2300W RMS

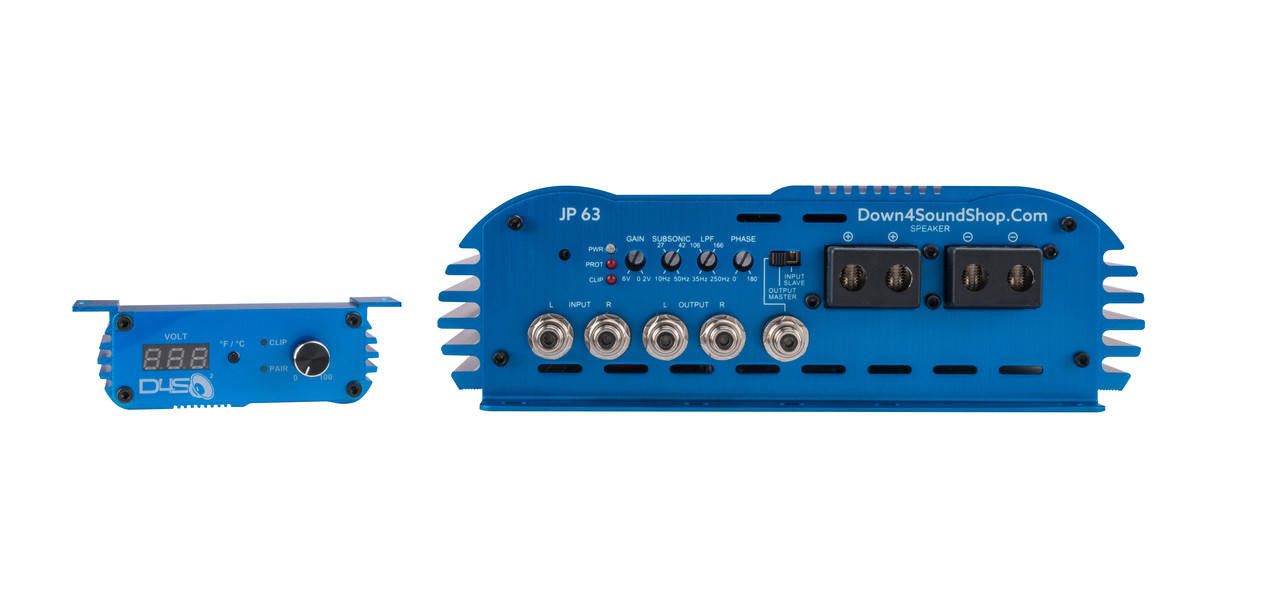

Additional Technical Specifications

• Frequency Response: 14Hz – 269Hz
• Signal-to-Noise Ratio: 91dB
• Damping Factor: < 480
• Efficiency at 4-ohm: 97%
• Input Sensitivity: 6V – 0.2V
• Subsonic Filter: 10Hz – 50Hz
• Low Pass Filter: 35Hz – 250Hz
• Phase Control: 0 – 180 degrees
• Strappable Connection: Yes
• Speaker Connection: 8 GA SPEAKER WIRE
• Fusing: 700A Total (250A for each of the three positive wires)
• Clipping Indicator: Yes
• BT Remote Control: Features voltage and temperature display, along with a clipping indicator
• Power Connection for BT Remote: C-type (external battery pack or USB power required; unit does not have rechargeable batteries)
• Speaker Output: 4-gauge
• Power Inputs: 3 x 0-gauge
• Operating Voltage: 9 to 16 Volts
• Dimensions: 19.68" (L) x 9.37" (W) x 2.64" (H)
• Country of Origin: Made in South Korea

JP63 Manual

For complete installation and operational guidance, please refer to the JP63 Manual included with your purchase.
