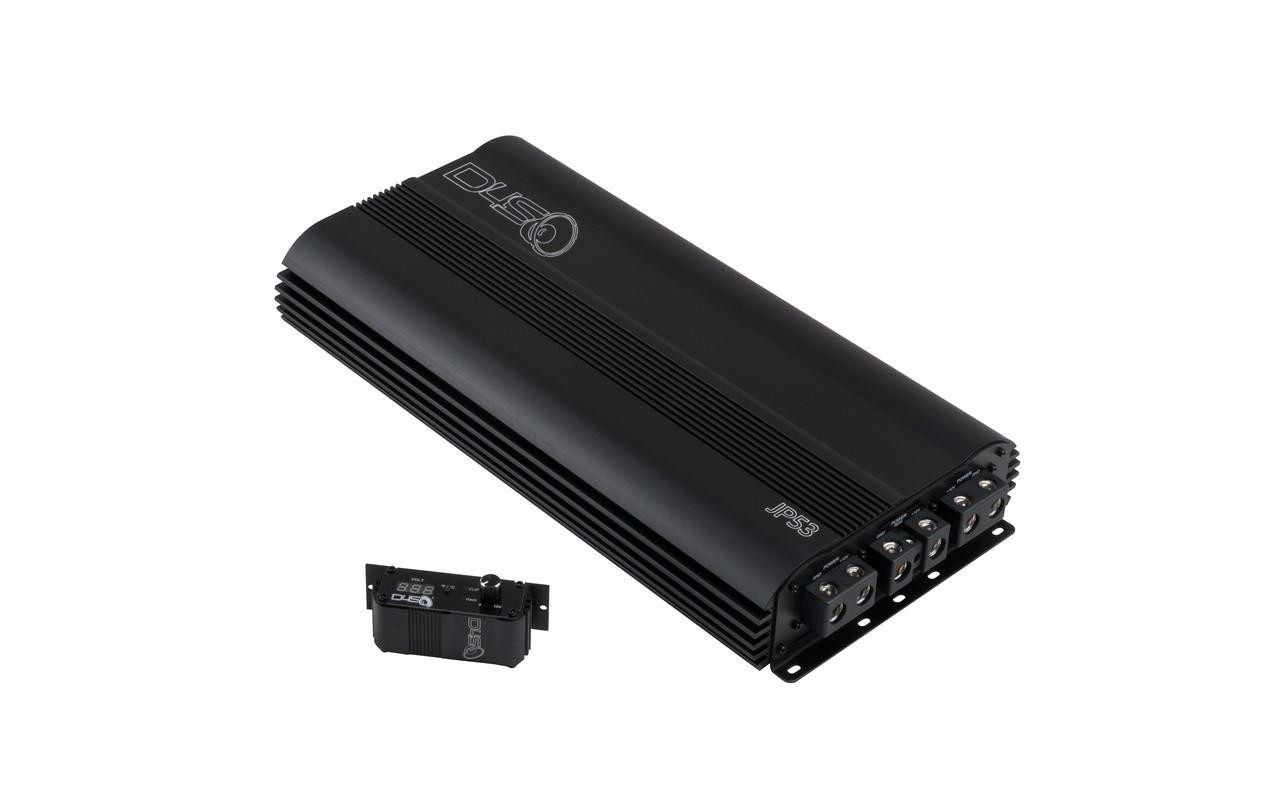

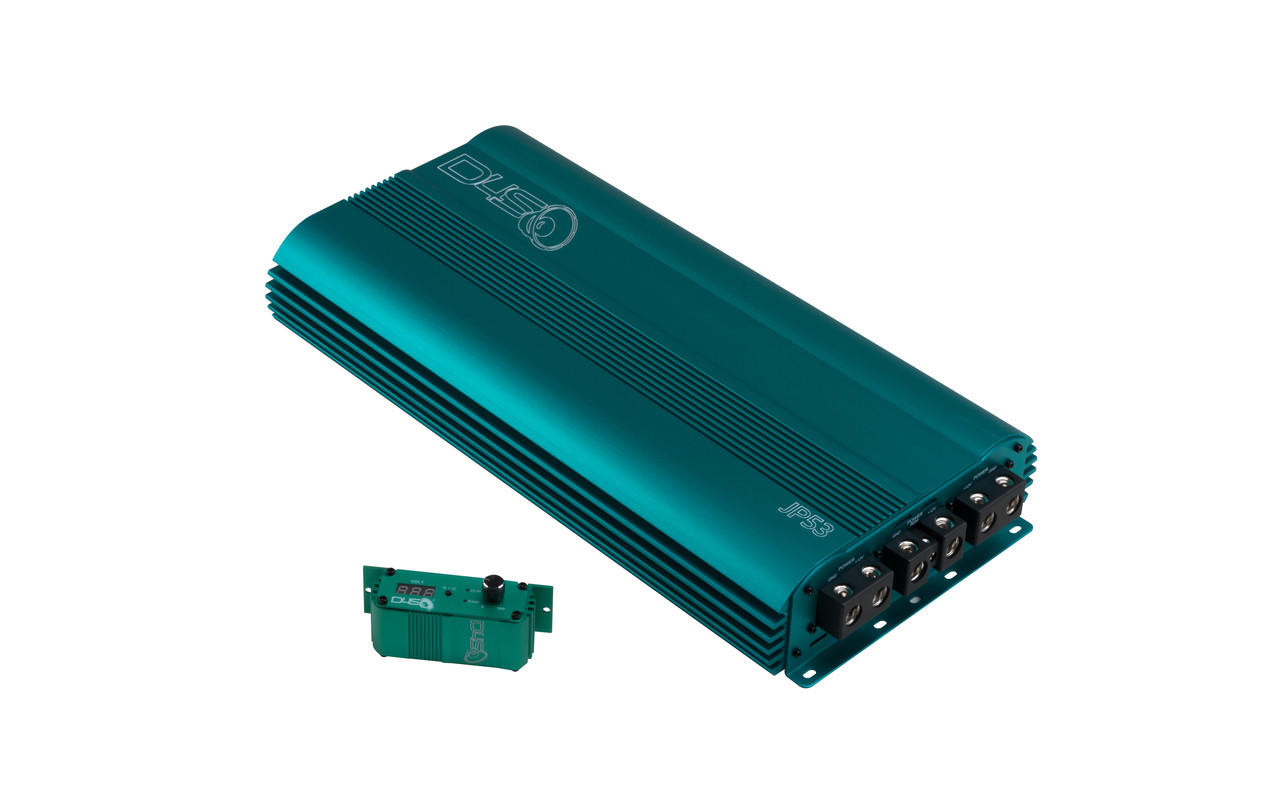

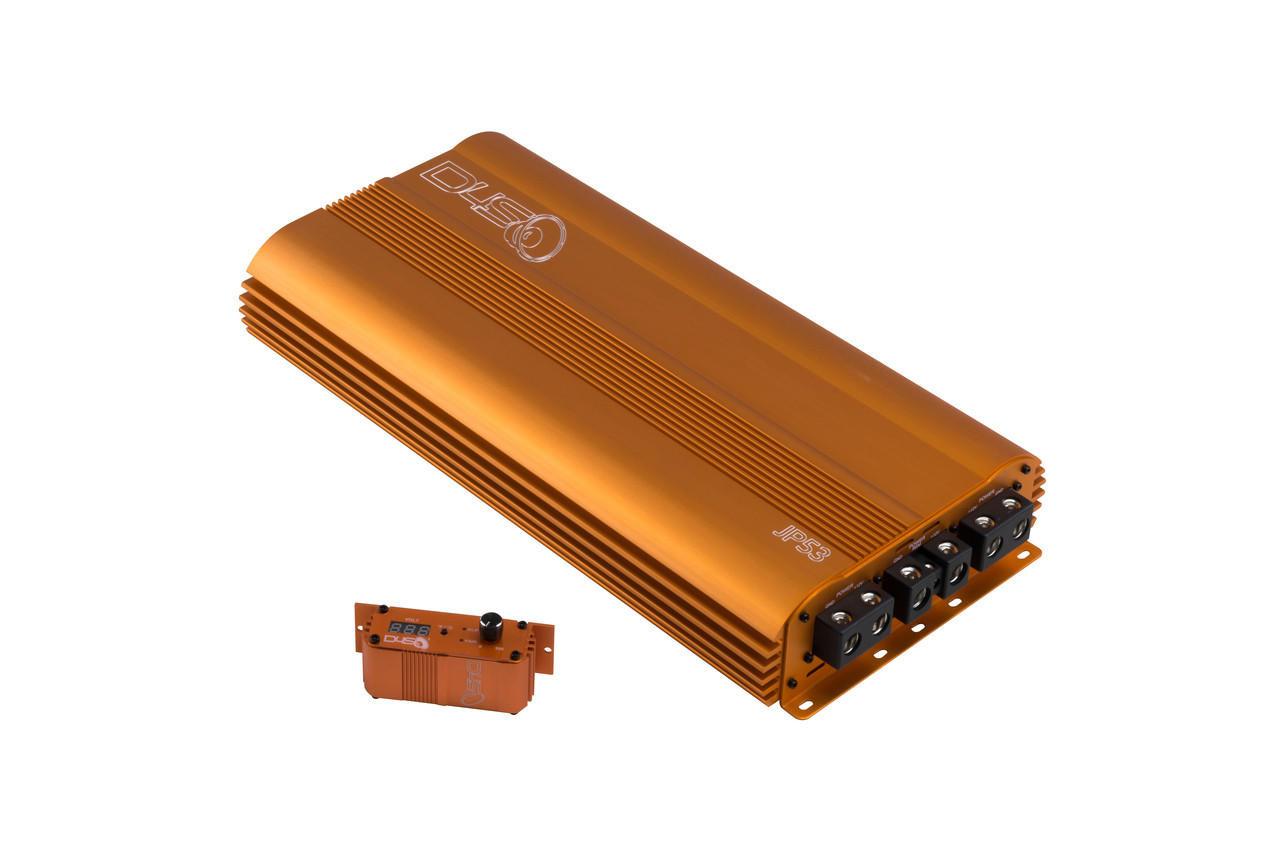

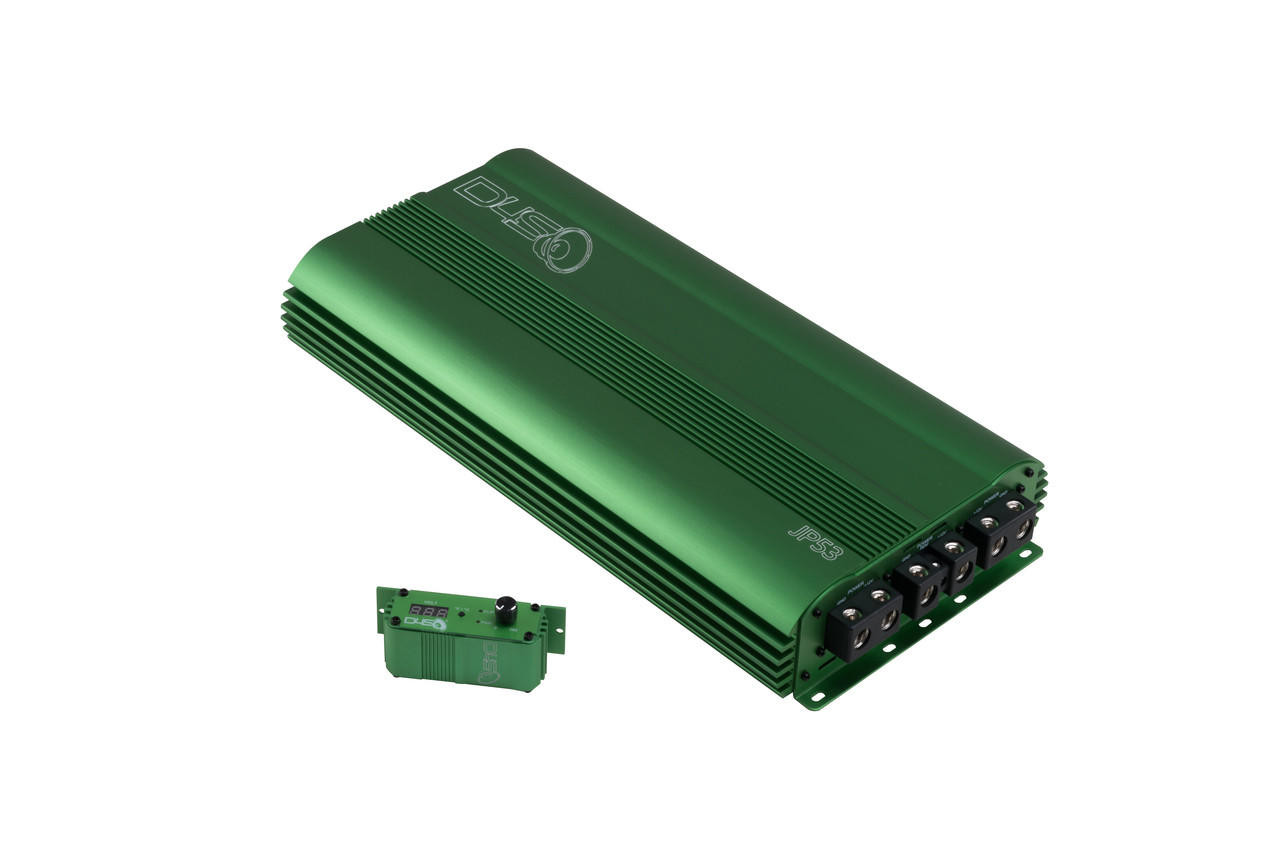

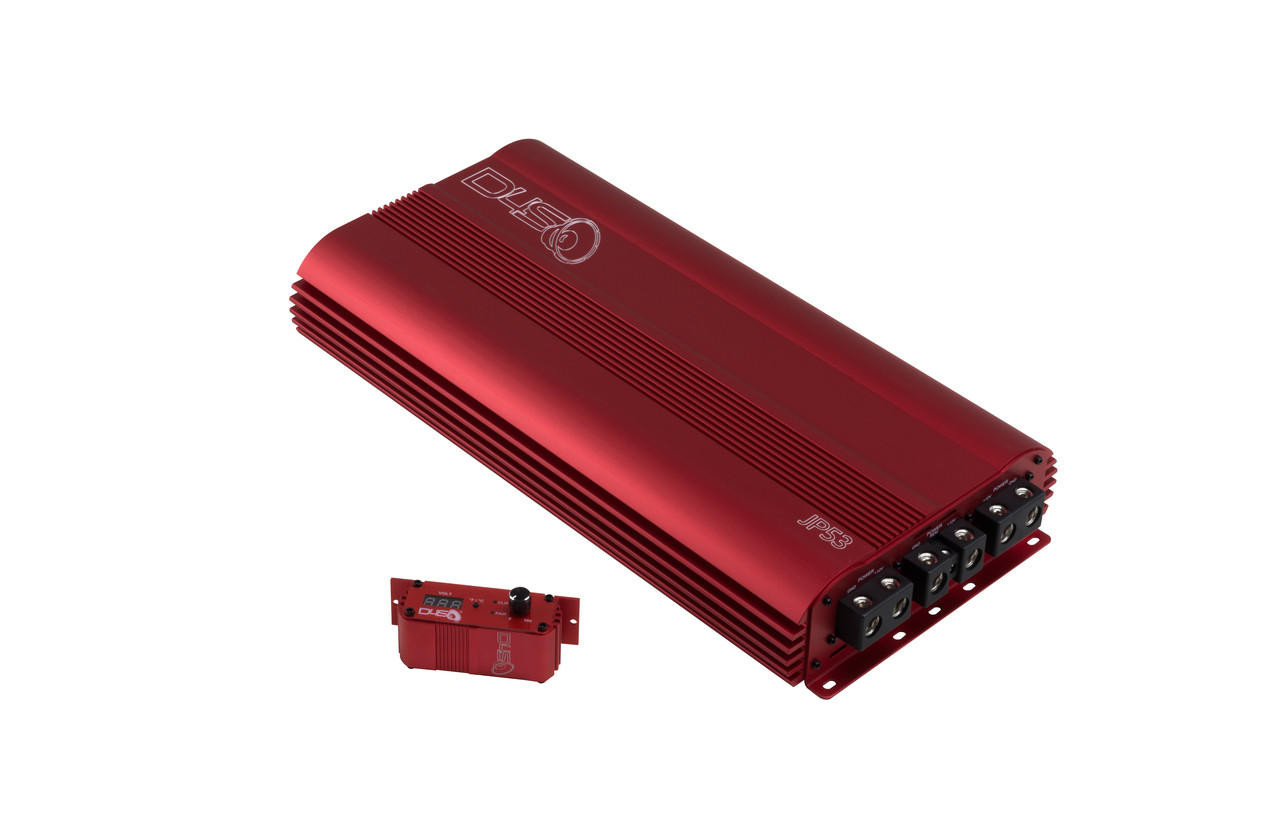

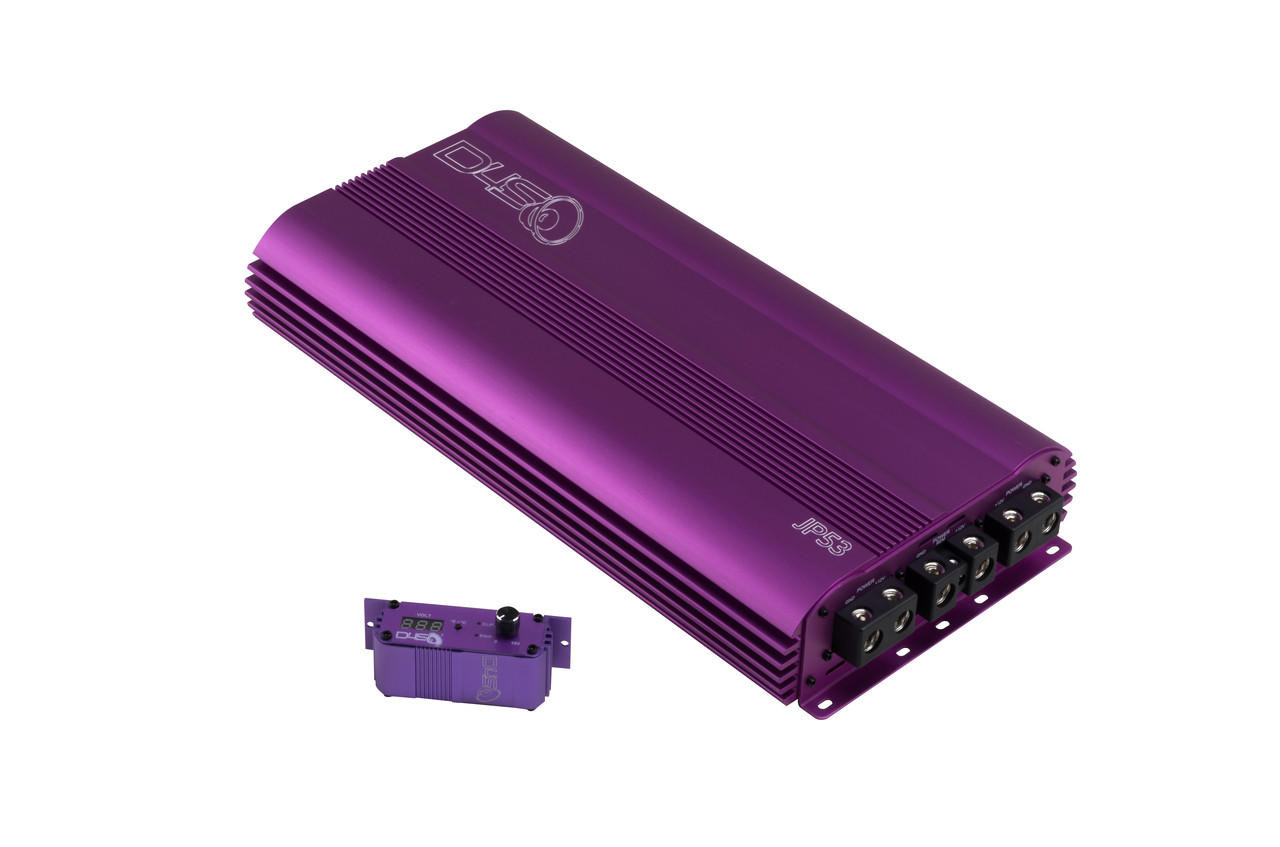

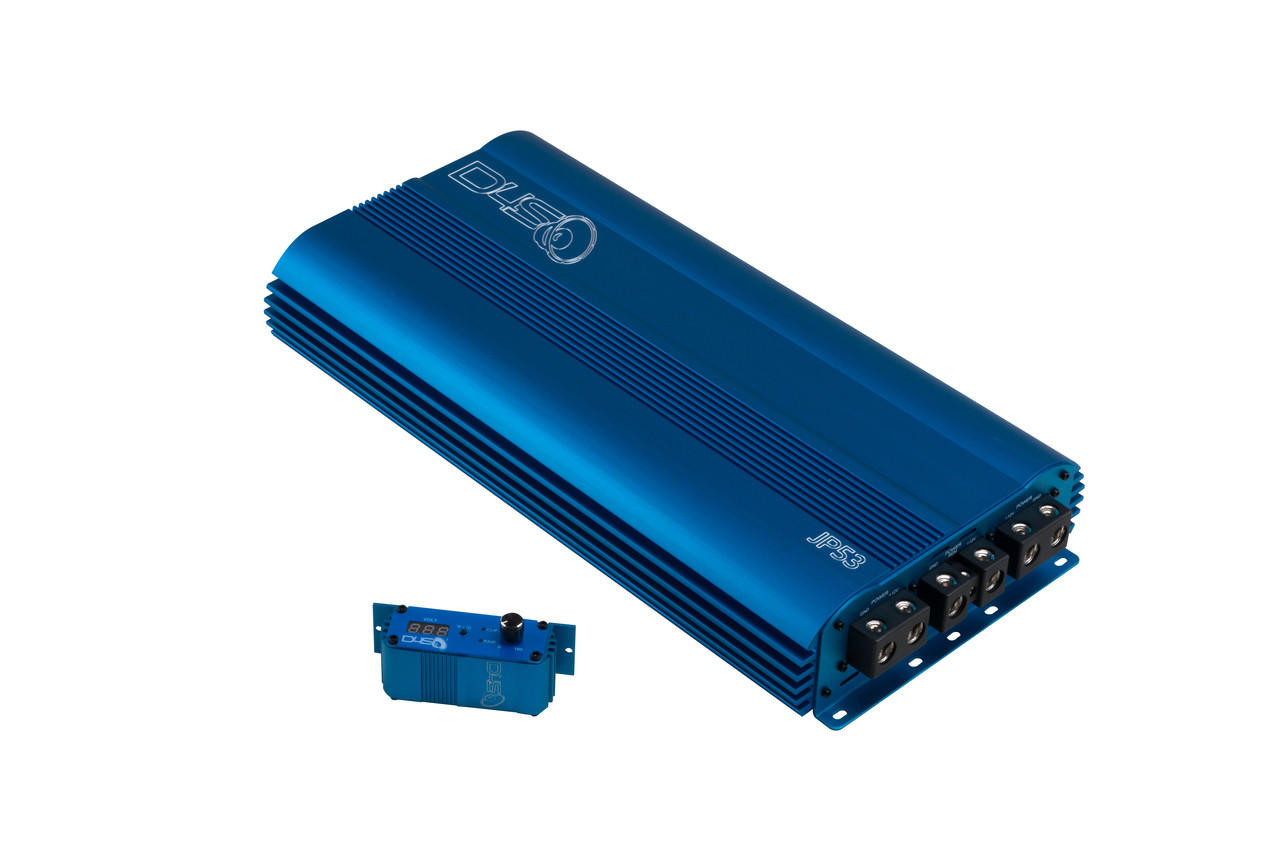

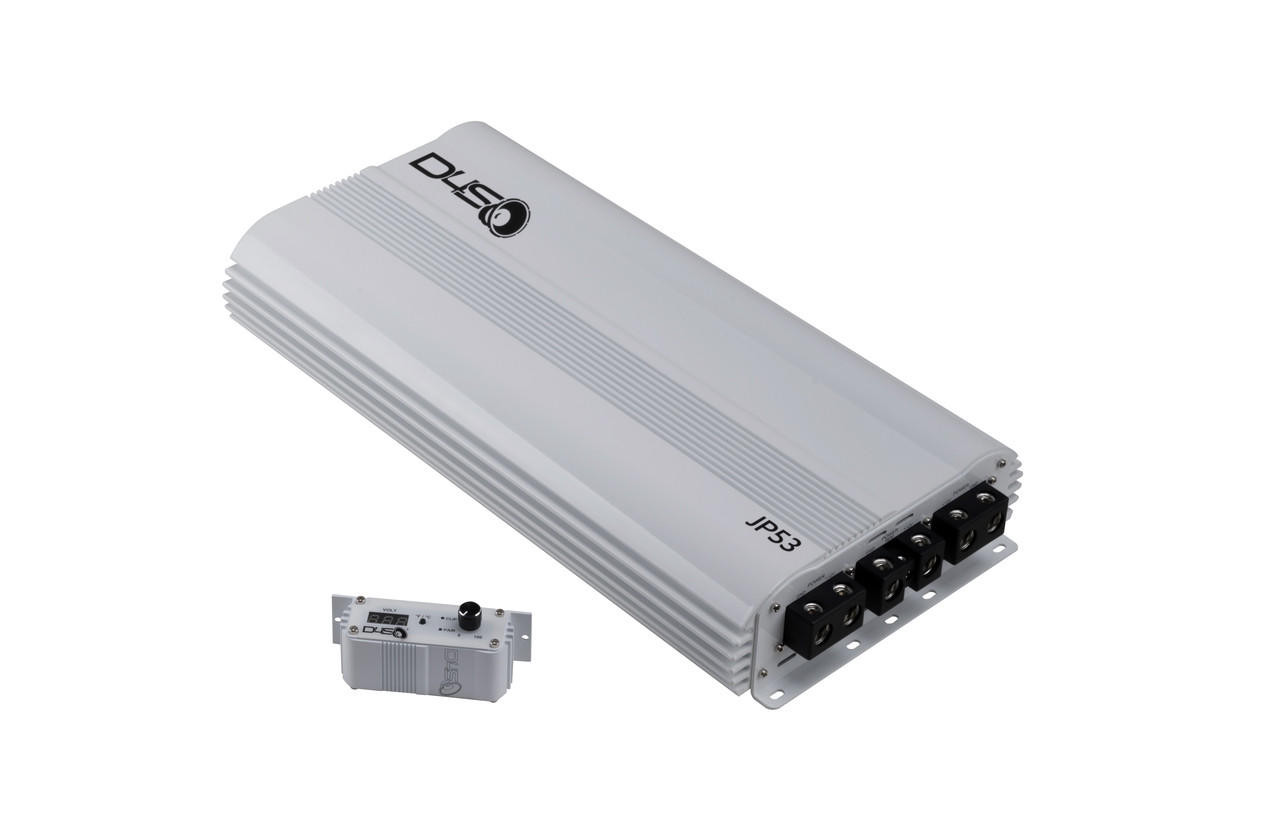

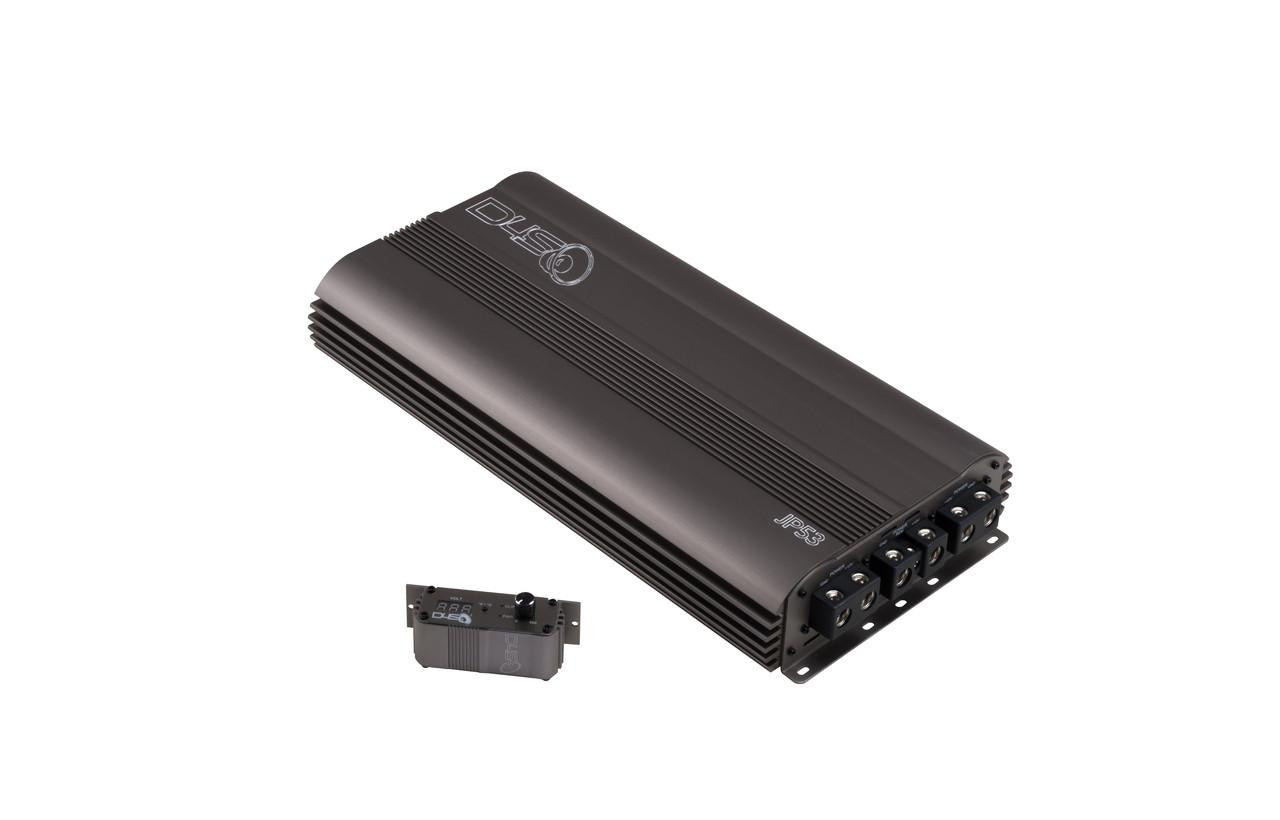

5300x1 (5300W RMS) 1CH AMPLIFIER JP53

Key Features:

• Power Ratings:
  • 5300W x 1 @ 1 Ohm
  • 4100W x 1 @ 2 Ohms
  • 2100W x 1 @ 4 Ohms
  • 10600W x 1 @ 1 Ohm (Linked)
• Frequency Response: 14Hz - 271Hz
• High Pass Filter: 35Hz - 250Hz
• Low Pass Filter: 10Hz - 50Hz
• Phase: 0º - 180º
• Bass Boost: 0 - 9dB
• Bass Frequency: 20Hz - 80Hz
• Input Sensitivity: 6V - 0.2V
• Signal to Noise Ratio: 95dB <
• Total Harmonic Distortion: Less than 0.1%
• Operating Voltage: 12V - 15.5V
• Fuse Rating: 600A (Strapped: 1200A)
• Dimensions: 17.71"L x 9.37"W x 2.71"H
• 3 x 0 GAUGE POWER / GROUND TERMINALS

Additional Features:

• STRAPPABLE DIGITAL MONOBLOCK AMPLIFIER
• STABLE INTO 1OHM MONO LOAD
• HIGH SPEED MOSFET POWER SUPPLY
• VARIABLE LOW PASS FILTER
• VARIABLE SUBSONIC FILTER
• VARIABLE BASS BOOST & BASS FREQUENCY
• 4 WAY PROTECTION CIRCUITS (THERMAL, HIGH & LOW VOLTAGE, SPEAKER SHORT AND DC)
• BLUETOOTH REMOTE CONTROL (REMOTE BASS KNOB WITH VOLTMETER, AMPLIFIER TEMPERATURE AND CLIPPING INDICATOR)
• HIGH PURITY COPPER PRINTED CIRCUIT BOARD
