3200x2 6000W RMS 2CH AMPLIFIER JP16.2

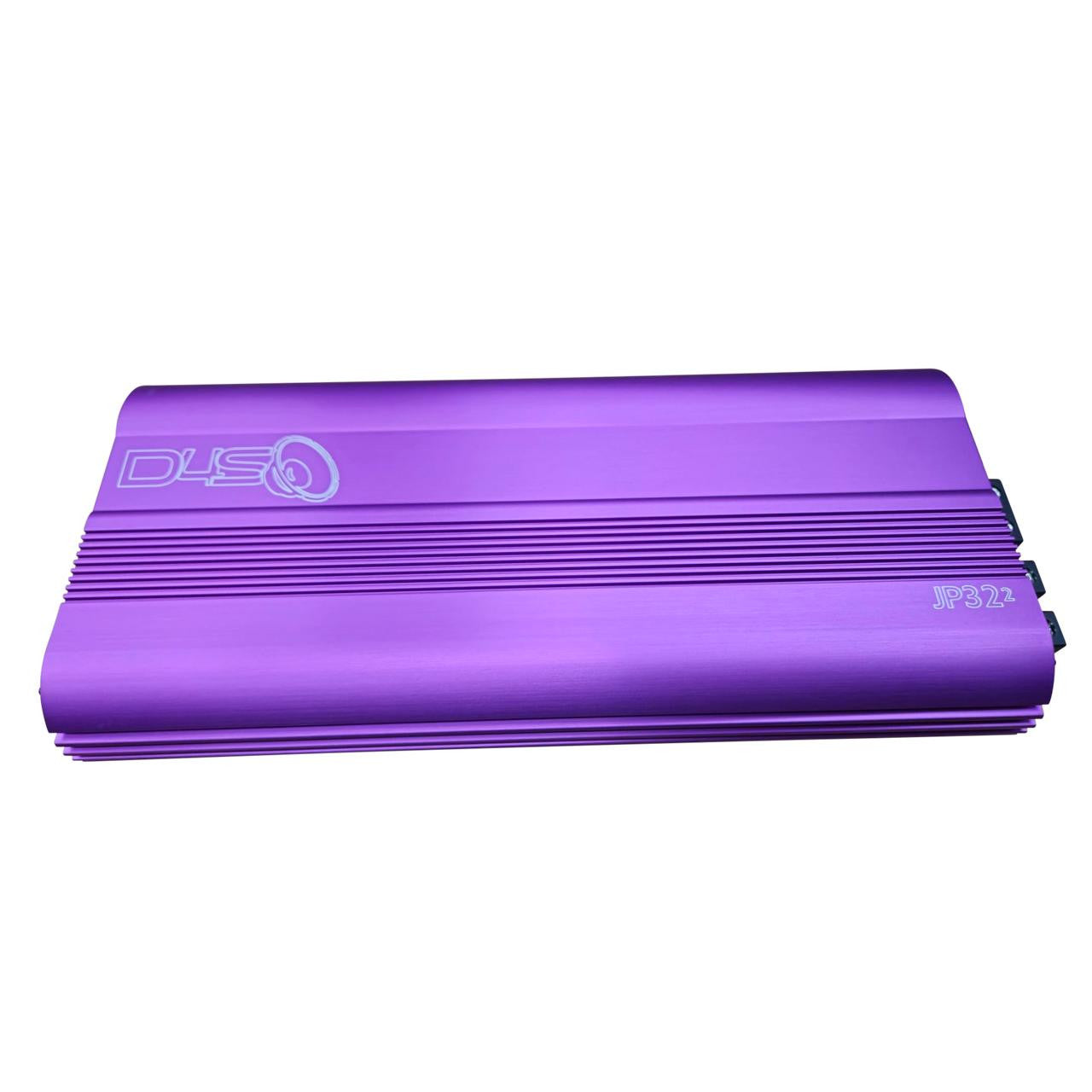

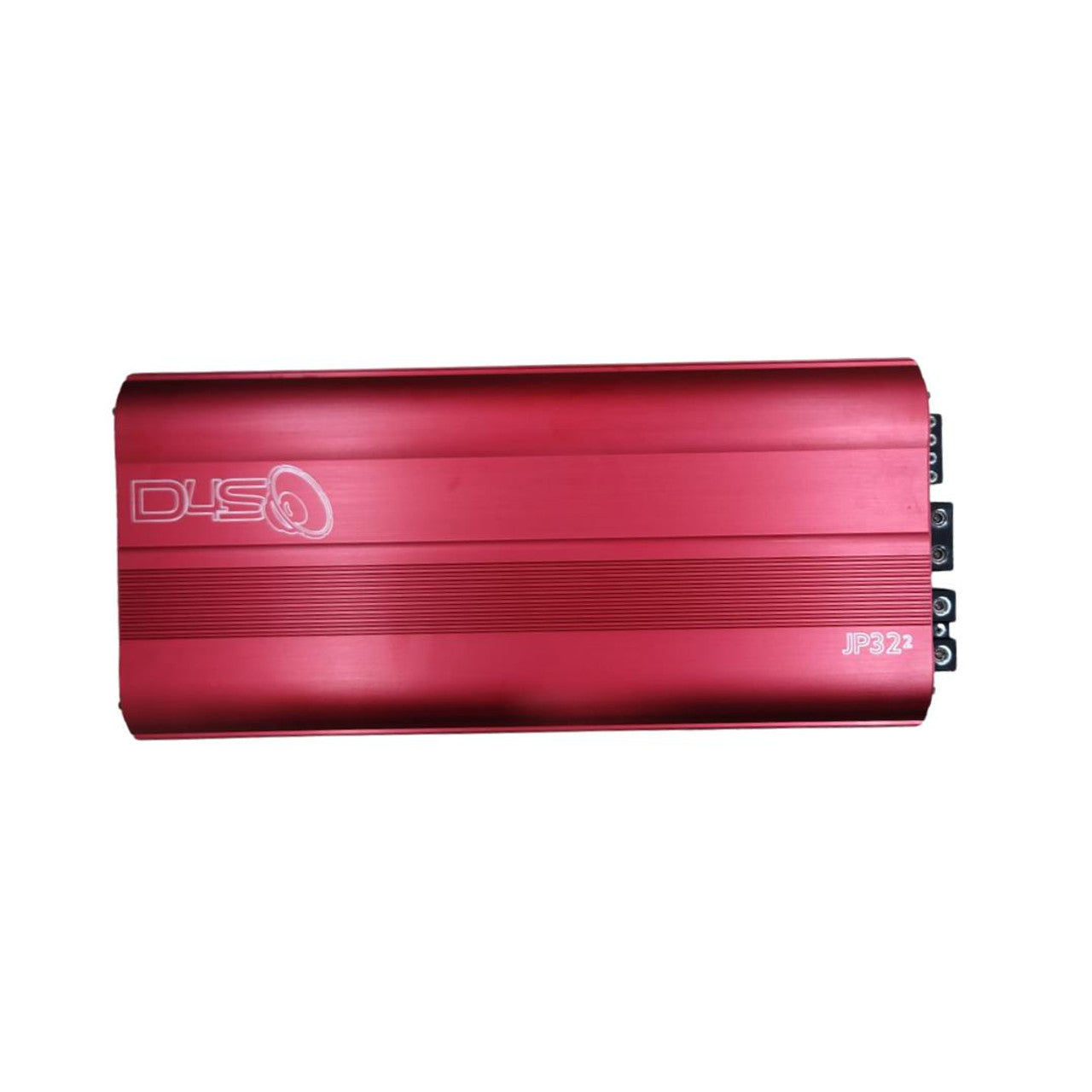

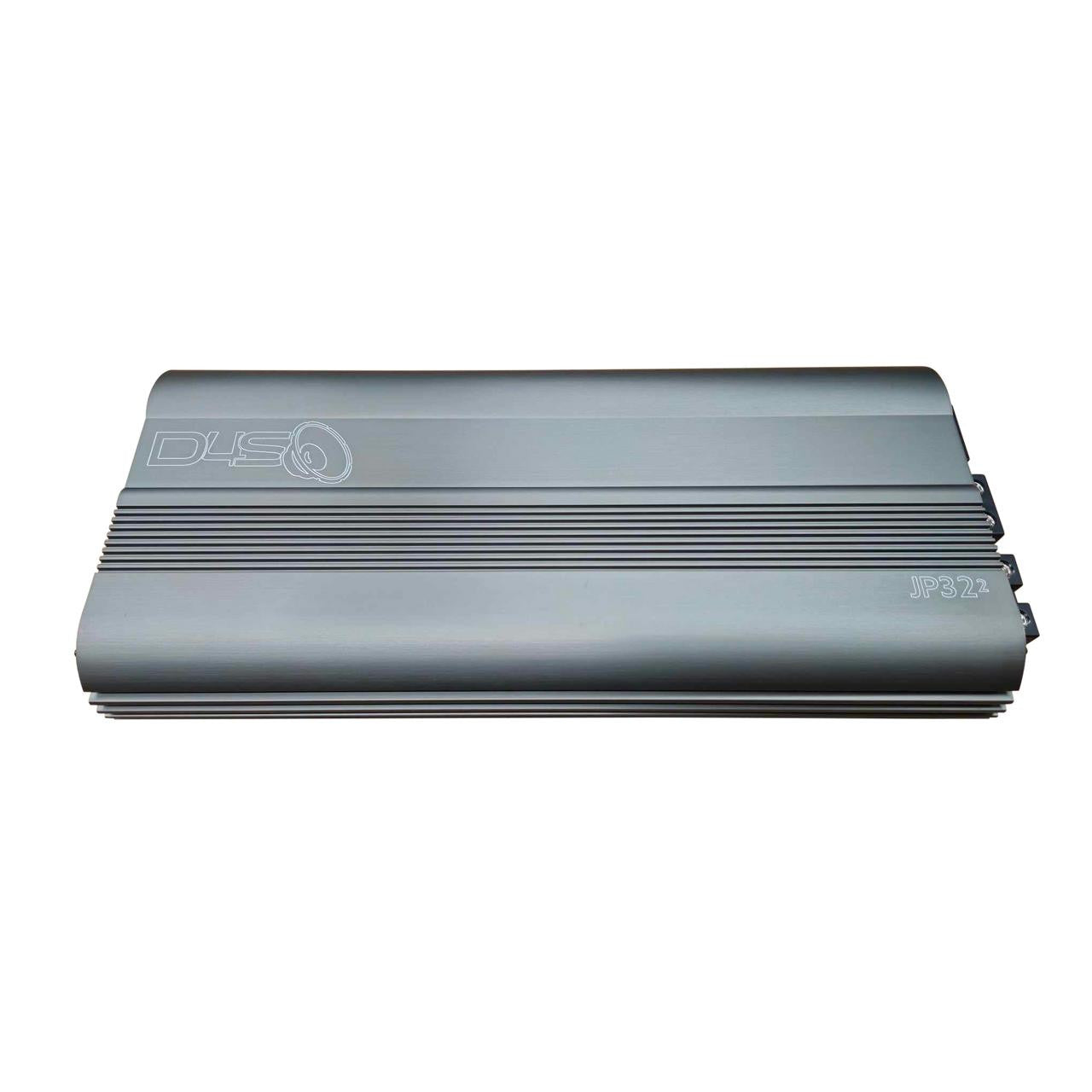

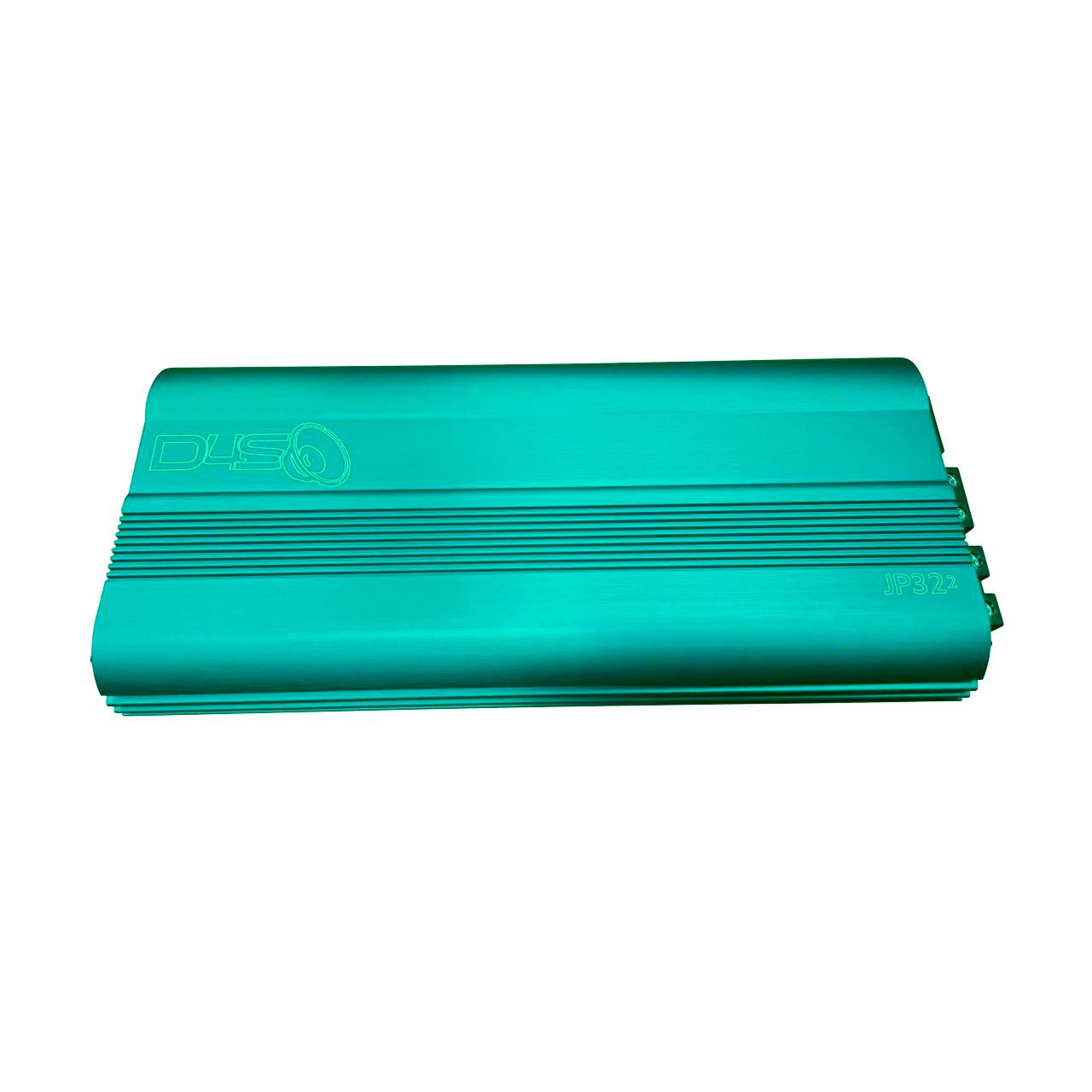

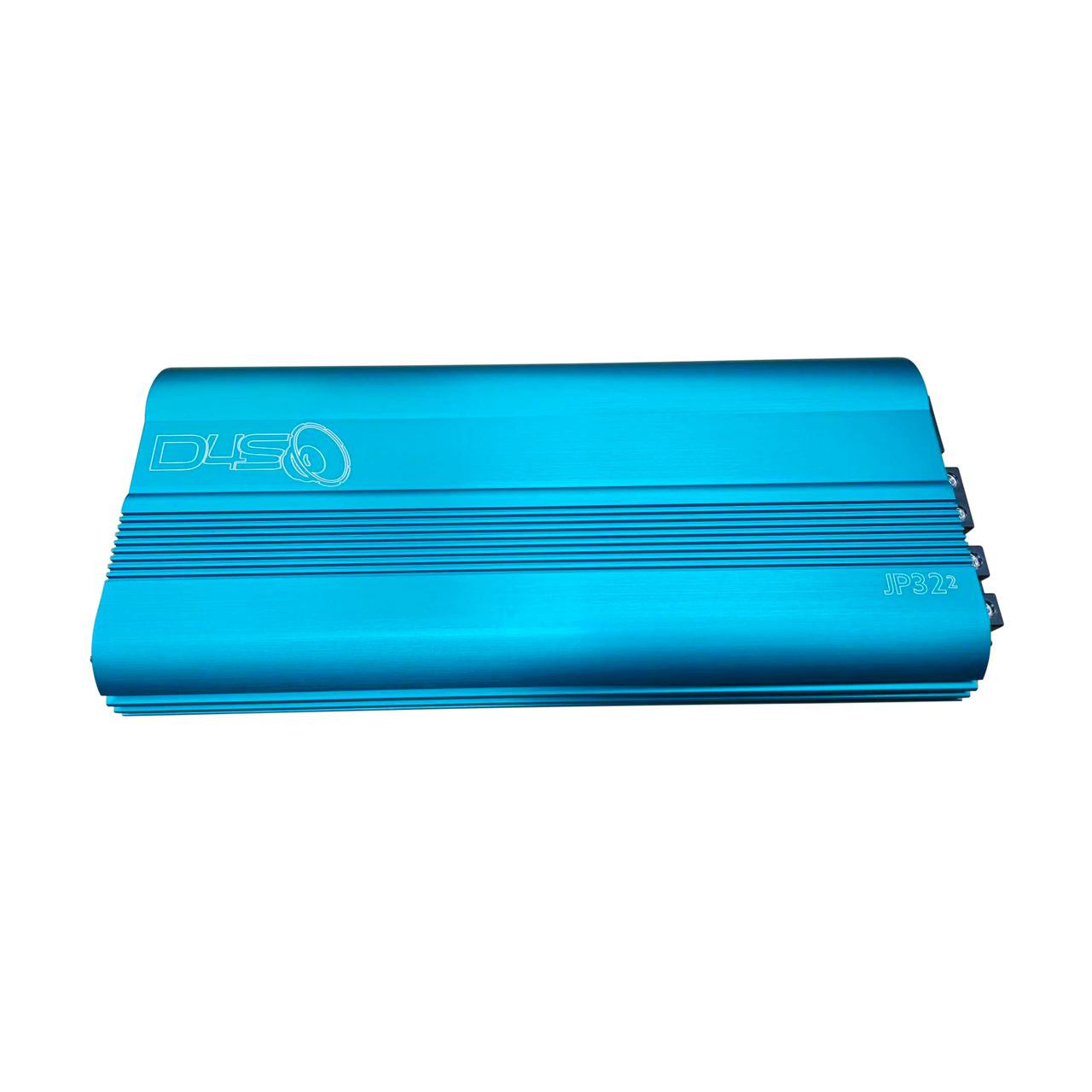

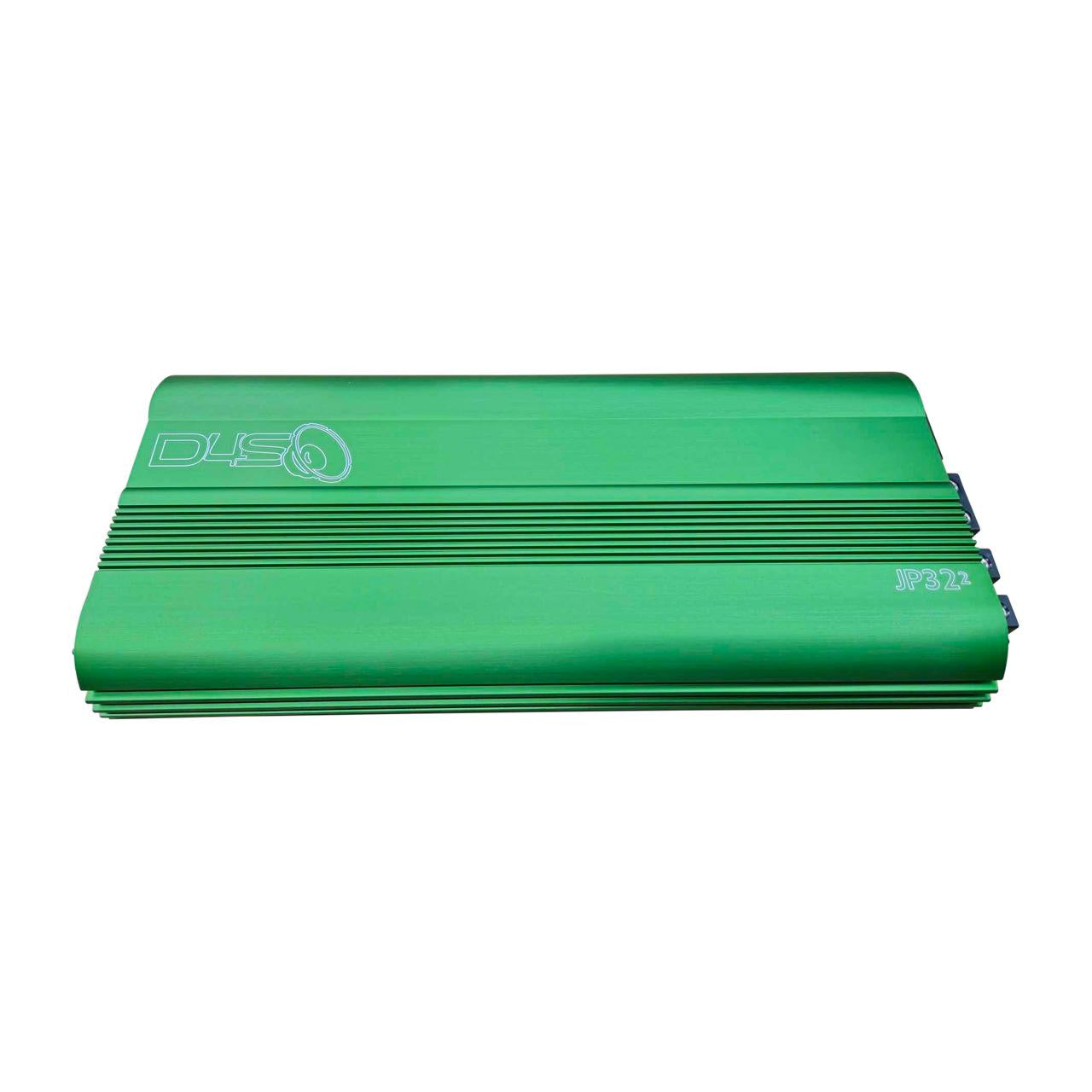

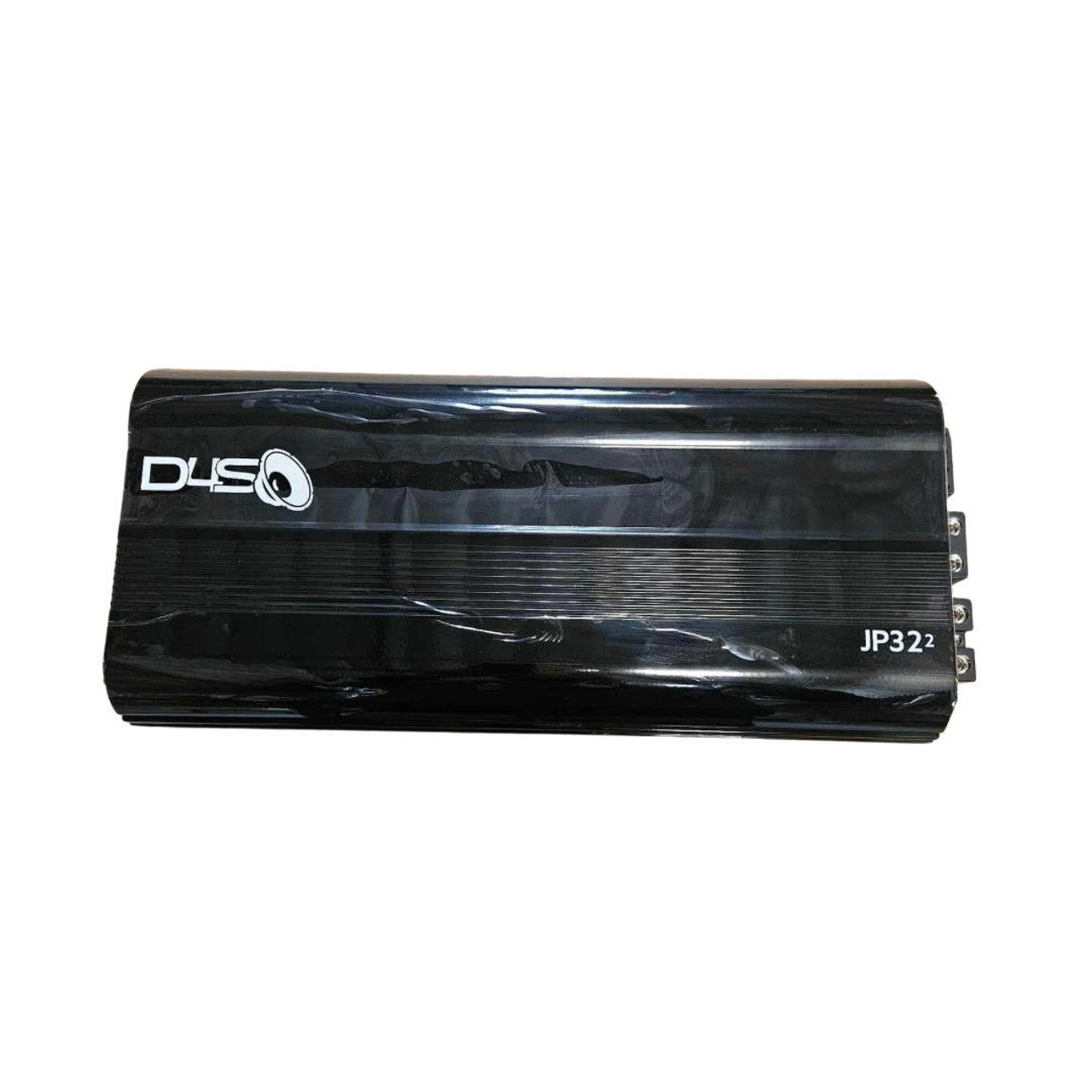

Unleash unparalleled audio performance in your vehicle with the Down4Sound JP32.2. This 6000W RMS 2-channel amplifier is engineered for those who demand the best in car audio. With a high-speed MOSFET power supply and consistent output for 1ohm stereo or 2ohm bridged, the JP32.2 ensures your tracks resonate with clarity and vigor.

Special Highlight: Dive deeper into its unmatched prowess by checking out the amplifier dyno video located in the VIDEOS TAB.

CLASS D AMPLIFIER

Key Features

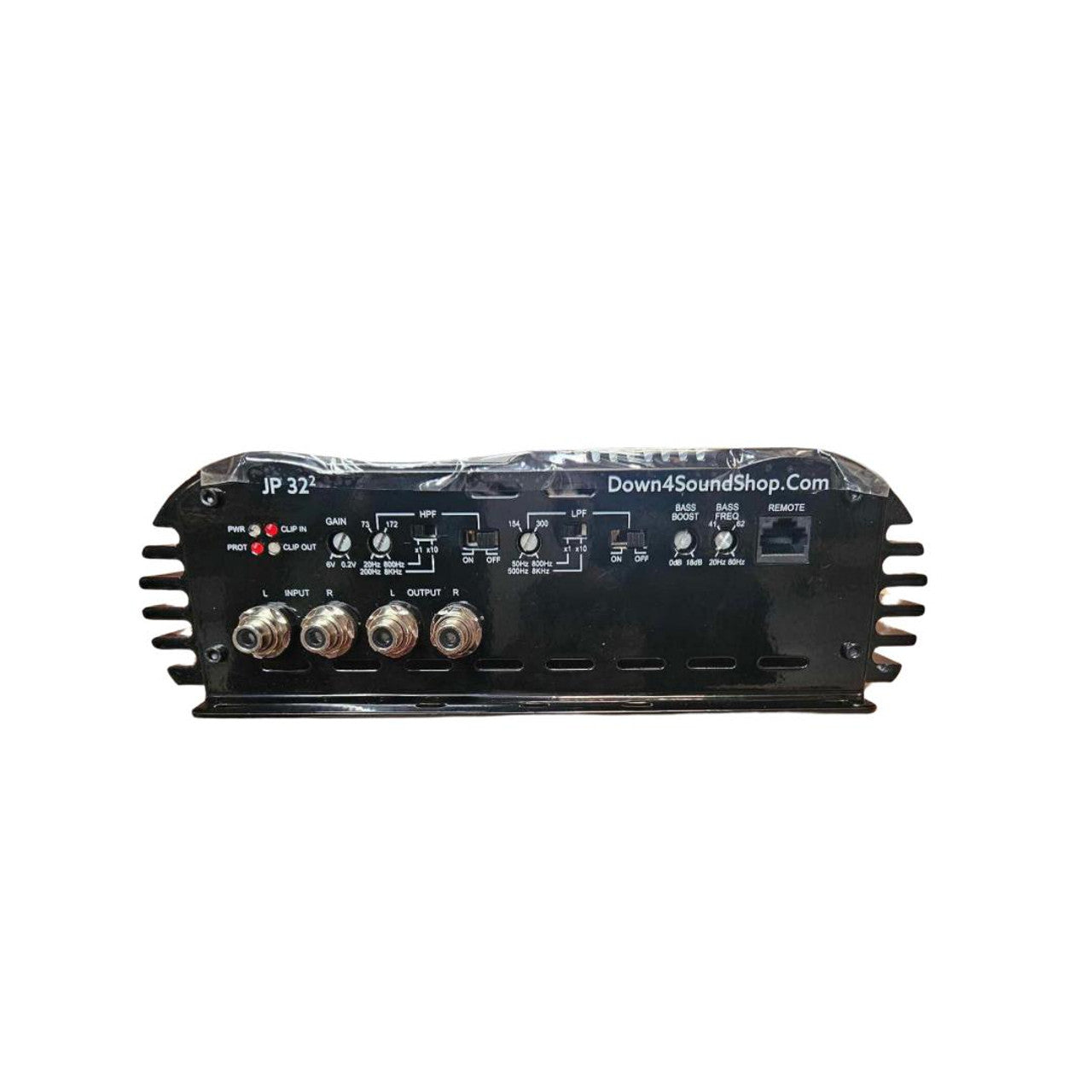

• Advanced Audio Customization: The JP32.2 comes loaded with features to tailor your sound. With variable high-pass and low-pass filters, crossover multiply x10, and band-pass filter capabilities, you're in complete control. The adjustable bass boost and frequency further allow you to dial in the perfect bass levels.

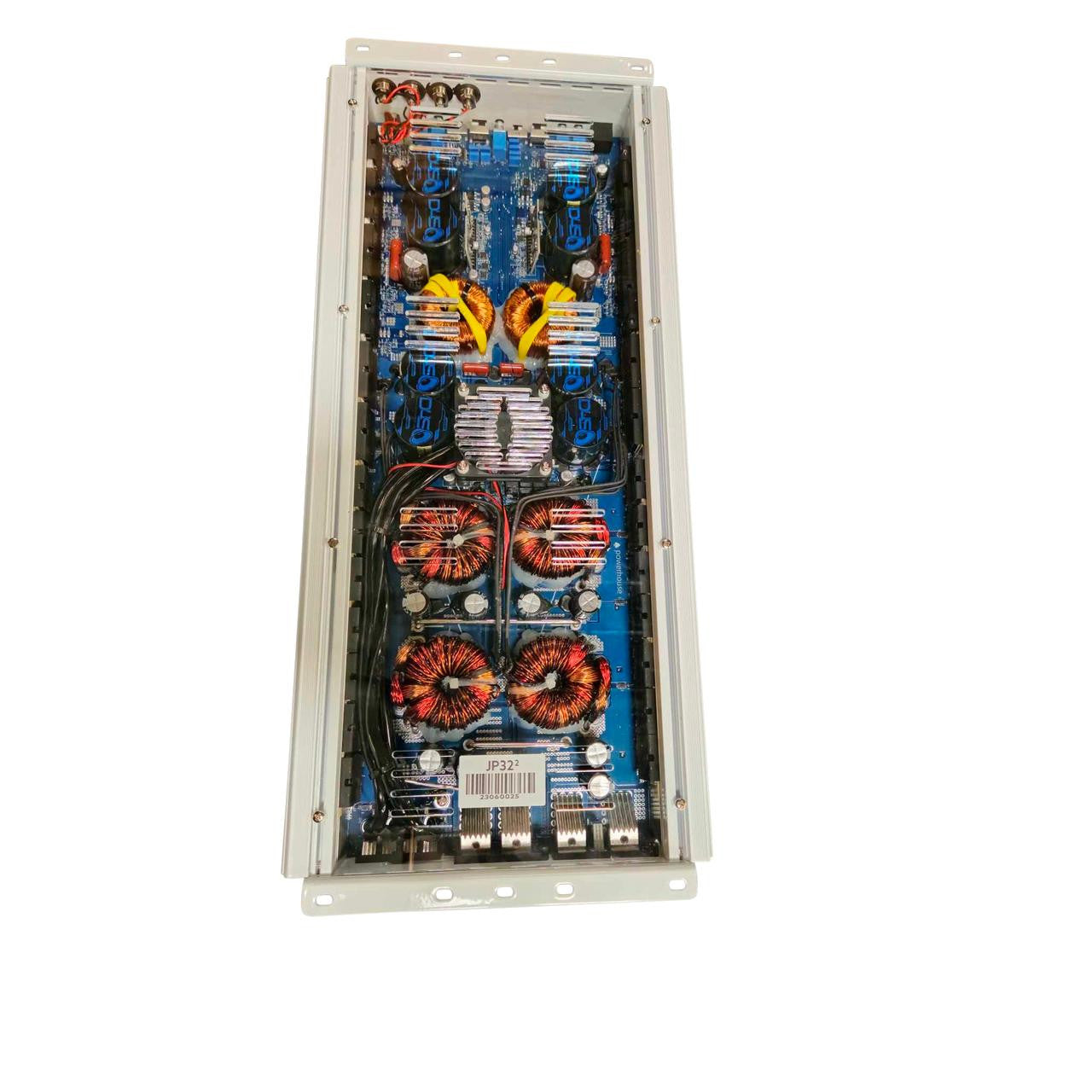

• Safety First: The JP32.2 is designed with a 4-way protection circuit to shield against overheating, voltage fluctuations, speaker shorting, and DC damage. Its high-purity copper printed circuit board guarantees reliability and longevity.

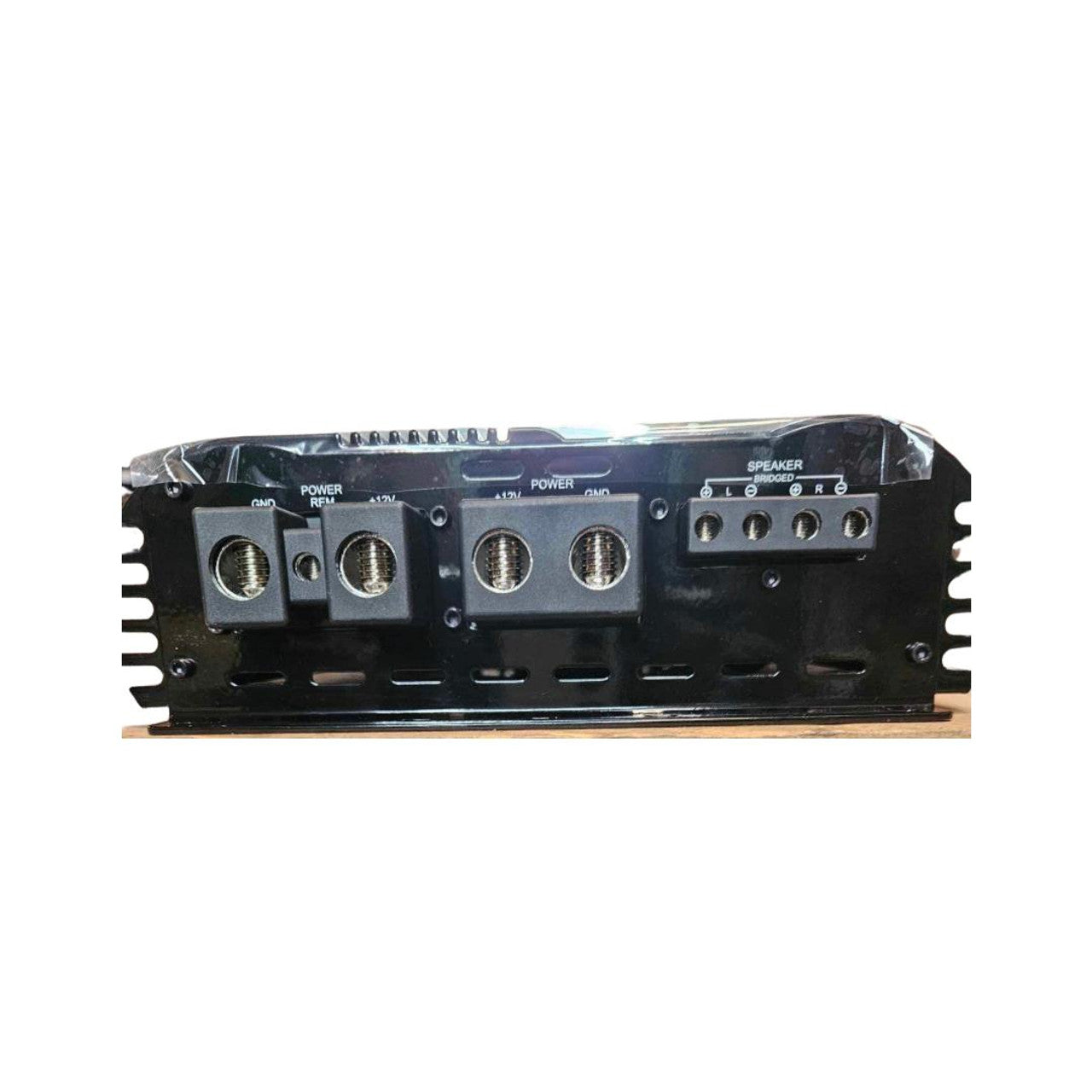

• Easy Installation: With a pair of 0-gauge power and ground terminals (2 power + 2 Grounds = 4 Total), setting up the JP32.2 is both secure and straightforward.

Clipping and Distortion Indicators

• CLIP IN: Red
• CLIP OUT: 0.5% THD (Blue), 5% THD (Violet), 10% THD (Red)

Technical Specifications

• RMS Power:
• 1 Ohm: 3200W x 2
• 2 Ohm: 2000W x 2
• 4 Ohm: 1200W x 2
• 2 Ohm Bridged: 6000W x 1
• 4 Ohm Bridged: 4000W x 1
• Frequency Response: 10 Hz - 23 kHz
• Origin: Made in South Korea
• Filters:
• High-Pass: 20 (200) Hz - 800 (8K) Hz, x1, x10
• Low-Pass: 50 (500) Hz - 800 (8K) Hz, x1, x10
• Bass Boost: 0 - 18dB
• Bass Frequency: 20Hz - 80Hz
• Input Sensitivity: 6V - 0.2V
• Signal to Noise Ratio: 80dB
• THD @ 4 Ohm: 0.1%
• Working Voltage: 9V - 14.8V
• Fuse Rating: 500A
• Dimensions: 19.68" L x 9.37" W x 2.71" H
• Inputs: 4 - 0 gauge

Additional Features

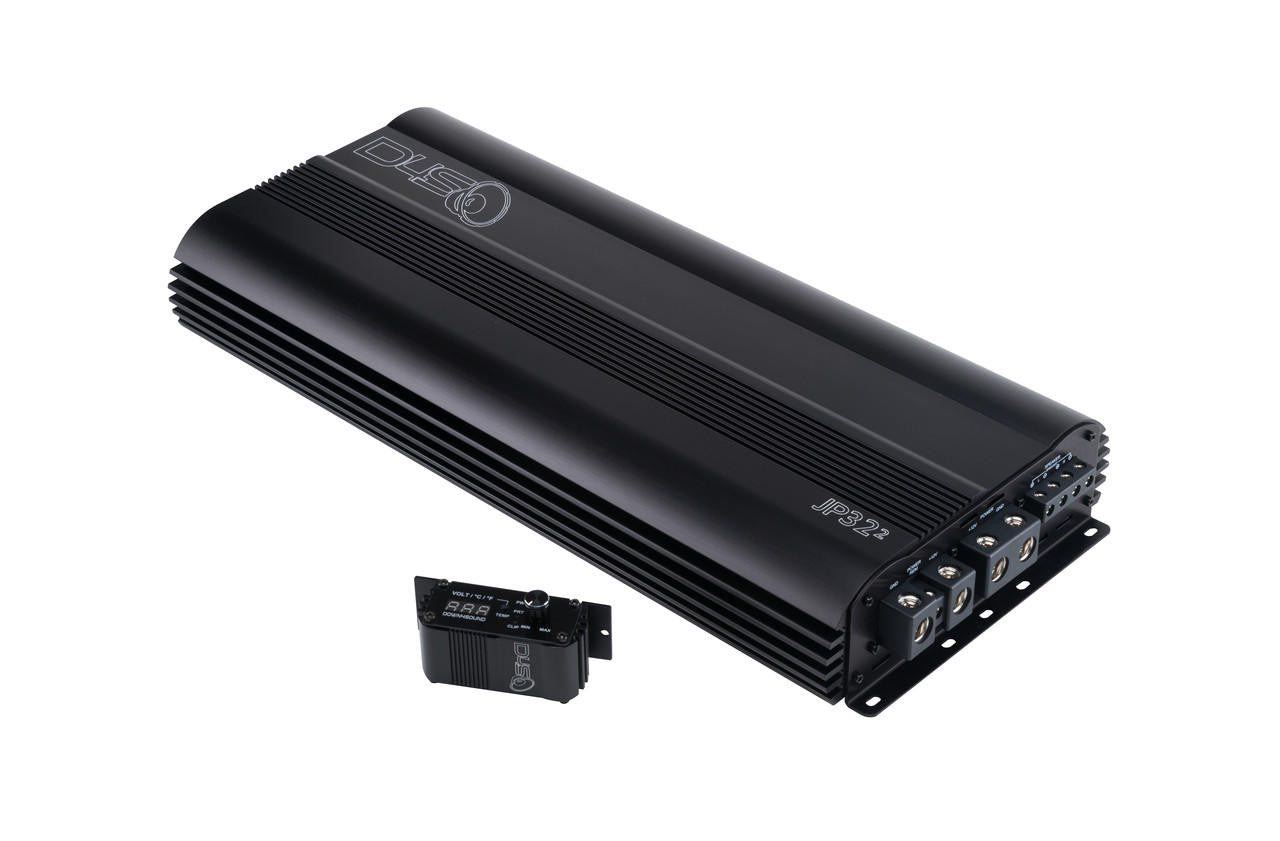

• Wired Metal Bass Knob: This included feature showcases Power, Clip, Protect, and Voltage indicators.

Important: To harness the full potential of the JP32.2's 6000W RMS, a robust electrical system is mandatory. Please note that issues arising from weak electrical systems are not covered under warranty.
