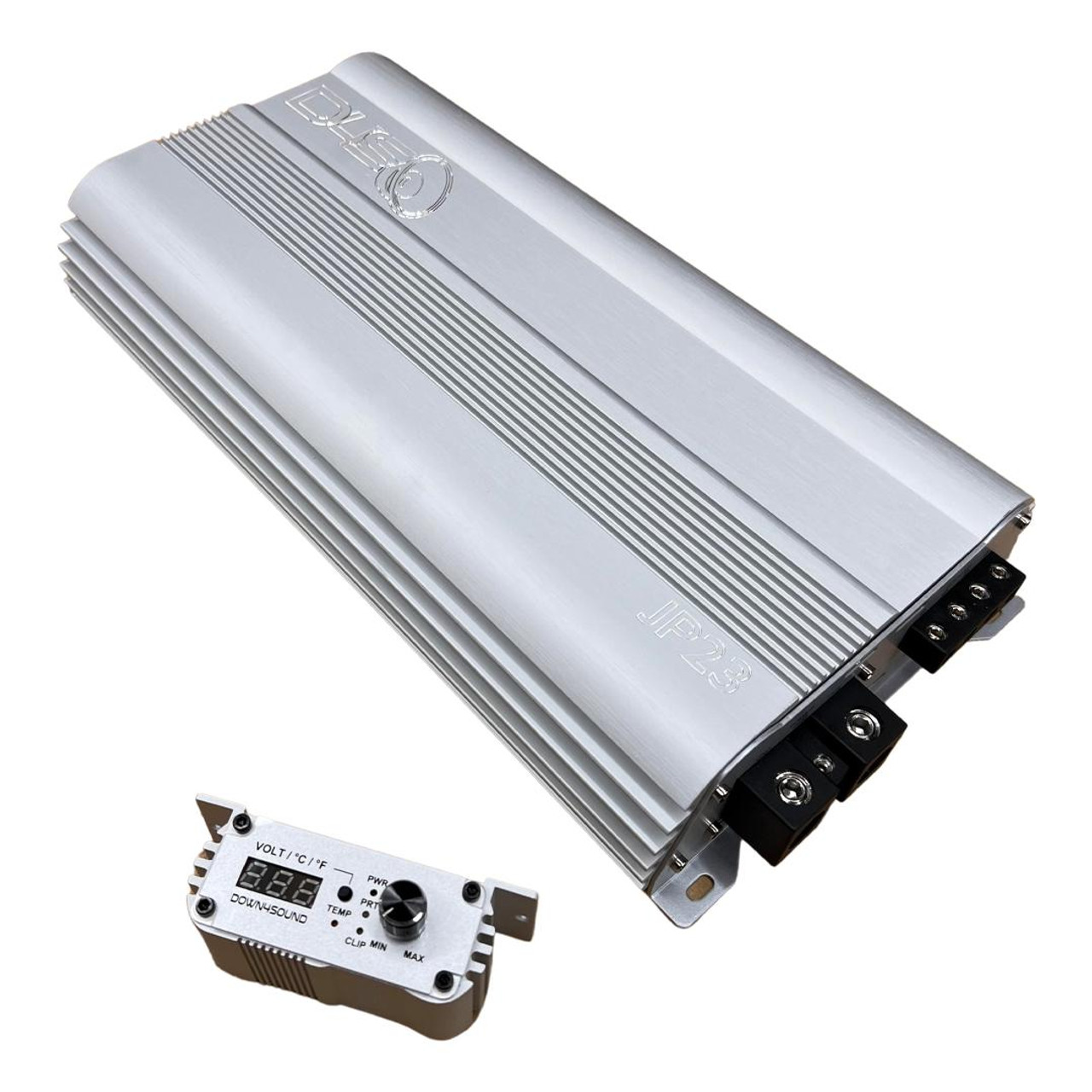

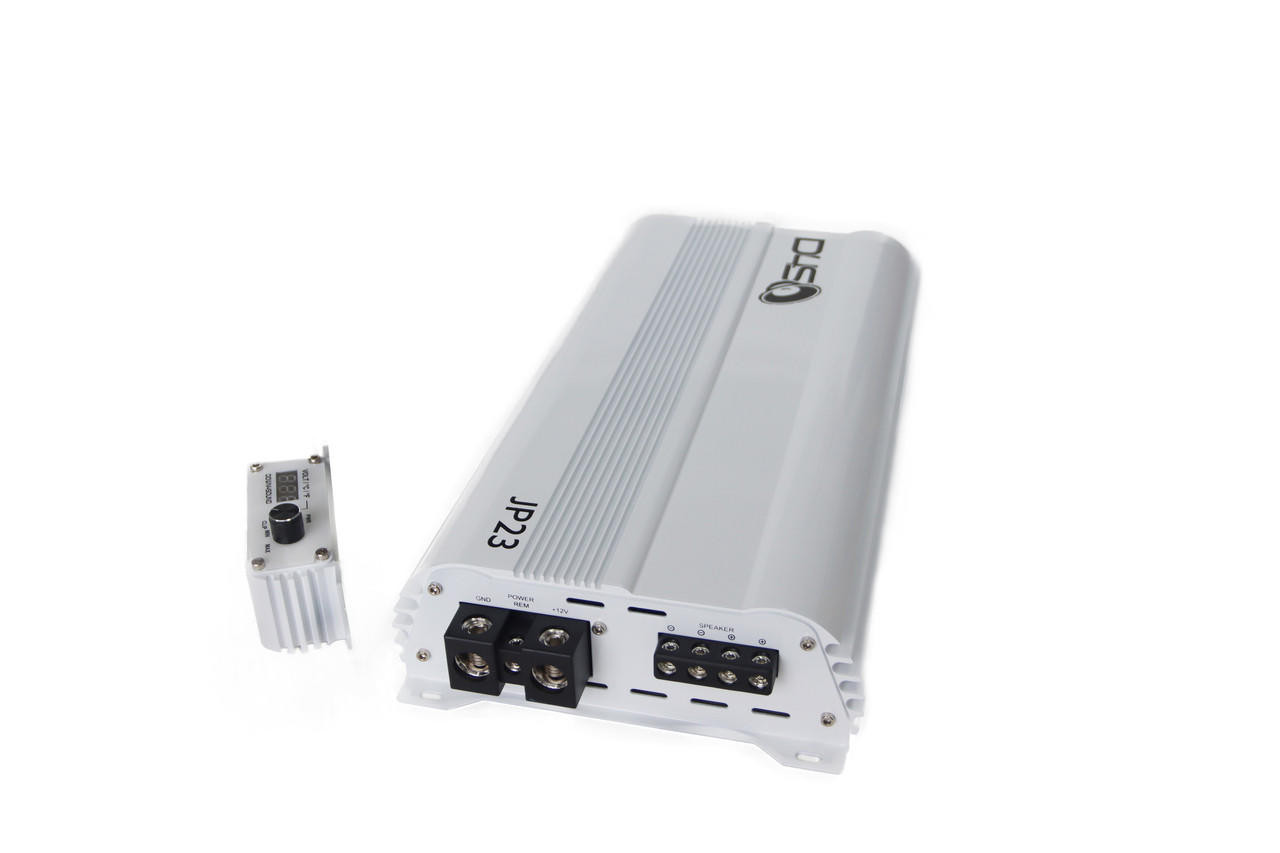

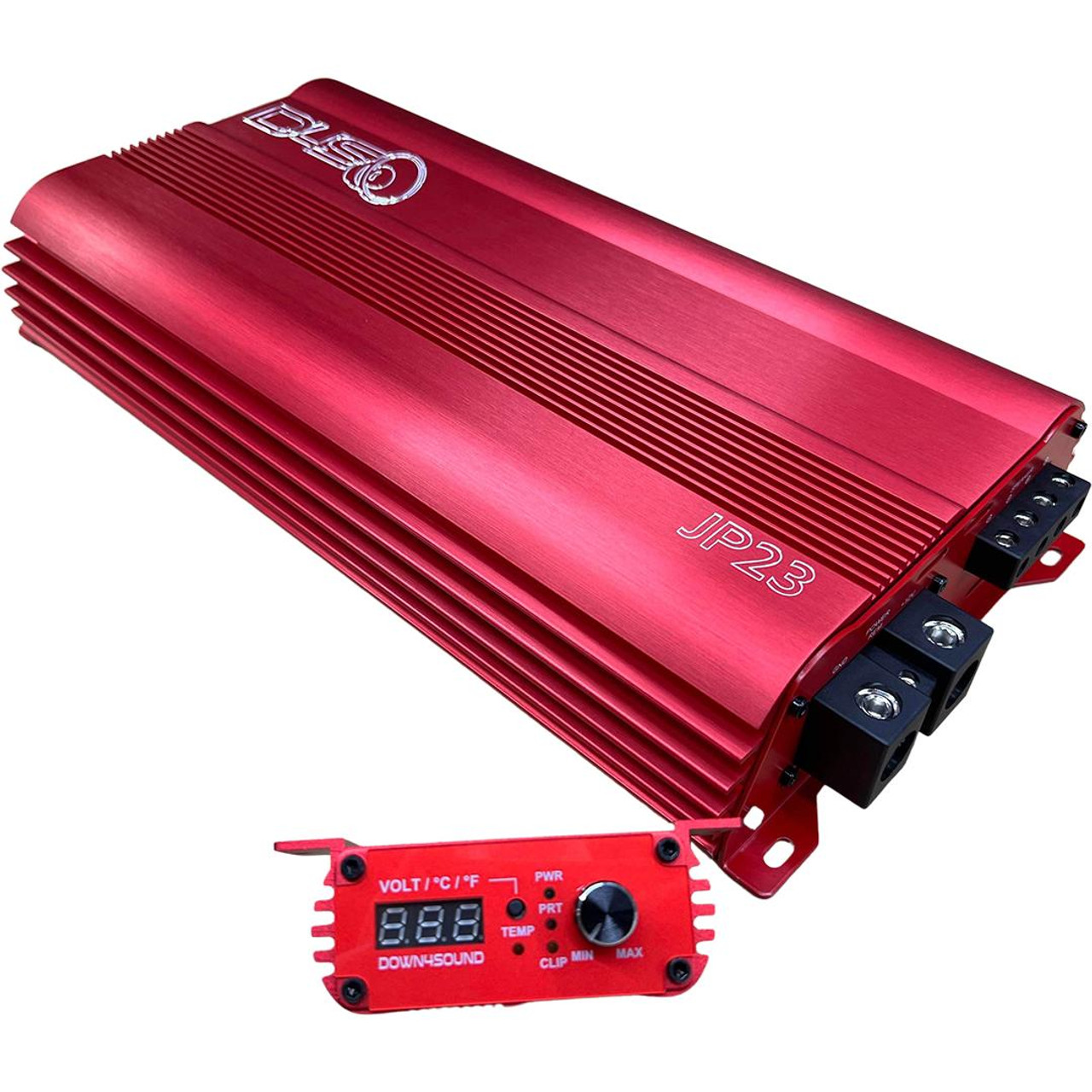

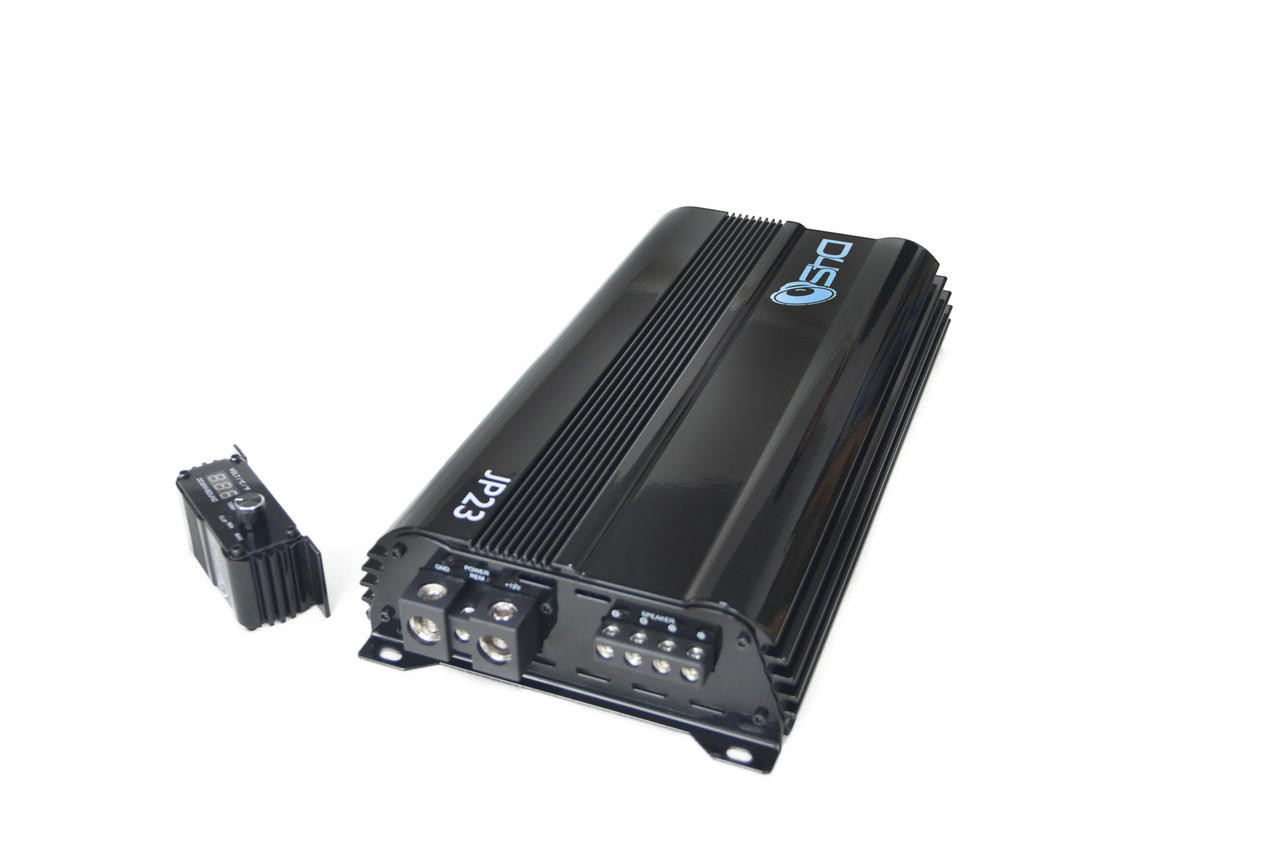

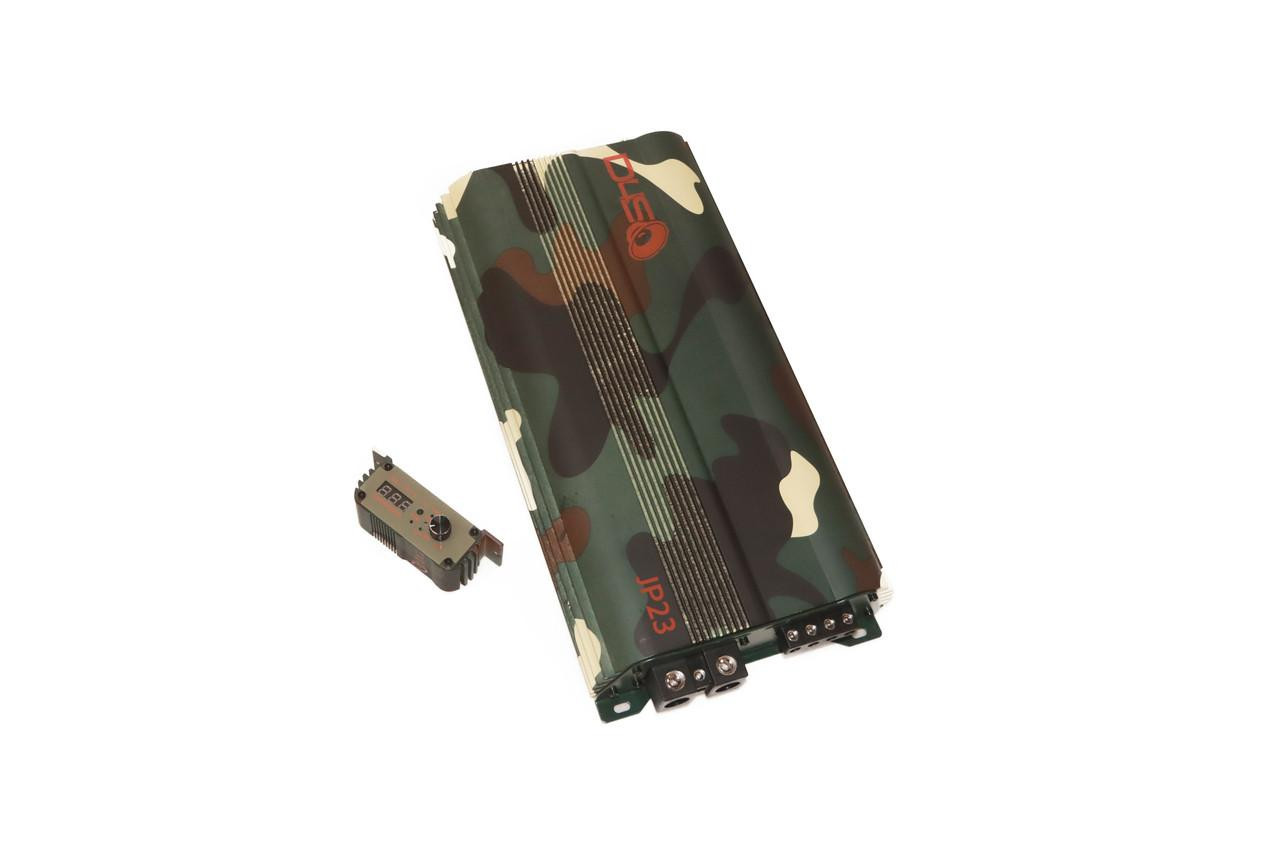

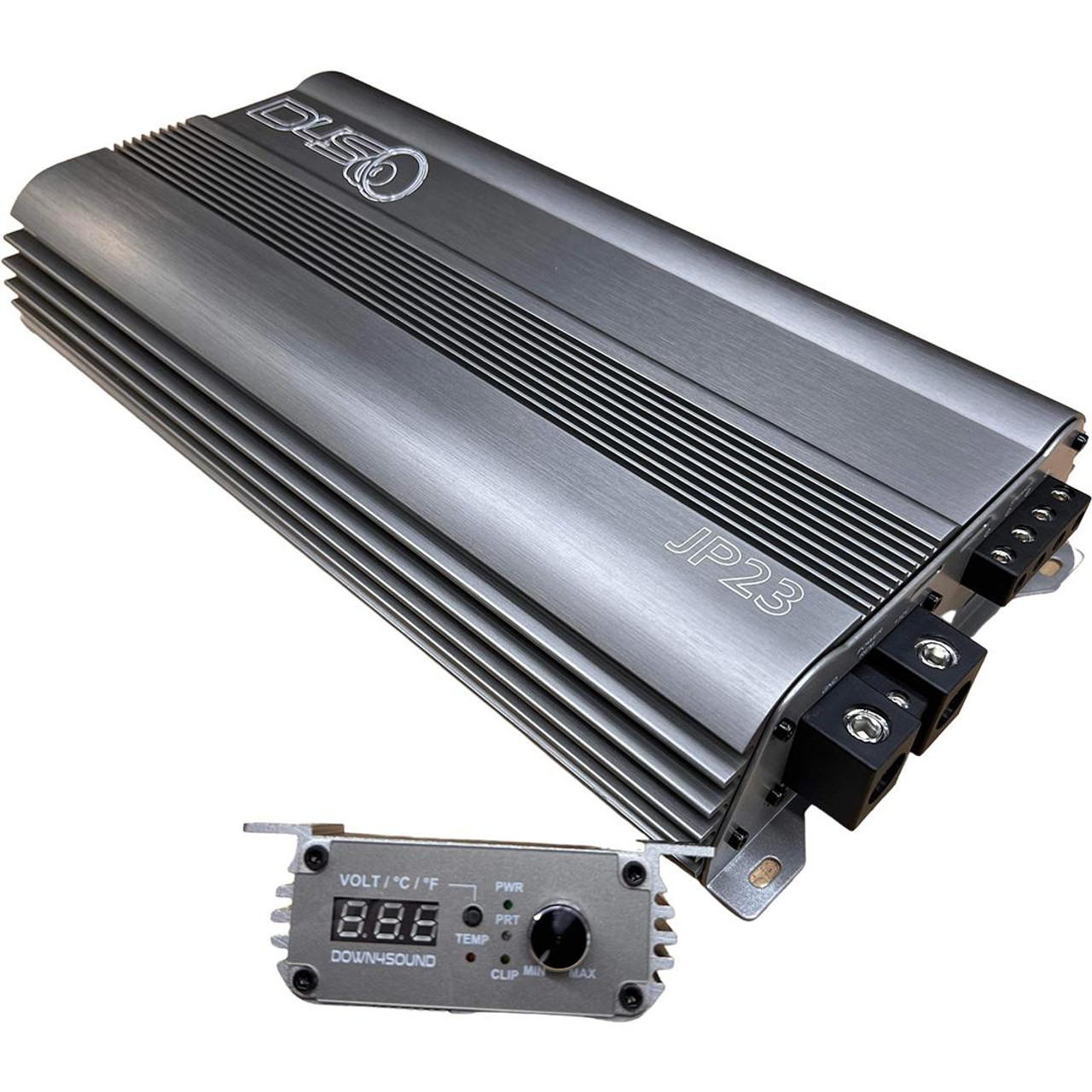

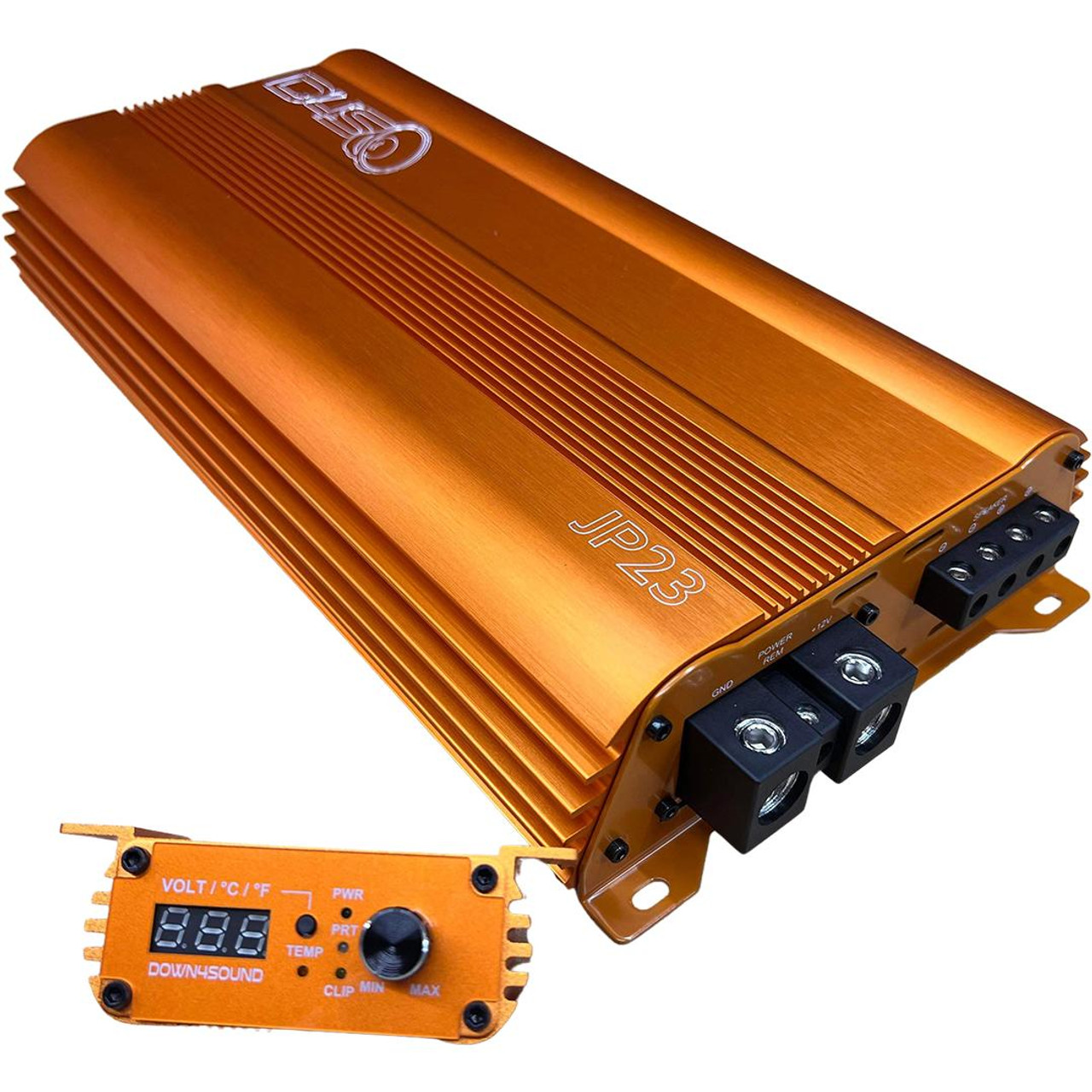

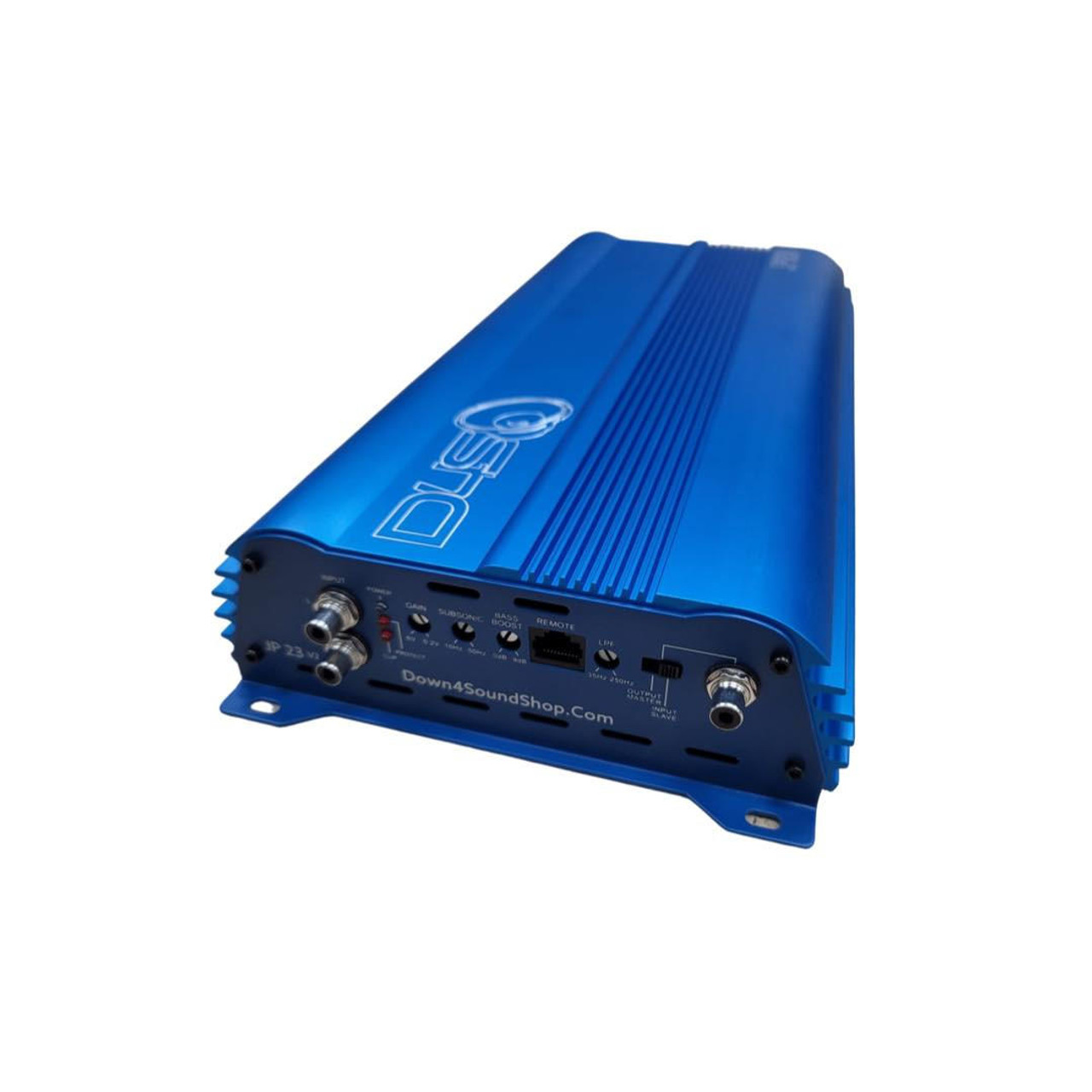

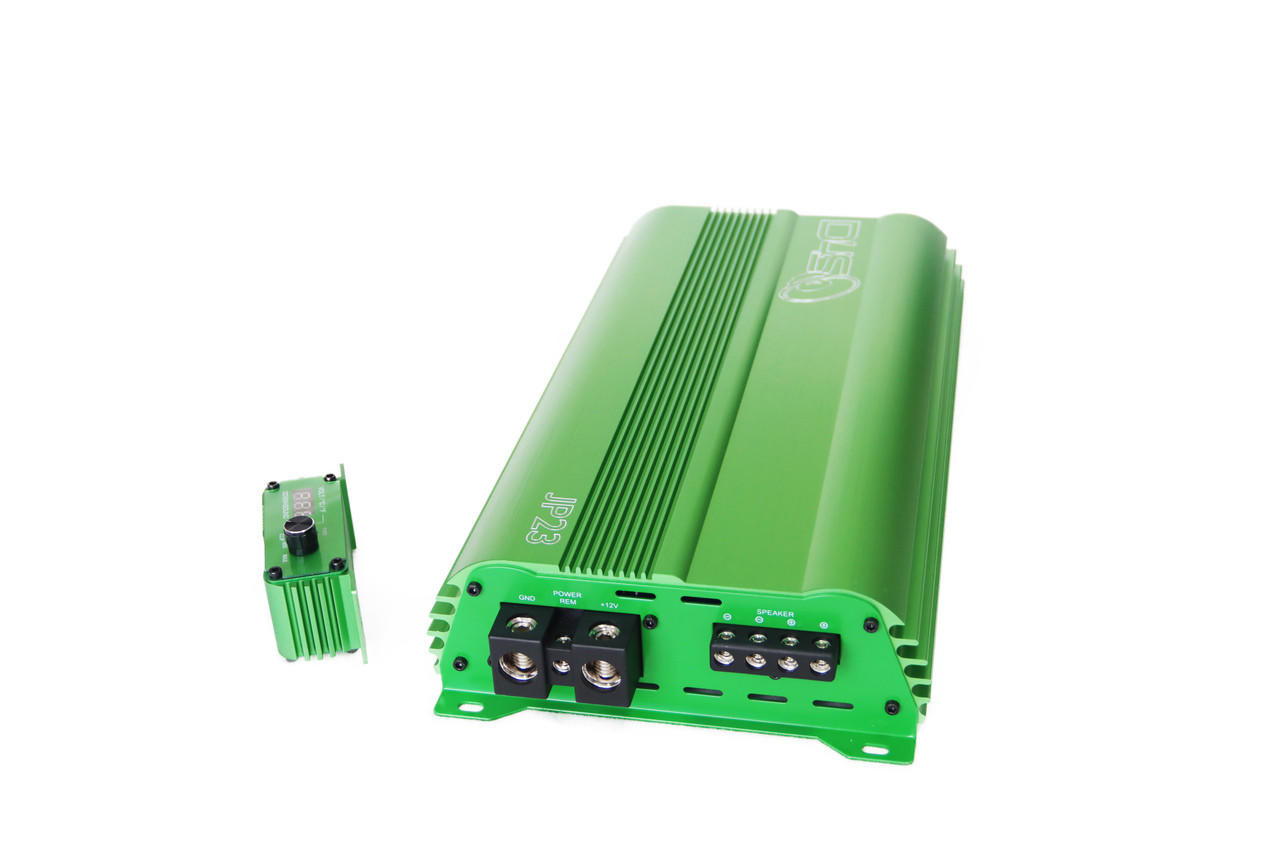

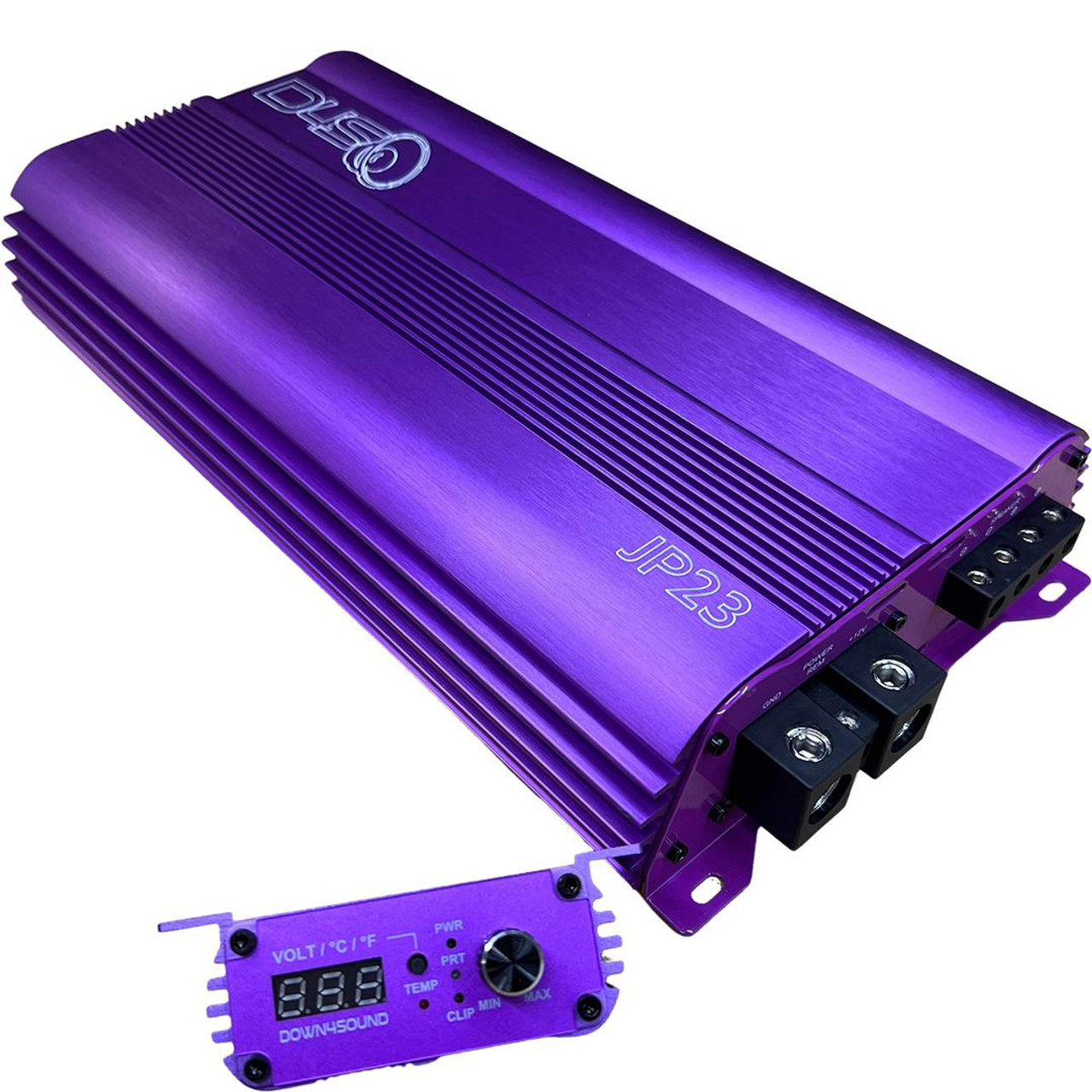

2800x1 (2800W RMS) 1CH AMPLIFIER JP23v2

Experience unparalleled power and performance with the DOWN4SOUND JP23 V2, Amplifier. Meticulously engineered in Dunnellon, FL, and Las Vegas, NV, this compact powerhouse delivers an impressive 2800W RMS at 1-ohm, making it perfect for enthusiasts seeking top-tier sound quality in their car audio systems. Its 23% smaller footprint than the predecessor (JP 23 V1.5) allows for versatile installations without sacrificing power.

Key Features:

High Power Output: 2800W RMS at 1 ohm ensures robust and clear audio performance.
Compact Design: More space-efficient than previous models by 23%, making installation easier in various vehicle setups.
Enhanced Cooling System: Features high-speed cooling fans to maintain optimal performance without overheating.

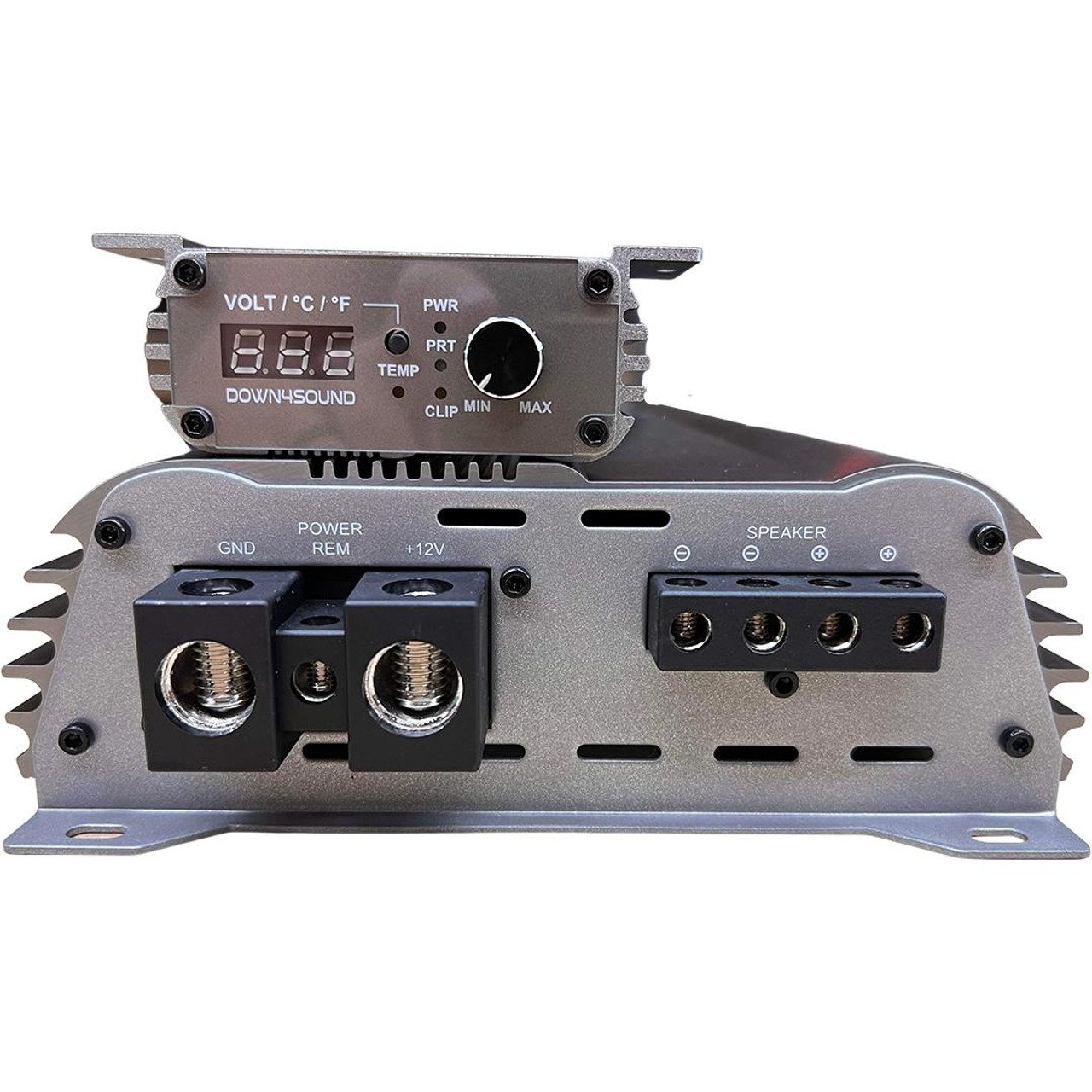

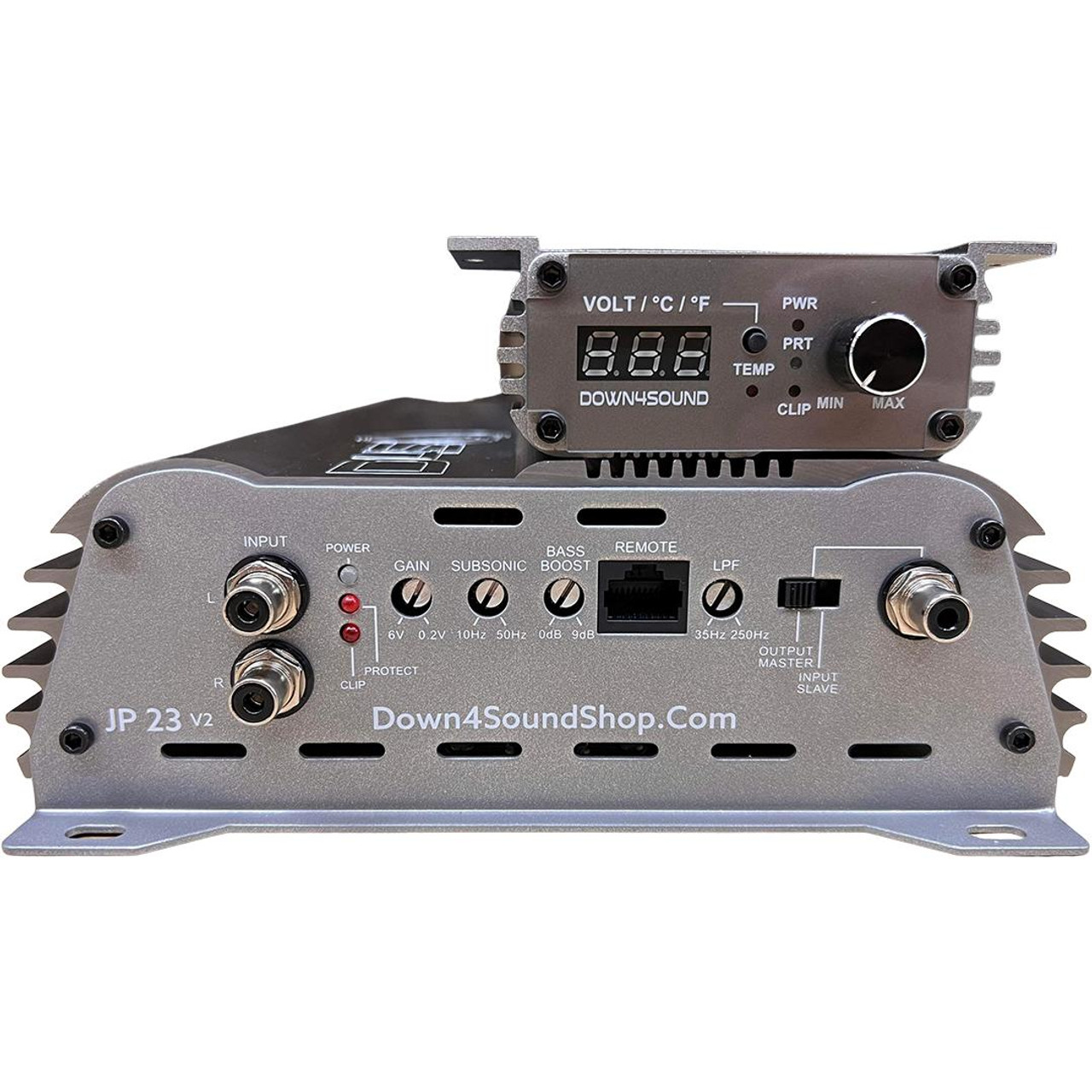

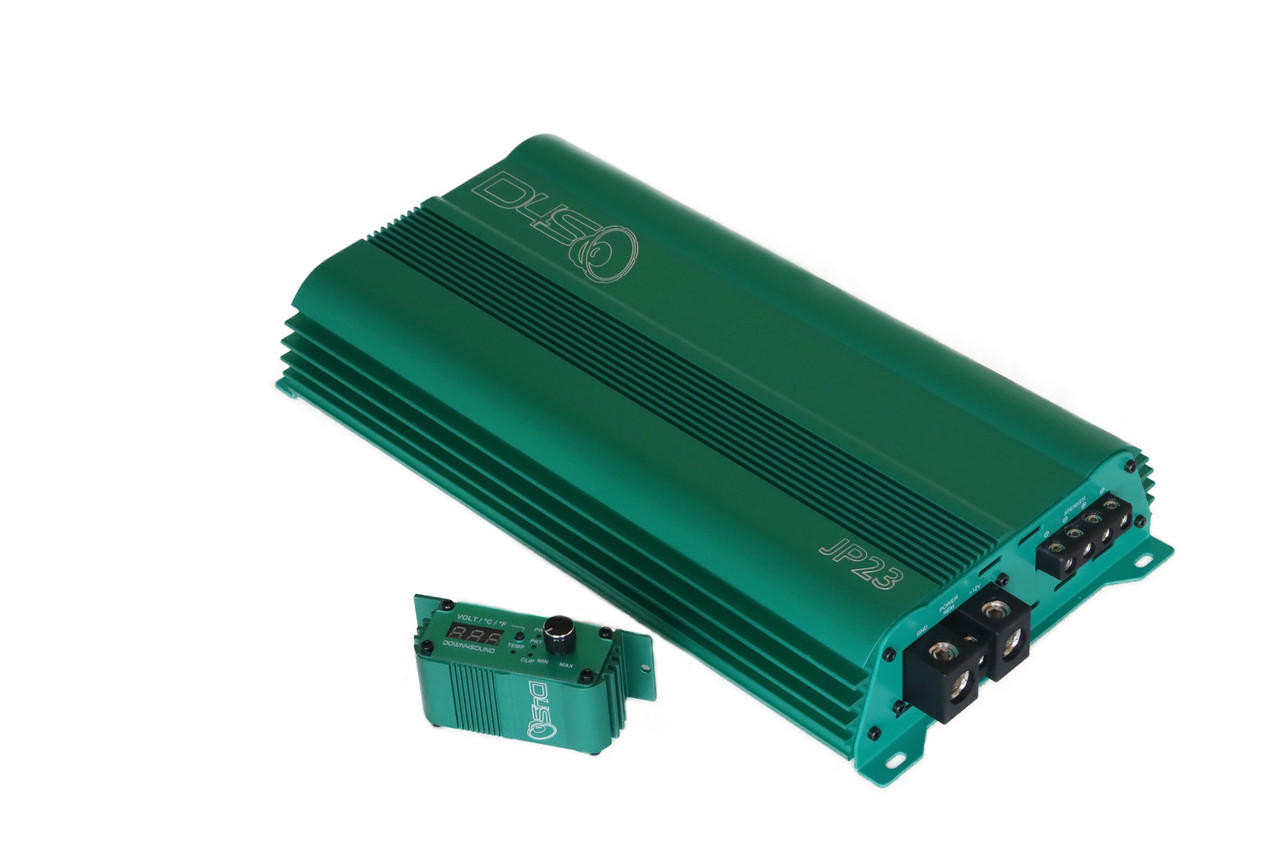

Sleek Aesthetics: Comes in a stylish teal finish with a matching aluminum bass knob. Integrated indicators display power, clip, protect, voltage, and temperature statuses.

Technical Specifications:

Power Ratings:
- 1 Ohm: 2800W x 1 @ 14.4V
- 2 Ohms: 1800W x 1 @ 14.4V
- 4 Ohms: 800W x 1
- 2 Ohm Linked: 5600W x 1
Voltage Range: 9 to 15.5 Volts
Tuning and Sound:
- Low Pass Filter: 35Hz - 250Hz
- Frequency Response: 10Hz - 270Hz
- Subsonic Filter: 10Hz - 50Hz
- Bass Boost: 0-9 dB
- Input Sensitivity: 6V - 0.2V
- Signal to Noise Ratio: 97dB
- Total Harmonic Distortion: <0.1% @ 4 ohms

Safety and Durability:

Protection Circuits: Includes Thermal, High & Low Voltage, Speaker Short, and DC protections.
Cooling: Advanced thermal management with quiet, high-speed fans.
Build: Robust construction with a plexiglass backplate for a premium look and feel.

Dimensions:

Length: 13.38 inches
Width: 7.40 inches
Height: 2.24 inches

Warranty:

Comes with a 1-year standard warranty.

Elevate your car audio to new heights with the DOWN4SOUND JP23 V2 Amplifier – where power meets precision in a stylish, compact package. Unleash the full potential of your sound system with unmatched clarity and power.
