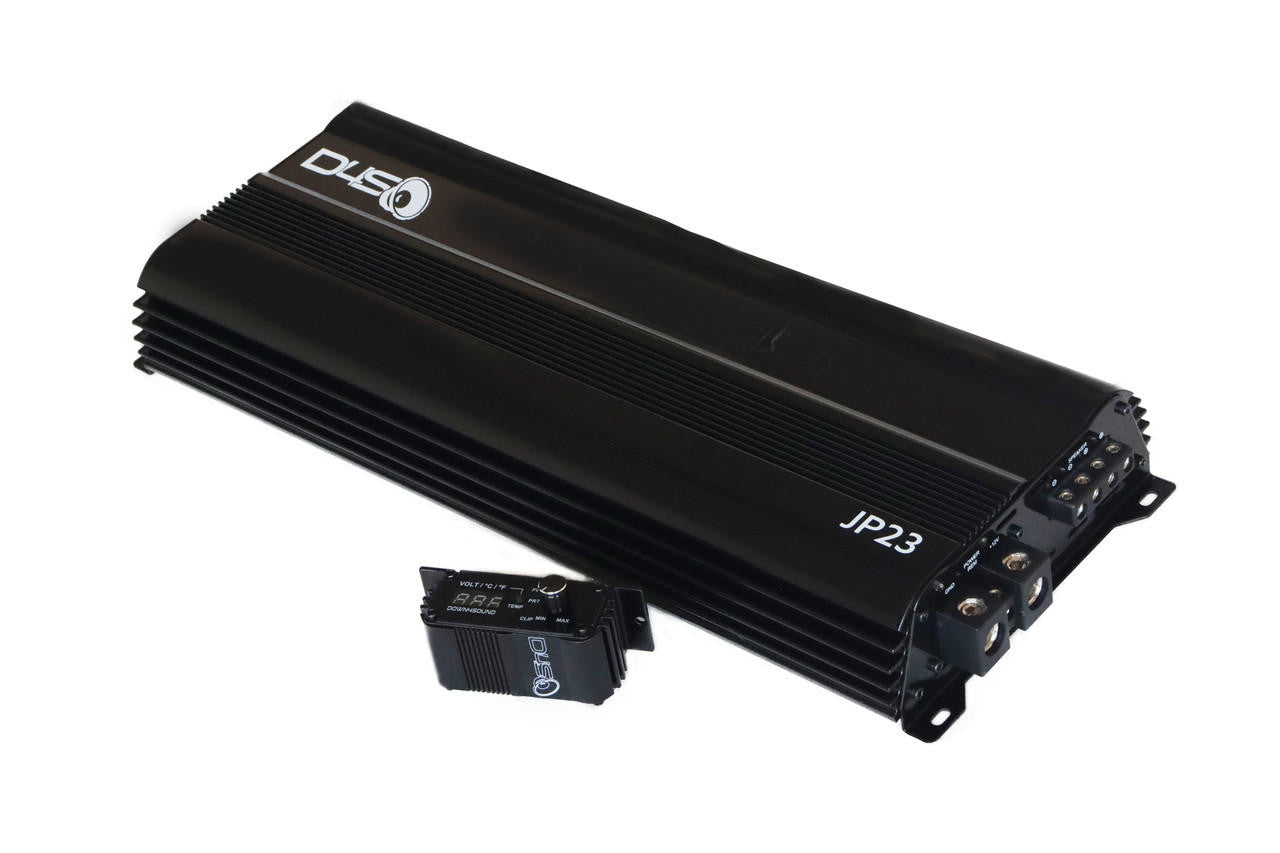

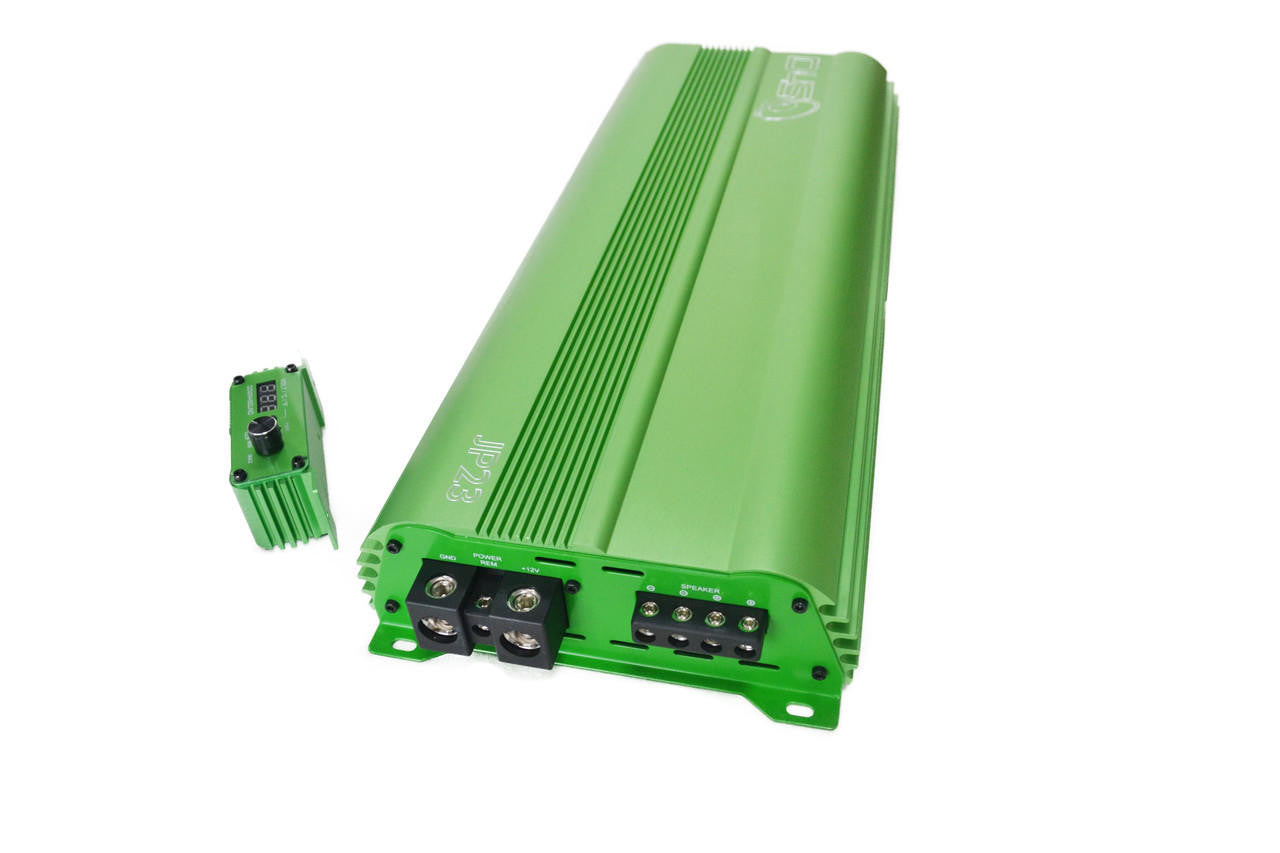

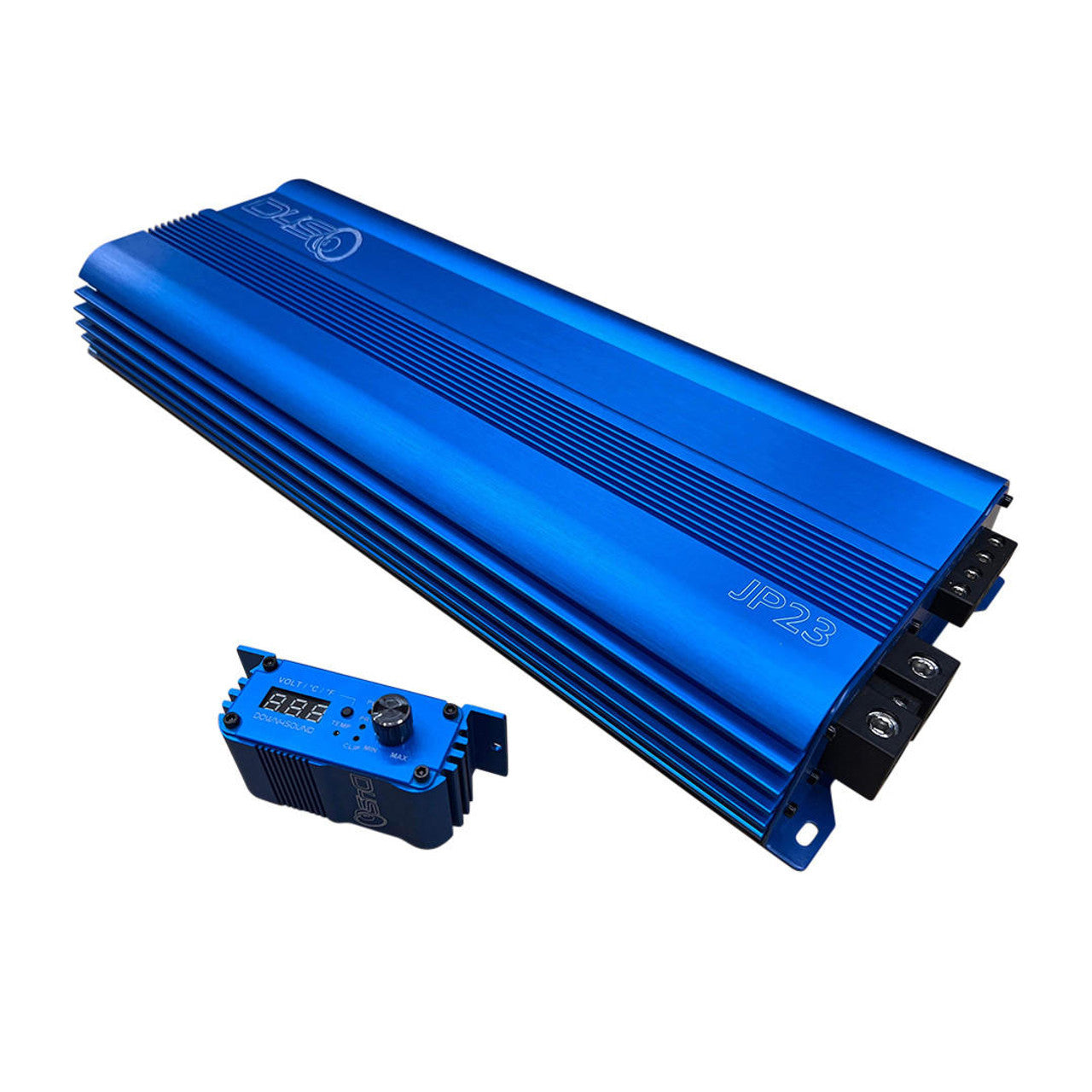

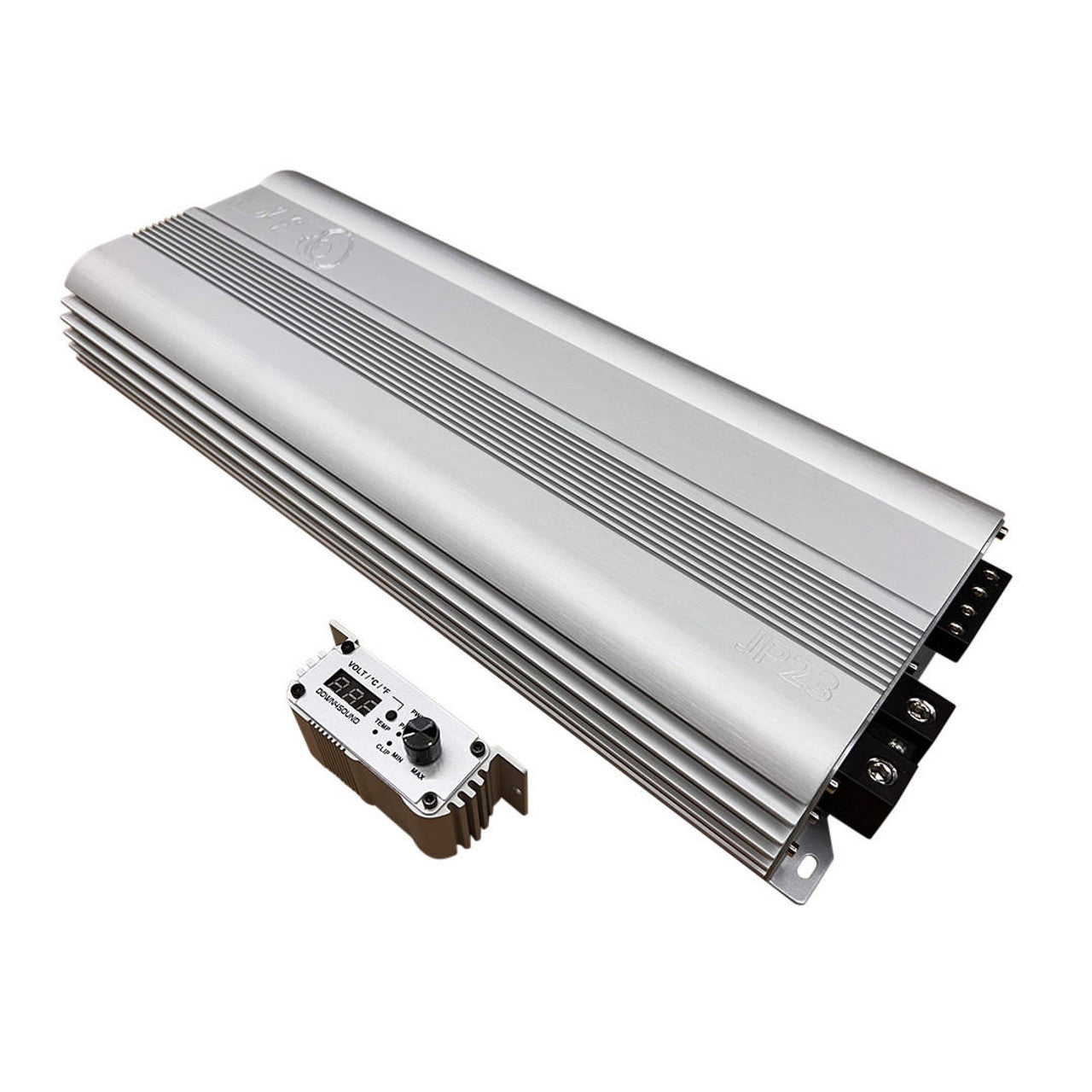

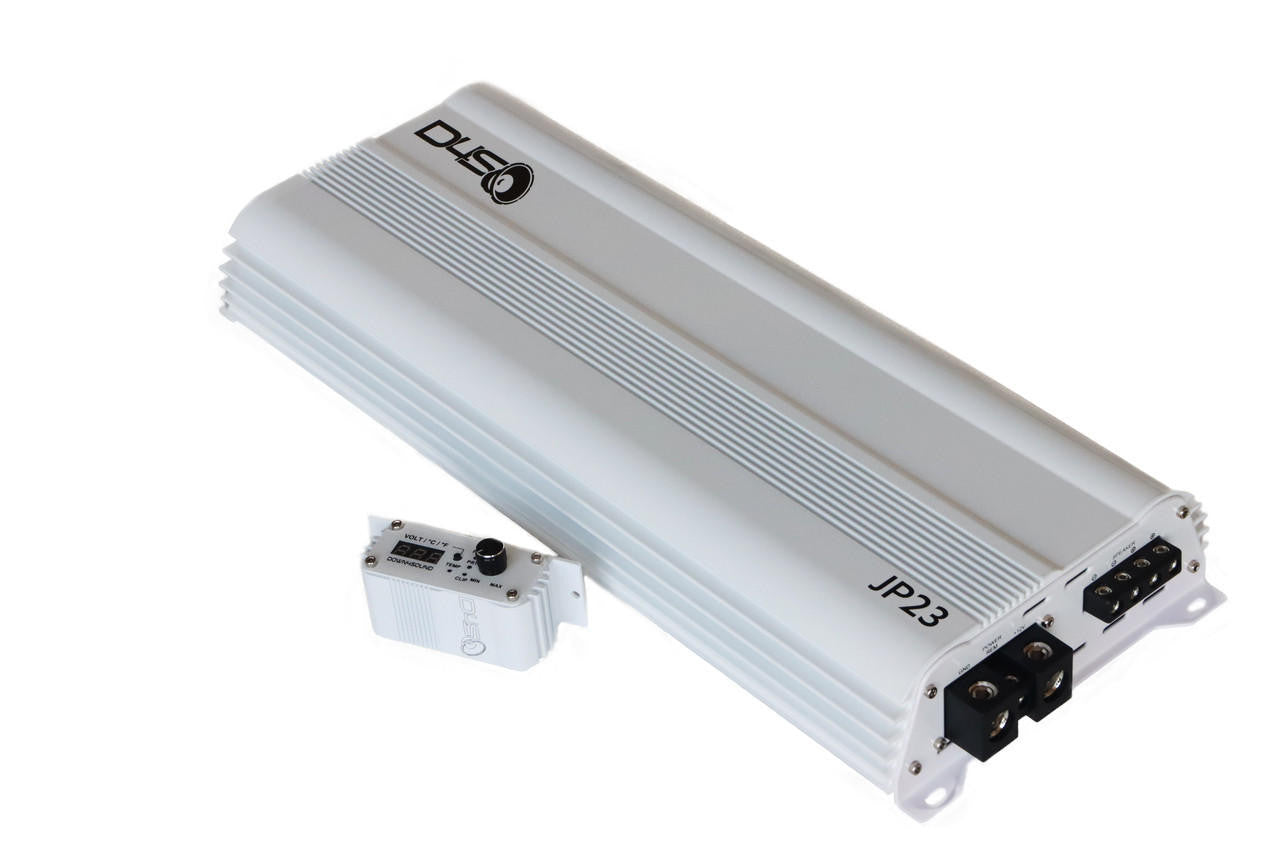

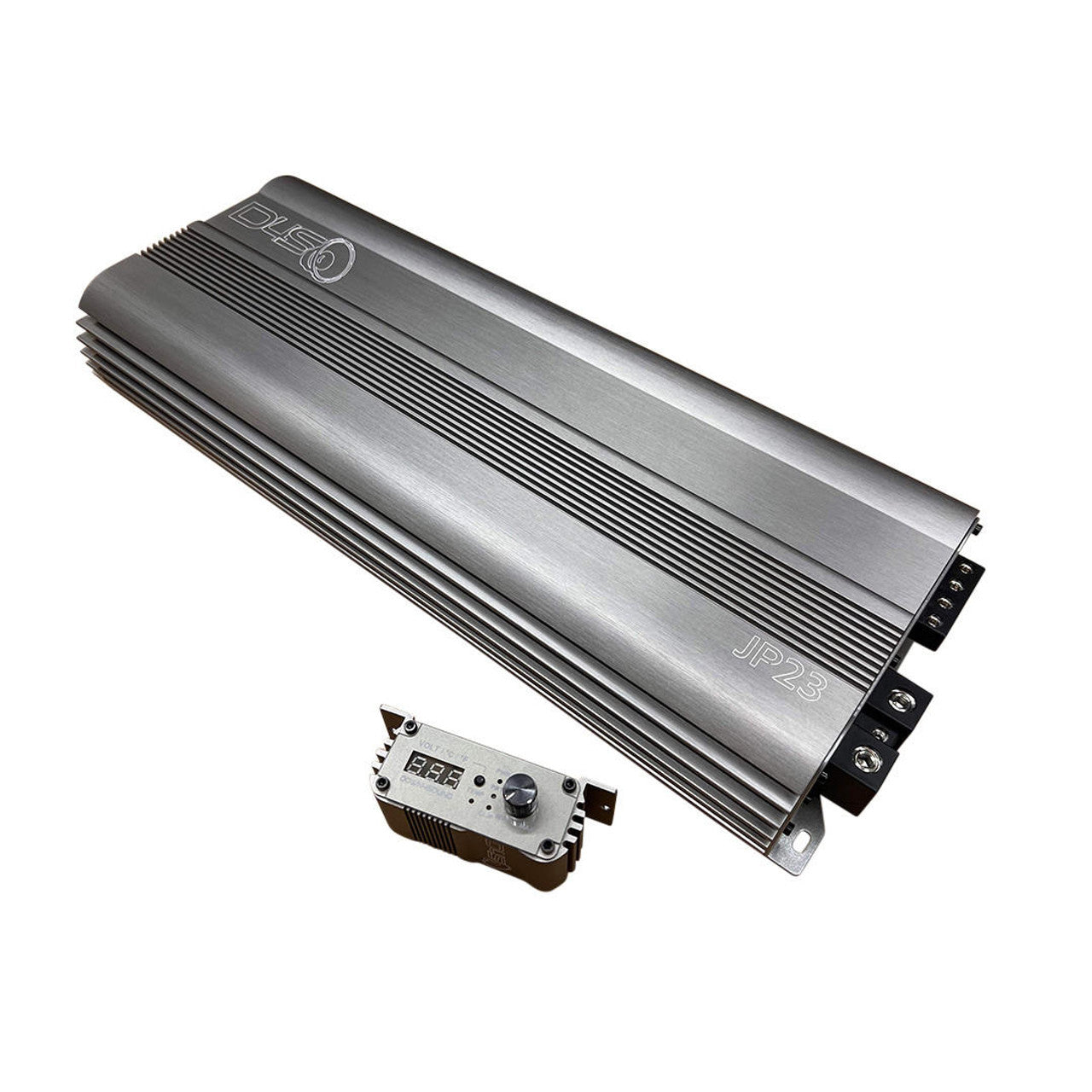

2300x1 (2300W RMS) 1CH AMPLIFIER JP23v1.5

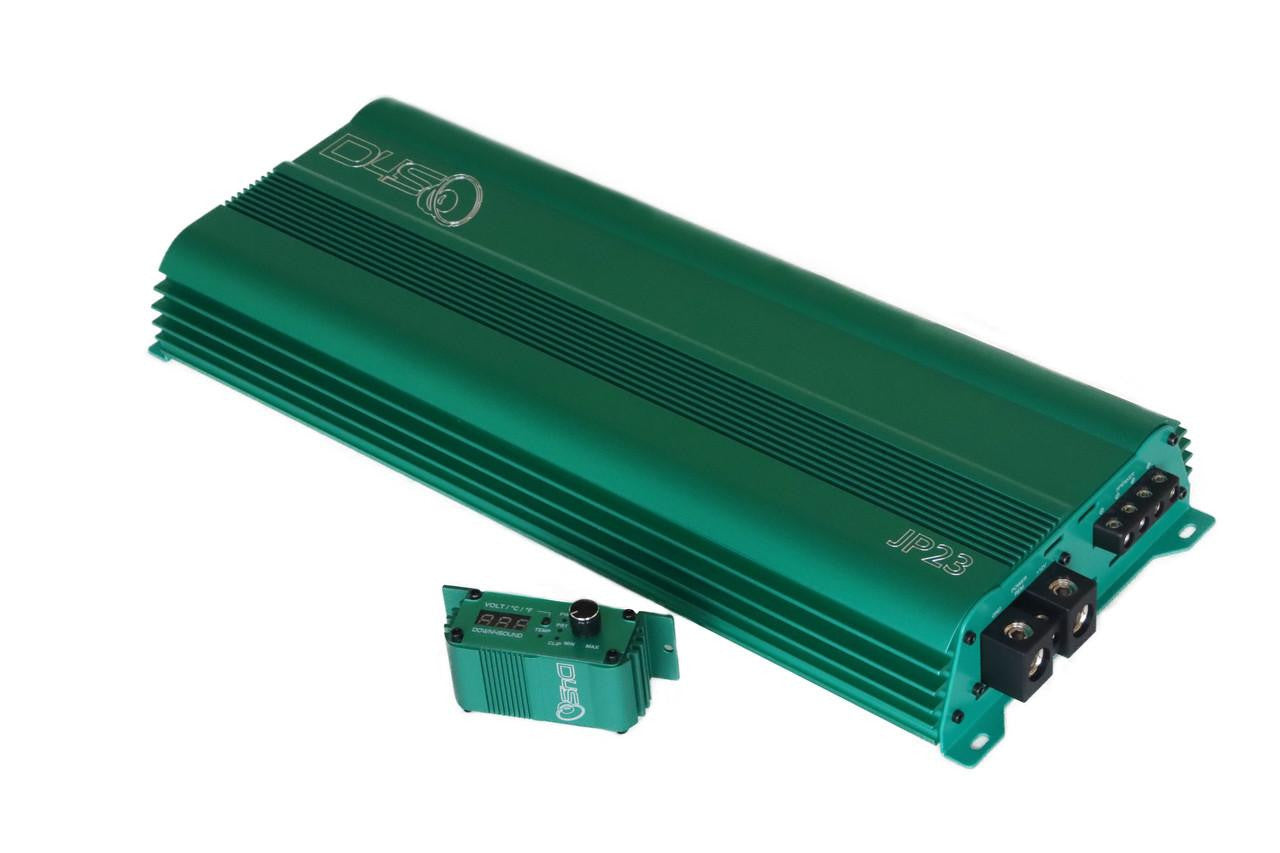

Passionate masterminds at Down4Sound from Dunnellon, Florida, Las Vegas, Nevada, and South Korea have meticulously designed and engineered the DOWN4SOUND JP23 v1.5  Amplifier. This 2300W powerhouse is crafted using the finest parts available on the market, ensuring it offers the best bang for the buck to all music lovers. After selling hundreds of thousands of units in black, we’ve listened to your feedback and introduced this exquisite model in a vibrant teal finish, making it a standout choice for those seeking exceptional audio performance.

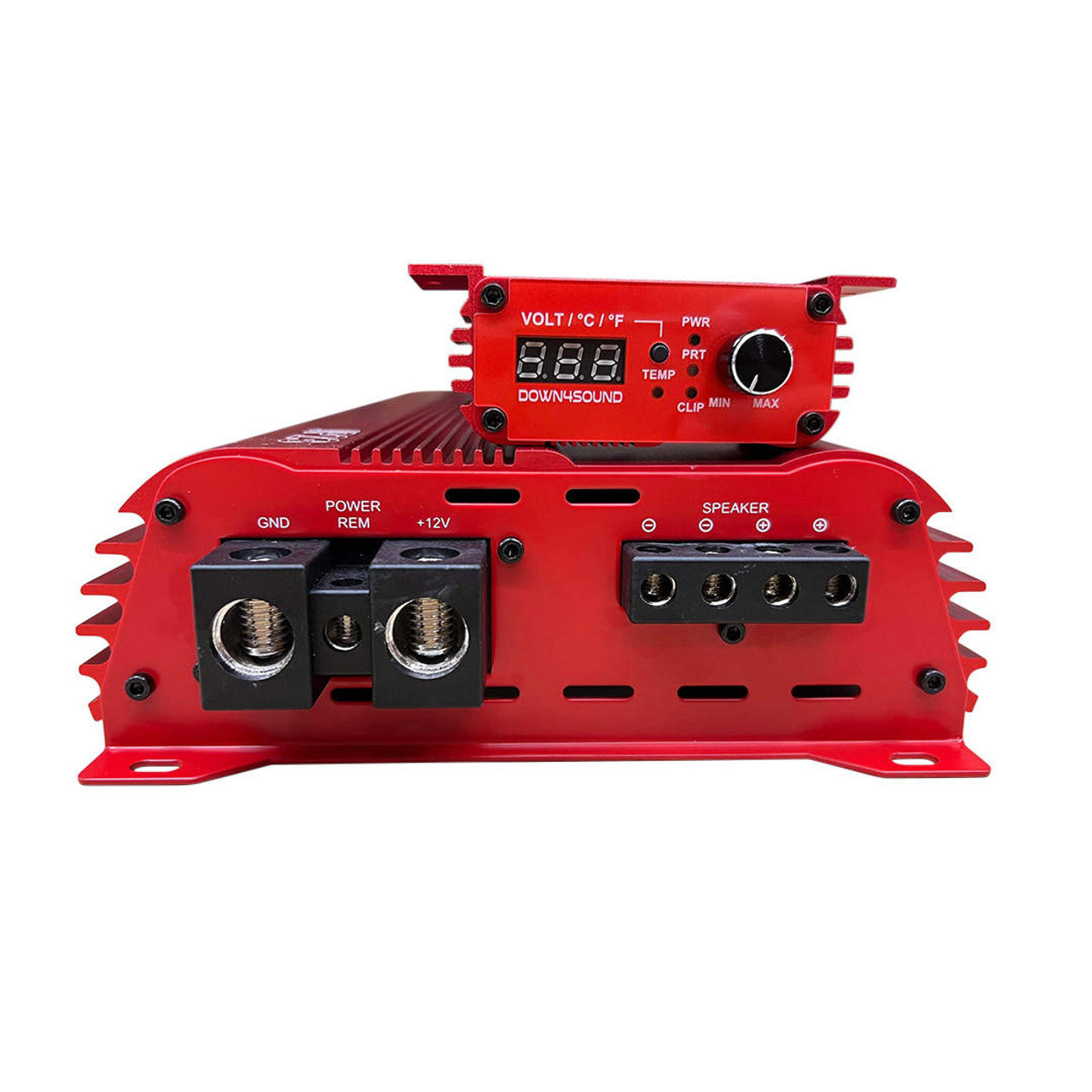

The amplifier comes with a wired aluminum bass knob in matching color, equipped with power, clip, protect lights, and a display for voltage and temperature, ensuring you have full control and monitoring capability over your audio experience.

Technical Highlights

Power Output:

• 1ohm: 2000W @ 12v | 2300W @ 14.4v
• 2ohms: 1000W @ 12v | 1300W @ 14.4v
• 4ohms: 700W @ 12v
• 2ohm Linked: 4900W @ 14.4v

Frequency Spectrum: 10Hz - 250Hz
Cooling: Innovatively designed to keep the amplifier cooler for longer periods, ensuring sustained optimal performance.
Voltage Range: 9 to 15.5 Volts
Class: D - DIGITAL

User Advantages

• Sound Tailoring: Unleash the perfect sound with comprehensive customization options.

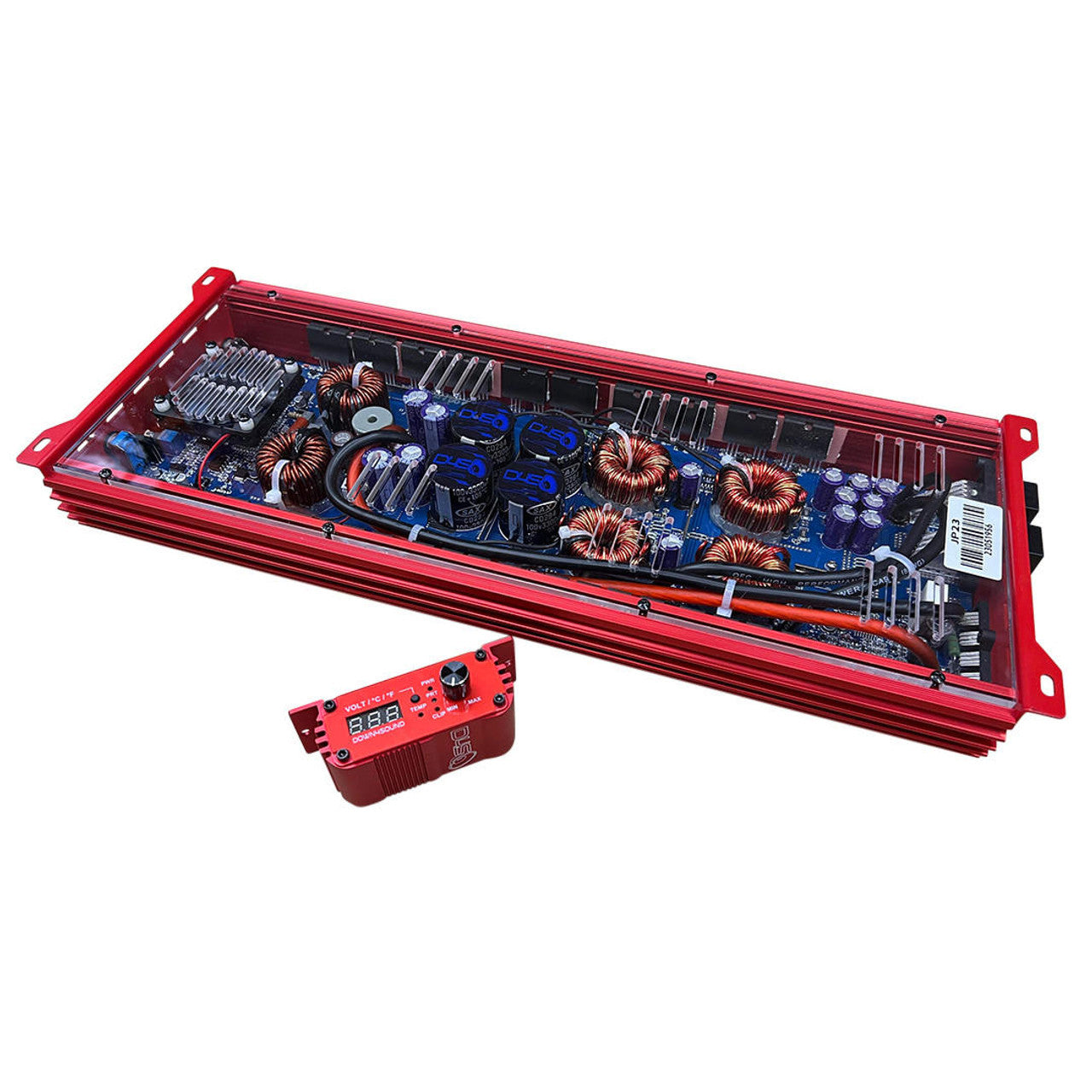

• Design: Experience a sleek and functional retro design that stands out. The backplate of the amplifier is made of thick plexi, allowing you to see through and view the internals.
• Warranty: 1-year warranty, and consider the optional extended warranty for 0.5-ohm usage.

Detailed Specifications

Tuning and Sound:

• Low Pass Filter: 35Hz - 250Hz
• Subsonic Filter: 10Hz - 50Hz
• Bass Boost: 0 - 9 dB
• Signal to Noise Ratio: 88dB <
• T.H.D @ 4ohm: <0.1%

Fuse Rating:

• Single unit - 200A, Strapped - 400A

Dimensions: 17.71" L x 7.32" W x 2.24" H
