Description
Description

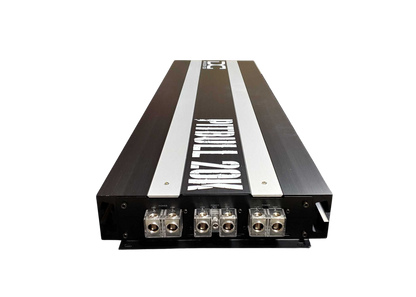

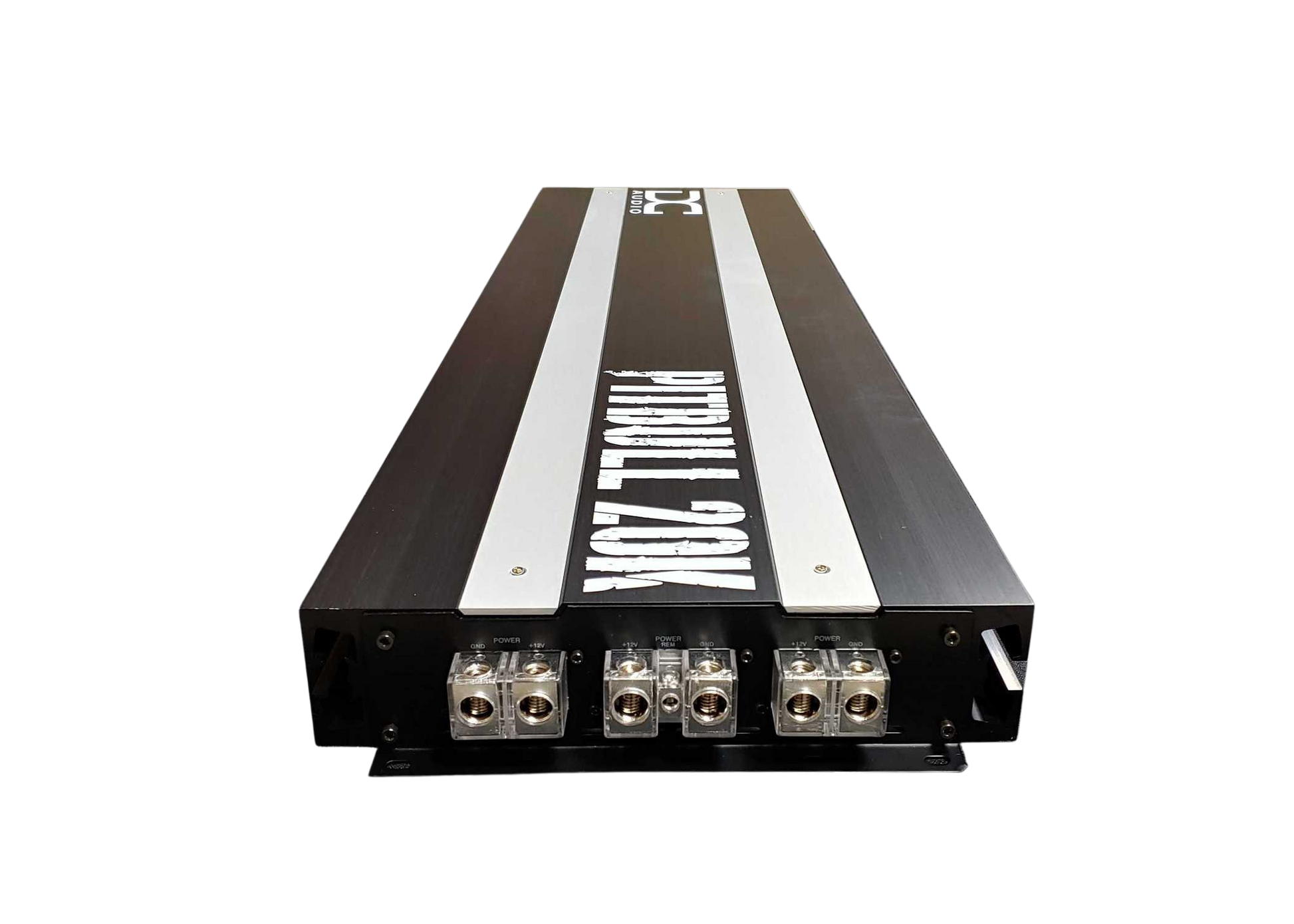

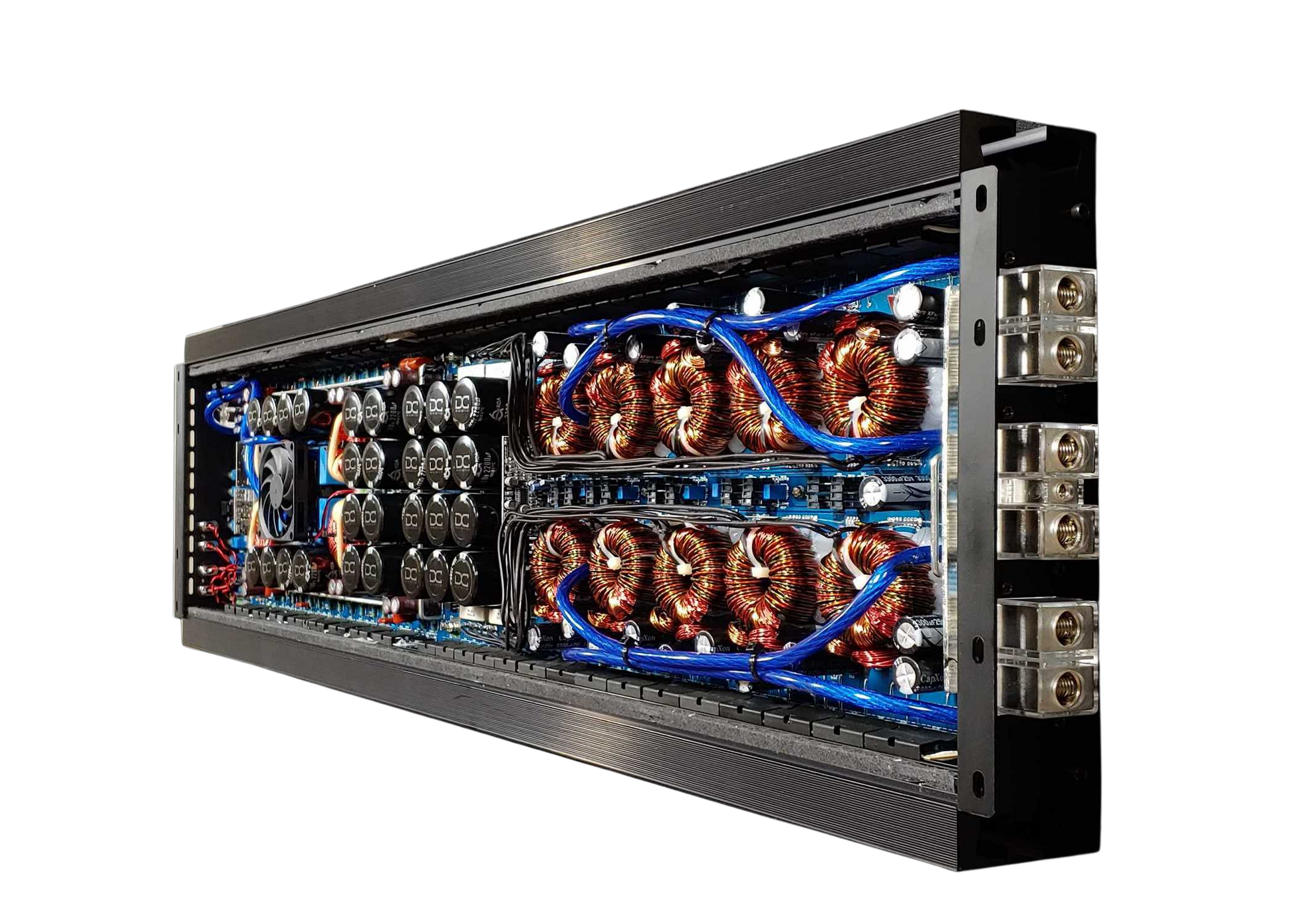

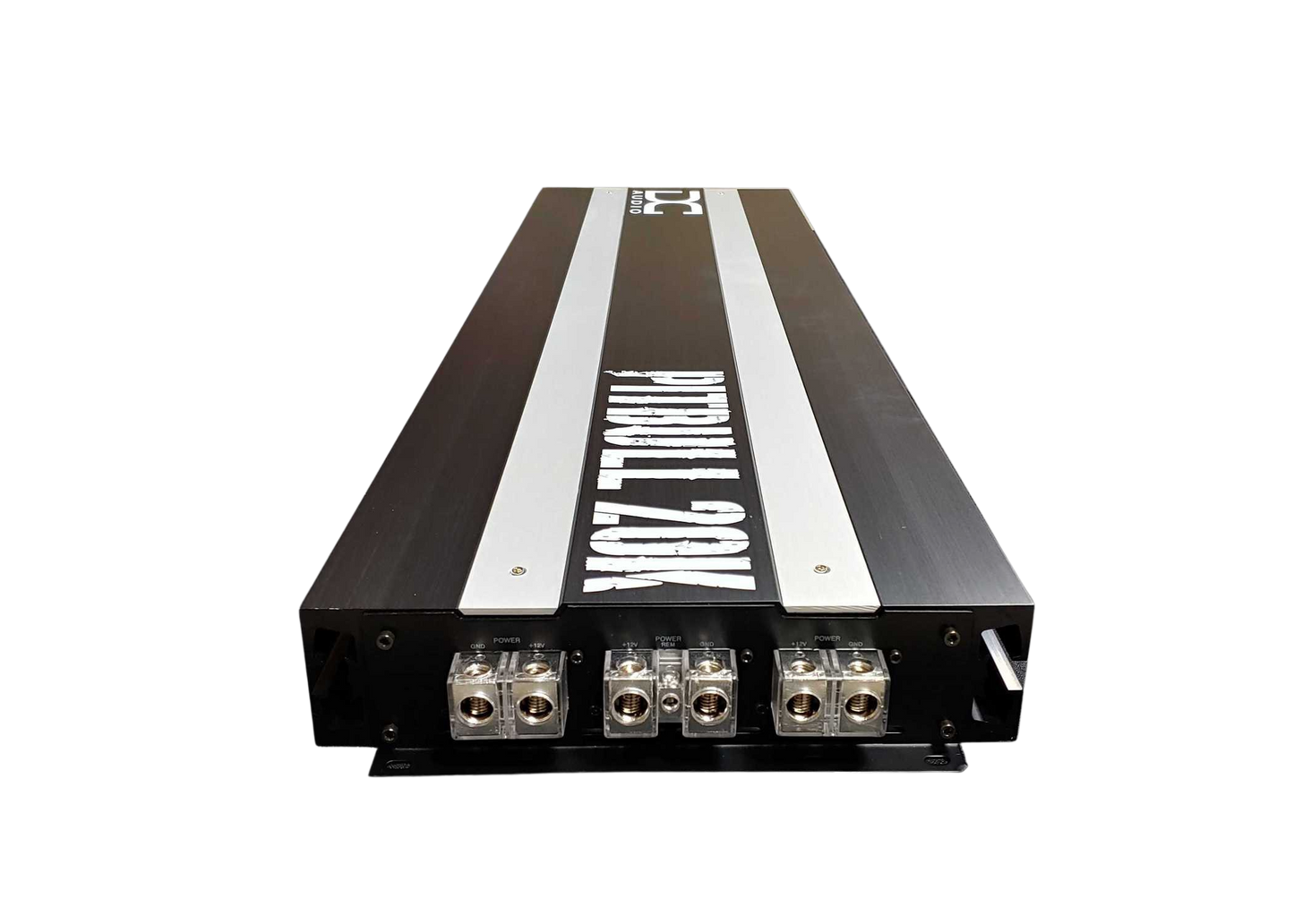

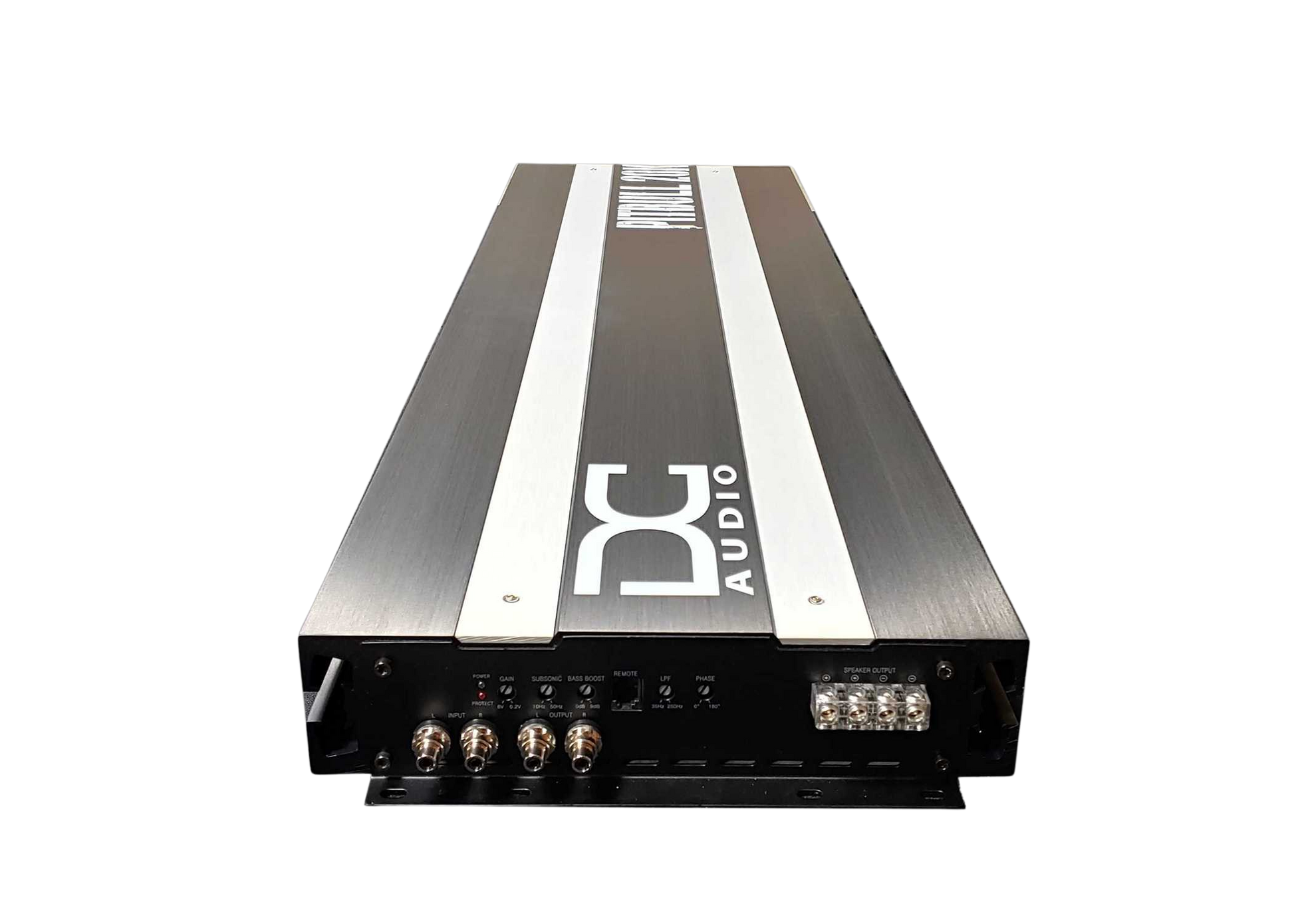

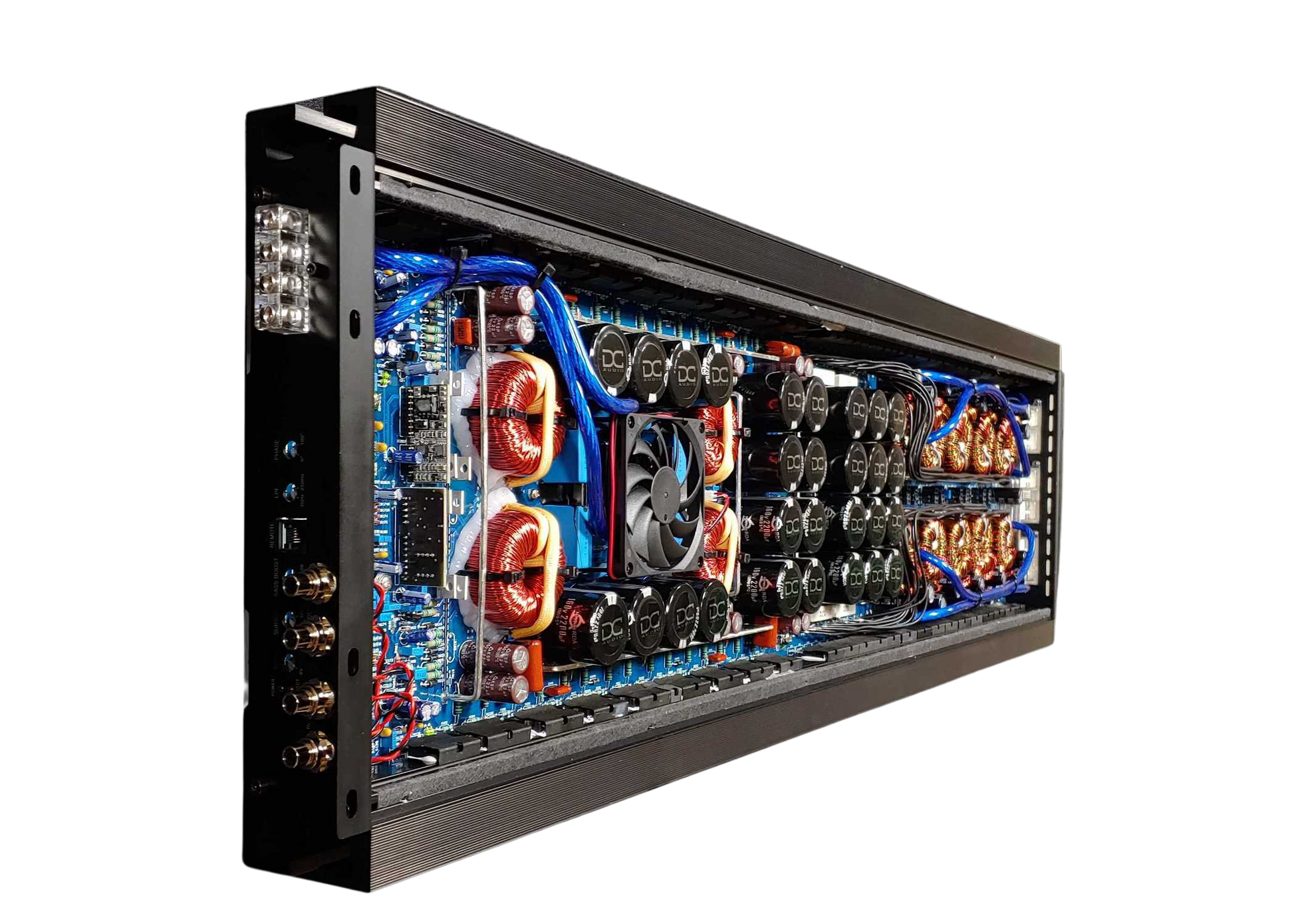

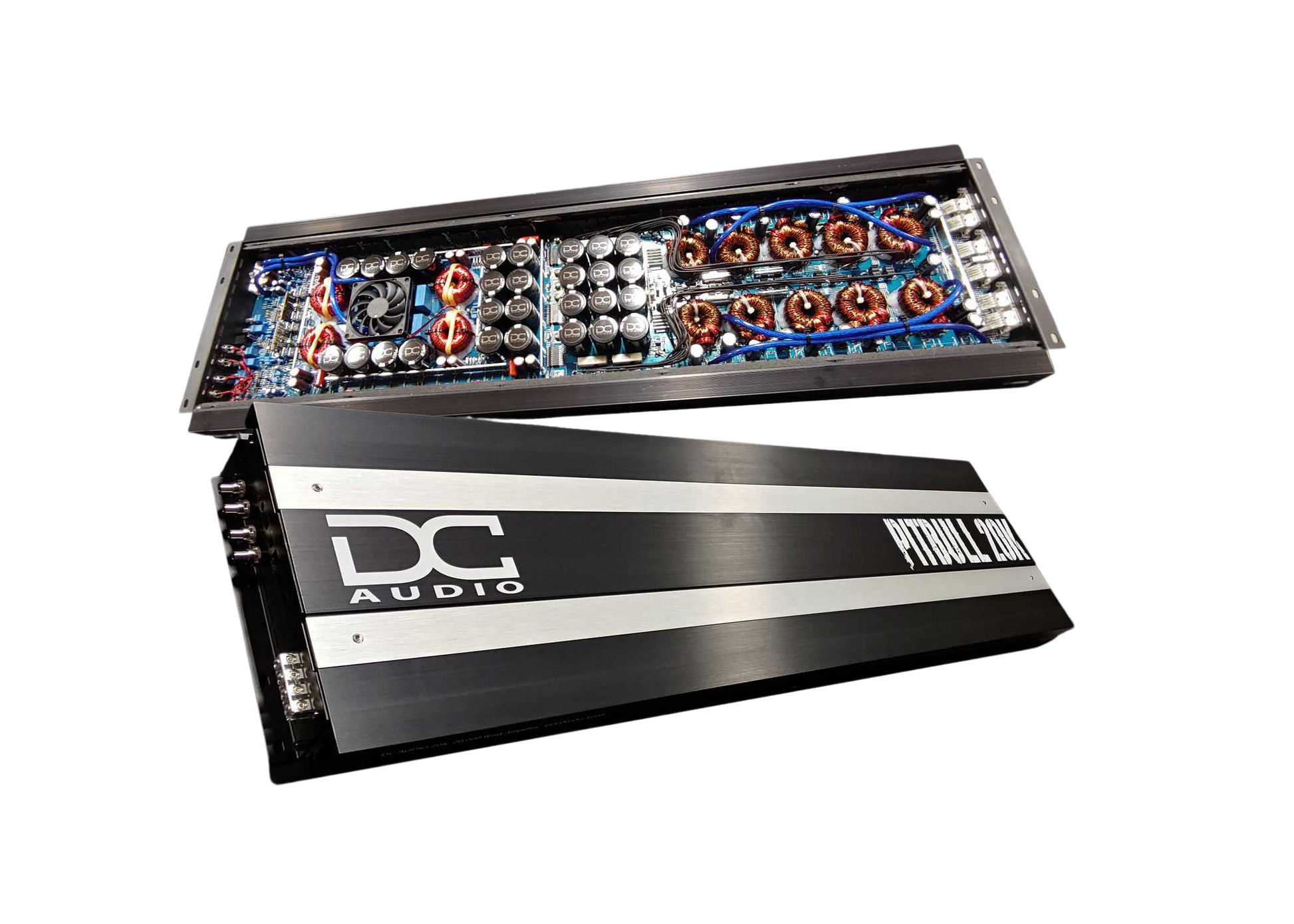

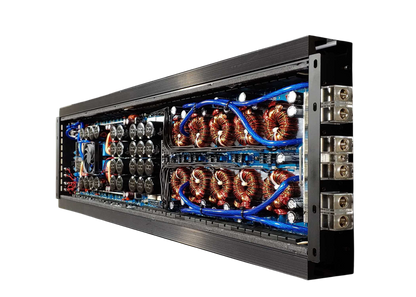

DC Audio Pitbull 20k Amplifier
The Pitbull 20k competition series amplifier is rated as a 20,000 watt mono block. It comes with a bass knob that has a built in Clipping indicator. It is designed for 12-volt systems and will not function over 16.0 volts. Charging over 16.0 or running below 1 ohm will void your warranty.
Output Power (RMS):
- 7,500x1 @ 4 ohms 14.4 volts
- 13,000x1 @ 2 ohms 14.4 volts
- 20,000x1 @ 1 ohms 14.4 volts
Key Features:
- 1 ohm stable
- Variable low pass filter
- Variable subsonic filter
- Variable bass boost
- RCA Pass Thru
- Wired remote control
- Clipping Indicator
- 8awg Speaker Terminals
- Triple 1/0awg Power and Ground Inputs
- Tiffany Style RCA jacks
- HD End Plates
Full Specs:
| DC Amp Model: | Pitbull 20k |
|---|---|
| Input Sensitivity | 6V~0.2V |
| Frequency Response | 15Hz~270Hz |
| 24dB / Octave Crossover | YES |
| Low Pass | 35Hz ~ 250Hz |
| Subsonic Filter | 10Hz-50hz |
| Bass Boost @45hz | 0 ~ 9db |
| Phase Shift | 0 ~ 180 |
| Remote Control | Yes |
| Clip Indicator | Yes |
| Signal to Noise Ratio | dB100 |
| Damping Factor | 150< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 660 amp x 3 |
| LED Status Lights | Power and Protect |
| Master/Slave | No |
| Heatsink Length | 37.75"/958mm |
| Heatsink Width | 11.5"/292mm |
| Heatsink Height | 2.6"/66mm |
