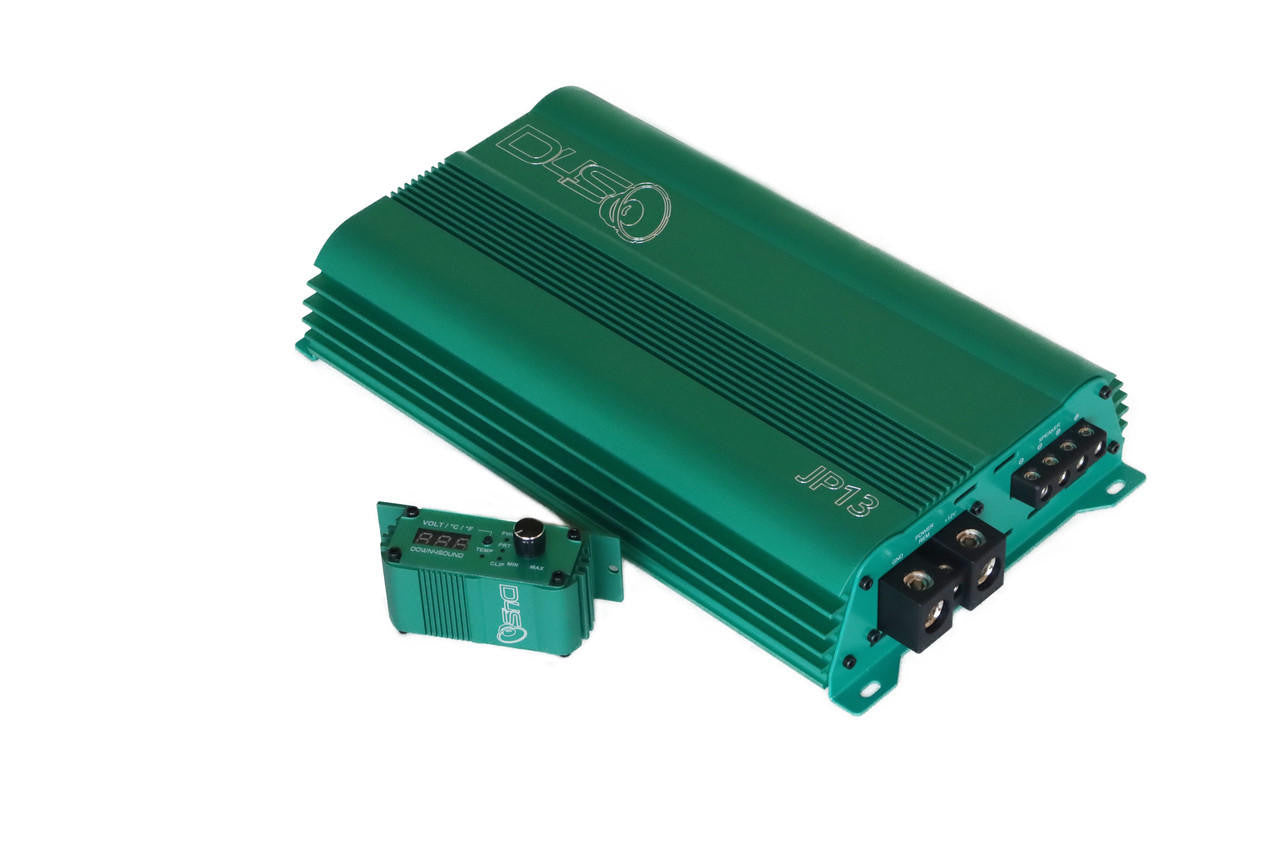

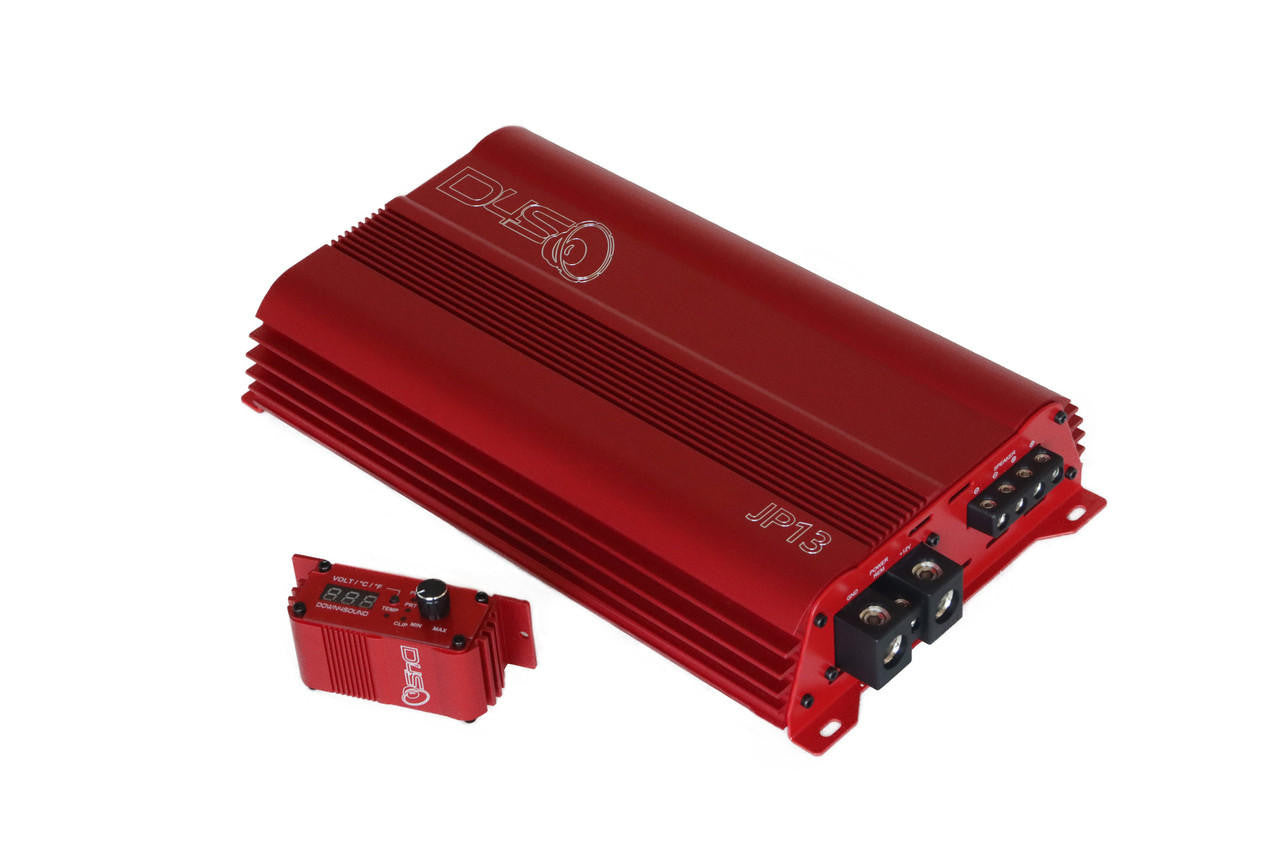

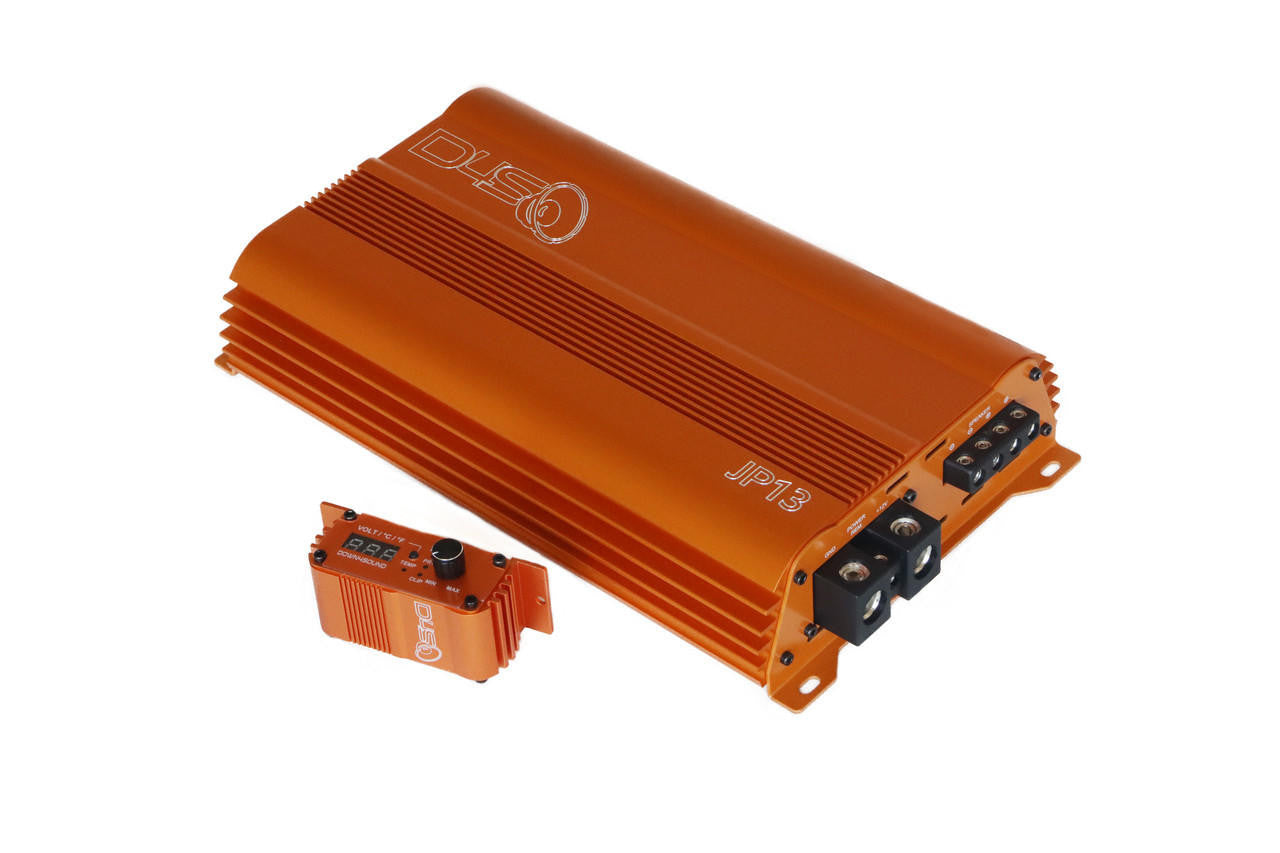

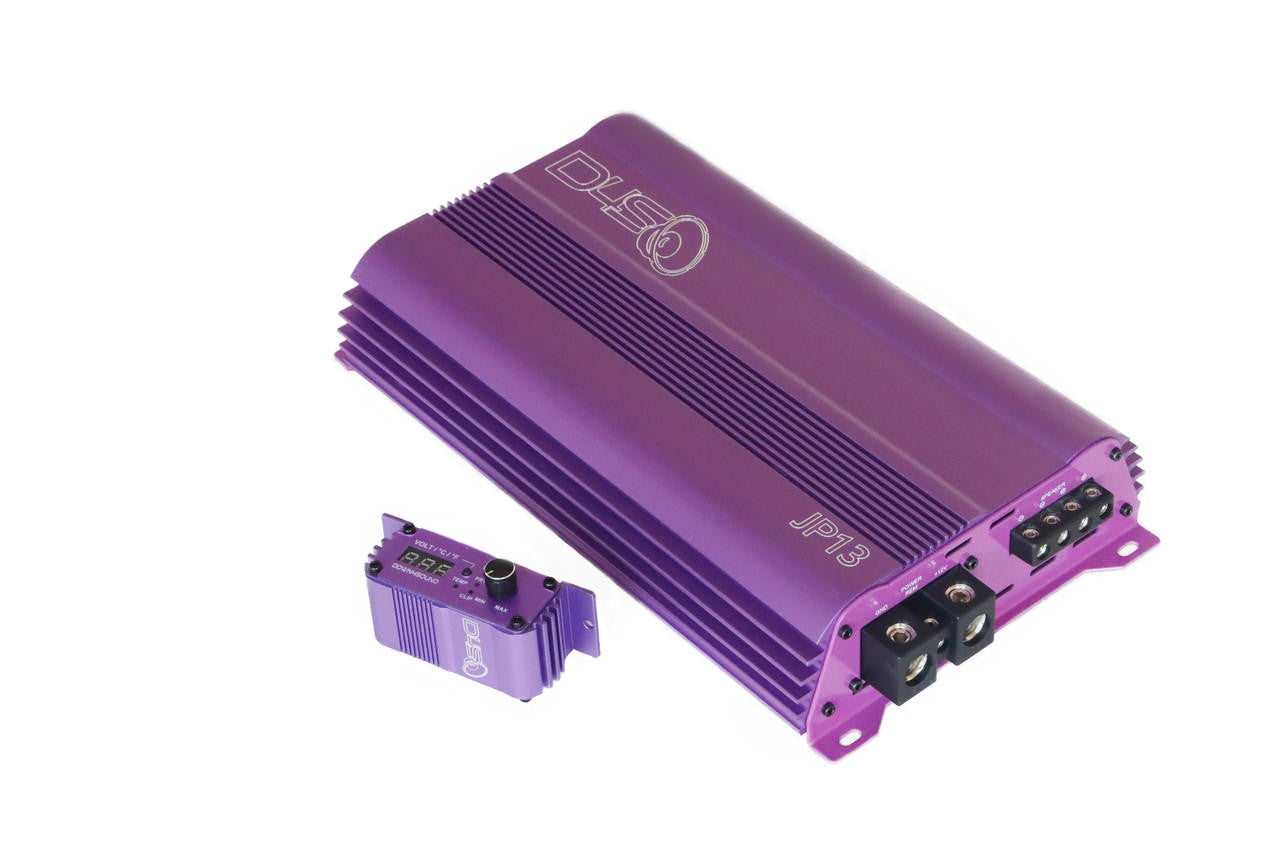

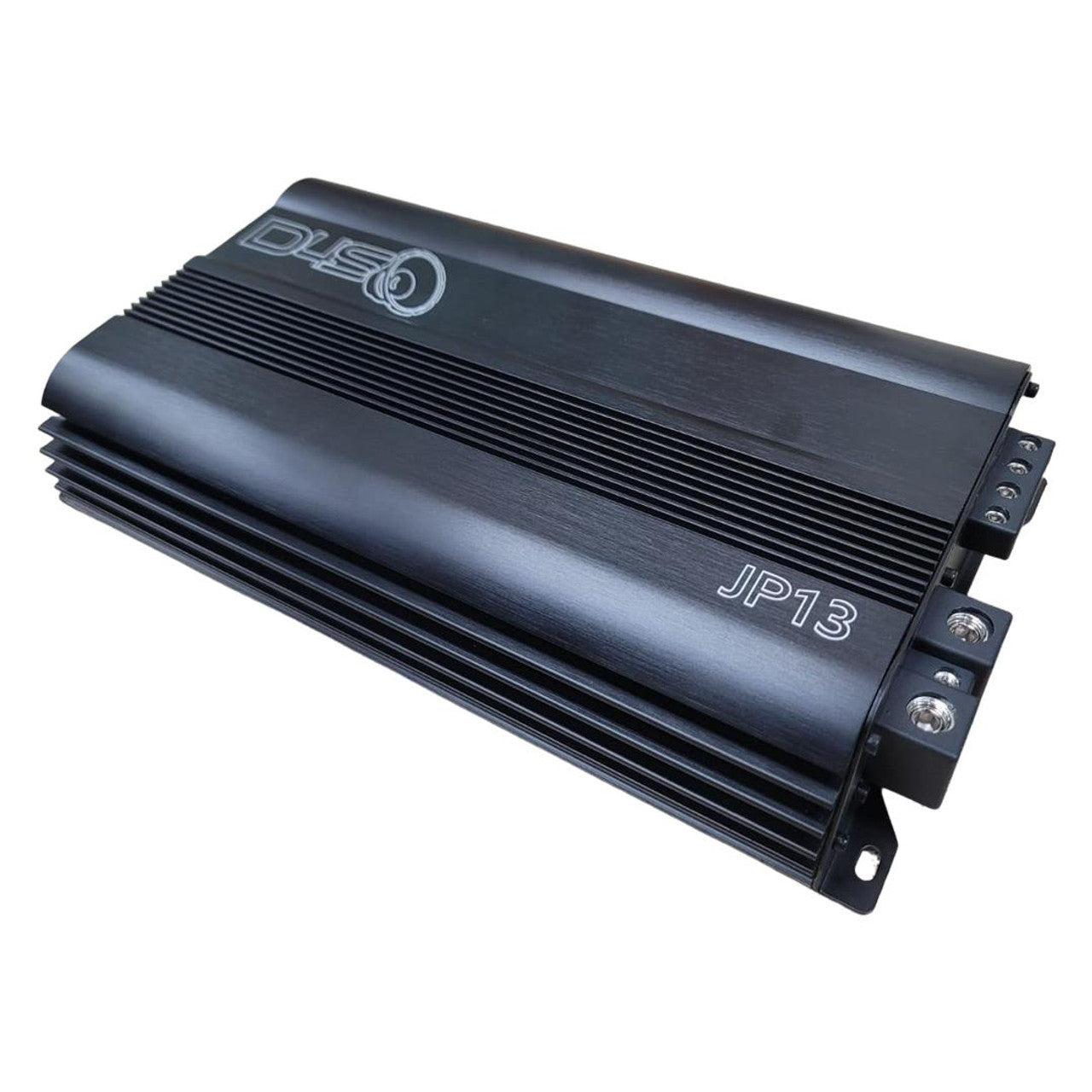

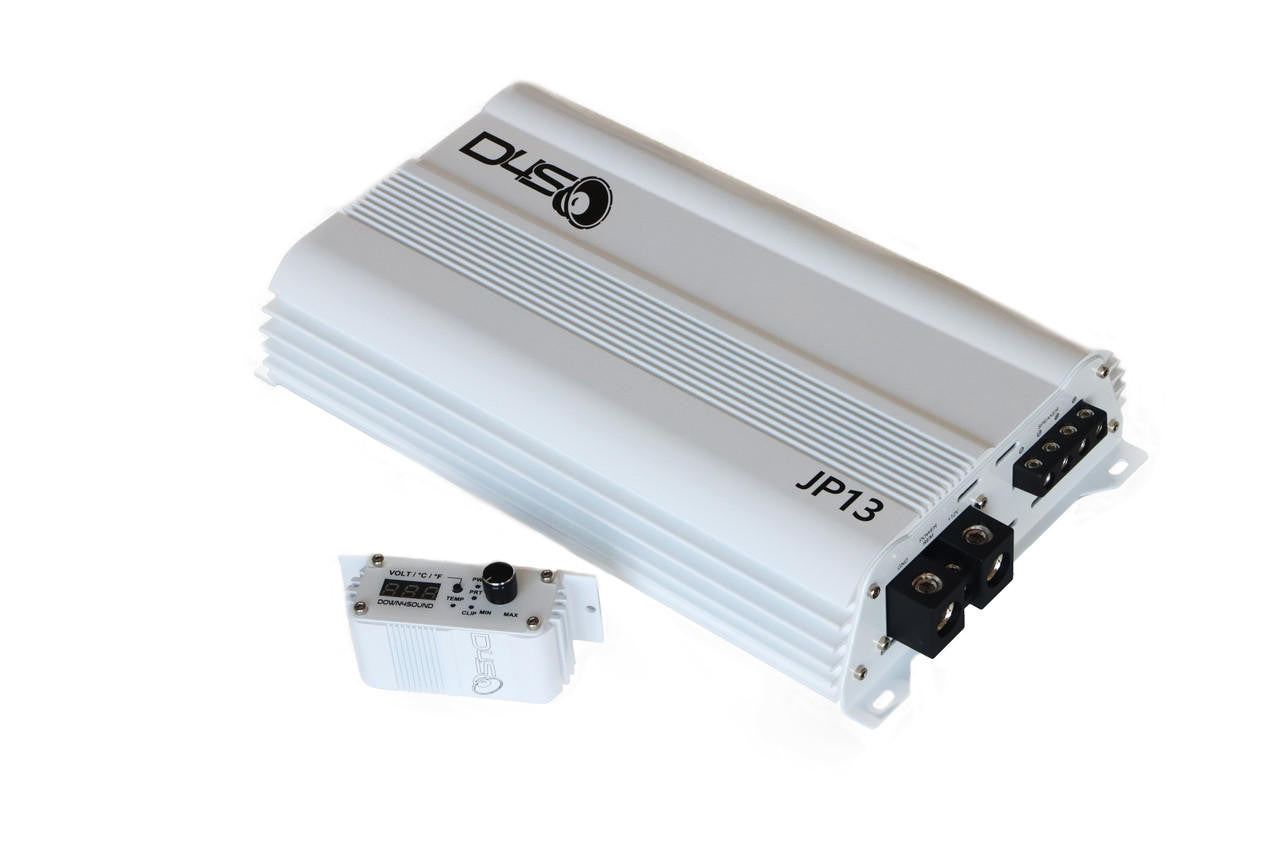

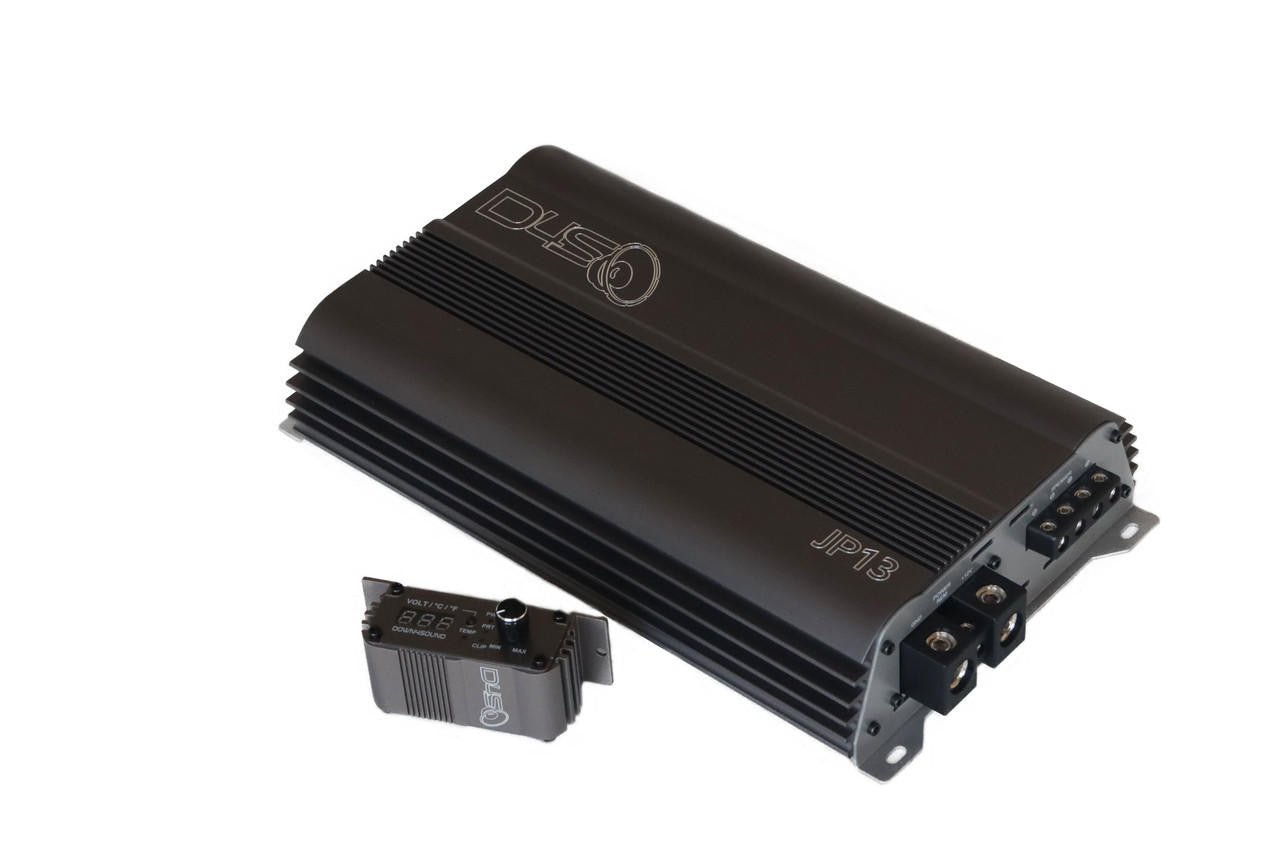

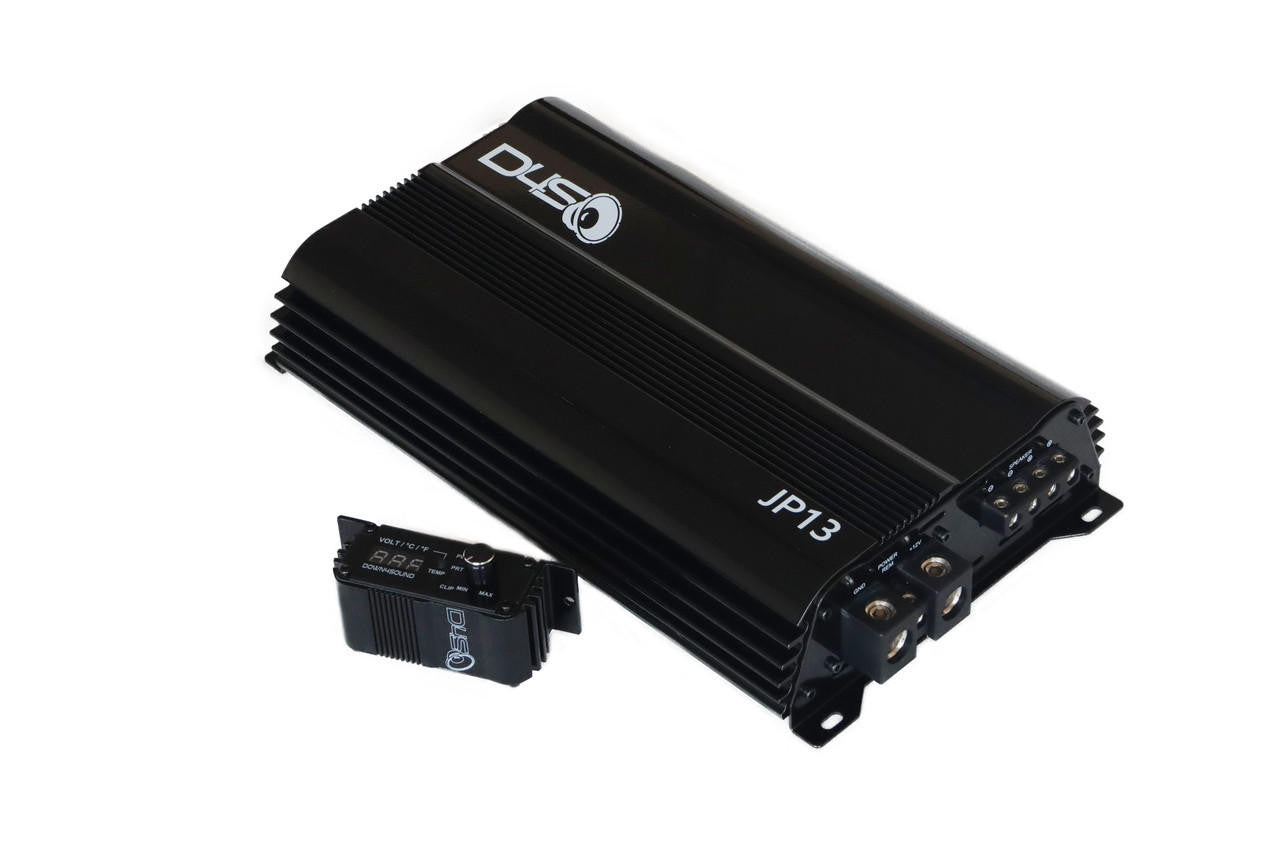

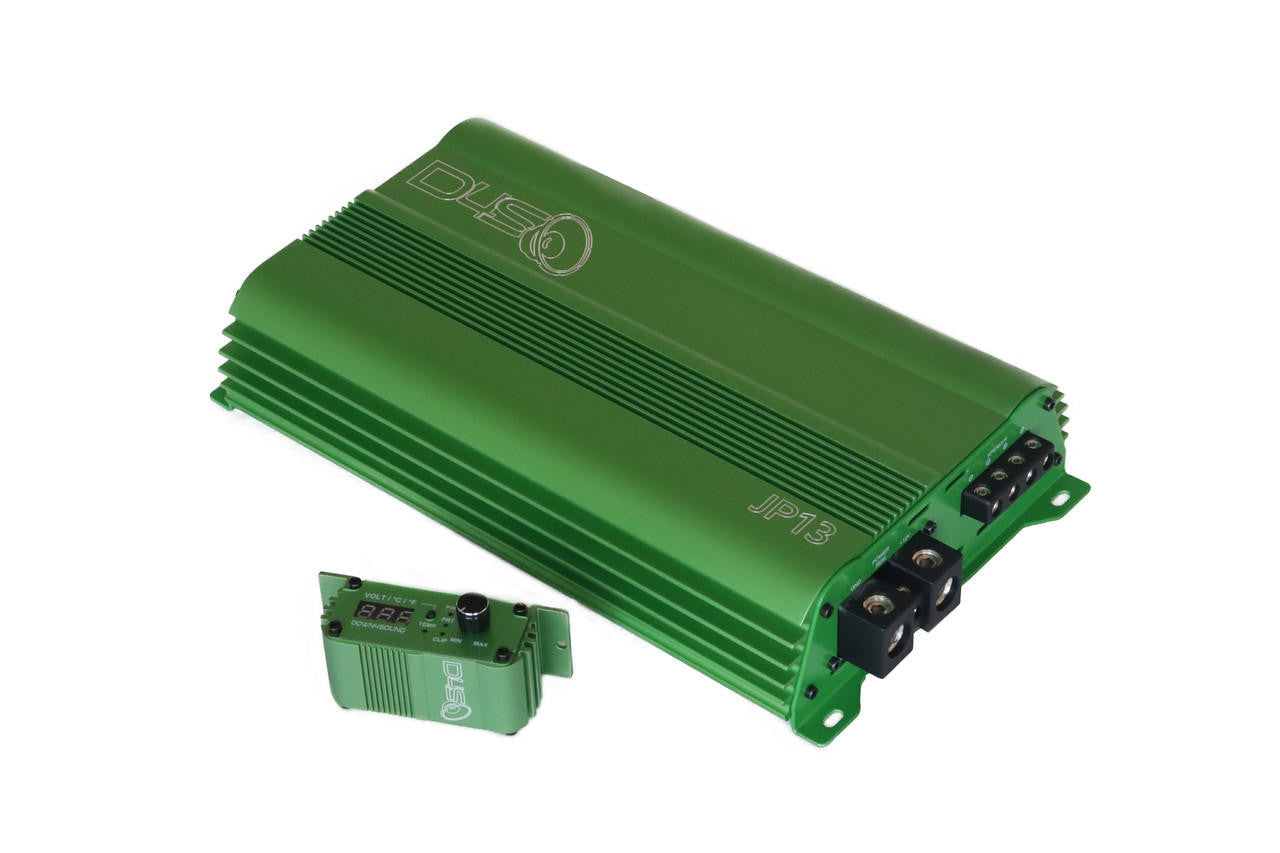

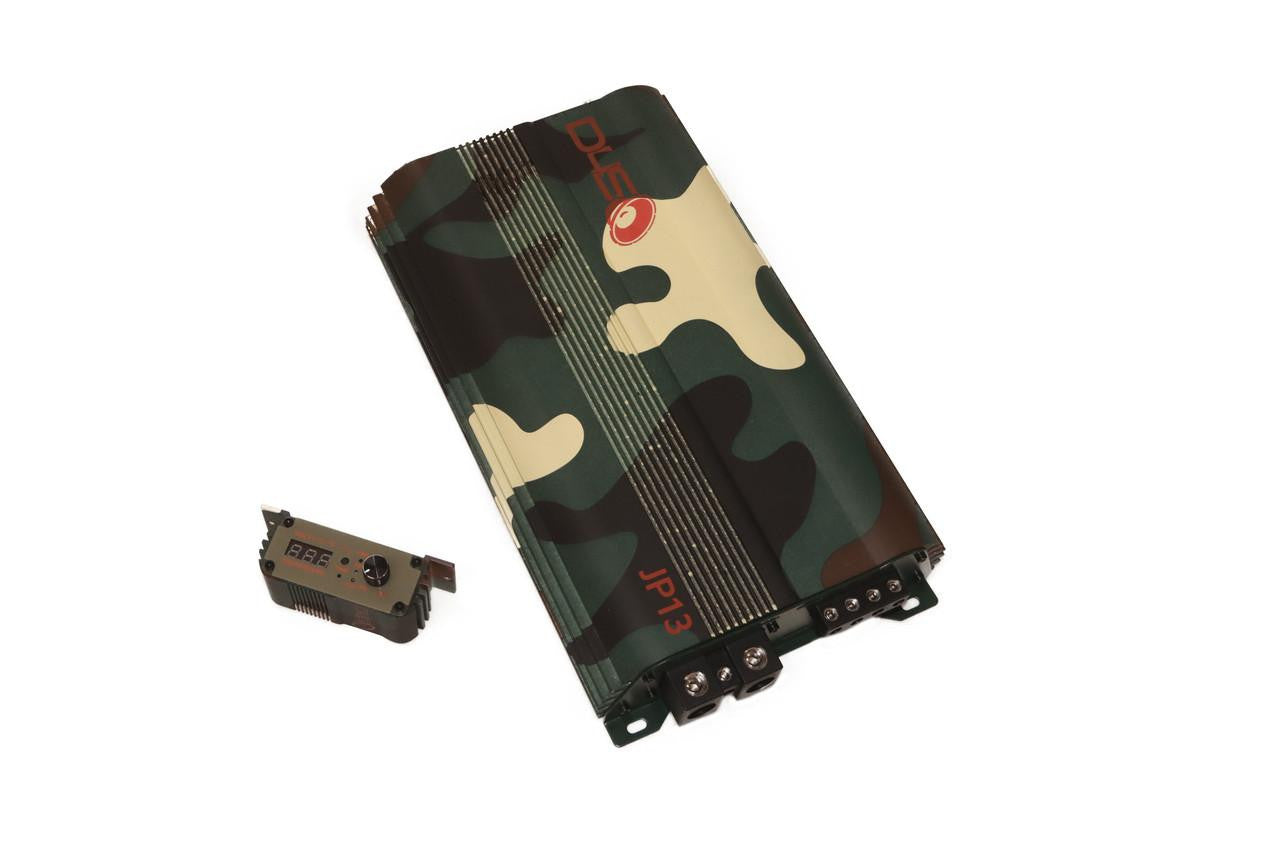

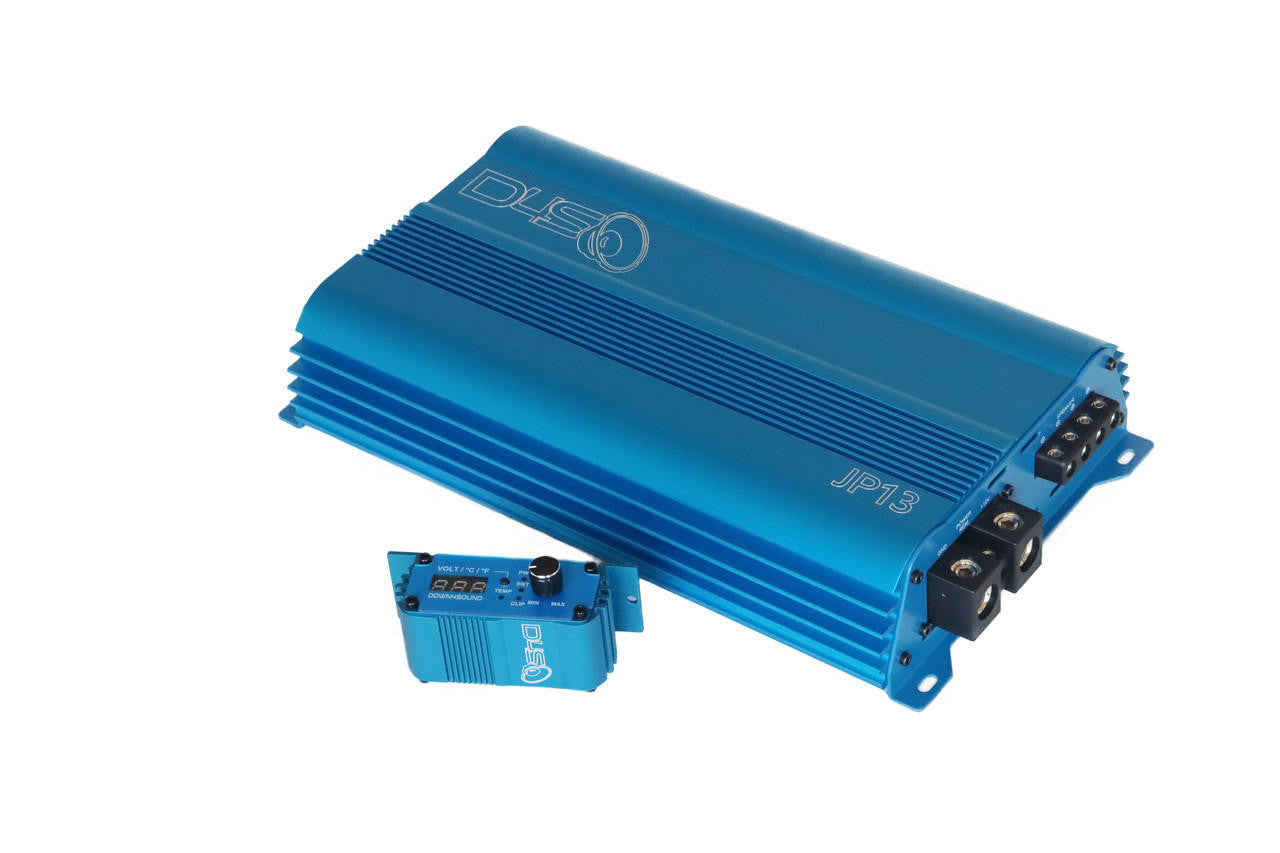

1300x1 (1300W RMS) 1CH AMPLIFIER JP13

Key Features:

• STRAPPABLE DIGITAL MONOBLOCK AMPLIFIER
• STABLE INTO 1 OHM MONO LOAD
• HIGH SPEED MOSFET POWER SUPPLY
• VARIABLE LOW PASS FILTER
• VARIABLE SUBSONIC FILTER
• VARIABLE BASS BOOST
• 4 WAY PROTECTION CIRCUITS (THERMAL, HIGH & LOW VOLTAGE, SPEAKER SHORT AND DC)
• REMOTE CONTROL
• HIGH PURITY COPPER PRINTED CIRCUIT BOARD
• 0 GAUGE POWER / GROUND TERMINALS

Specifications:

• RMS Power:
  • 1300W x 1 @ 14.4V
  • 1000W x 1 @ 14.4V
  • 700W x 1
  • 2600W x 1
• Frequency Response: 12Hz - 270Hz
• Low Pass Filter: 35Hz - 250Hz
• Subsonic Filter: 10Hz - 50Hz
• Bass Boost: 0 - 9 dB
• Input Sensitivity: 6V - 0.2V
• Signal to Noise Ratio: 95dB <
• Total Harmonic Distortion: Less than 0.1%
• Fuse Rating: 200A (Single), 400A (Strapped)
• Dimensions: 11.82" L x 7.40" W x 2.24" H
