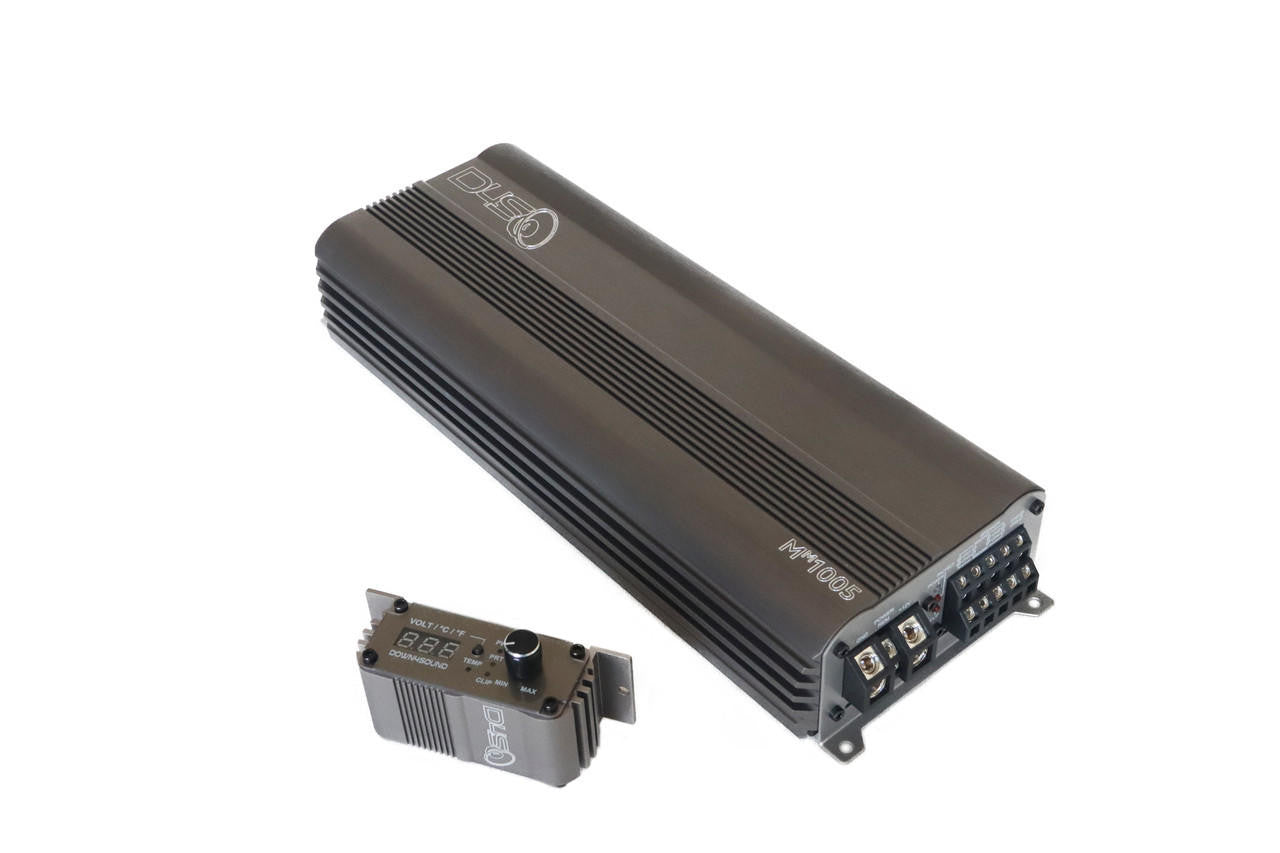

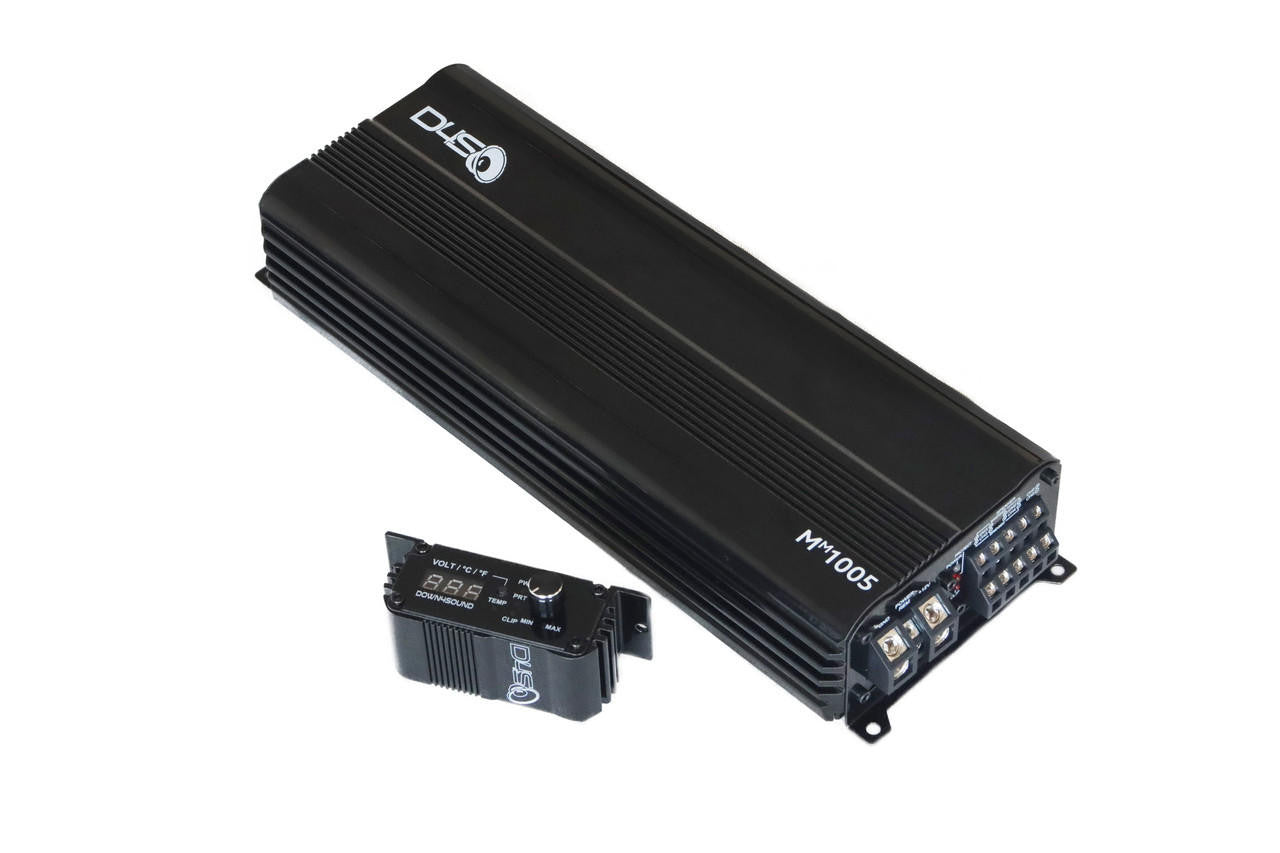

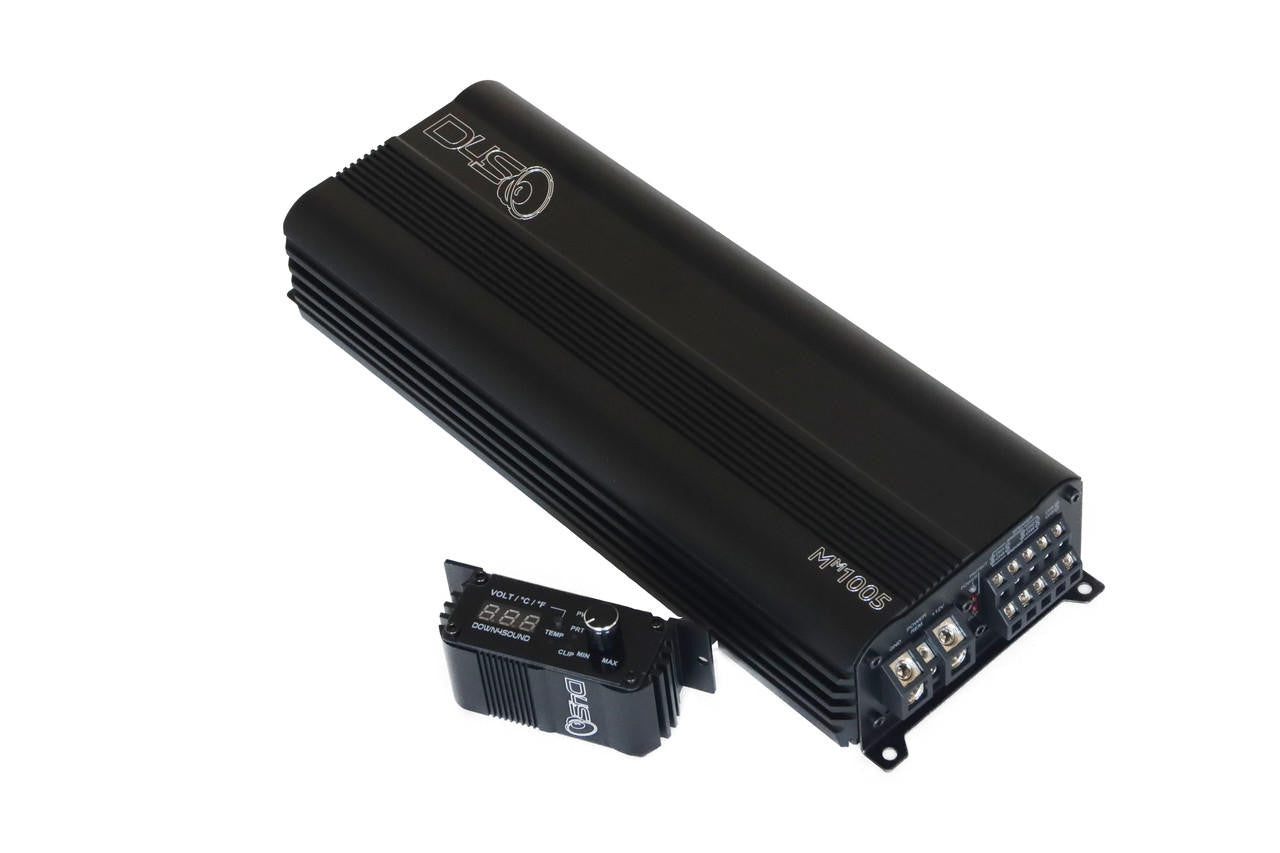

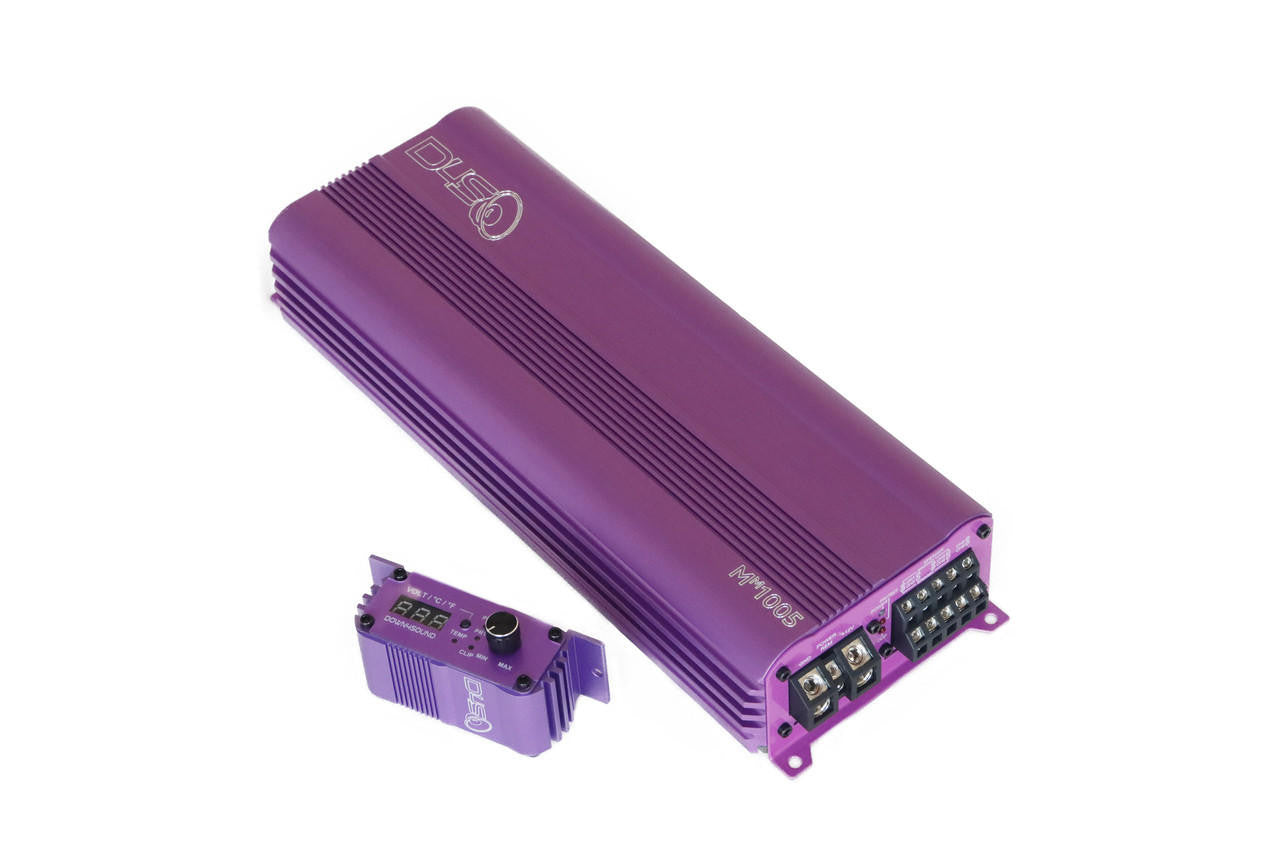

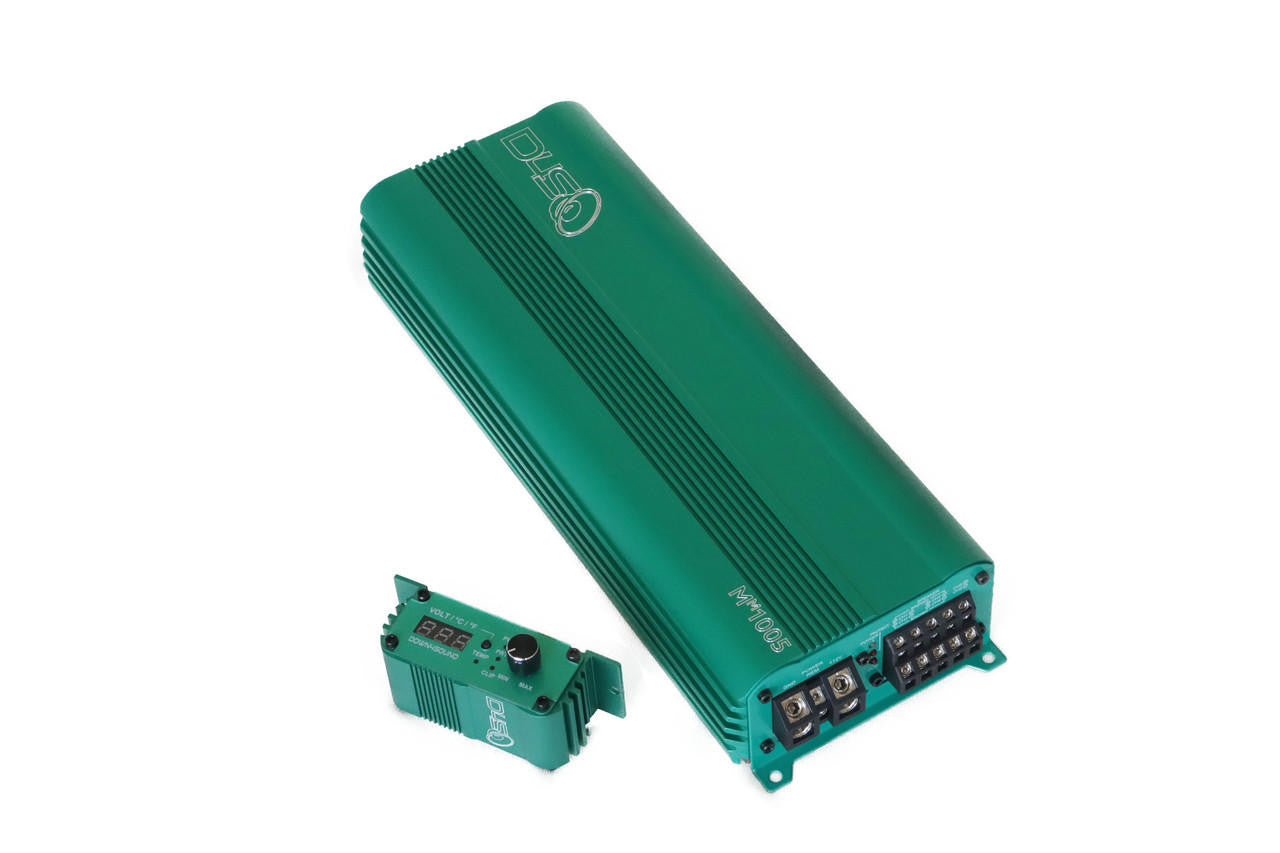

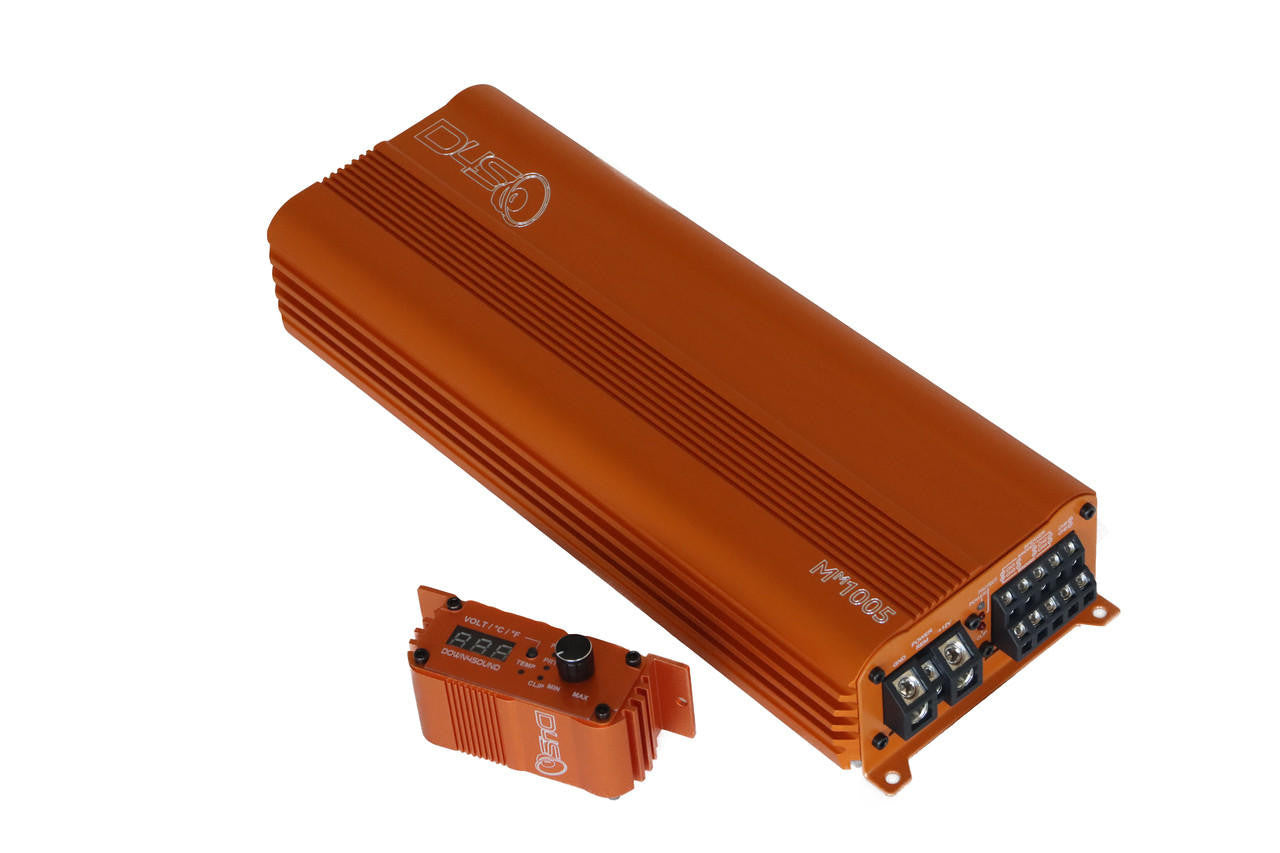

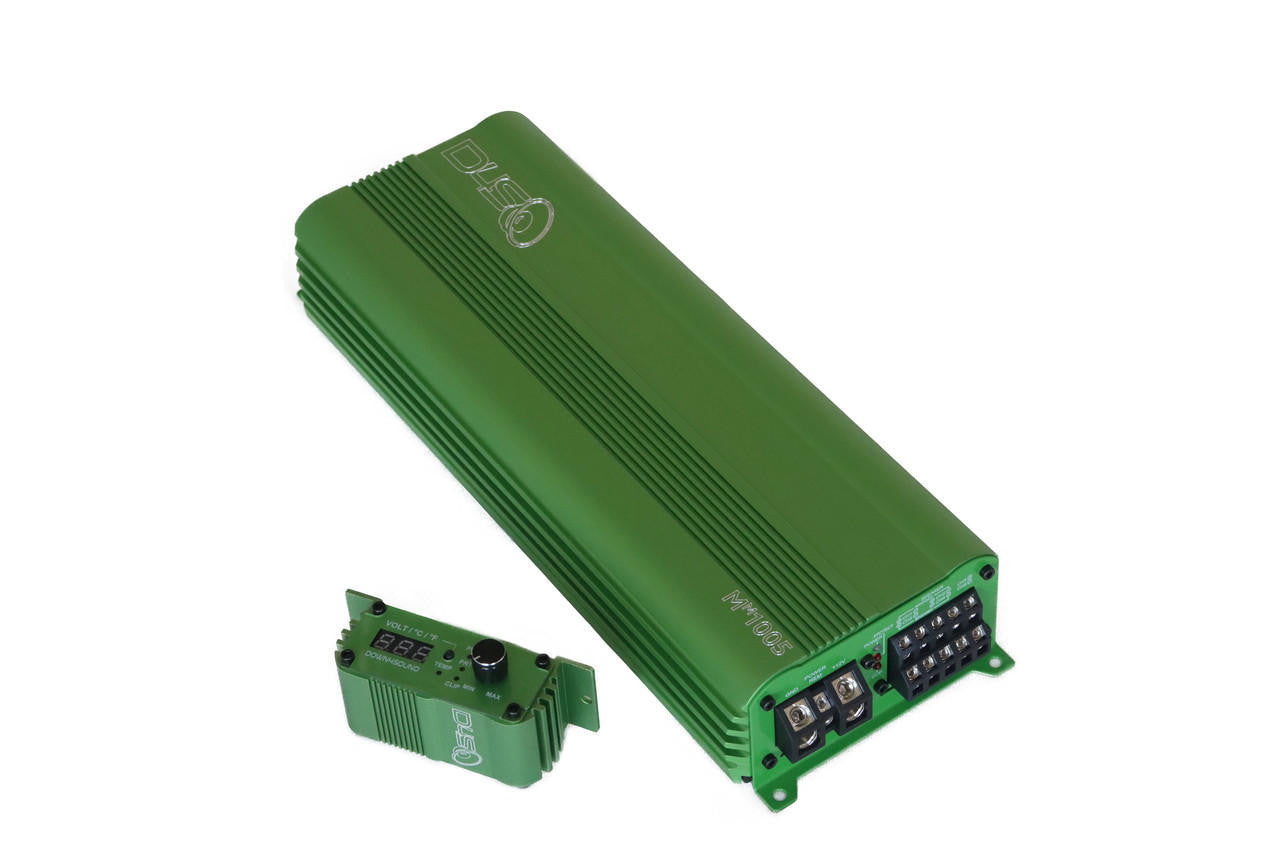

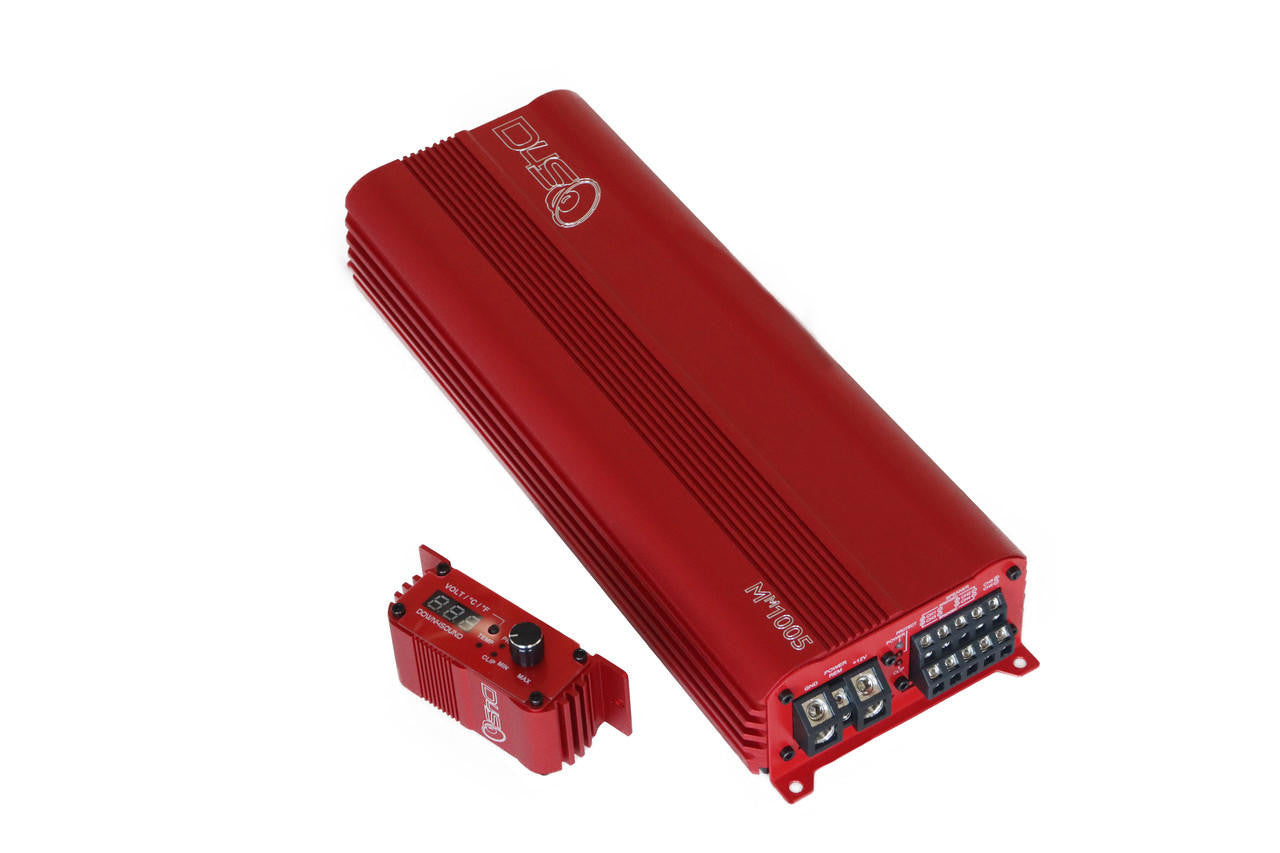

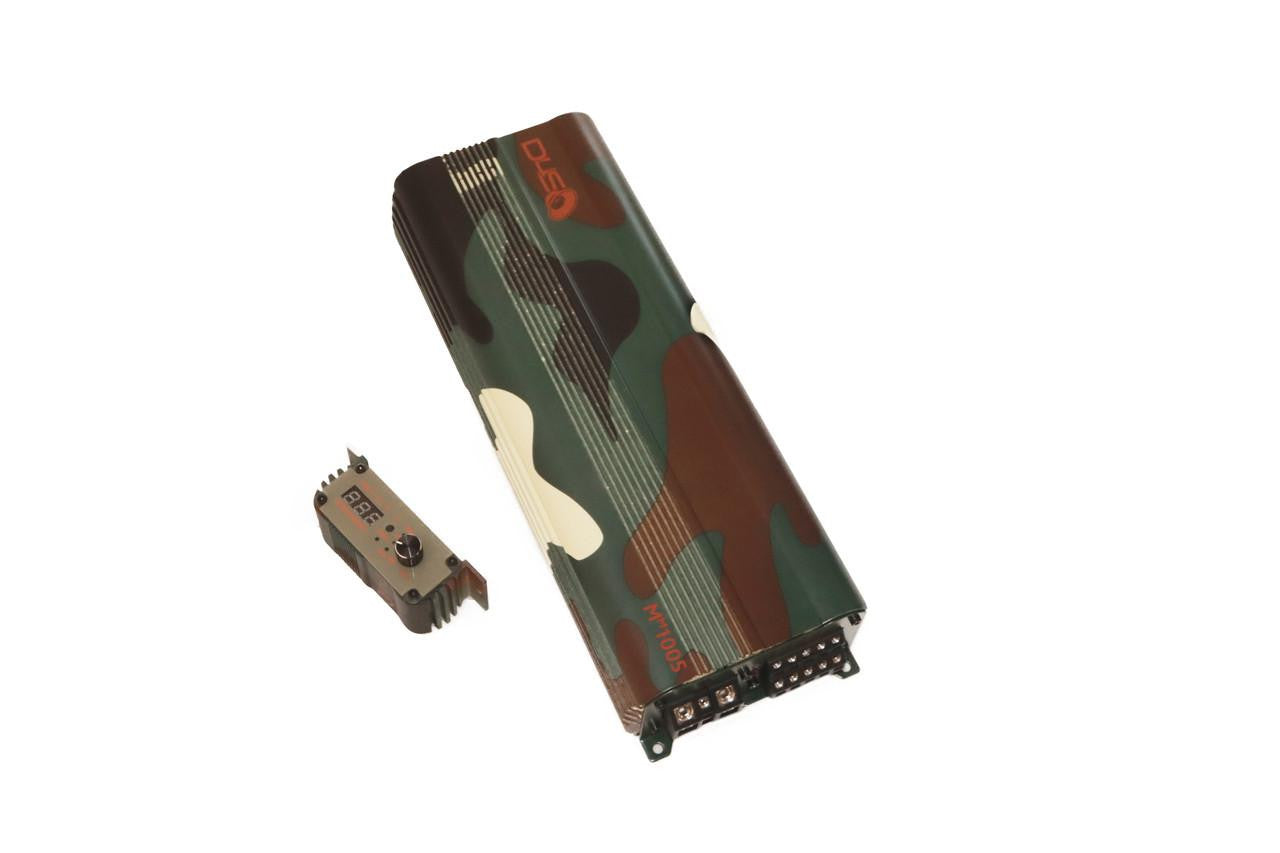

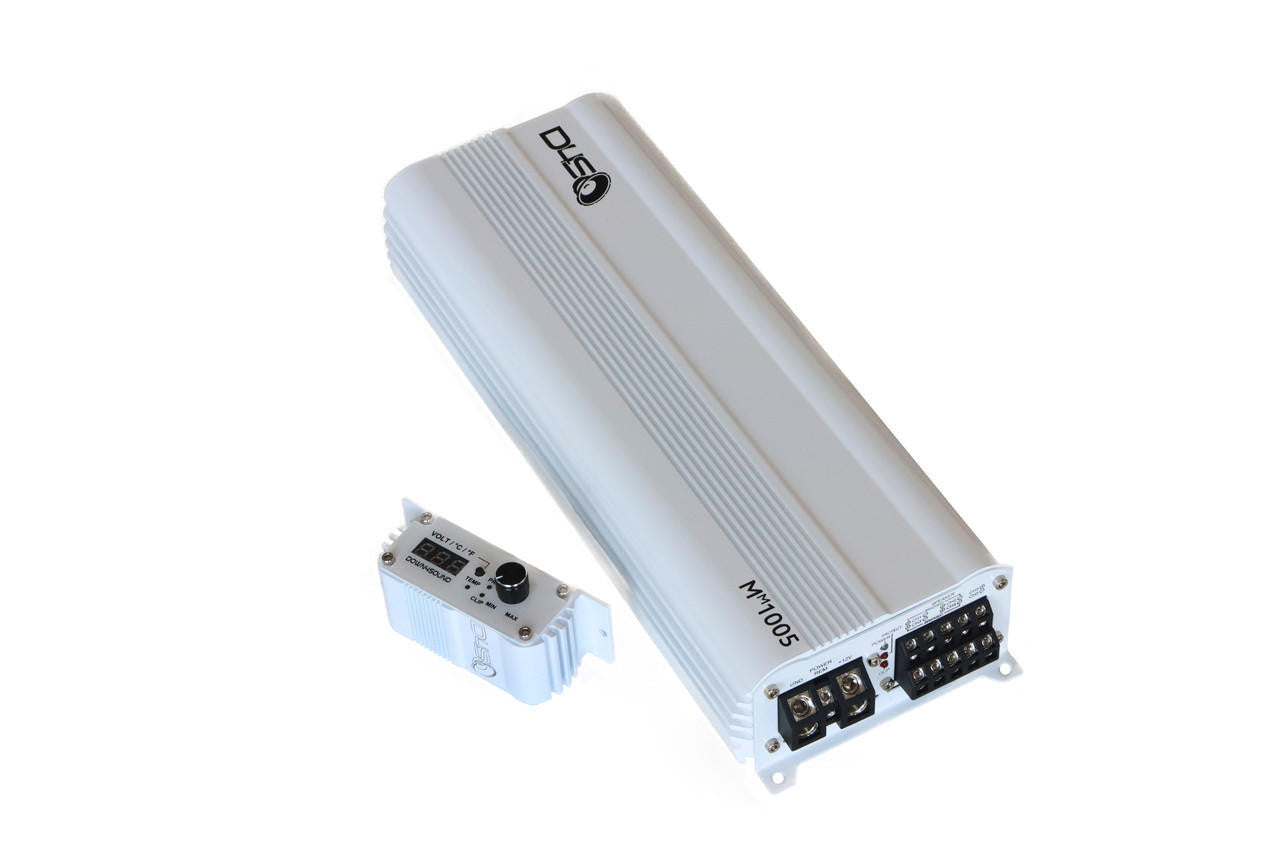

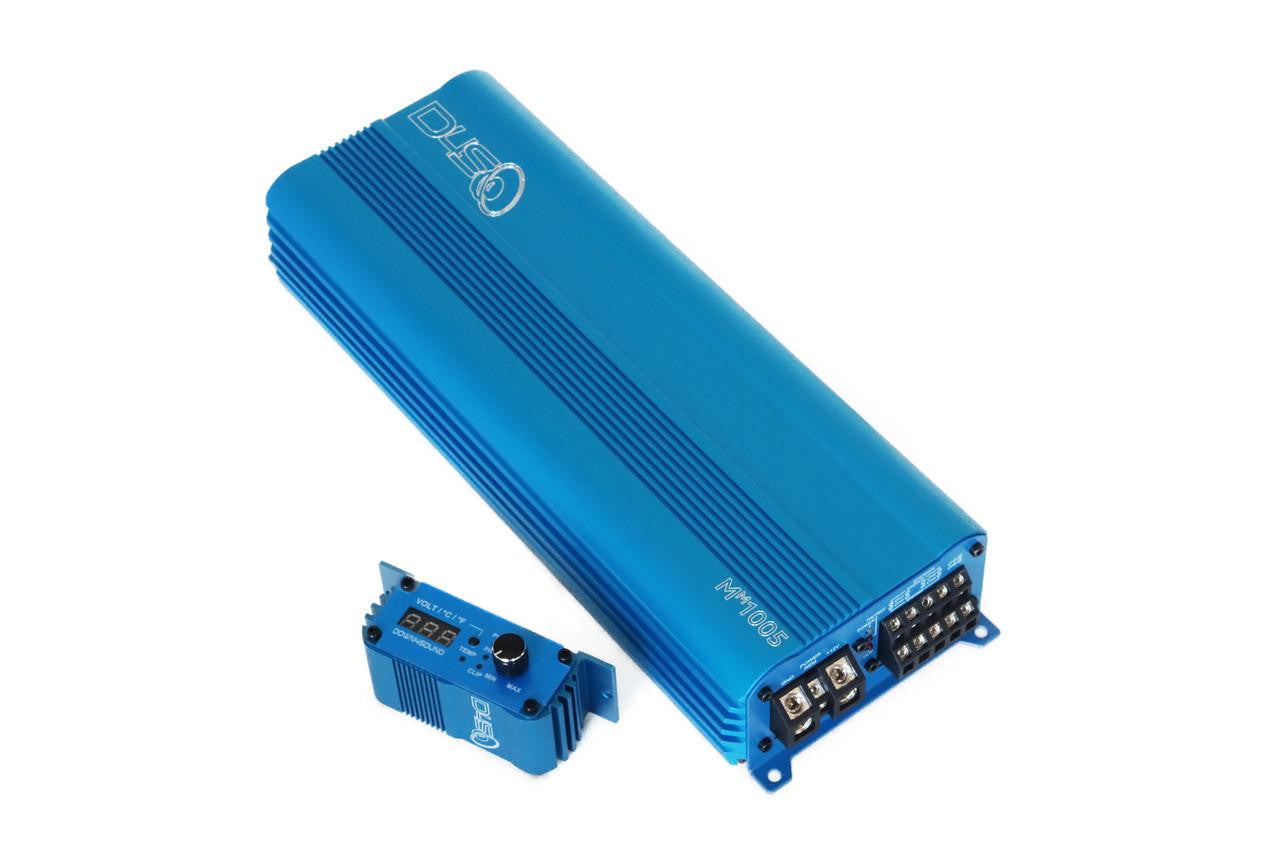

120x4 + 500x1 (MINI MAXX) MM1005 5 channel Amplifier

Power up your car audio system with the Down4Sound MM1005 (MINI MAXX) a dynamic 5-channel amplifier designed to deliver exceptional sound quality and performance.

Key Features:

• FULL RANGE & DIGITAL 5 CHANNEL AMPLIFIER
• CH1-CH4 STABLE INTO 2OHM STEREO OR 4OHM BRIDGED
• CH5 STABLE INTO 1OHM MONO
• HIGH SPEED MOSFET POWER SUPPLY
• VARIABLE HIGH PASS FILTER
• VARIABLE HIGH PASS FILTER X10 FOR CH3 & CH4
• LOW PASS FILTER MULTIPLY X10 FOR CH3 & CH4
• BAND PASS FILTER CAPABLE FOR CH3 & CH4
• VARIABLE SUBSONIC FILTER
• 4 WAY PROTECTION CIRCUITS (THERMAL, HIGH & LOW VOLTAGE, SPEAKER TEMPERATURE DISPLAY, SHORT AND DC)
• REMOTE BASS KNOB WITH VOLTMETER & SHORT AND DC
• HIGH PURITY COPPER PRINTED CIRCUIT BOARD
• 4 GAUGE POWER / GROUND TERMINALS

Specifications:

• RMS power, 1ohm for CH5: 500W x 1
• RMS power, 2ohm: 120W x 4 + 400W x 1
• RMS power, 4ohm: 80W x 4 + 250W x 1
• RMS power, 4ohm Bridged: 260W x 2 + 250W x 1
• Frequency Response: 10Hz - 23KHz for CH1 - CH4, 11Hz - 260Hz for CH5
• High Pass Filter (CH1 & CH2): 20Hz - 5KHz
• High Pass Filter (CH3 & CH4): 20(200)Hz - 800(8K)Hz, MULTIPLY X10
• Low Pass Filter (CH3 & CH4): 50(500)Hz - 800(8K)Hz, MULTIPLY X10
• BANDPASS FILTER: YES
• Subsonic Filter (CH5): 10Hz - 50Hz
• Low Pass Filter (CH5): 35Hz - 250Hz
• Remote Bass Knob: Voltmeter & Temperature display remote control included
• Input Sensitivity: 6V - 0.2V
• Signal to Noise Ratio: 92dB <
• Total Harmonic Distortion (T.H.D @ 4ohm): Less than 0.1%
• Fuse Rating: 80A
• Length (inches): 12.20"
• Width x Height (inches): 4.87" W x 2.13" H
